◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#150407) — 25 parça

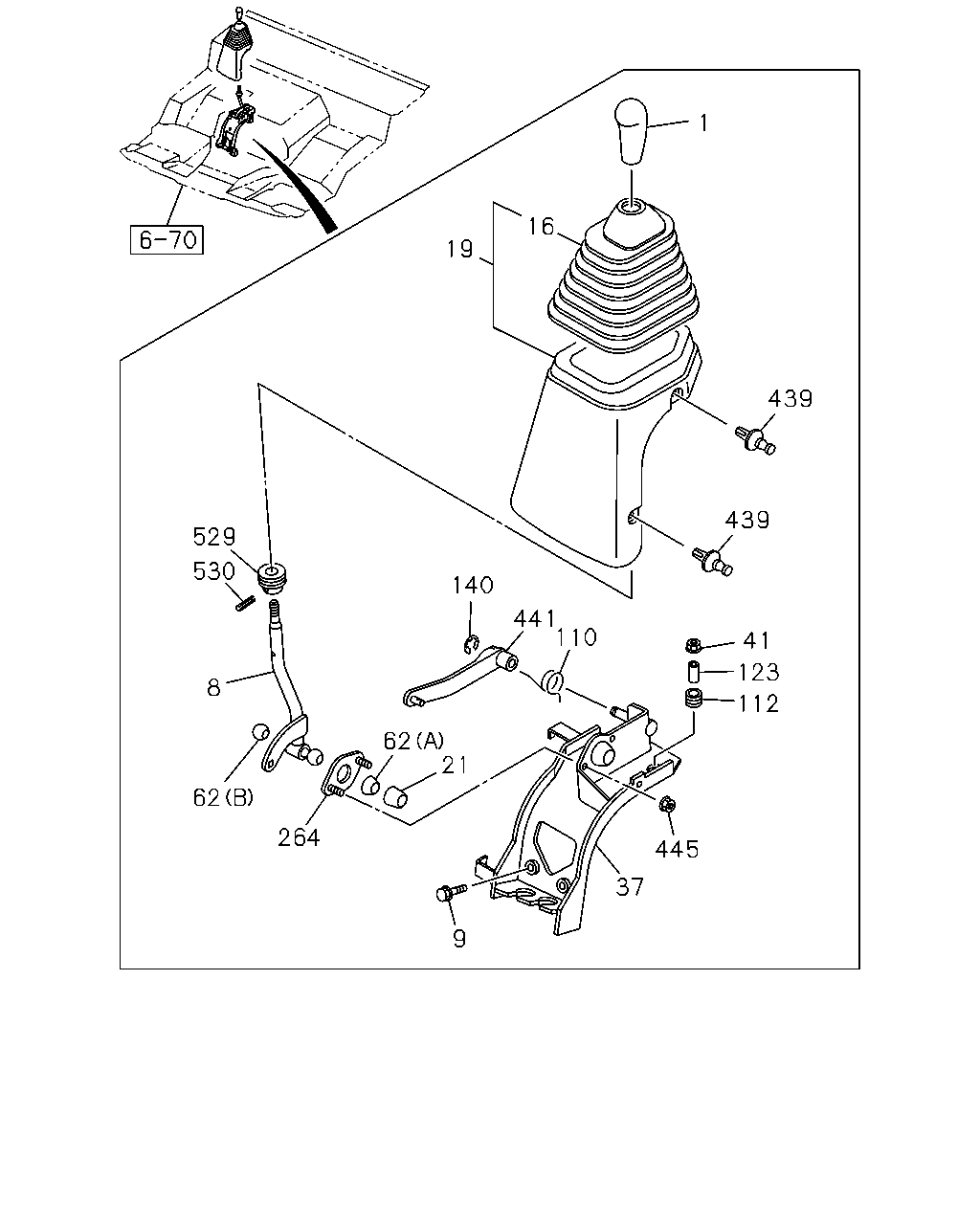

çizim 450207
1 16 19 439 439 41 123 112 445 37 9 264 62 8 530 529 21 62 140 441 110
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
MZW6P M/T<RSZ> THA 		1-33611-070-1 01 1 1410-
1 KNOB; CHANGE LEVER
ZF9S1110 M/T<Y5E> THA 		1-33611-099-1 01 1 1410-
8 LEVER; CHANGE
MZW6P M/T<RSZ> THA 		8-98071-282-0 01 1 1410-
8 LEVER; CHANGE
ZF9S1110 M/T<Y5E> THA 		8-98093-455-0 01 1 1410-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER THA 		8-94412-342-0 02 1 1410-
16 BOOT; CHANGE LEVER
THA 		1-79998-751-4 01 1 1410-
19 COVER; CHANGE LEVER
GRAY THA 		8-97407-954-0 01 1 1410-
21 SEAT; CHANGE LEVER
THA 		1-33619-429-0 01 1 1410-
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T<RSZ> THA 		8-98071-302-0 01 1 1410-
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T<Y5E> THA 		8-98093-444-0 01 1 1410-
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER THA 		8-97329-625-0 02 1 1410-
62 SEAT; BALL,CHANGE LEVER
(A) THA 		1-33619-427-0 01 1 1410-
62 SEAT; BALL,CHANGE LEVER
(B) THA 		8-97049-147-0 01 1 1410-
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T<RSZ> THA 		1-33619-586-0 01 1 1410-
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T<Y5E> THA 		1-33619-435-0 01 1 1410-
112 RUBBER; CUSHION
THA 		1-33619-442-0 04 1 1410-
123 COLLAR; DIST,CHANGE LEVER
THA 		1-33619-443-0 04 1 1410-
140 RING; SNAP
ID=10 THA 		0-91805-510-0 01 1 1410-
264 PLATE; COVER
THA 		1-33619-430-0 01 1 1410-
439 FASTENER; COVER
GRAY THA 		8-97407-955-0 04 1 1410-
441 LEVER; SELECT
MZW6P M/T<RSZ> THA 		8-98071-283-0 01 1 1410-
441 LEVER; SELECT
ZF9S1110 M/T<Y5E> THA 		8-98093-449-0 01 1 1410-
445 NUT; PLATE
M6 FLANGE THA 		0-91180-106-0 02 1 1410-
529 RING; BOOT
THA 		1-33619-504-0 01 1 1410-
530 PIN; SPRING
THA 		1-33619-505-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
