2-26A — MANUAL TRANSMISSION GEAR (#150403) — 104 parça

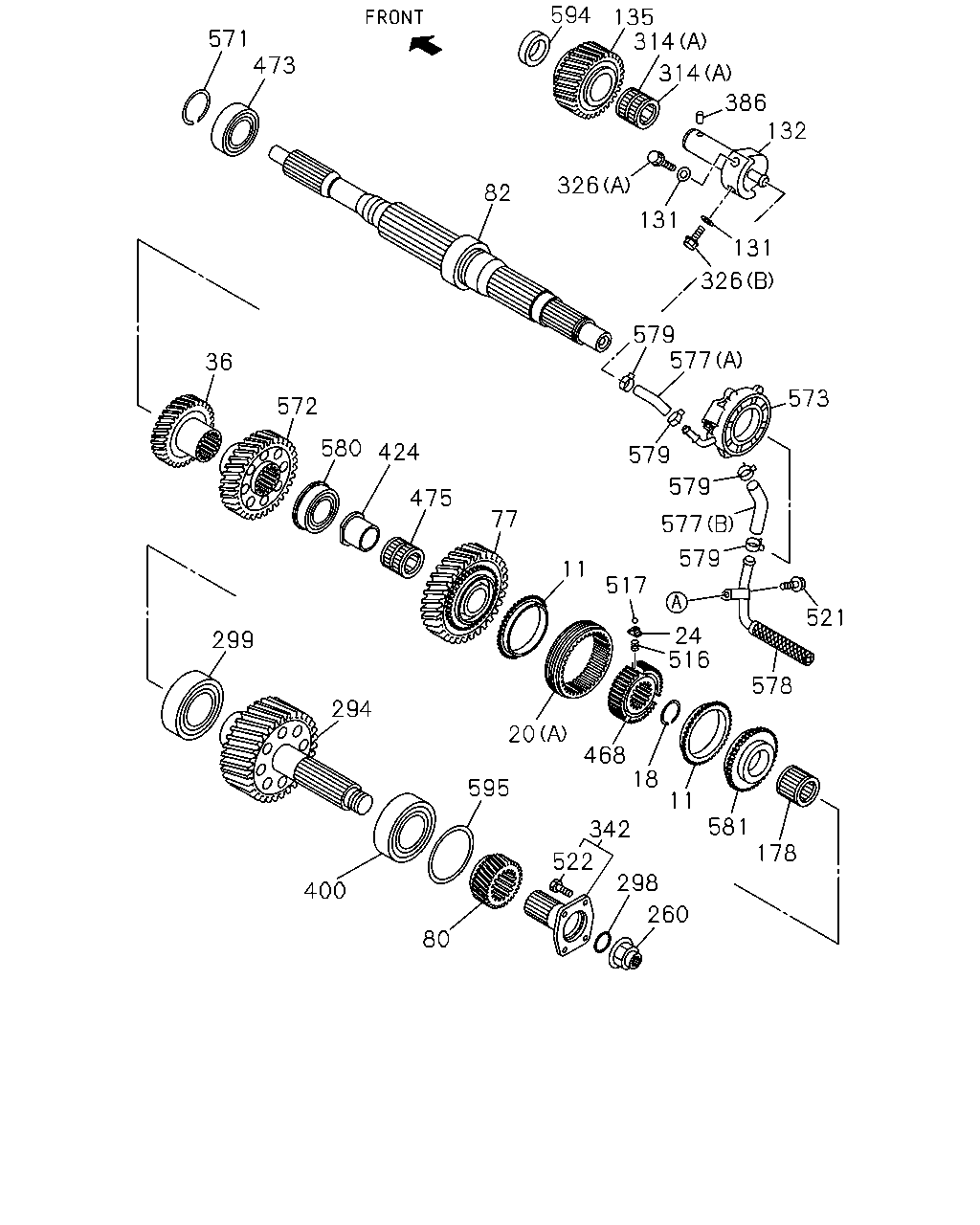

çizim 448558
571 473 594 314 314 135 386 326 82 131 131 132 579 573 579 579 577 579 521 24 517 77 475 424 580 572 36 11 516 578 178 581 11 18 468 20 294 299 400 595 522 298 342 260 577 326 80
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 THA 		8-97241-306-1 02 1 1410-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 THA 		8-97256-855-0 01 1 1410-
20 SLEEVE
(B) Z=45 THA 		8-98034-769-0 01 1 1410-
20 SLEEVE
(A) Z=45 THA 		8-98258-279-0 02 1 1410-
24 BLOCK; INDEX,SYN
THA 		8-97241-313-1 09 1 1410-
36 GEAR; 3RD,MAINSHAFT
Z=29 THA 		8-98168-499-0 01 1 1410-
77 GEAR; 6TH,MAINSHAFT
Z=46 THA 		8-98137-256-0 01 1 1410-
80 GEAR; SPD DRIVE
Z=5 THA 		8-97377-978-0 01 1 1410-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 THA 		8-98245-057-0 01 1 1410-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1410-
132 SHAFT; REV
THA 		8-98009-372-0 01 1 1410-
135 GEAR; REV IDLER
Z=27 THA 		8-98005-601-1 01 1 1410-
178 BEARING; NEEDLE,MAINSHAFT
THA 		8-97253-099-1 01 1 1410-
260 NUT; MAINSHAFT END
M36 FLANGE THA 		8-98014-140-0 01 1 1410-
294 SHAFT; OUTPUT
Z=43 THA 		8-97380-571-0 01 1 1410-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 THA 		1-09623-380-0 01 1 1410-
299 BEARING; OUTPUT SHAFT FRT
THA 		8-97377-970-0 01 1 1410-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT THA 		1-09811-017-0 02 1 1410-
314 BEARING; NEEDLE,REV GEAR
(B) NSK THA 		8-97253-111-0 01 1 1410-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE THA 		0-29261-050-0 01 1 1410-
326 BOLT; REV SHAFT
(B) M10X50 THA 		8-98014-738-0 01 1 1410-
342 FLANGE; OUTPUT
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA 		8-98155-332-0 01 1 1410-
386 PIN; REV SHAFT
THA 		9-08150-408-0 01 1 1410-
400 BEARING; OUTPUT SHAFT RR
THA 		8-97377-977-0 01 1 1410-
424 COLLAR; 6TH GEAR
THA 		8-98125-318-0 01 1 1410-
468 HUB; CLU,5TH & 6TH
THA 		8-98075-734-0 01 1 1410-
473 BEARING; INPUT SHAFT
THA 		8-97377-950-0 01 1 1410-
475 BEARING; 6TH
COLLAR OD=-49.999 THA 		8-98101-505-0 01 1 1410-
475 BEARING; 6TH
COLLAR OD=50.000- THA 		8-98142-265-0 01 1 1410-
516 SPRING; SYNCHRO,INDEX
THA 		8-98032-197-0 09 1 1410-
517 BALL; SYNCHRO,INDEX
THA 		8-97252-935-0 09 1 1410-
521 BOLT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410-
522 BOLT; FLANGE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M16X51 W/MARK THA 		1-46219-086-0 04 1 1410-
571 RING; SNAP,BRG
THA 		8-97377-951-0 01 1 1410-
572 GEAR; 4TH,INPUT
Z=37 THA 		8-98168-500-0 01 1 1410-
573 PUMP ASM; OIL
THA 		8-98212-241-0 01 1 1410-
577 HOSE; OIL PUMP
(A) THA 		8-98033-981-0 02 1 1410-
577 HOSE; OIL PUMP
(B) THA 		8-98033-982-0 02 1 1410-
578 SCREEN; OIL PUMP
THA 		8-98009-345-0 02 1 1410-
579 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 07 1 1410-
580 BEARING; MAINSHAFT RR
THA 		8-97377-953-0 01 1 1410-
581 CLUTCH; DOG,5TH GEAR
THA 		8-97377-956-0 01 1 1410-
594 WASHER; THRUST,REV IDLE
THA 		8-98005-633-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.44 THA 		8-97377-984-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.50 THA 		8-97377-985-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.56 THA 		8-97377-986-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.62 THA 		8-97377-987-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.68 THA 		8-97377-988-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.74 THA 		8-97377-989-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.80 THA 		8-97377-990-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.86 THA 		8-97377-991-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.38 THA 		8-98009-379-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.26 THA 		8-98022-221-0 01 1 1410-
595 SHIM; OUTPUT SHAFT
T=1.32 THA 		8-98022-222-0 01 1 1410-

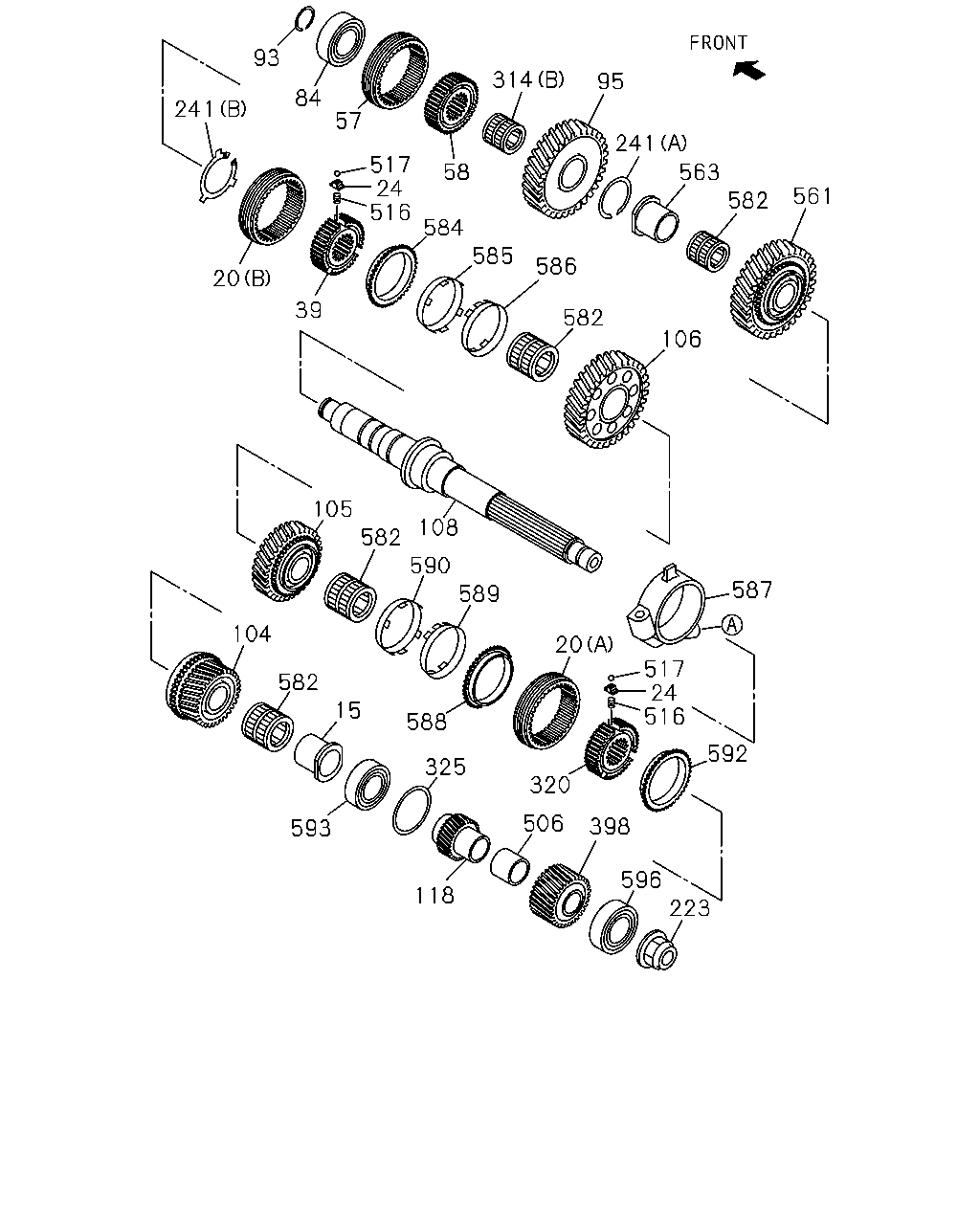

çizim 449642
93 241 84 57 517 314 95 24 516 58 241 563 582 561 20 584 585 586 582 106 39 105 582 108 590 589 104 582 15 593 588 325 20 587 517 24 516 592 118 320 506 398 596 223
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR
THA 		8-98146-345-0 01 1 1410-
20 SLEEVE
(B) Z=45 THA 		8-98034-769-0 01 1 1410-
20 SLEEVE
(A) Z=45 THA 		8-98258-279-0 02 1 1410-
24 BLOCK; INDEX,SYN
THA 		8-97241-313-1 09 1 1410-
39 HUB; CLU,LOW & 2ND
Z=45 THA 		8-98075-732-0 01 1 1410-
57 SLEEVE; REV
Z=45 THA 		8-94421-871-1 01 1 1410-
58 HUB; CLU,REV
Z=45-27 THA 		8-98005-296-0 01 1 1410-
84 BEARING; COUNTER SHAFT,FRT
THA 		8-97377-957-0 01 1 1410-
93 RING; SNAP,COUNTER FRT BRG
THA 		8-97377-958-0 01 1 1410-
95 GEAR; REV,COUNTER
Z=44 THA 		8-98005-229-0 01 1 1410-
104 GEAR; 4TH,COUNTER
Z=29 THA 		8-98198-297-0 01 1 1410-
105 GEAR; 3RD,COUNTER
Z=35 THA 		8-98168-501-0 01 1 1410-
106 GEAR; 2ND,COUNTER
Z=44 THA 		8-98140-884-0 01 1 1410-
108 SHAFT; COUNTER
Z=27-42-26 THA 		8-98223-607-0 01 1 1410-
118 GEAR; 6TH,COUNTER
Z=17 THA 		8-98005-292-1 01 1 1410-
223 NUT; COUNTER SHAFT END
M34 FLANGE THA 		8-98005-894-0 01 1 1410-
241 RING; SNAP
(A) ID=46.5 T=1.8 THA 		8-97254-743-0 01 1 1410-
241 RING; SNAP
(B) ID=96 T=2.5 THA 		8-98009-391-0 01 1 1410-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT THA 		1-09811-017-0 02 1 1410-
314 BEARING; NEEDLE,REV GEAR
(B) NSK THA 		8-97253-111-0 01 1 1410-
320 HUB; CLU,4TH & 3RD
THA 		8-98075-733-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.56 THA 		8-97377-994-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.62 THA 		8-97377-995-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.68 THA 		8-97377-996-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.74 THA 		8-97377-997-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.80 THA 		8-97377-998-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.26 THA 		8-98009-373-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.32 THA 		8-98009-374-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.38 THA 		8-98009-375-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.44 THA 		8-98009-376-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.50 THA 		8-98009-377-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.14 THA 		8-98022-218-0 01 1 1410-
325 SHIM; COUNTER SHAFT BRG
T=1.20 THA 		8-98022-219-0 01 1 1410-
398 GEAR; COUNTER
Z=22 THA 		8-97380-568-0 01 1 1410-
506 COLLAR; 6TH,COUNTER
THA 		8-97377-965-0 01 1 1410-
516 SPRING; SYNCHRO,INDEX
THA 		8-98032-197-0 09 1 1410-
517 BALL; SYNCHRO,INDEX
THA 		8-97252-935-0 09 1 1410-
561 GEAR; LOW,COUNTER
Z=44 THA 		8-98000-330-0 01 1 1410-
563 COLLAR; 1ST GEAR
THA 		8-98146-345-0 01 1 1410-
582 BEARING; NEEDLE,COUNTER GEAR
THA 		8-97253-110-0 04 1 1410-
584 RING; BLOCK,2ND
Z=45 THA 		8-98034-770-0 01 1 1410-
585 RING; OUTSIDE,2ND
THA 		8-97241-309-1 01 1 1410-
586 RING; INSIDE,2ND
THA 		8-97241-312-1 01 1 1410-
587 CASE; PUMP,COUNTER
THA 		8-98212-196-0 01 1 1410-
588 RING; BLOCK,3RD
Z=45 THA 		8-97241-306-1 01 1 1410-
589 RING; OUTSIDE,3RD
THA 		8-97241-309-1 01 1 1410-
590 RING; INSIDE,3RD
THA 		8-97241-312-1 01 1 1410-
592 RING; BLOCK,4TH
Z=45 THA 		8-97241-306-1 01 1 1410-
593 BEARING; COUNTER MIDDLE
THA 		8-97377-976-0 01 1 1410-
596 BEARING; ROOLER,COUNTER END
THA 		8-97377-968-0 01 1 1410-
