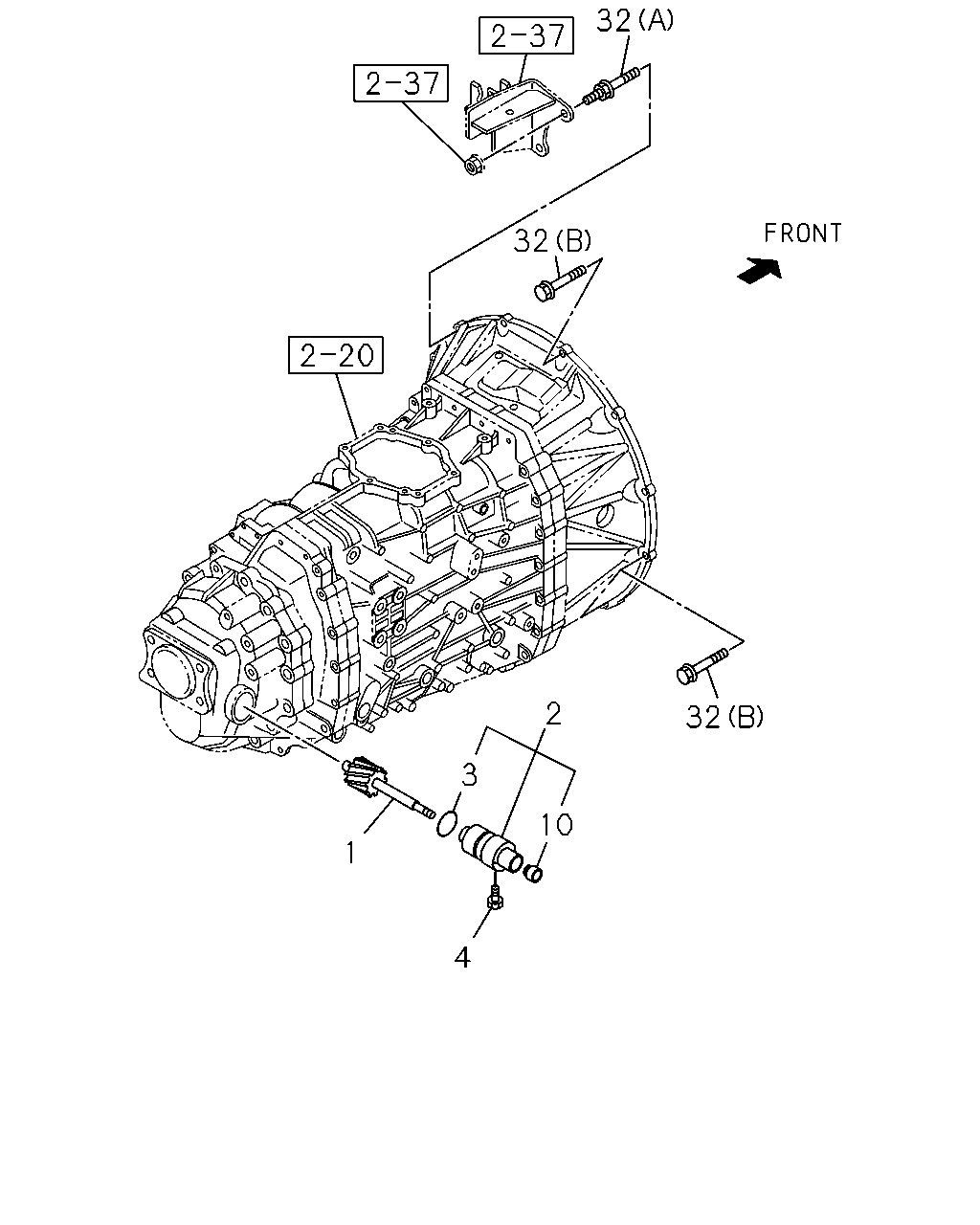

2-25A — SPEEDOMETER DRIVEN GEAR (#150401) — 7 parça

32 32 2 32 3 10 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD Z=15 THA	1-33372-133-5	01	1	1410-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER THA	8-98000-271-0	01	1	1410-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). THA	1-09623-246-0	01	1	1410-
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE THA	8-98014-141-0	01	1	1410-
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK THA	1-09625-510-0	01	1	1410-
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X30 FLANGE THA	0-28151-030-0	10	1	1410-
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56 THA	8-98010-334-0	02	1	1410-
