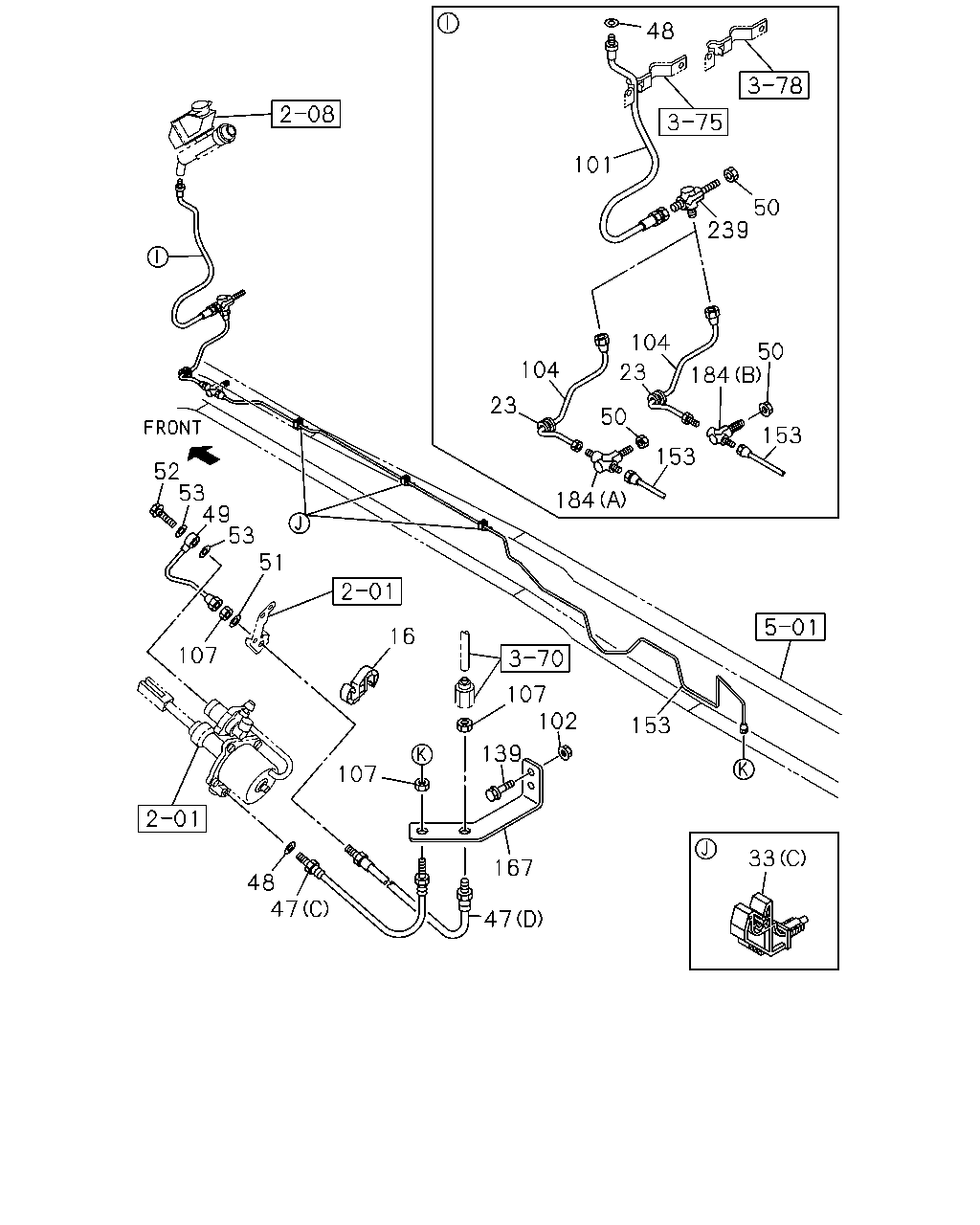

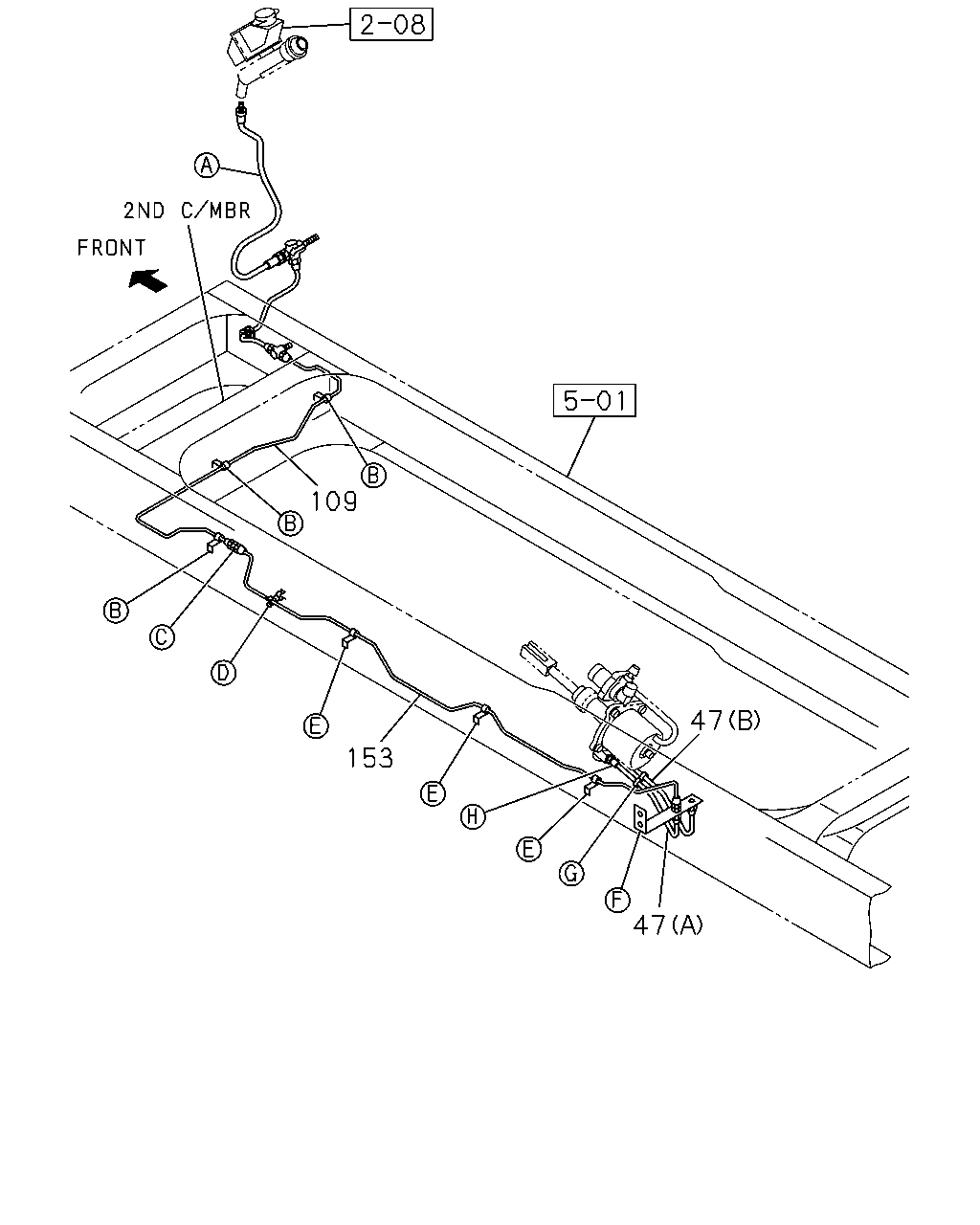

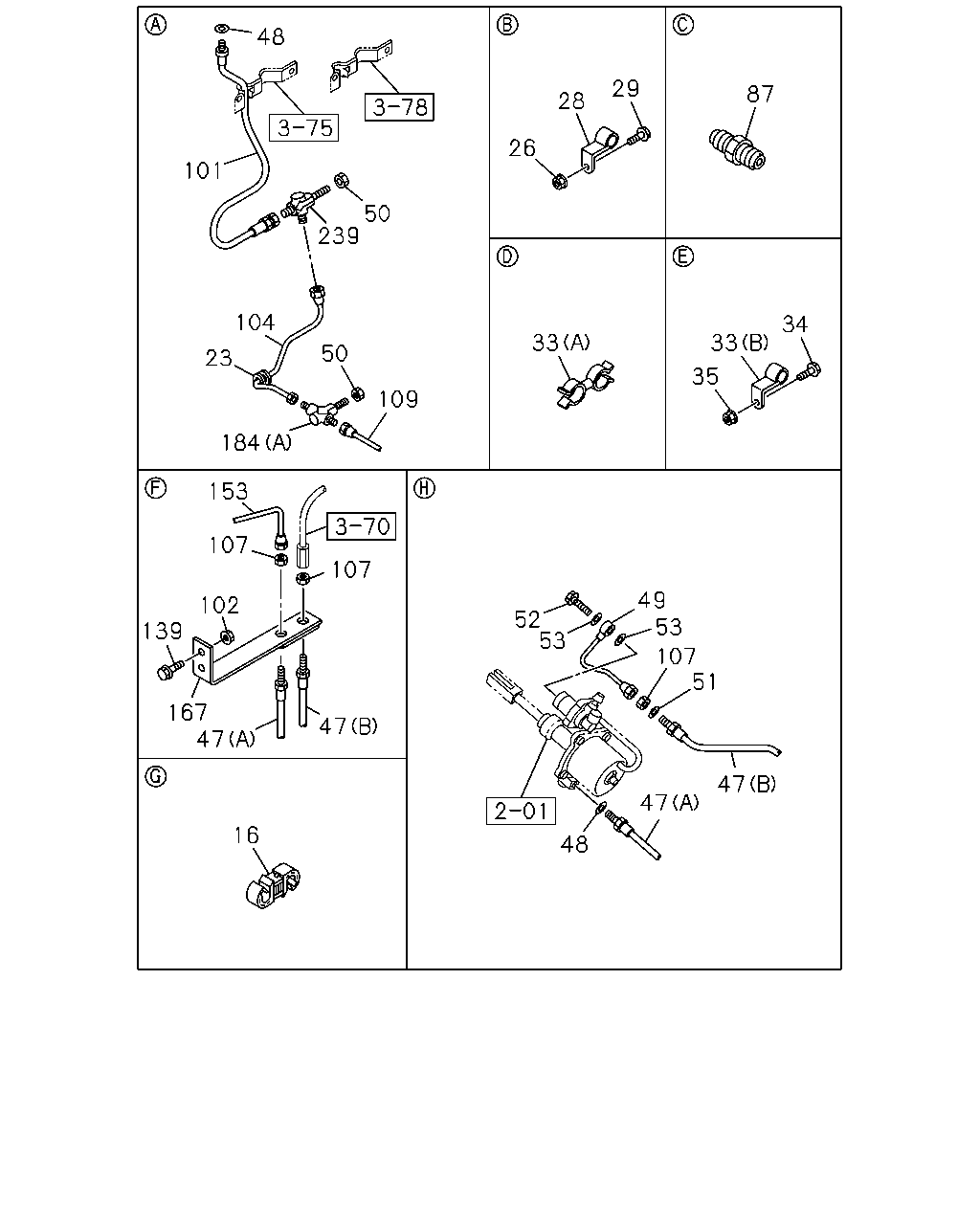

2-05 — CLUTCH PIPING (#150394) — 100 parça

87 29 28 26 33 35 33 34 48 101 50 239 104 23 50 109 184 107 153 107 102 139 167 47 47 16 52 53 49 53 107 51 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12 THA	1-09709-278-1	01	1	1410-
23	GROMMET; CLU PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=15 OD=20 T=17.5 THA	1-09332-130-0	01	1	1410-
23	GROMMET; CLU PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8 FLANGE THA	0-91180-108-0	03	1	1410-
28	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> ID=8 H=20 L=20 THA	1-09700-604-0	03	1	1410-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
33	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=6.35 THA	1-09701-247-1	04	1	1410-
33	CLIP; OIL PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=6.35 THA	1-09701-247-1	05	1	1410-
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (B) ID=8 H=20 L=20 THA	1-09700-604-0	04	1	1410-
33	CLIP; OIL PIPE ZF9S1110 M/T<Y5E> (A) ID=8.3 & 10 THA	8-94176-792-0	01	1	1410-
34	BOLT; PIPE CLIP ZF9S1110 M/T<Y5E> M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
35	NUT; PIPE CLIP ZF9S1110 M/T<Y5E> M8 FLANGE THA	0-91180-108-0	04	1	1410-
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=500 THA	1-09363-720-0	01	1	1410-
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=500 THA	1-09364-267-0	01	1	1410-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=470 THA	1-09363-716-0	01	1	1410-
47	HOSE; FLEX,CLU CONT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=375 THA	1-09364-407-0	01	1	1410-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (B) L=560 THA	1-09363-689-0	01	1	1410-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T<Y5E> (A) L=520 THA	1-09364-583-0	01	1	1410-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1410-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T<Y5E> L=232 THA	8-97948-222-0	01	1	1410-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T<RSZ> L=239 THA	8-97948-221-0	01	1	1410-
50	NUT; UNION M12 THA	0-91111-512-0	01	1	1410-
50	NUT; UNION M12 THA	0-91111-512-0	01	1	1410-
51	WASHER; LK ID=12.2 THA	0-91510-512-0	01	1	1410-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE THA	1-09675-086-0	01	1	1410-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2 THA	8-98251-345-0	02	1	1410-
87	UNION; OIL PIPE ZF9S1110 M/T<Y5E> M14 STRAIGHT THA	0-92113-008-0	01	1	1410-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 THA	8-98072-346-0	01	1	1410-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	1410-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=554 THA	8-97948-219-0	01	1	1410-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	1410-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=585 SERVICED BY L=600 THA	1-47428-725-0	01	1	1410-
107	NUT; UNION,OIL PIPE MZW6P M/T<RSZ> M12 THA	9-09840-280-0	03	1	1410-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M14 THA	0-91111-514-0	01	1	1410-
107	NUT; UNION,OIL PIPE ZF9S1110 M/T<Y5E> M12 THA	9-09840-280-0	02	1	1410-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T<Y5E> L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	1410-
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=2855 SERVICED BY L=2900 THA	1-47428-744-0	01	1	1410-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=2738 THA	8-98152-246-0	01	1	1410-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T<Y5E> L=2227 THA	8-98130-573-0	01	1	1410-
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-98077-571-0	01	1	1410-
167	BRACKET; UNION ZF9S1110 M/T<Y5E> THA	8-98077-571-0	01	1	1410-
167	BRACKET; UNION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98105-654-0	01	1	1410-
184	UNION; FLEX HOSE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98150-865-0	01	1	1410-
184	UNION; FLEX HOSE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M14 2WAY THA	1-09654-176-2	01	1	1410-
184	UNION; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12 3WAY THA	1-09654-137-2	01	1	1410-
239	UNION; CLU HOSE MZW6P M/T<RSZ> M12 2WAY THA	1-09654-059-2	01	1	1410-
239	UNION; CLU HOSE ZF9S1110 M/T<Y5E> THA	8-98107-850-0	01	1	1410-
