0-52 — OIL AND VACUUM PIPING; ENGINE (#150374) — 20 parça

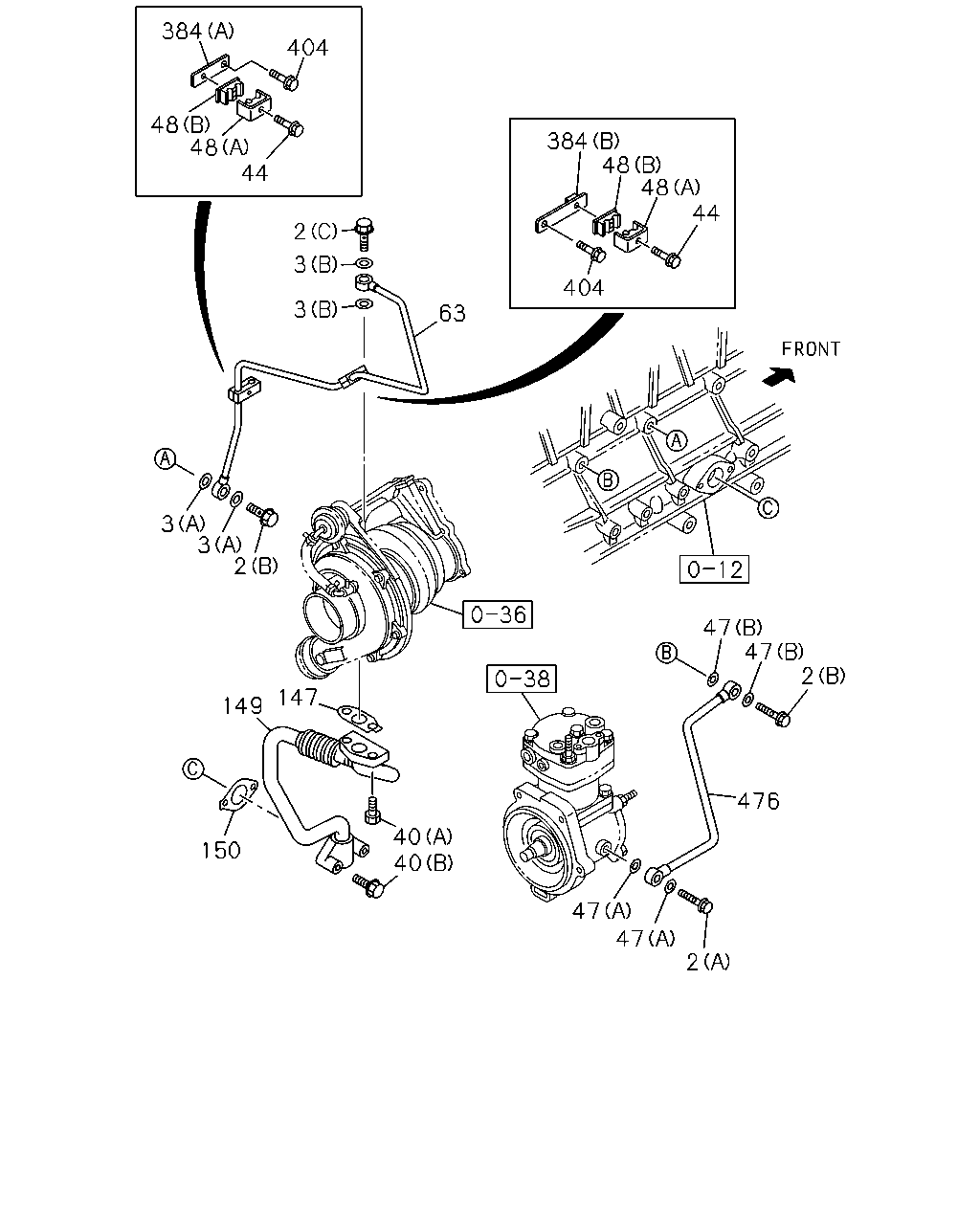

çizim 448405
48 384 44 48 404 63 3 3 2 44 48 48 384 404 3 3 2 149 147 40 40 150 47 47 2 476 2 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE THA 		1-09675-086-0 02 1 1410- ● ●
2 BOLT; EYE,OIL PIPE
(C) M12X25 THA 		5-09675-006-1 01 1 1410- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE THA 		8-97372-238-0 01 1 1410- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 THA 		8-98251-344-0 02 1 1410- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410- ● ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE THA 		0-28151-030-0 02 1 1410- ● ●
40 BOLT; OIL PIPE
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE THA 		0-28050-630-0 02 1 1410- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 02 1 1410- ● ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410- ● ●
48 CLIP; OIL PIPE
(A) THA 		1-09701-228-3 02 1 1410- ● ●
48 CLIP; OIL PIPE
(B) THA 		1-09701-229-2 02 1 1410- ● ●
63 PIPE; OIL,TURBOCHARGER FEED
THA 		8-98074-254-0 01 1 1410- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		1-09637-058-2 01 1 1410- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER
THA 		8-98147-092-0 01 1 1410- ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 THA 		8-94394-671-0 01 1 1410- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) THA 		1-13319-020-0 01 1 1410- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) THA 		1-13319-041-0 01 1 1410- ● ●
404 BOLT; BRKT
M8X15 THA 		1-09000-114-0 02 1 1410- ● ●
476 PIPE; OIL,C/BL TO AIR CMPR
THA 		8-97610-075-0 01 1 1410- ● ●
