0-32 — WATER PIPING; ENGINE (#150363) — 49 parça

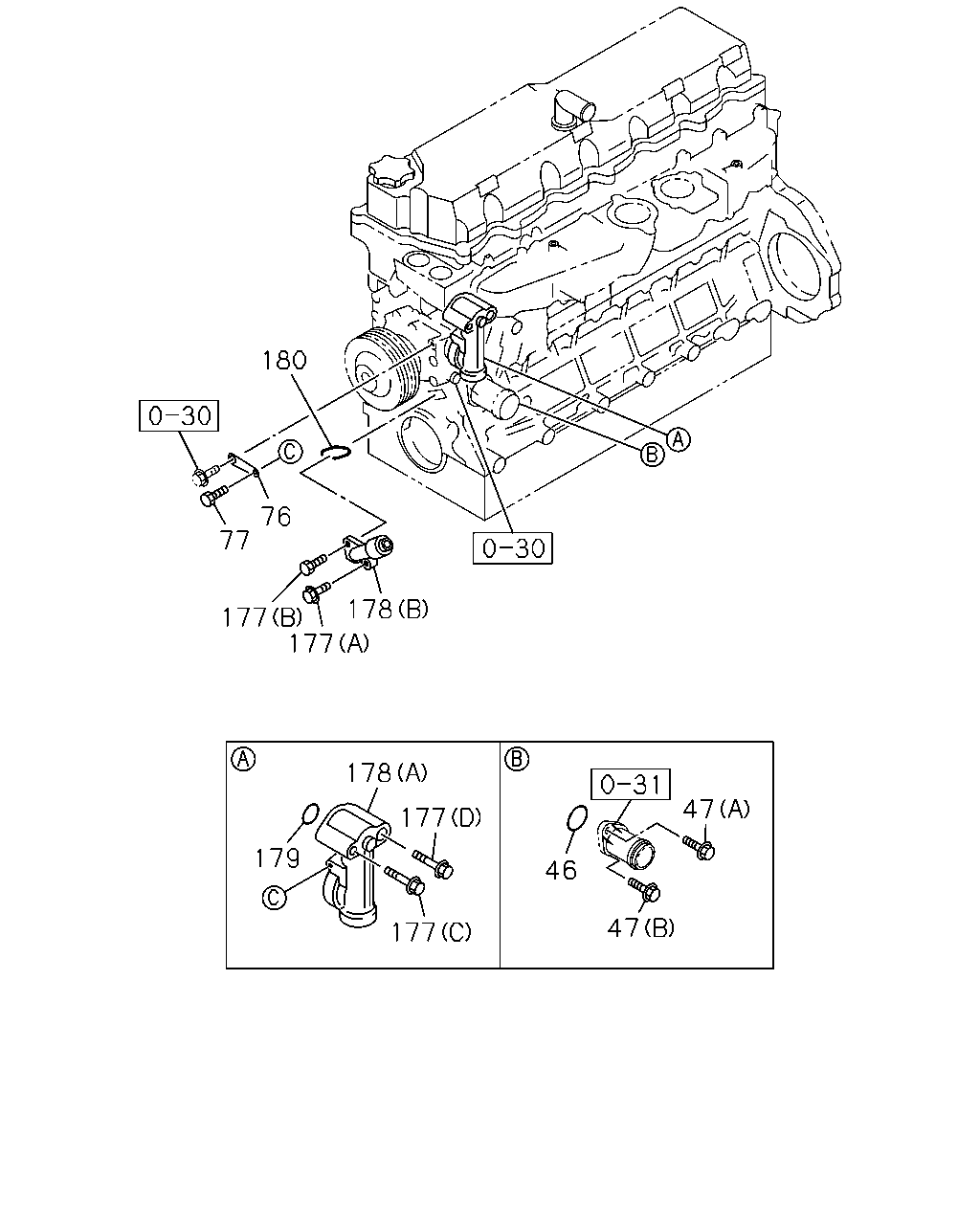

çizim 448240
180 77 76 177 177 178 178 179 177 177 46 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 THA 		8-94396-680-2 01 1 1410- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 1410- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ● ●
76 BRACKET; WATER DUCT,PUMP
THA 		8-94394-784-0 01 1 1410- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA 		0-28050-850-0 01 1 1410- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE THA 		0-28050-880-0 01 1 1410- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE THA 		1-09044-072-1 01 1 1410- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE THA 		8-94397-360-1 01 1 1410- ● ●
178 DUCT; WATER,BYPASS
(B) THA 		8-94390-644-0 01 1 1410- ● ●
178 DUCT; WATER,BYPASS
(A) THA 		8-94396-627-3 01 1 1410- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 THA 		8-98276-756-0 01 1 1410- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-94396-720-1 01 1 1410- ● ●
çizim 448257
31 94 94 206 31 25 94 94 33 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
THA 		8-98051-626-1 01 1 1410- ● ●
25 BOLT; WATER PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
31 BOLT; CLIP
(B) M6X45 FLANGE THA 		0-28050-645-0 01 1 1410- ● ●
31 BOLT; CLIP
(C) M6X35 FLANGE THA 		0-28650-635-0 01 1 1410- ● ●
31 BOLT; CLIP
(A) M6X40 FLANGE THA 		0-28650-640-0 01 1 1410- ● ●
33 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ● ●
33 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ● ●
33 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
94 CLIP; WATER PIPE
(B) THA 		8-94396-860-0 01 1 1410- ● ●
94 CLIP; WATER PIPE
(A) THA 		8-97605-129-1 04 1 1410- ● ●
206 PIPE; WATER,EGR COOLER
THA 		8-98000-480-1 01 1 1410- ● ●

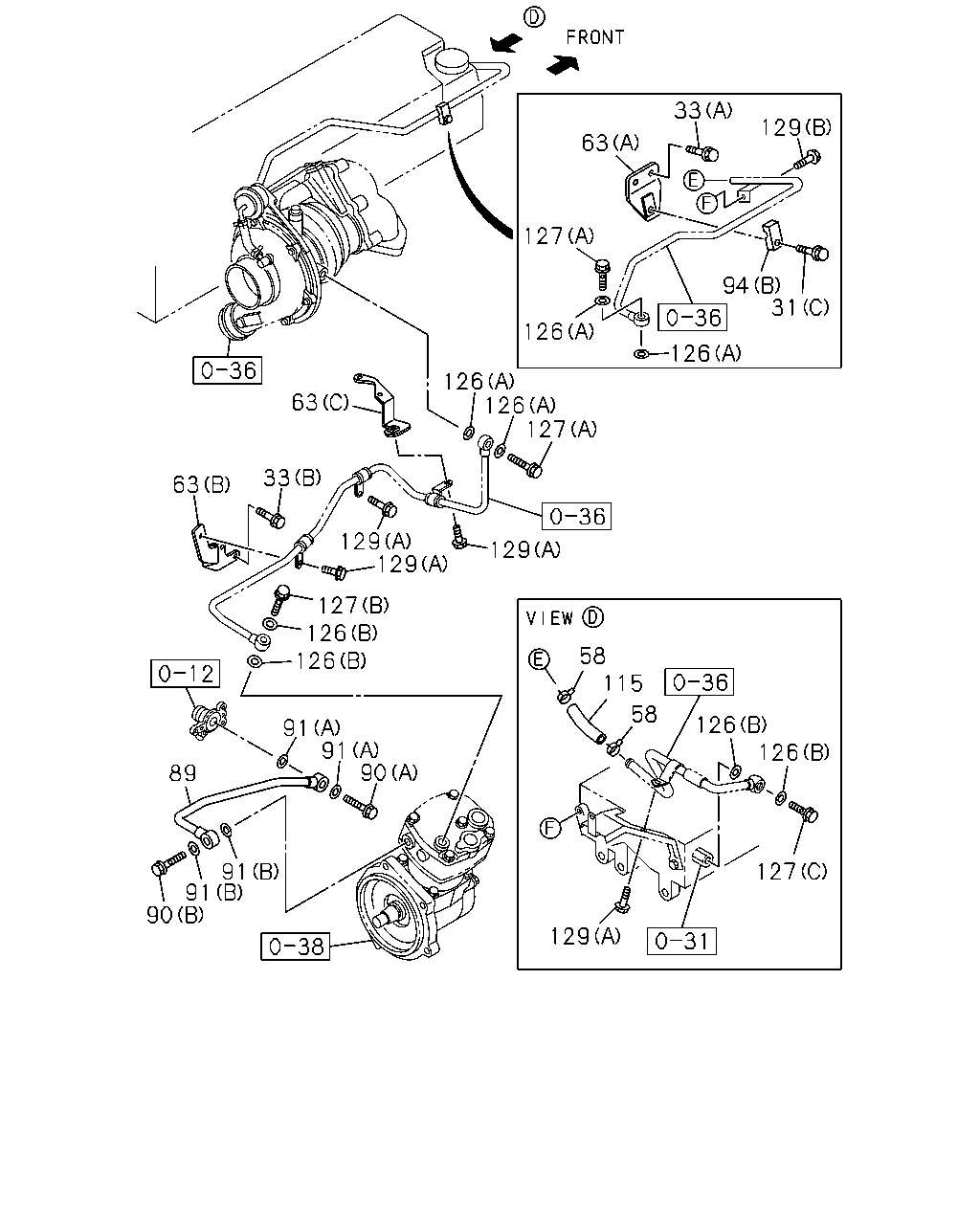

çizim 449592
33 129 63 127 94 31 126 126 127 126 126 63 33 63 129 129 129 127 126 126 91 91 90 91 91 90 89 58 115 58 126 126 127 129
BalonParca AdiParca NoAdetTipApplied Date A B
31 BOLT; CLIP
(B) M6X45 FLANGE THA 		0-28050-645-0 01 1 1410- ● ●
31 BOLT; CLIP
(C) M6X35 FLANGE THA 		0-28650-635-0 01 1 1410- ● ●
31 BOLT; CLIP
(A) M6X40 FLANGE THA 		0-28650-640-0 01 1 1410- ● ●
33 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ● ●
33 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ● ●
33 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
58 CLIP; RUBBER HOSE
ID=16 THA 		8-94392-924-0 02 1 1410- ● ●
63 BRACKET; WATER PIPE
(A) THA 		8-94392-951-0 01 1 1410- ● ●
63 BRACKET; WATER PIPE
(C) THA 		8-98074-252-0 01 1 1410- ● ●
63 BRACKET; WATER PIPE
(B) THA 		8-98074-253-0 01 1 1410- ● ●
89 PIPE; WATER,AIR CMPR,IN
THA 		8-97610-086-0 01 1 1410- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 01 1 1410- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 THA 		8-94383-489-0 01 1 1410- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 THA 		1-09630-086-0 02 1 1410- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410- ● ●
94 CLIP; WATER PIPE
(B) THA 		8-94396-860-0 01 1 1410- ● ●
94 CLIP; WATER PIPE
(A) THA 		8-97605-129-1 04 1 1410- ● ●
115 HOSE; RUBBER
L=60 SERVICED BY L=3000 THA 		0-03561-300-0 01 1 1410- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 THA 		1-09630-086-0 04 1 1410- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 04 1 1410- ● ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 02 1 1410- ● ●
127 BOLT; EYE
(C) M16X25 THA 		5-09675-028-2 01 1 1410- ● ●
127 BOLT; EYE
(B) M16X28 THA 		8-94383-489-0 01 1 1410- ● ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410- ● ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE THA 		0-28151-220-0 01 1 1410- ● ●
