0-31 — THERMOSTAT AND HOUSING (#150362) — 16 parça

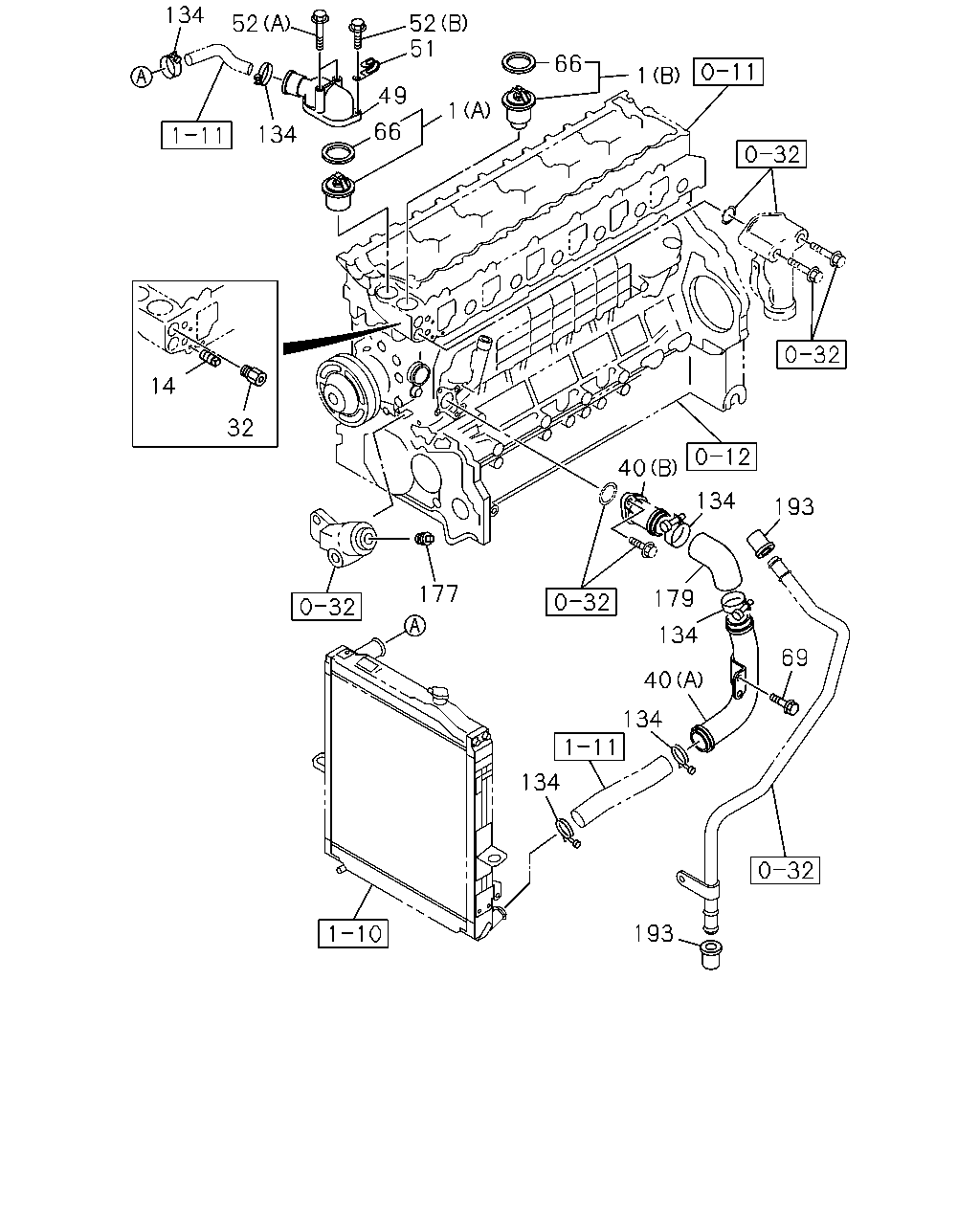

çizim 448221
134 52 134 66 49 51 52 1 66 1 193 40 134 179 134 69 40 134 134 193 177 32 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(A) 82 CELSIUS THA 		8-97602-048-2 01 1 1410- ● ●
1 THERMOSTAT
(B) 82 CELSIUS THA 		8-97602-393-1 01 1 1410- ● ●
14 PLUG; SW
PT3/8 THA 		8-94397-338-0 01 1 1410- ● ●
32 CONNECTOR; HTR
THA 		8-98177-501-0 01 1 1410- ● ●
40 DUCT; WATER,SUCTION
(A) THA 		8-94394-404-1 01 1 1410- ● ●
40 DUCT; WATER,SUCTION
(B) THA 		8-94391-091-1 01 1 1410- ● ●
49 PIPE; WATER OUTLET
THA 		8-97602-047-0 01 1 1410- ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 THA 		8-97367-985-1 01 1 1410- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE THA 		0-28050-880-0 02 1 1410- ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97300-793-0 02 1 1410- ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
134 CLIP; RUBBER HOSE
ID=63 THA 		1-09704-067-0 06 1 1410- ● ●
177 PLUG; PIPE,WATER DUCT
PT1/2 THA 		9-09204-521-0 01 1 1410- ● ●
179 HOSE; RUBBER,WATER DUCT
THA 		8-94390-400-3 01 1 1410- ● ●
193 CAP; RUBBER
THA 		8-94107-678-0 02 1 1410- ● ●
