◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#150361) — 25 parça

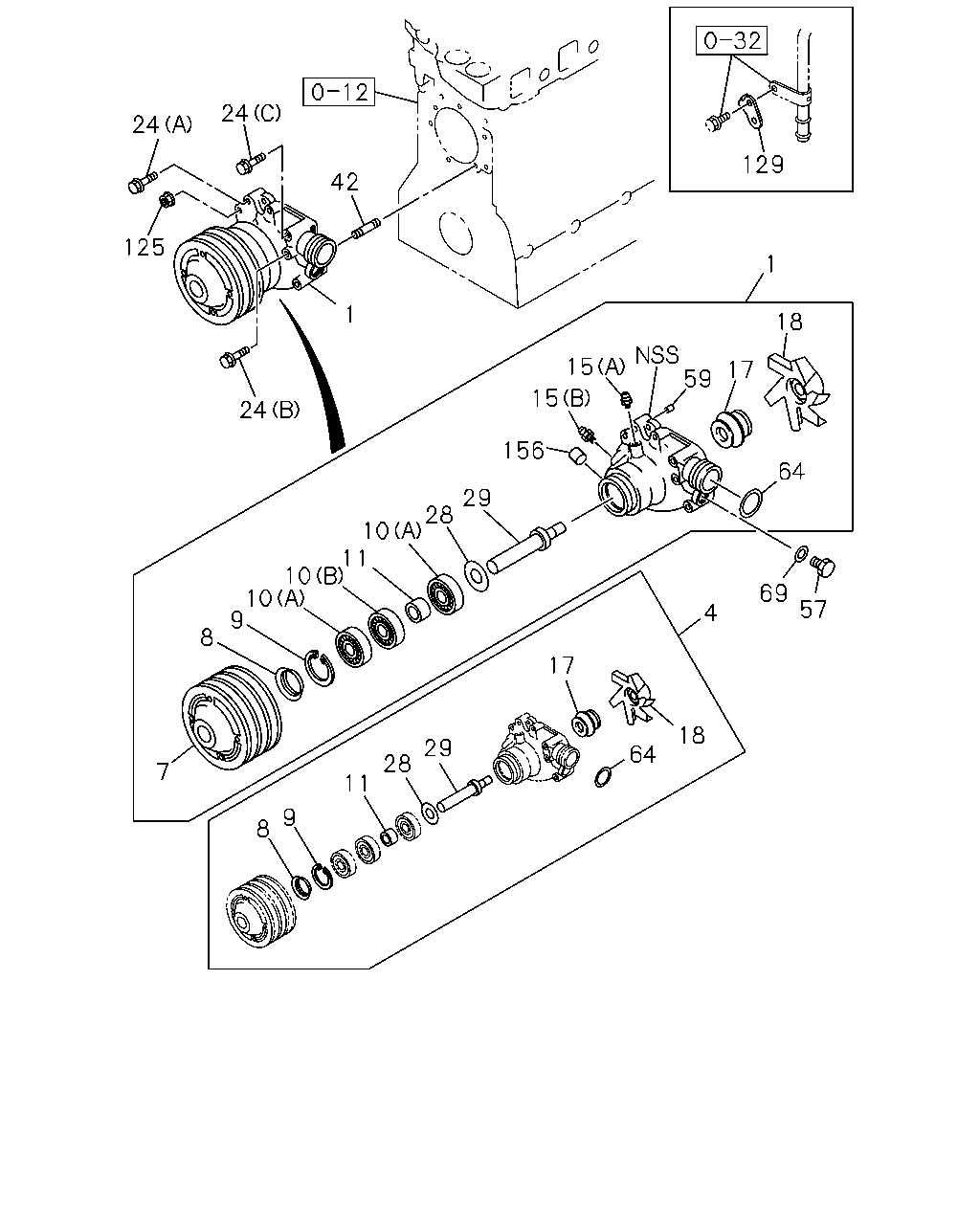

çizim 448837
24 24 42 1 24 125 129 18 1 17 59 64 15 15 156 29 28 10 11 10 10 9 8 7 69 57 4 18 17 64 29 28 11 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET
THA 		1-87310-974-0 01 1 1410- ● ●
4 REPAIR KIT; WATER PUMP
THA 		1-87814-615-0 01 1 1410- ● ●
7 PULLEY; WATER PUMP
THA 		8-98281-099-0 01 1 1410- ● ●
8 THROWER; DUST,WATER PUMP
THA 		8-94399-457-0 01 1 1410- ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 THA 		9-09180-162-0 01 1 1410- ● ●
10 BEARING; WATER PUMP
(A) THA 		8-94391-298-0 02 1 1410- ● ●
10 BEARING; WATER PUMP
(B) THA 		8-94391-299-0 01 1 1410- ● ●
11 SPACER; BRG,WATER PUMP
THA 		1-13634-040-0 01 1 1410- ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1410- ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT THA 		1-09380-002-0 01 1 1410- ● ●
17 SEAL UNIT; WATER PUMP
THA 		8-98272-791-0 01 1 1410- ● ●
18 IMPELLER; WATER PUMP
THA 		8-94392-922-0 01 1 1410- ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE THA 		0-28050-880-0 01 1 1410- ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE THA 		8-94130-055-1 03 1 1410- ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE THA 		8-94397-359-1 01 1 1410- ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 THA 		8-94397-097-0 01 1 1410- ● ●
29 SHAFT; WATER PUMP
THA 		8-98280-700-0 01 1 1410- ● ●
42 STUD; WATER PUMP
M8X30 L=46 THA 		0-40110-830-0 01 1 1410- ● ●
57 PLUG; HTR,WATER PUMP
M20 THA 		9-99202-320-0 01 1 1410- ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 THA 		1-13119-003-0 02 1 1410- ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 THA 		1-09623-383-0 01 1 1410- ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 THA 		9-09571-420-0 01 1 1410- ● ●
125 NUT; WATER PUMP
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
129 BRACKET; CLIP
THA 		8-98066-087-0 01 1 1410- ● ●
156 CUP; SEALING
OD=25 THA 		1-09600-016-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
