0-13 — OIL PAN AND LEVEL GAUGE (#150353) — 16 parça

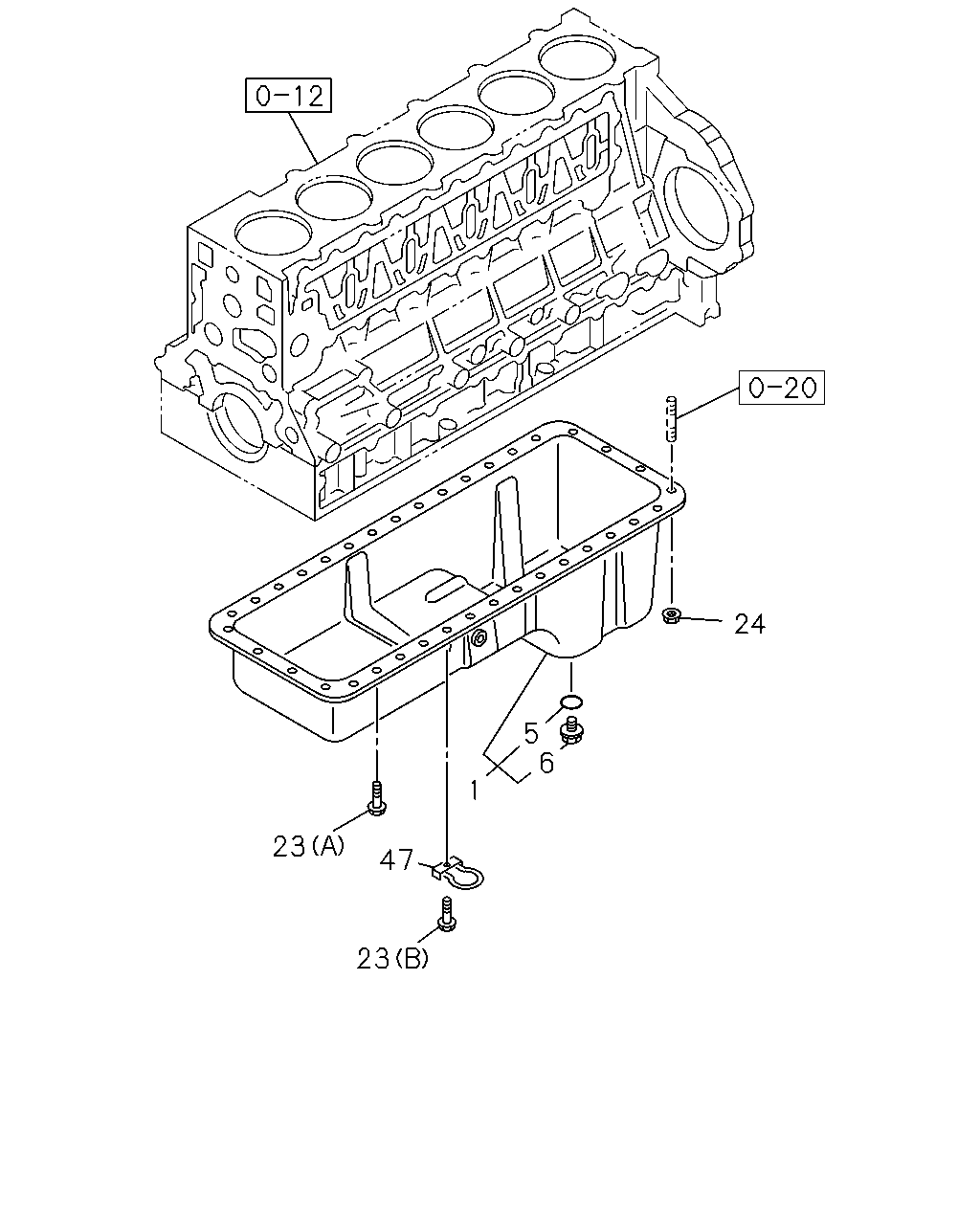

çizim 448063
5 6 1 24 23 47 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
THA 		8-98179-005-0 01 1 1410- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 THA 		1-09623-057-0 01 1 1410- ● ●
6 PLUG; OIL DRAIN
THA 		9-09662-012-0 01 1 1410- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE THA 		0-28080-818-0 28 1 1410- ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE THA 		8-97329-626-0 02 1 1410- ● ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
47 CLIP; HOSE,AIR BREATHER
THA 		1-11369-115-0 01 1 1410- ● ●
çizim 448079
10 8 2 49 193 192 193 10 8 9 9
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL
THA 		8-98092-600-0 01 1 1410- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) THA 		8-98084-773-0 01 1 1410- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) THA 		8-98063-554-0 01 1 1410- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA 		1-09623-469-0 02 1 1410- ● ●
10 BOLT; GUIDE TUBE
(B) M10X35 FLANGE THA 		0-28151-035-0 01 1 1410- ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
192 HOSE; GUIDE TUBE
L=463 THA 		8-98054-844-1 01 1 1410- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 THA 		1-09707-158-0 02 1 1410- ● ●
