0-12 — CYLINDER BLOCK (#150352) — 44 parça

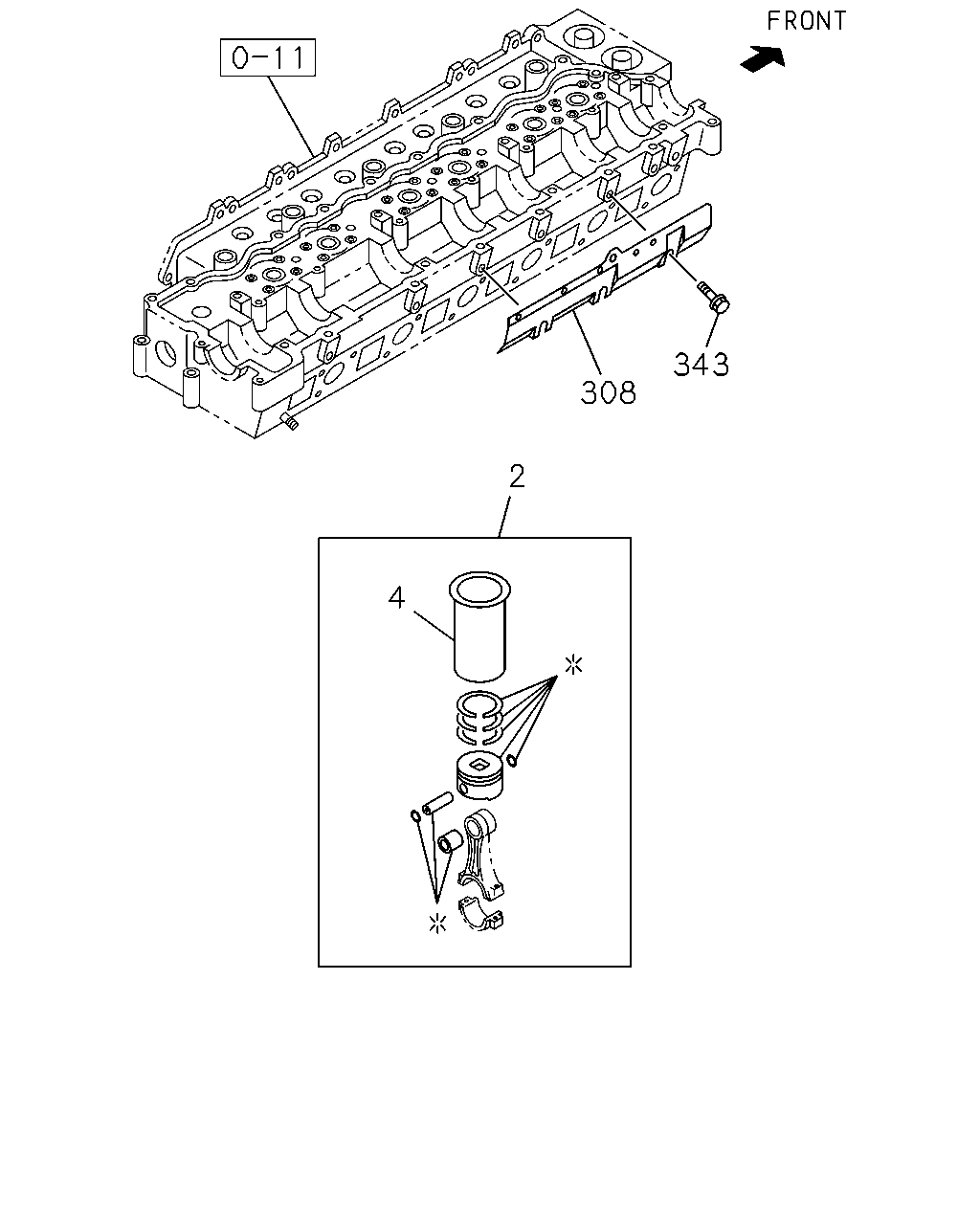

çizim 448060
308 343 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X THA 		1-87813-119-6 06 1 1410- ● ●
2 LINER SET; ENG CYL
GRADE=3X THA 		1-87813-120-6 06 1 1410- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA 		8-98014-046-1 06 1 1410- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA 		8-98014-047-1 06 1 1410- ● ●
308 PROTECTOR; HEAT,HD COVER
THA 		8-94390-997-0 01 1 1410- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 03 1 1410- ● ●

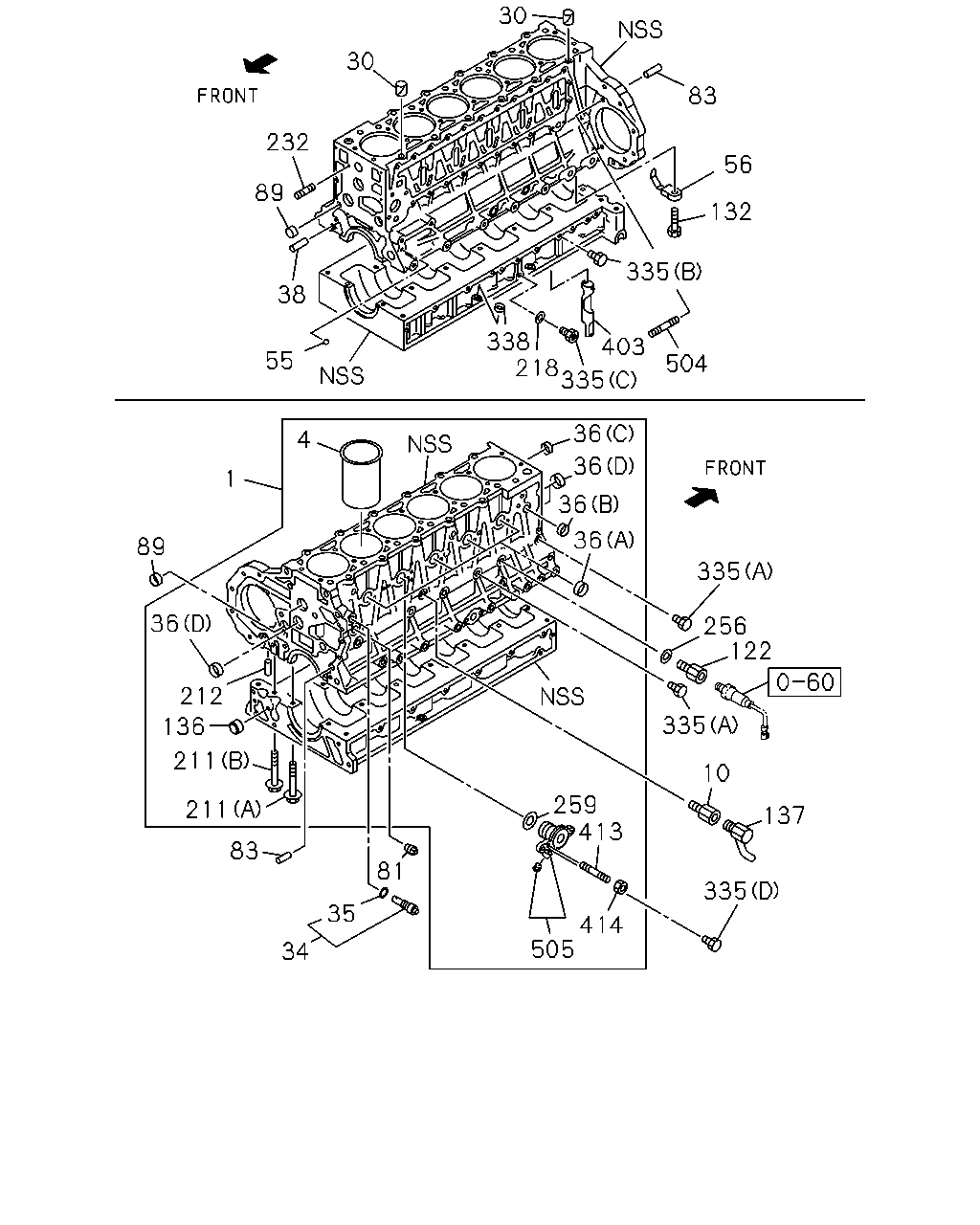

çizim 448976
30 30 83 56 132 335 504 403 335 218 338 55 38 89 232 36 36 36 36 335 256 122 335 10 137 335 259 413 414 505 81 35 34 83 211 211 136 212 36 1 89 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL
THA 		8-98206-966-0 01 1 1410- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA 		8-98014-046-1 06 1 1410- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA 		8-98014-047-1 06 1 1410- ● ●
10 CONNECTOR; WATER DRAIN
THA 		8-94396-378-0 01 1 1410- ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 THA 		8-94399-688-1 02 1 1410- ● ●
34 VALVE; OIL RELIEF
THA 		8-94393-077-1 01 1 1410- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 THA 		5-09623-035-0 01 1 1410- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 THA 		1-09600-005-2 04 1 1410- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 THA 		1-09600-016-0 01 1 1410- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 THA 		8-94399-005-0 01 1 1410- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 THA 		8-97096-824-0 04 1 1410- ● ●
38 PIN; TIMING GEAR CASE
L=22 THA 		8-94483-674-0 02 1 1410- ● ●
55 PLUG; OIL GALLERY
3/8" BALL THA 		9-00097-011-0 01 1 1410- ● ●
56 JET; OIL,PISTON COOLING
THA 		8-98173-342-0 06 1 1410- ● ●
81 PLUG; WATER JACKET
PT3/8 THA 		8-94397-338-0 01 1 1410- ● ●
83 PIN; FLYWHEEL HSG
L=22 THA 		8-94483-674-0 02 1 1410- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 THA 		9-11129-128-0 03 1 1410- ● ●
122 ADAPTER; OIL PRESSURE SWITCH
THA 		8-97603-667-0 01 1 1410- ● ●
132 VALVE; CHECK,OIL
M12X18.5 THA 		8-94394-419-1 06 1 1410- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP
THA 		8-98091-566-0 02 1 1410- ● ●
137 COCK; DRAIN,WATER
THA 		8-94393-716-1 01 1 1410- ● ●
211 BOLT; CRANKCASE
(B) M10X82 THA 		8-94399-553-2 25 1 1410- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE THA 		8-97077-638-0 14 1 1410- ● ●
212 PIN; CRANKCASE
OD=10 L=20 THA 		8-97135-423-0 02 1 1410- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 THA 		8-98251-344-0 01 1 1410- ● ●
232 STUD; WATER PUMP
M8X55 L=67 THA 		0-41010-855-0 03 1 1410- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 THA 		1-09630-141-0 01 1 1410- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 THA 		1-09623-184-0 01 1 1410- ● ●
335 PLUG; C/BL,SIDE
(C) M12X10 THA 		5-13265-001-0 01 1 1410- ● ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 THA 		8-97329-617-0 02 1 1410- ● ●
335 PLUG; C/BL,SIDE
(B) M8X10 THA 		8-98003-416-0 01 1 1410- ● ●
335 PLUG; C/BL,SIDE
(D) M14 THA 		8-94399-225-0 01 1 1410- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 THA 		5-11129-003-0 02 1 1410- ● ●
403 GUIDE; GALLERY
THA 		8-94395-351-1 01 1 1410- ● ●
413 STUD; ADAPTER
M8X30 L=41 THA 		0-41010-830-0 02 1 1410- ● ●
414 NUT; ADAPTER
M8 FLANGE THA 		0-91180-208-0 02 1 1410- ● ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 THA 		8-97363-237-0 02 1 1410- ● ●
505 ADAPTER; WATER FEED
THA 		8-97611-854-0 01 1 1410- ● ●
