Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

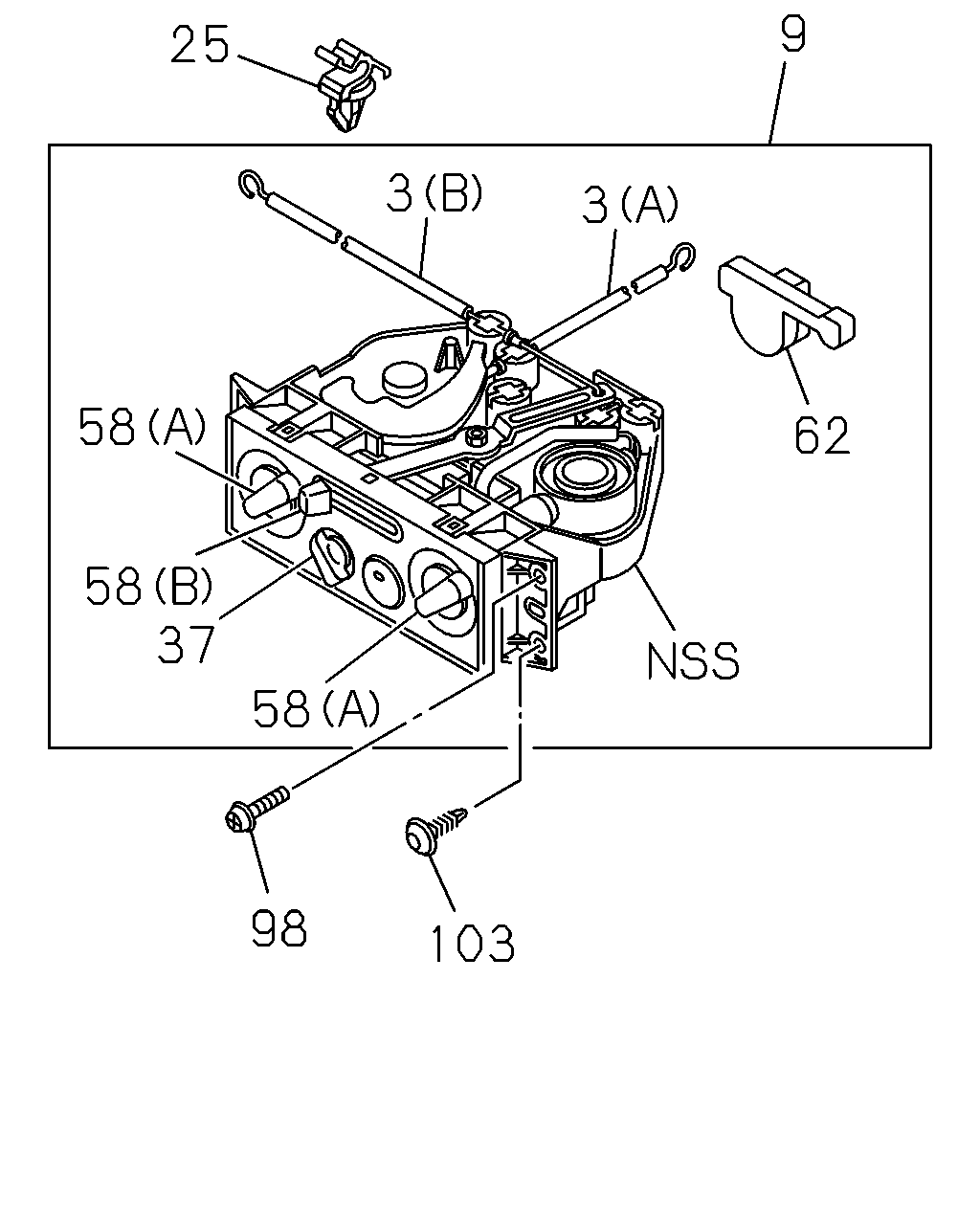

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#150341) — 10 parça
25
3
9
3
58
58
37
58
98
103
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) MODE THA
8-97927-124-0
01
1
1410-
3
CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) RECIRC/FRESH THA
8-97927-125-0
01
1
1410-
9
LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-518-0
01
1
1410-
25
CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=4.8 THA
8-94128-483-0
03
1
1410-
37
KNOB; SW,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-674-0
01
1
1410-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
8-97926-673-0
02
1
1410-
58
KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
8-97926-675-0
01
1
1410-
62
BULB; HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-676-0
01
1
1410-
98
SCREW; CONT PANEL
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X20 HEXALOBULAR SOCKET THA
0-72180-520-0
01
1
1410-
103
CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> DARK GRAY THA
8-97098-326-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
