8-52 — PIPING; AIR CONDITIONING (#150339) — 50 parça

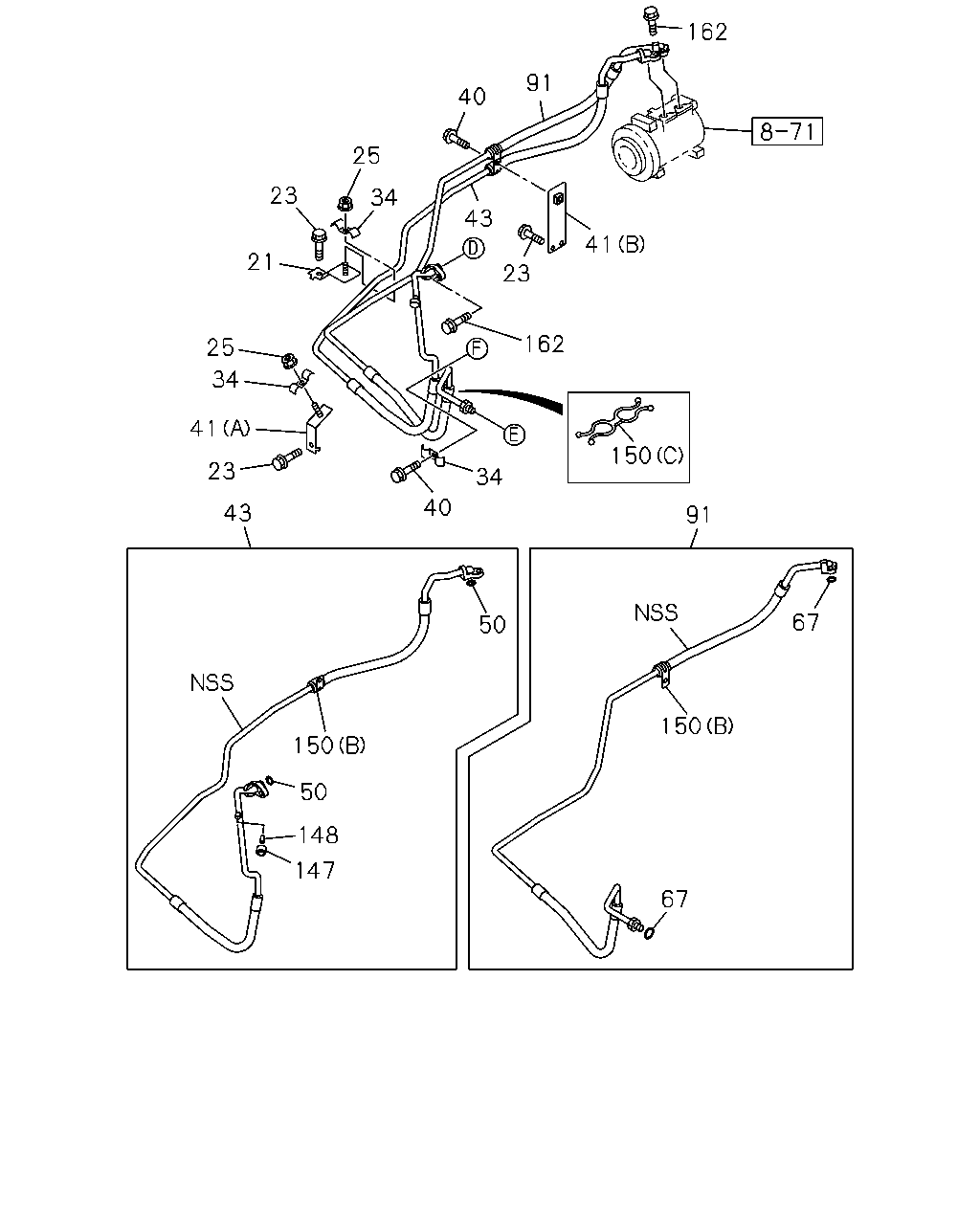

23 25 34 21 25 34 41 23 43 91 150 67 67 147 148 50 50 150 40 34 162 41 23 43 40 91 162 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98010-187-0	01	1	1410-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA	0-91180-108-0	02	1	1410-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98043-673-0	03	1	1410-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-98010-188-1	01	1	1410-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98032-049-0	01	1	1410-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98203-012-0	01	1	1410-
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-682-0	01	1	1410-
50	GASKET; FLEX HOSE,A/C 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA	8-97095-908-0	02	1	1410-
67	GASKET; FLEX HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA	8-97095-907-0	02	1	1410-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98203-013-0	01	1	1410-
91	HOSE; FLEX,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-678-0	01	1	1410-
147	CAP; FLEX HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA	1-83539-331-0	01	1	1410-
148	VALVE; FLEX HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97095-909-0	01	1	1410-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) THA	8-94423-042-0	01	1	1410-
150	CLIP; HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	1-83574-249-0	01	1	1410-
150	CLIP; HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	1-83574-264-0	01	1	1410-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28050-625-0	03	1	1410-

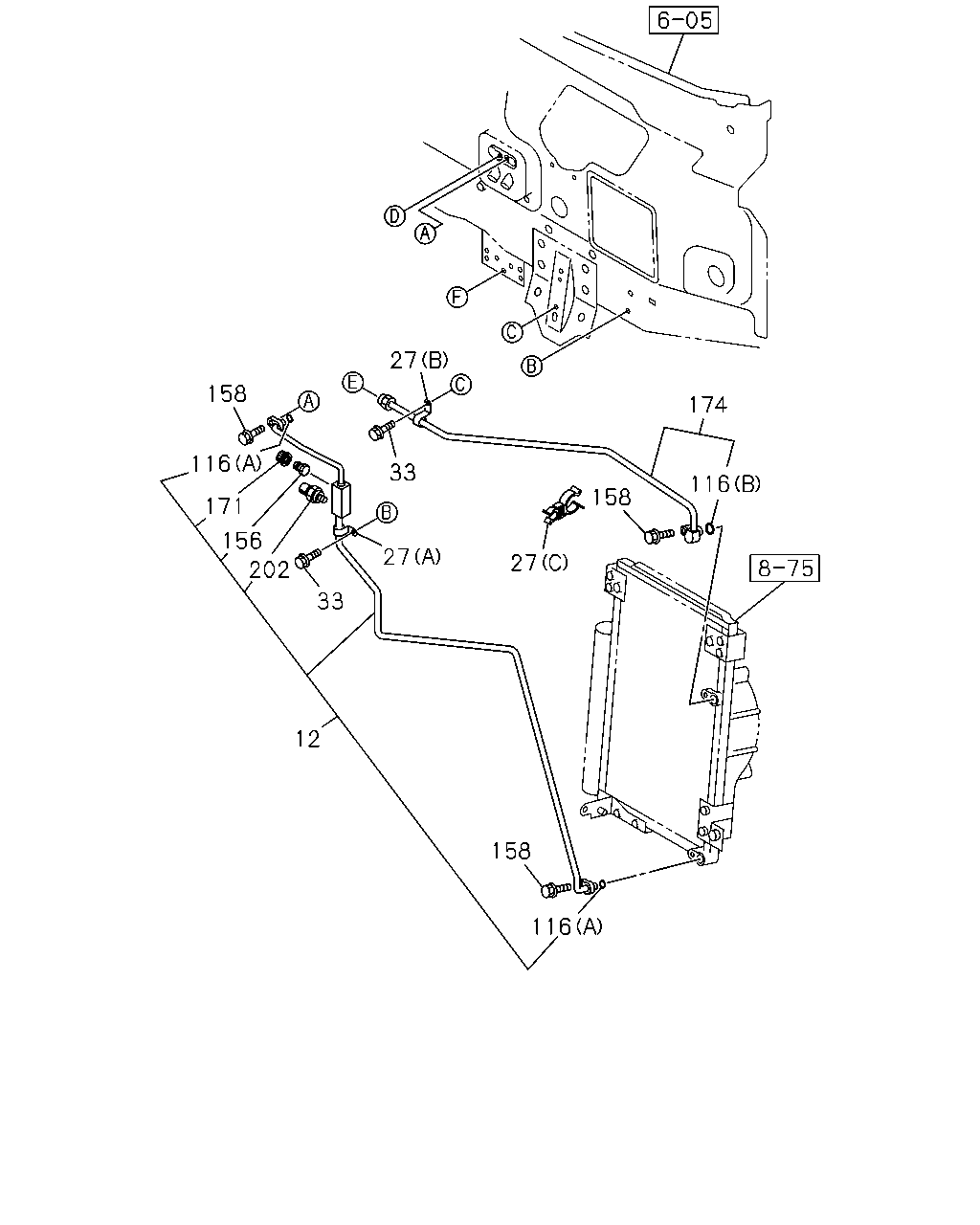

116 158 12 33 202 156 171 116 158 27 33 27 158 27 116 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-689-0	01	1	1410-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=9 H=20 L=20 THA	0-95207-308-0	01	1	1410-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=16 H=24 L=20 THA	0-95207-315-0	01	1	1410-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=11.8 & 7.5 THA	1-09709-182-0	01	1	1410-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X16 FLANGE THA	0-28650-616-0	02	1	1410-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=11.7 THA	8-97095-907-0	01	1	1410-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) ID=7.4 THA	8-97095-906-0	02	1	1410-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98151-702-0	01	1	1410-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28050-625-0	03	1	1410-
171	CAP; PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK H THA	8-97095-911-0	01	1	1410-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98041-331-0	01	1	1410-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98246-370-0	01	1	1410-

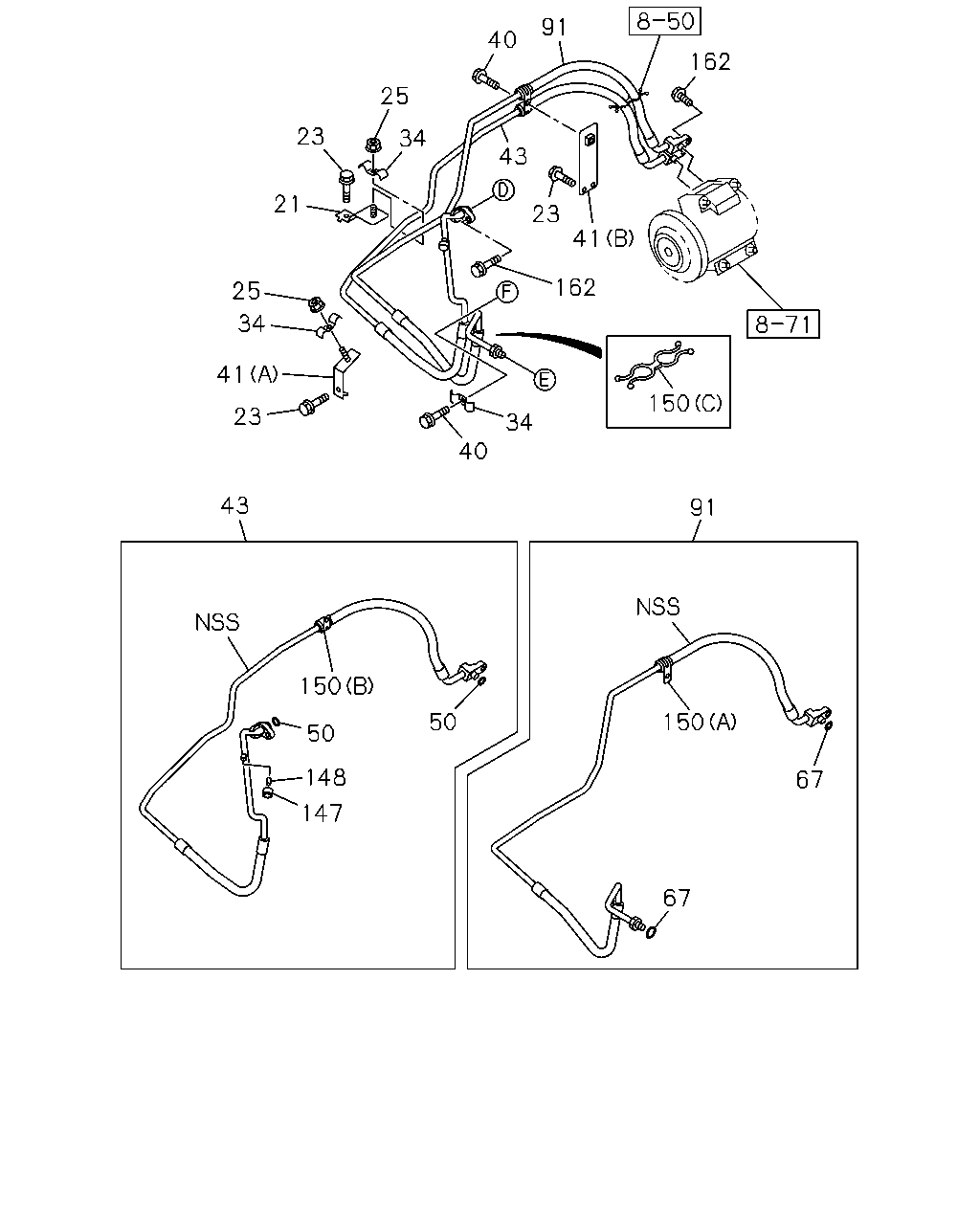

40 91 162 41 23 43 162 34 40 23 43 41 34 25 21 23 25 34 91 150 67 150 67 148 50 50 147 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98010-187-0	01	1	1410-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
25	NUT; BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA	0-91180-108-0	02	1	1410-
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98043-673-0	03	1	1410-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-98010-188-1	01	1	1410-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98032-049-0	01	1	1410-
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98203-012-0	01	1	1410-
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-682-0	01	1	1410-
50	GASKET; FLEX HOSE,A/C 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=14.5 THA	8-97095-908-0	02	1	1410-
67	GASKET; FLEX HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=11.7 THA	8-97095-907-0	02	1	1410-
91	HOSE; FLEX,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-98203-013-0	01	1	1410-
91	HOSE; FLEX,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97926-678-0	01	1	1410-
147	CAP; FLEX HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> CAP MARK L THA	1-83539-331-0	01	1	1410-
148	VALVE; FLEX HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97095-909-0	01	1	1410-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) THA	8-94423-042-0	01	1	1410-
150	CLIP; HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	1-83574-249-0	01	1	1410-
150	CLIP; HOSE 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	1-83574-264-0	01	1	1410-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X25 FLANGE THA	0-28050-625-0	03	1	1410-
