Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#150338) — 54 parça

378 378 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	CLIP; HOSE,CMPR TO EVAP 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-94423-042-0	01	1	1410-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-98041-428-0	01	1	1410-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-98204-846-0	01	1	1410-

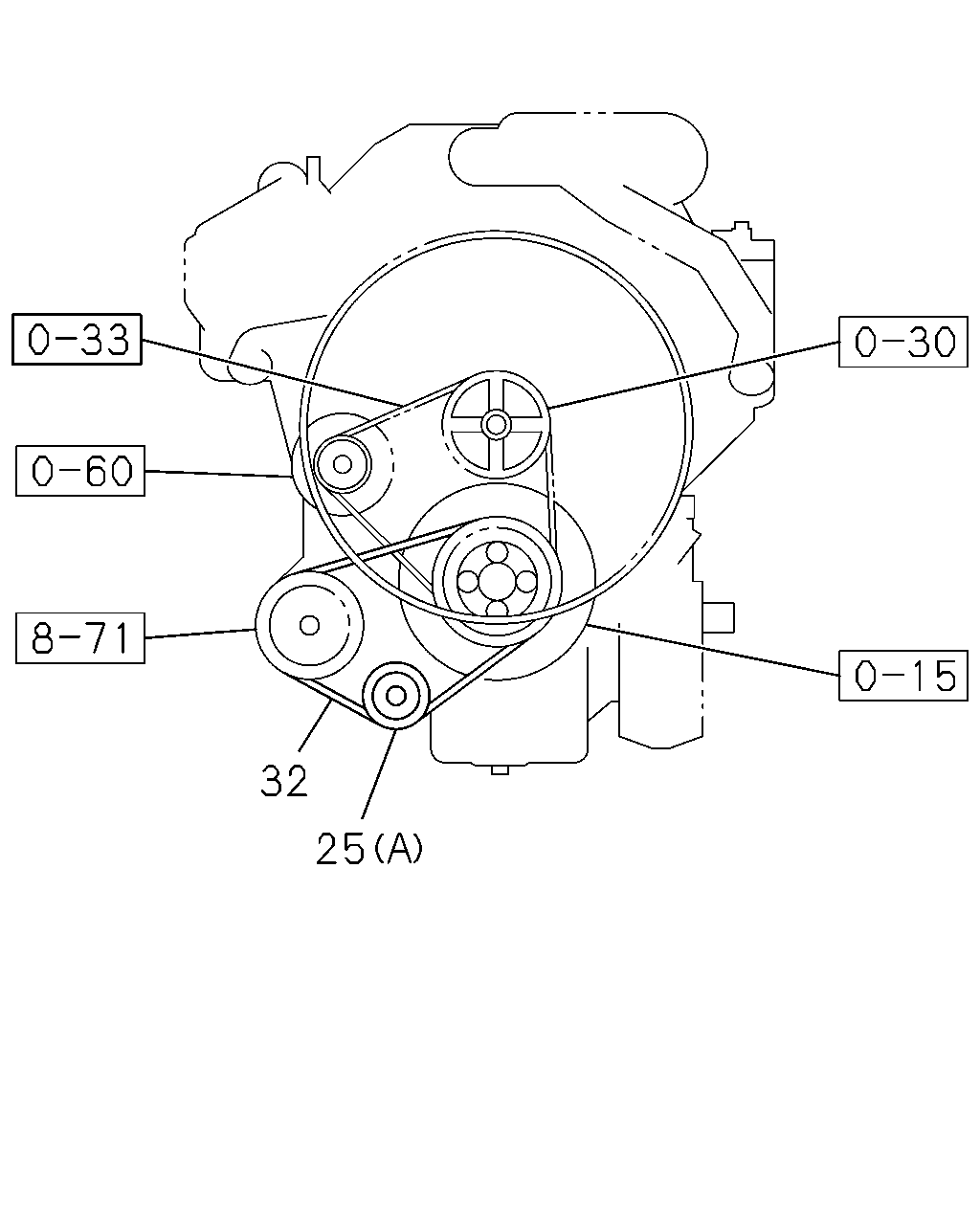

32 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE THA	8-97161-198-1	01	1	1410-
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-079-0	01	1	1410-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS THA	1-87610-100-0	01	1	1410-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1594 THA	8-97383-577-1	01	1	1410-
32	BELT; A/C CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114 THA	8-97605-102-0	01	1	1410-

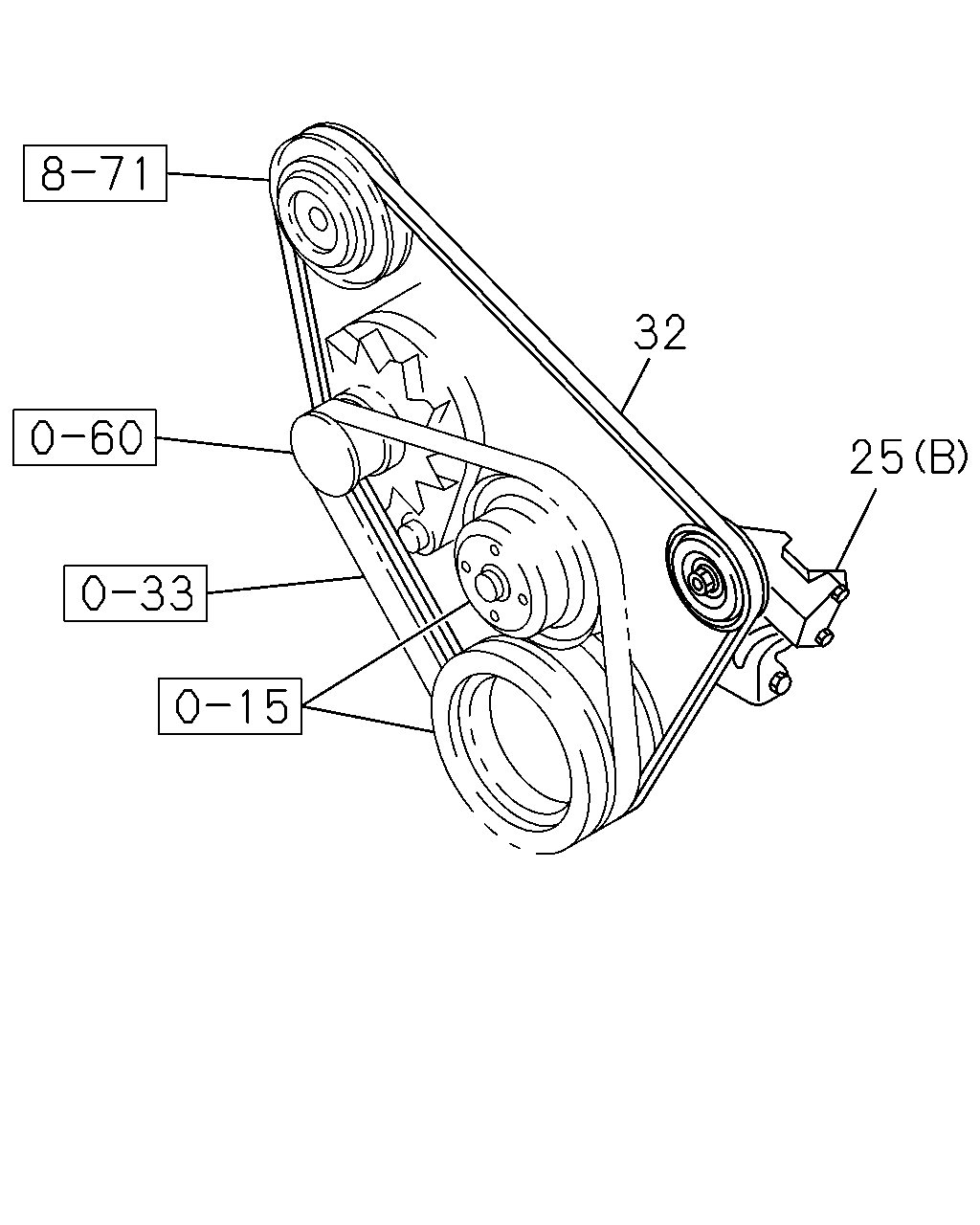

25 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE THA	8-97161-198-1	01	1	1410-
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-079-0	01	1	1410-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS THA	1-87610-100-0	01	1	1410-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1594 THA	8-97383-577-1	01	1	1410-
32	BELT; A/C CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114 THA	8-97605-102-0	01	1	1410-

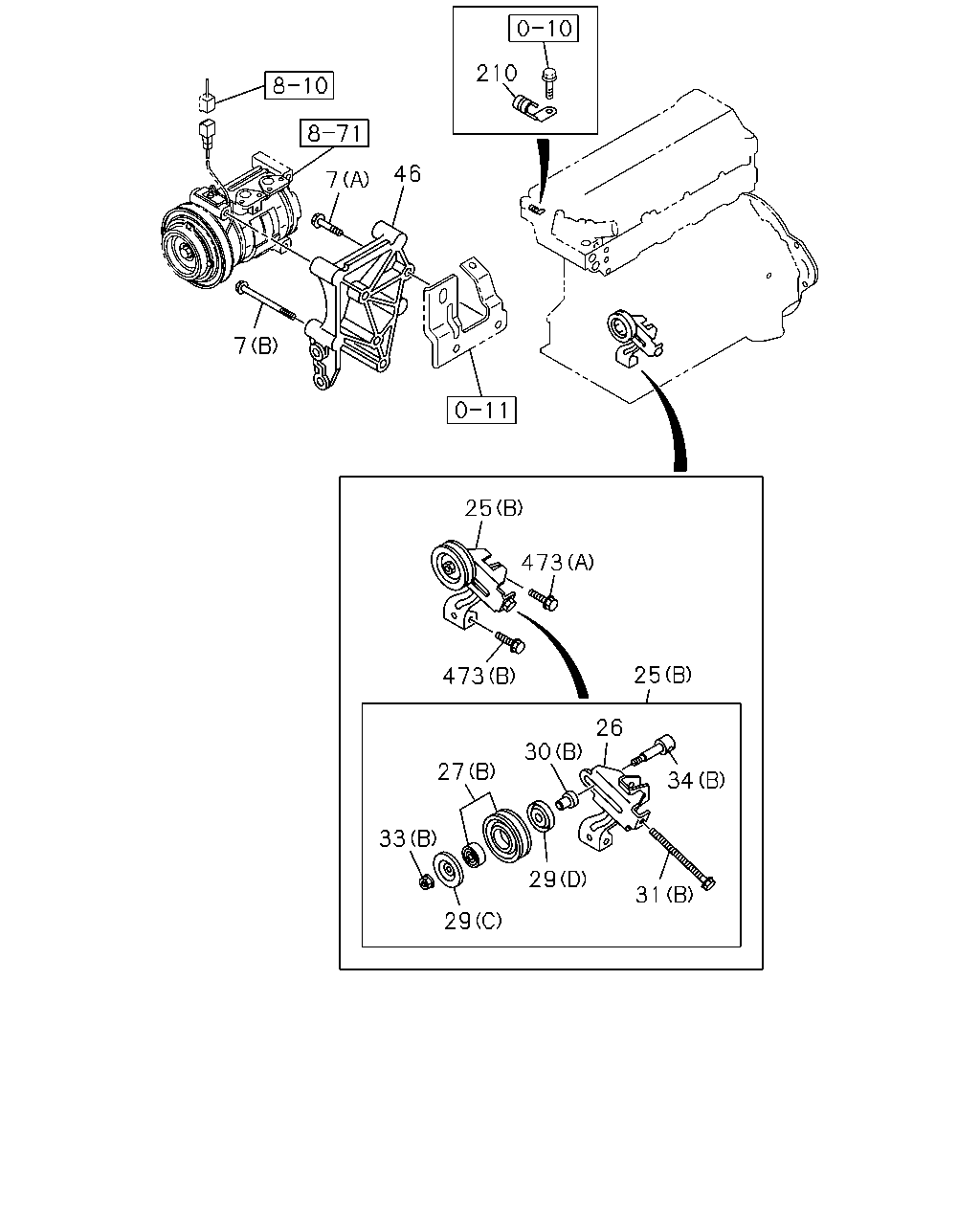

7 46 7 210 25 473 473 25 27 30 26 34 31 29 29 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M10X45 FLANGE THA	0-28151-045-0	02	1	1410-
7	BOLT; BRKT 4HK1-TCS ENG<RJS> (B) M10X80 FLANGE THA	0-28151-080-0	02	1	1410-
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE THA	8-97161-198-1	01	1	1410-
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-079-0	01	1	1410-
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	8-97161-031-1	01	1	1410-
27	PULLEY; IDLE,A/C 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97386-869-0	01	1	1410-
27	PULLEY; IDLE,A/C 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-323-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) THA	8-97384-114-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D) THA	8-97384-115-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-329-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97605-330-0	01	1	1410-
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-117-0	01	1	1410-
30	COLLAR; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-328-0	01	1	1410-
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-113-0	01	1	1410-
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-325-0	01	1	1410-
33	NUT; IDLER PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-118-0	01	1	1410-
33	NUT; IDLER PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-326-0	01	1	1410-
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-116-0	01	1	1410-
34	SHAFT; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-327-0	01	1	1410-
46	BRACKET; CMPR 4HK1-TCS ENG<RJS> THA	8-98101-364-0	01	1	1410-
210	CLIP; HARNESS 4HK1-TCS ENG<RJS> ID=12 VINYL CHLORIDE THA	8-97367-984-1	01	1	1410-
473	BOLT; TENSIONER 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M10X65 FLANGE THA	8-94344-540-1	01	1	1410-
473	BOLT; TENSIONER 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M8X50 FLANGE THA	0-28050-850-0	01	1	1410-

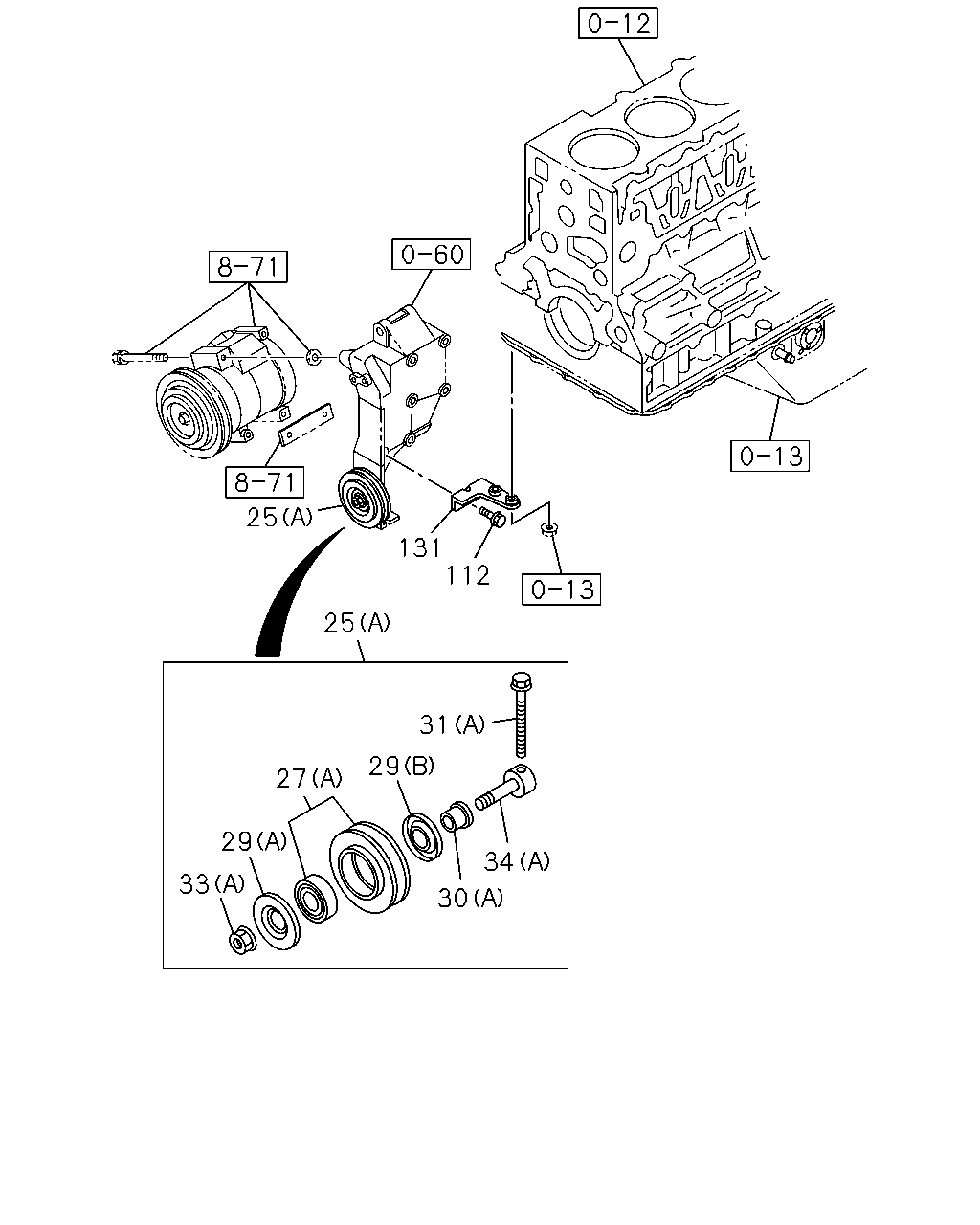

30 33 27 29 34 29 31 25 131 25 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE THA	8-97161-198-1	01	1	1410-
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-079-0	01	1	1410-
27	PULLEY; IDLE,A/C 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97386-869-0	01	1	1410-
27	PULLEY; IDLE,A/C 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-323-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) THA	8-97384-114-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D) THA	8-97384-115-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-329-0	01	1	1410-
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97605-330-0	01	1	1410-
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-117-0	01	1	1410-
30	COLLAR; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-328-0	01	1	1410-
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-113-0	01	1	1410-
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-325-0	01	1	1410-
33	NUT; IDLER PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-118-0	01	1	1410-
33	NUT; IDLER PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-326-0	01	1	1410-
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA	8-97384-116-0	01	1	1410-
34	SHAFT; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	8-97605-327-0	01	1	1410-
112	BOLT; STAY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
131	STAY; CMPR BRKT 6HK1-TCN ENG<82L> THA	8-94393-451-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
