Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#150336) — 27 parça
◀
[840A] OTHER PARTS (5 parça)
[840A] DUCT (22 parça)
▶
223
50
476
206
407
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
THA
8-97925-112-0
01
1
1410-
206
GROMMET; A/C PIPE TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98019-649-0
01
1
1410-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5 THA
8-94441-539-0
01
1
1410-
407
JOINT; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98041-758-0
01
1
1410-
476
SCREW; VALVE
M5X16 HEX SOCKET THA
8-98062-675-0
01
1
1410-

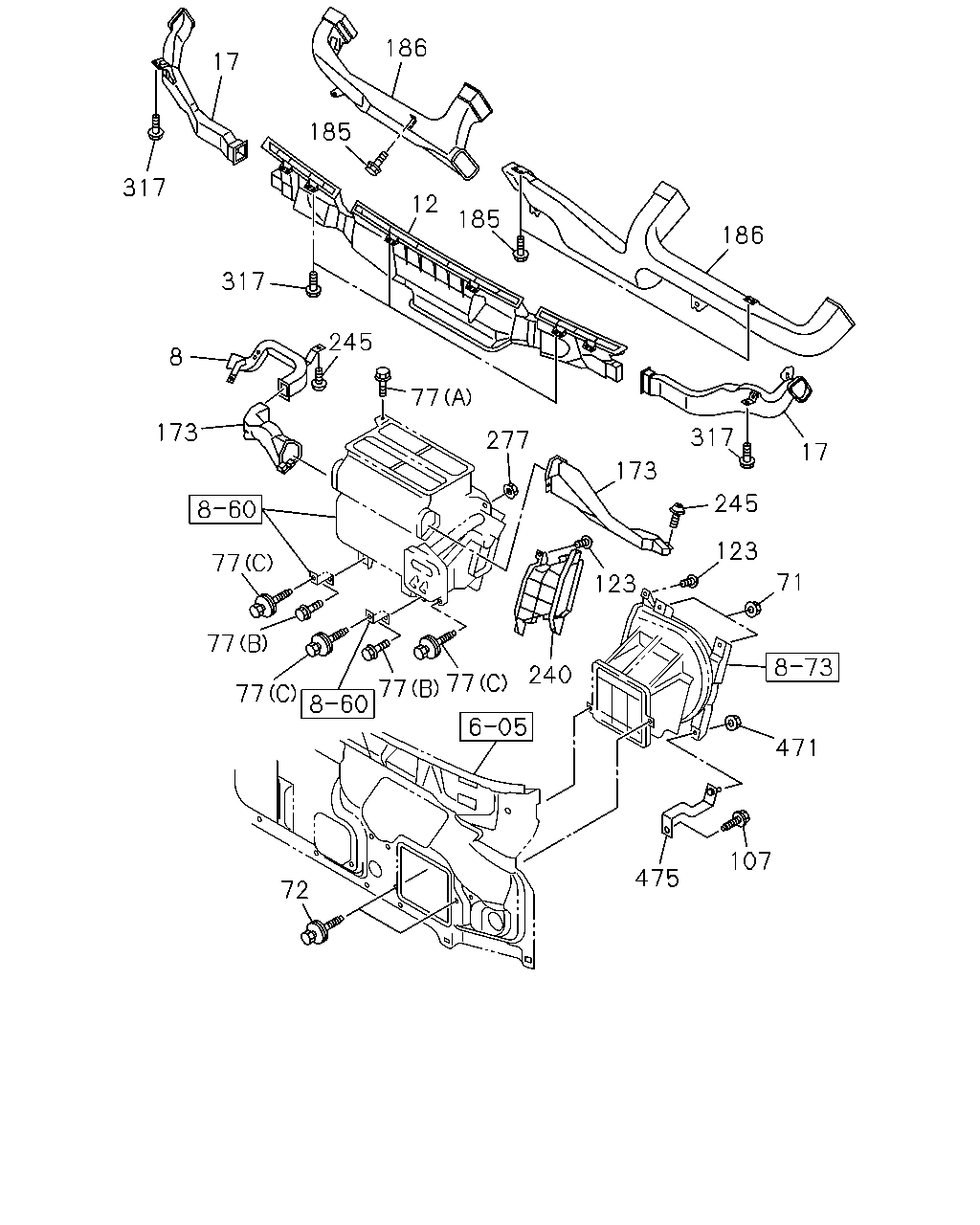

17
317
185
186
317
12
185
186
8
173
245
77
77
77
77
77
77
277
173
317
17
240
123
245
123
71
471
475
107
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
THA
8-98236-467-0
01
1
1410-
12
NOZZLE; DEFROSTER
THA
8-98040-009-3
01
1
1410-
17
NOZZLE; DEFROSTER,SIDE
THA
8-98040-013-1
01
1
1410-
17
NOZZLE; DEFROSTER,SIDE
THA
8-98040-018-1
01
1
1410-
71
NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
02
1
1410-
72
BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X20 W/LK&PL WASHER THA
8-98081-175-0
02
1
1410-
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER THA
8-98081-175-0
03
1
1410-
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA
0-28650-616-0
01
1
1410-
77
BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M6X20 FLANGE THA
0-28650-620-0
02
1
1410-
107
BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 W/LK&PL WASHER THA
8-98018-439-0
01
1
1410-
123
SCREW; DUCT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X16 TAPPING THA
0-72180-516-0
04
1
1410-
173
DUCT; FOOT,HTR
THA
8-97585-506-2
01
1
1410-
173
DUCT; FOOT,HTR
THA
8-98236-466-0
01
1
1410-
185
SCREW; VENT DUCT
M5X16 TAPPING THA
0-72180-516-0
04
1
1410-
186
DUCT; VENTILATOR
THA
8-97585-489-4
01
1
1410-
186
DUCT; VENTILATOR
THA
8-98174-737-0
01
1
1410-
240
DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98041-402-1
01
1
1410-
245
CLIP; FOOT DUCT
THA
8-98056-059-0
03
1
1410-
277
NUT; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
01
1
1410-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING THA
0-72180-516-0
08
1
1410-
471
NUT; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA
0-91180-106-0
01
1
1410-
475
BRACKET; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98043-500-1
01
1
1410-
