Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#150334) — 19 parça

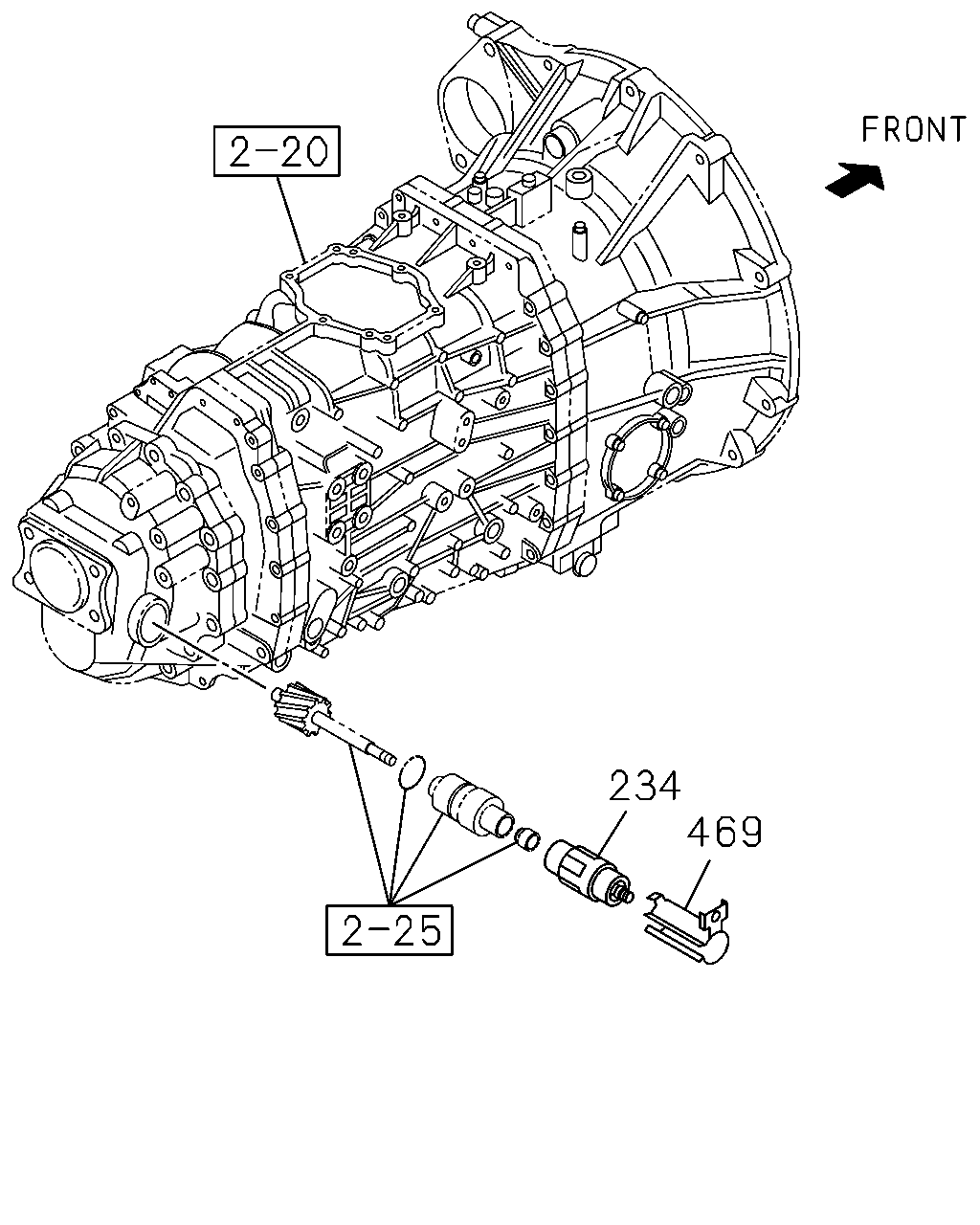

234 469

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	234	SENSOR; VEHICLE SPD 25 PULSE ALUMINUM THA	8-97328-058-1	01	1	1410-
	469	PROTECTOR; SPEED SENSOR THA	8-98119-901-0	01	1	1410-

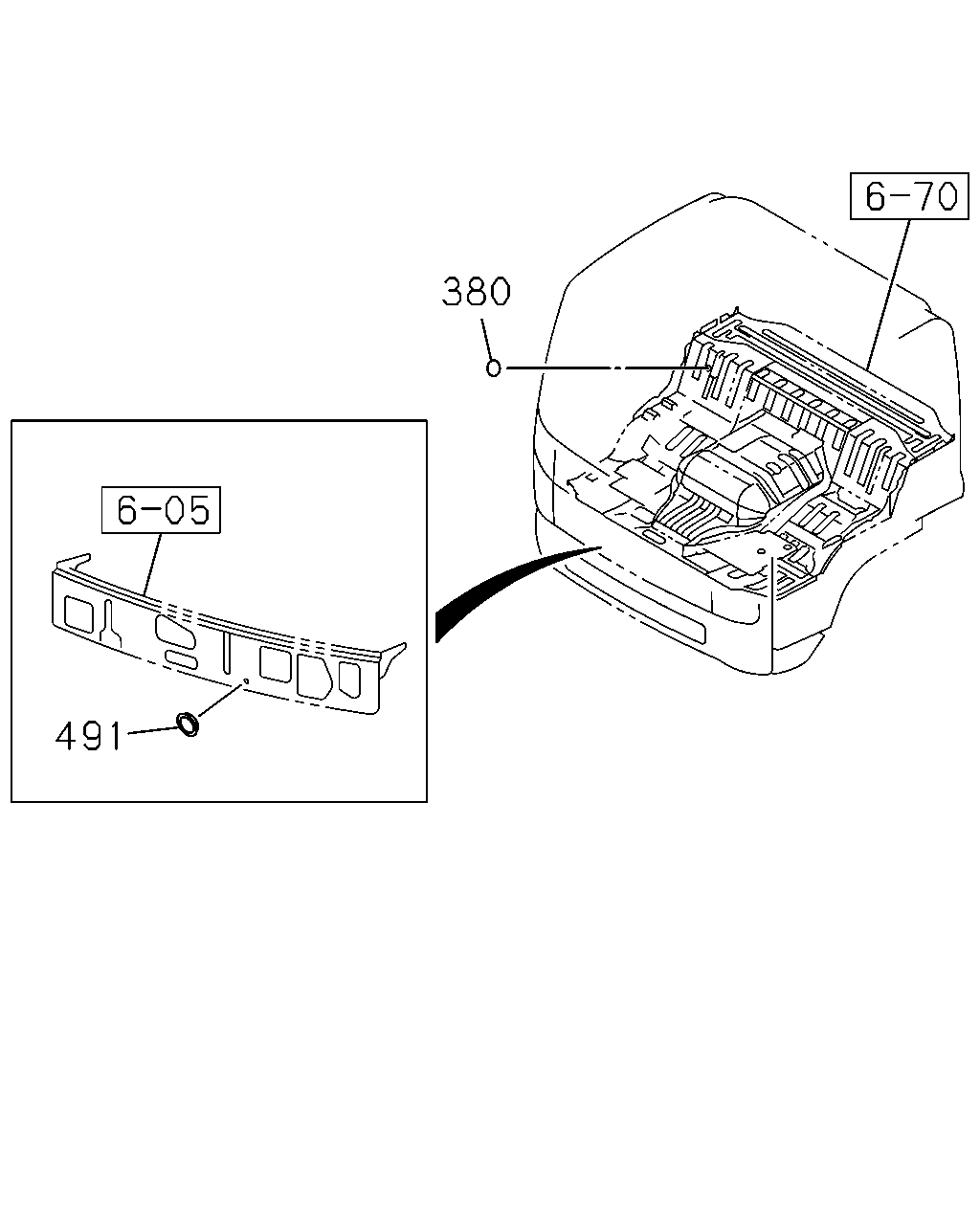

380 491

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	380	SEAL OD=25 BLACK THA	1-76798-019-0	01	1	1410-
	491	PLUG; HOLE,CONT UNIT THA	8-98054-651-0	01	1	1410-

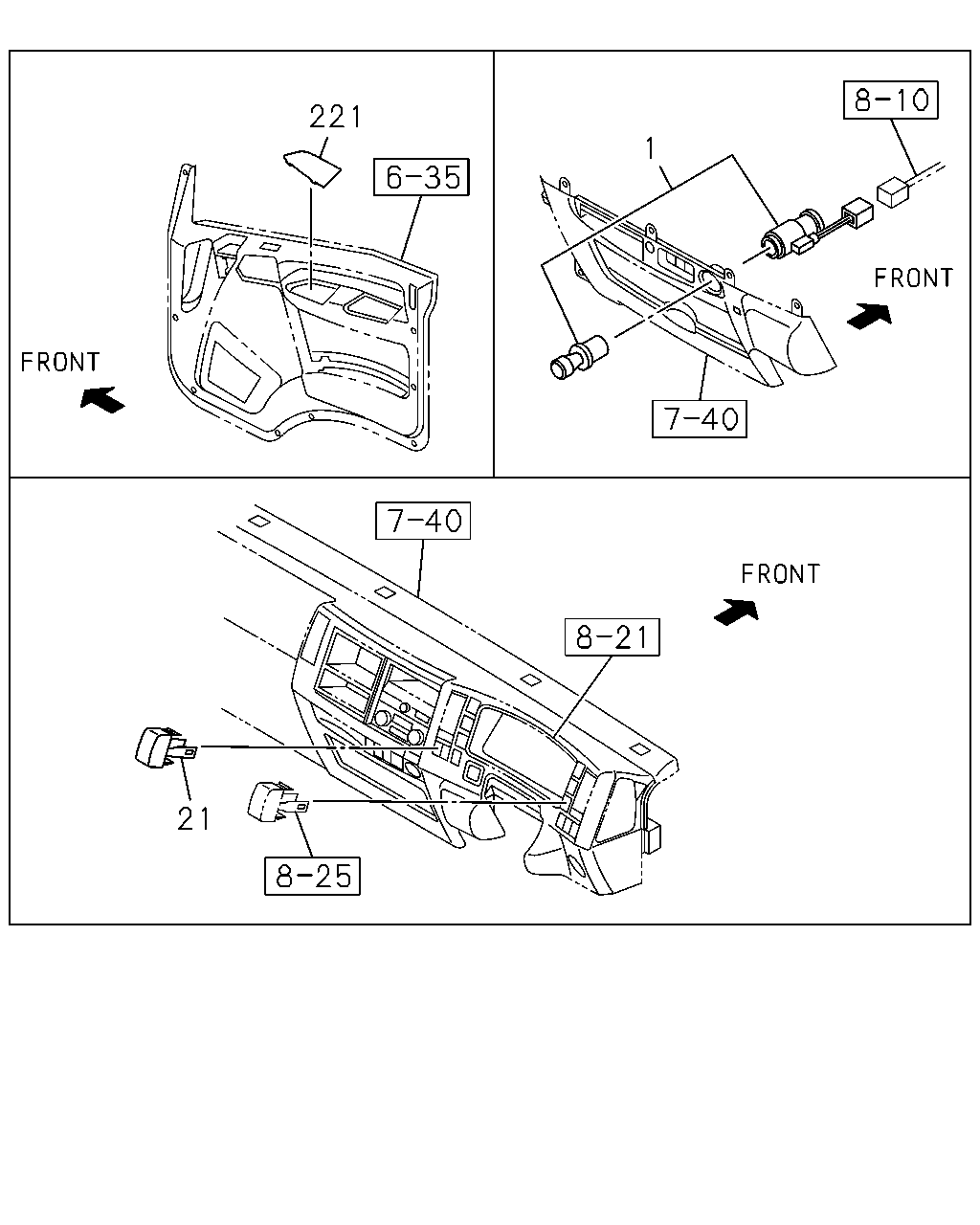

221 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR THA	8-98142-962-0	01	1	1410-
21	COVER; HOLE THA	8-98025-954-1	01	1	1410-
221	COVER; HOLE,DOOR LOCK SW THA	8-98029-915-2	01	1	1410-
221	COVER; HOLE,DOOR LOCK SW THA	8-98029-916-2	01	1	1410-

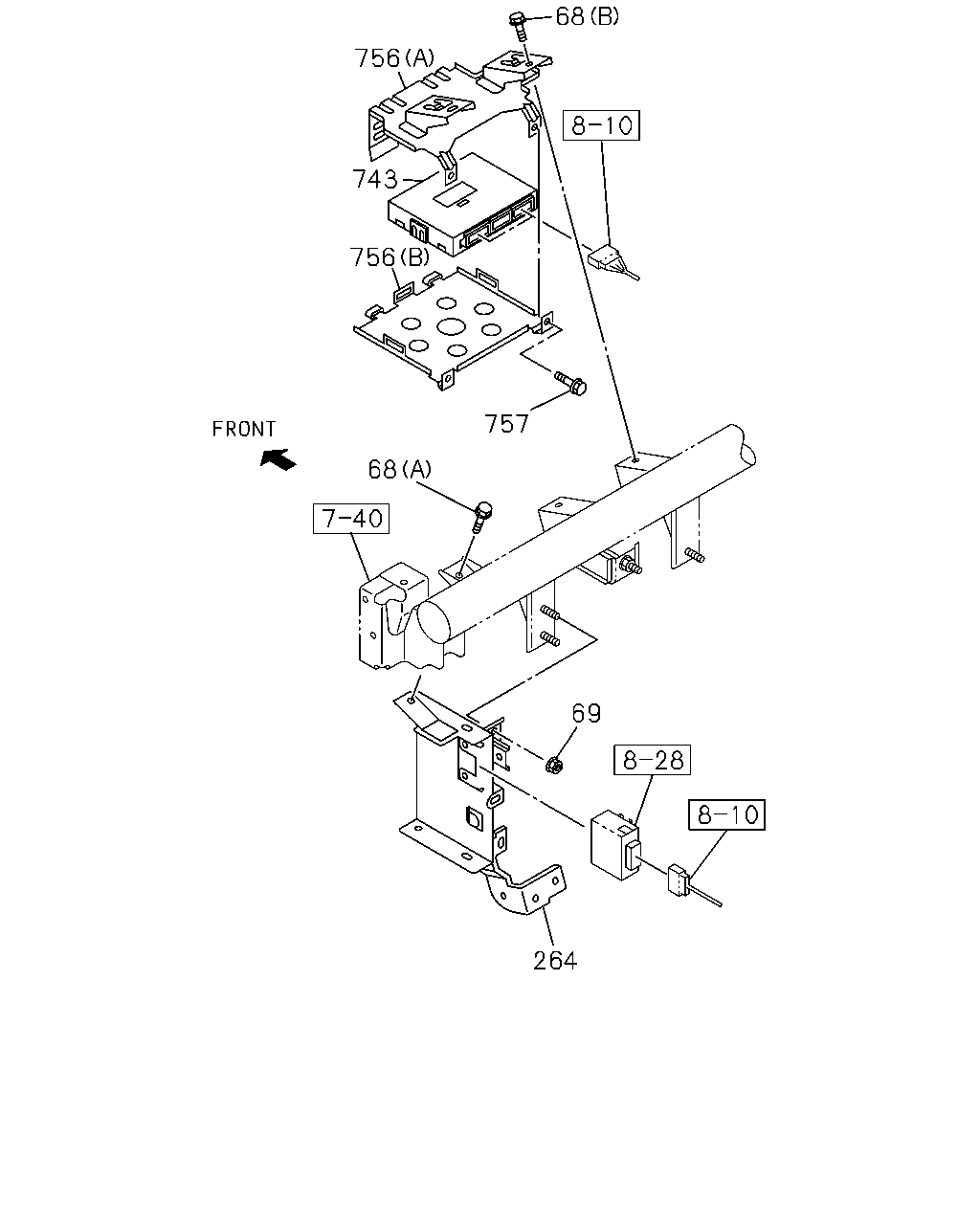

756 68 743 756 68 757 69 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; BRKT MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER THA	1-09980-492-0	02	1	1410-
68	BOLT; BRKT (A) M6X16 FLANGE THA	0-28650-616-0	01	1	1410-
69	NUT; BRKT M6 FLANGE THA	0-91180-106-0	01	1	1410-
264	BRACKET; CONT UNIT THA	8-97609-985-9	01	1	1410-
743	CONTROL UNIT; BCM MEMORY SYSTEM RUNNING CONDITION<NCR> THA	8-98182-026-2	01	1	1410-
756	BRACKET; ECU,BCM MEMORY SYSTEM RUNNING CONDITION<NCR> (A) THA	8-98056-411-3	01	1	1410-
756	BRACKET; ECU,BCM MEMORY SYSTEM RUNNING CONDITION<NCR> (B) THA	8-98111-836-1	01	1	1410-
757	BOLT; BRKT,BCM MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA	0-28650-616-0	02	1	1410-

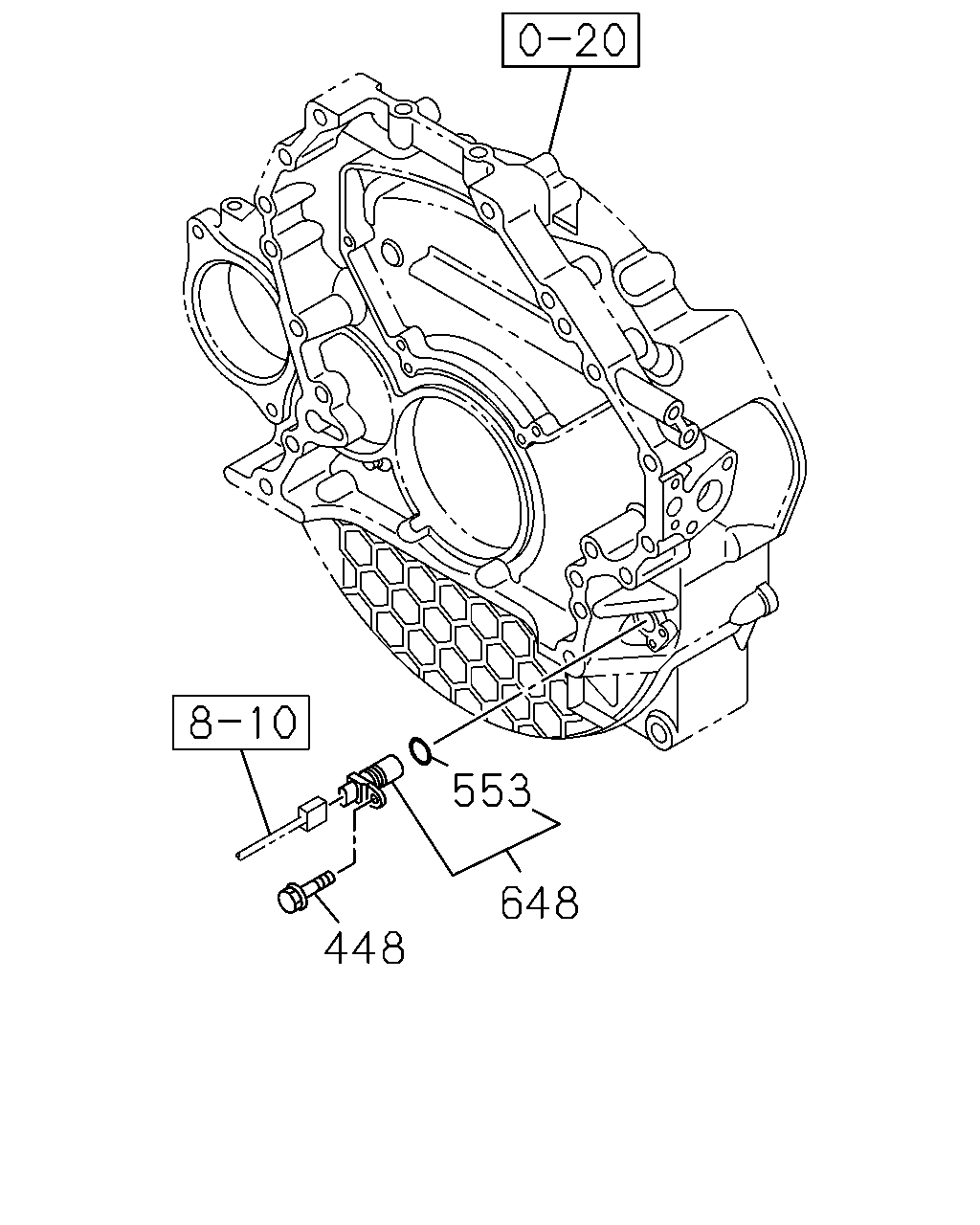

553 648 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
448	BOLT; SENSOR 4HK1-TCS ENG<RJS> M6X16 FLANGE THA	0-28050-616-0	01	1	1410-
553	GASKET 4HK1-TCS ENG<RJS> ID=14.2 OD=18.8 THA	8-97369-404-0	01	1	1410-
648	SENSOR; CRANK ANGLE 4HK1-TCS ENG<RJS> THA	8-97606-943-0	01	1	1410-
