Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#150331) — 260 parça

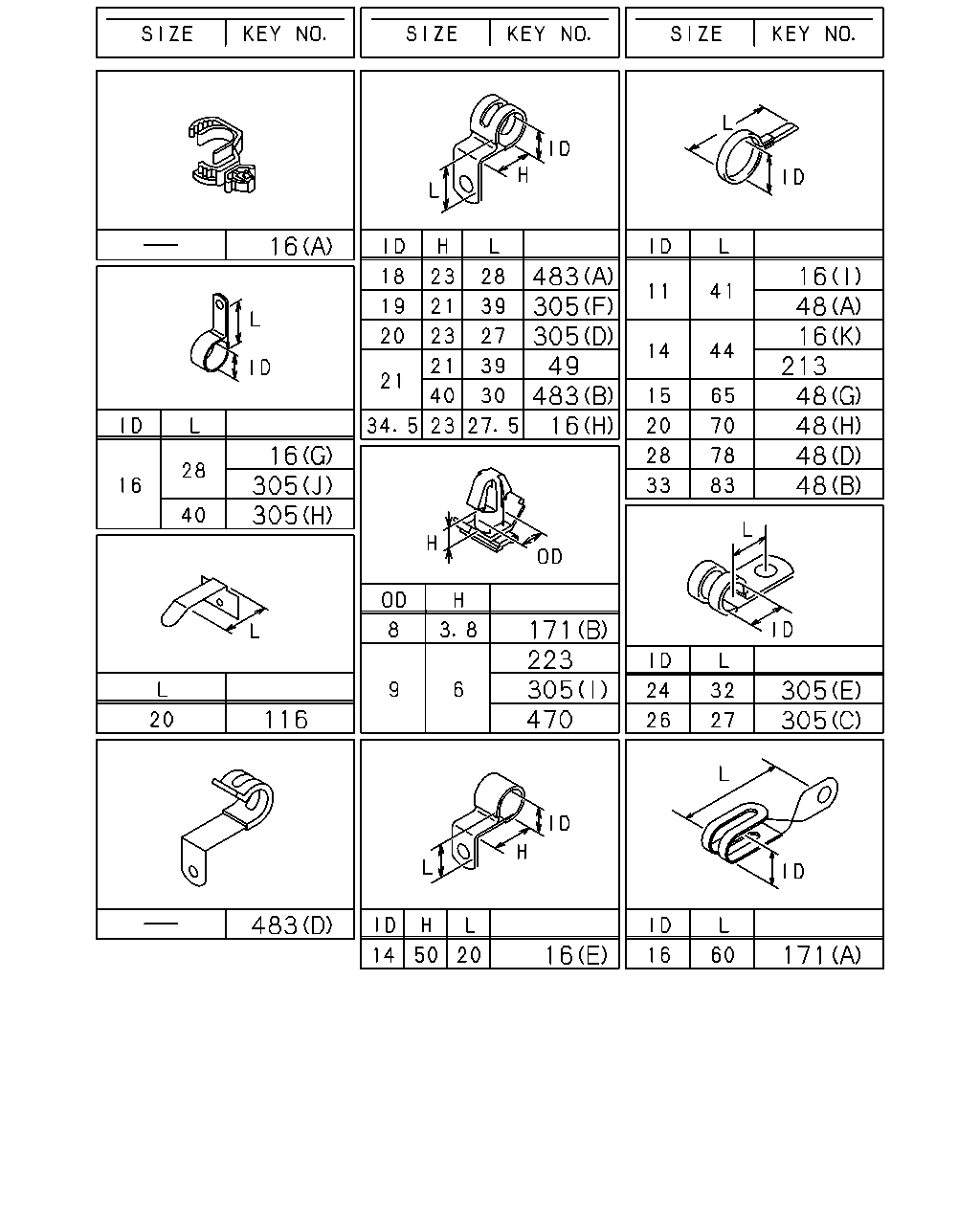

16 16 16 483 16 16 483 305 306 48 306 305 305 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (M) ID=24 L=24 THA	1-09701-001-1	01	1	1410-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (L) ID=17 L=21 THA	8-98082-035-0	01	1	1410-
16	CLIP; HARNESS 6HK1-TCN ENG<82L> (H) ID=34.5 H=23 L=27.5 THA	1-09700-905-0	02	1	1410-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5 THA	1-09700-905-0	02	1	1410-
16	CLIP; HARNESS (G) ID=16 L=28 THA	0-95235-556-0	02	1	1410-
16	CLIP; HARNESS (E) ID=14 H=50 L=20 THA	1-09700-843-0	02	1	1410-
16	CLIP; HARNESS (J) L=350 THA	1-09707-183-0	02	1	1410-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1410-
16	CLIP; HARNESS (A) ID=10 & 16 THA	8-94413-325-0	01	1	1410-
16	CLIP; HARNESS (K) ID=14 L=44 THA	9-09917-427-0	03	1	1410-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1410-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1410-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=11 L=41 THA	1-09700-403-0	05	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (G) ID=15 L=65 THA	1-09700-466-0	01	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (I) L=250 THA	5-09707-030-1	01	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	04	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	05	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (A) ID=11 L=41 THA	1-09700-403-0	01	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65 THA	1-09700-466-0	11	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65 THA	1-09700-466-0	15	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65 THA	1-09700-466-0	19	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (A) ID=11 L=41 THA	1-09700-403-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70 THA	1-09700-485-0	01	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70 THA	1-09700-485-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (D) ID=28 L=78 THA	1-09700-858-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (B) ID=33 L=83 THA	1-09701-291-0	04	1	1410-
48	CLIP; FRAME HARNESS (G) ID=15 L=65 THA	1-09700-466-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (G) ID=15 L=65 THA	1-09700-466-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	03	1	1410-
48	CLIP; FRAME HARNESS (E) ID=35 L=50 THA	1-09701-214-0	01	1	1410-
48	CLIP; FRAME HARNESS (C) L=350 THA	1-09707-183-0	01	1	1410-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (K) L=300 THA	1-09707-001-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140 THA	5-09707-031-1	02	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (J) ID=16 L=28 THA	0-95235-556-0	02	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (H) ID=16 L=40 THA	0-95235-576-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (E) ID=24 L=32 THA	1-09700-766-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (D) ID=20 H=23 L=27 THA	1-09700-861-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (F) ID=19 L=39 H=21 THA	1-09700-972-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (C) ID=26 L=27 THA	1-09701-006-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (A) ID=25 L=60 THA	1-09701-041-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (I) OD=9 H=6 THA	1-09709-178-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (B) ID=18 L=44 THA	8-97367-985-1	01	1	1410-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, 6HK1-TCNENG<82L> (G) ID=21 L=47.5 THA	8-94178-108-0	01	1	1410-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG<82L> (A) ID=28 L=32 THA	1-09701-107-1	01	1	1410-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG<82L> (B) ID=28X2 L=28 THA	1-09701-302-0	02	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (A) ID=18 H=23 L=28 THA	1-09700-860-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (B) ID=21 L=30 H=40 THA	1-09700-991-1	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (C) ID=24 L=24 THA	1-09701-001-1	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (D) THA	1-09987-281-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (E) ID=12 B=13 ID=6.5 THA	5-09700-348-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (F) ID=21 L=47.5 THA	8-94178-108-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (G) L=36 THA	8-94224-891-1	01	1	1410-

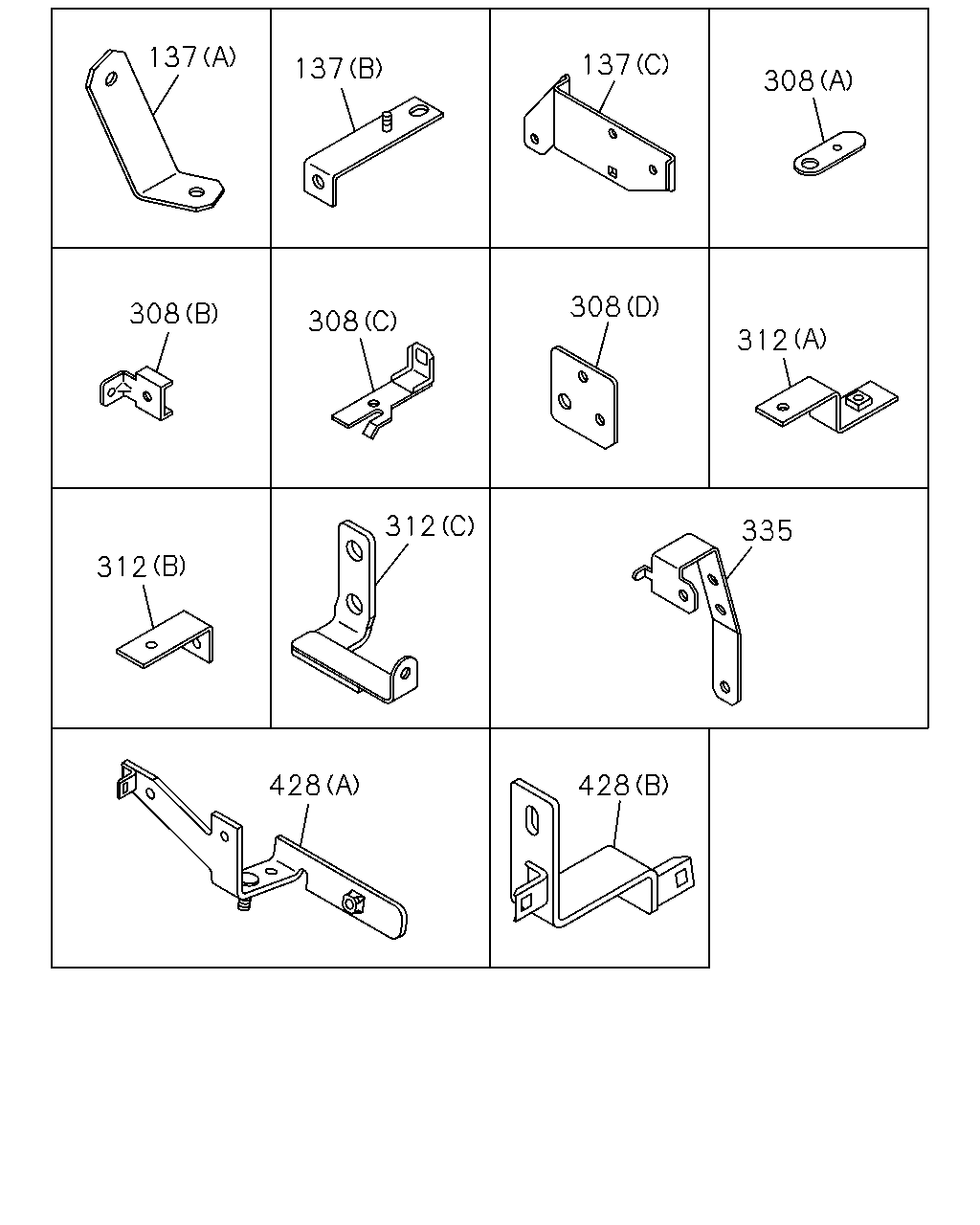

137 137 137 308 308 308 308 312 312 312 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG<RJS> (C) THA	8-98193-417-0	01	1	1410-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG<82L> (A) THA	8-97614-728-1	01	1	1410-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG<82L> (B) THA	8-97624-013-0	01	1	1410-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (A) THA	8-97601-310-0	03	1	1410-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (B) THA	8-97614-078-0	01	1	1410-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (C) THA	8-98021-291-2	01	1	1410-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (D) THA	8-98021-692-1	01	1	1410-
312	BRACKET; CLIP HARNESS (B) L=55 THA	1-47475-304-0	01	1	1410-
312	BRACKET; CLIP HARNESS (A) THA	8-97609-110-1	01	1	1410-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG<RJS> (C) THA	8-98094-804-0	01	1	1410-
335	BRACKET; CONNECTOR THA	8-97619-097-1	01	1	1410-
428	BRACKET 4HK1-TCS ENG<RJS> (B) THA	8-98203-354-2	01	1	1410-
428	BRACKET 6HK1-TCN ENG<82L> (A) THA	8-98212-082-1	01	1	1410-

14 22 48 305 14 14 16 48 206 208 217 225 305 14 16 48 538 503 178 178 178 178 1 1 530 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER 6HK1-TCN ENG<82L> (B) ID=23 OD=27 L=80 THA	8-97608-976-0	05	1	1410-
1	SLEEVE; RUBBER 6HK1-TCN ENG<82L> (A) ID=10 OD=14 L=30 THA	9-09956-682-0	04	1	1410-
14	CLIP; BAND,HARNESS (C) L=251 THA	8-97619-917-0	01	1	1410-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (C) L=251 THA	8-97619-917-0	02	1	1410-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG<82L> (B) L=350 THA	1-09707-183-0	01	1	1410-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (E) L=250 THA	5-09707-030-1	01	1	1410-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (D) L=140 THA	5-09707-031-1	02	1	1410-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (F) L=150 THA	8-97355-273-0	01	1	1410-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG<82L> (A) L=250 THA	8-98216-430-0	14	1	1410-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (M) ID=24 L=24 THA	1-09701-001-1	01	1	1410-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (L) ID=17 L=21 THA	8-98082-035-0	01	1	1410-
16	CLIP; HARNESS 6HK1-TCN ENG<82L> (H) ID=34.5 H=23 L=27.5 THA	1-09700-905-0	02	1	1410-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5 THA	1-09700-905-0	02	1	1410-
16	CLIP; HARNESS (G) ID=16 L=28 THA	0-95235-556-0	02	1	1410-
16	CLIP; HARNESS (E) ID=14 H=50 L=20 THA	1-09700-843-0	02	1	1410-
16	CLIP; HARNESS (J) L=350 THA	1-09707-183-0	02	1	1410-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1410-
16	CLIP; HARNESS (A) ID=10 & 16 THA	8-94413-325-0	01	1	1410-
16	CLIP; HARNESS (K) ID=14 L=44 THA	9-09917-427-0	03	1	1410-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1410-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1410-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1410-
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> L=140 THA	5-09707-031-1	02	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=11 L=41 THA	1-09700-403-0	05	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (G) ID=15 L=65 THA	1-09700-466-0	01	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (I) L=250 THA	5-09707-030-1	01	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	04	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	05	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (A) ID=11 L=41 THA	1-09700-403-0	01	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65 THA	1-09700-466-0	11	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65 THA	1-09700-466-0	15	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65 THA	1-09700-466-0	19	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (A) ID=11 L=41 THA	1-09700-403-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70 THA	1-09700-485-0	01	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70 THA	1-09700-485-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (D) ID=28 L=78 THA	1-09700-858-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (B) ID=33 L=83 THA	1-09701-291-0	04	1	1410-
48	CLIP; FRAME HARNESS (G) ID=15 L=65 THA	1-09700-466-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (G) ID=15 L=65 THA	1-09700-466-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	03	1	1410-
48	CLIP; FRAME HARNESS (E) ID=35 L=50 THA	1-09701-214-0	01	1	1410-
48	CLIP; FRAME HARNESS (C) L=350 THA	1-09707-183-0	01	1	1410-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1410-
178	GROMMET; HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (C) ID=24 OD=30 T=17 THA	9-09956-092-1	01	1	1410-
178	GROMMET; HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 5500MM<55W> (D) ID=24 OD=30 T=22 THA	1-09332-104-0	01	1	1410-
178	GROMMET; HARNESS 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
178	GROMMET; HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17 THA	9-09956-256-2	02	1	1410-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25 THA	1-09332-011-1	02	1	1410-
178	GROMMET; HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25 THA	1-09332-011-1	01	1	1410-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25 THA	1-09332-011-1	01	1	1410-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25 THA	1-09332-011-1	01	1	1410-
206	CLIP; FUEL TANK HARNESS L=250 THA	5-09707-030-1	05	1	1410-
208	CLIP; HARNESS,MAG VLV 6HK1-TCN ENG<82L> PTO CONTROL<SV6> L=250 THA	5-09707-030-1	01	1	1410-
208	CLIP; HARNESS,MAG VLV 4HK1-TCS ENG<RJS> L=250 THA	5-09707-030-1	01	1	1410-
217	CLIP; RR BODY HARNESS L=250 THA	5-09707-030-1	02	1	1410-
225	CLIP; AIR TANK HARNESS L=250 THA	5-09707-030-1	02	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (K) L=300 THA	1-09707-001-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140 THA	5-09707-031-1	02	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (J) ID=16 L=28 THA	0-95235-556-0	02	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (H) ID=16 L=40 THA	0-95235-576-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (E) ID=24 L=32 THA	1-09700-766-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (D) ID=20 H=23 L=27 THA	1-09700-861-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (F) ID=19 L=39 H=21 THA	1-09700-972-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (C) ID=26 L=27 THA	1-09701-006-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (A) ID=25 L=60 THA	1-09701-041-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (I) OD=9 H=6 THA	1-09709-178-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (B) ID=18 L=44 THA	8-97367-985-1	01	1	1410-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, 6HK1-TCNENG<82L> (G) ID=21 L=47.5 THA	8-94178-108-0	01	1	1410-
503	CONNECTOR 6HK1-TCN ENG<82L> THA	1-82690-668-0	01	1	1410-
530	SEAL; HARNESS 180X40 THA	1-72498-019-1	06	1	1410-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1410-

386 184 127 139 313 139 139 313 313 150 139 313 150 139 38 242 139 38 38 377 304 304 304 150 139 304 304 150 239 524 294 525 294 219 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER THA	8-98141-255-0	03	1	1410-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1410-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1410-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG<82L> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET THA	8-98063-767-0	01	1	1410-
139	BOLT; BRKT 4HK1-TCS ENG<RJS> (G) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
139	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
139	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	1410-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1410-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	01	1	1410-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1410-
150	BOLT; CLIP 4HK1-TCS ENG<RJS> (C) M6X12 FLANGE THA	0-28050-612-0	02	1	1410-
150	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X12 FLANGE THA	0-28050-812-0	01	1	1410-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 THA	1-09503-265-0	01	1	1410-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG<82L> ID=10.5 OD=22 T=2.0 THA	1-09503-265-0	01	1	1410-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1410-
239	BOLT; GRAND 6HK1-TCN ENG<82L> M6X10 FLANGE THA	0-28050-610-0	01	1	1410-
242	BOLT; BRKT,HARNESS M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
294	NUT 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1410-
294	NUT 4HK1-TCS ENG<RJS> (A) M8 FLANGE THA	0-91180-108-0	01	1	1410-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1410-
294	NUT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	01	1	1410-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1410-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1410-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1410-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (E) M6X12 FLANGE THA	0-28050-612-0	01	1	1410-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1410-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (B) M8X12 FLANGE THA	0-28050-812-0	03	1	1410-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (C) M8X16 FLANGE THA	0-28050-816-0	03	1	1410-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1410-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
313	BOLT; BRKT 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
313	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
313	BOLT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (D) M10X30 FLANGE THA	0-28651-030-0	01	1	1410-
313	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1410-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER THA	8-97086-823-0	02	1	1410-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER THA	8-98141-255-0	02	1	1410-
524	NUT; HARNESS 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	0-91180-110-0	01	1	1410-
524	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	04	1	1410-
525	NUT; CLIP 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1410-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1410-

16 483 305 305 49 483 16 16 305 305 116 483 171 223 305 470 16 48 16 213 8 8 8 8 305 305 16 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA	1-09700-403-0	02	1	1410-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (M) ID=24 L=24 THA	1-09701-001-1	01	1	1410-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (L) ID=17 L=21 THA	8-98082-035-0	01	1	1410-
16	CLIP; HARNESS 6HK1-TCN ENG<82L> (H) ID=34.5 H=23 L=27.5 THA	1-09700-905-0	02	1	1410-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5 THA	1-09700-905-0	02	1	1410-
16	CLIP; HARNESS (G) ID=16 L=28 THA	0-95235-556-0	02	1	1410-
16	CLIP; HARNESS (E) ID=14 H=50 L=20 THA	1-09700-843-0	02	1	1410-
16	CLIP; HARNESS (J) L=350 THA	1-09707-183-0	02	1	1410-
16	CLIP; HARNESS (F) L=250 THA	5-09707-030-1	03	1	1410-
16	CLIP; HARNESS (A) ID=10 & 16 THA	8-94413-325-0	01	1	1410-
16	CLIP; HARNESS (K) ID=14 L=44 THA	9-09917-427-0	03	1	1410-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1410-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1410-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=11 L=41 THA	1-09700-403-0	05	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (G) ID=15 L=65 THA	1-09700-466-0	01	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (I) L=250 THA	5-09707-030-1	01	1	1410-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	04	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	05	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (A) ID=11 L=41 THA	1-09700-403-0	01	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65 THA	1-09700-466-0	11	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65 THA	1-09700-466-0	15	1	1410-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65 THA	1-09700-466-0	19	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (A) ID=11 L=41 THA	1-09700-403-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70 THA	1-09700-485-0	01	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70 THA	1-09700-485-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (D) ID=28 L=78 THA	1-09700-858-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (B) ID=33 L=83 THA	1-09701-291-0	04	1	1410-
48	CLIP; FRAME HARNESS (G) ID=15 L=65 THA	1-09700-466-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (G) ID=15 L=65 THA	1-09700-466-0	02	1	1410-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (G) ID=15 L=65 THA	1-09700-466-0	03	1	1410-
48	CLIP; FRAME HARNESS (E) ID=35 L=50 THA	1-09701-214-0	01	1	1410-
48	CLIP; FRAME HARNESS (C) L=350 THA	1-09707-183-0	01	1	1410-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1410-
49	CLIP; GEN HARNESS 4HK1-TCS ENG<RJS> ID=21 H=21 L=39 THA	8-98230-579-0	01	1	1410-
116	CLIP; ROOF HARNESS L=20 THA	1-09987-246-2	03	1	1410-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG<RJS> (B) OD=8 H=3.8 THA	1-09709-309-0	01	1	1410-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG<RJS> (A) THA	8-97101-436-0	01	1	1410-
213	CLIP; END CROSS HARNESS ID=14 L=44 THA	9-09917-427-0	03	1	1410-
223	CLIP; AIR TANK HARNESS OD=9 H=6 THA	1-09709-178-0	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (K) L=300 THA	1-09707-001-1	01	1	1410-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140 THA	5-09707-031-1	02	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (J) ID=16 L=28 THA	0-95235-556-0	02	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (H) ID=16 L=40 THA	0-95235-576-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (E) ID=24 L=32 THA	1-09700-766-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (D) ID=20 H=23 L=27 THA	1-09700-861-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (F) ID=19 L=39 H=21 THA	1-09700-972-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (C) ID=26 L=27 THA	1-09701-006-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (A) ID=25 L=60 THA	1-09701-041-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (I) OD=9 H=6 THA	1-09709-178-0	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (B) ID=18 L=44 THA	8-97367-985-1	01	1	1410-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, 6HK1-TCNENG<82L> (G) ID=21 L=47.5 THA	8-94178-108-0	01	1	1410-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6 THA	1-09709-178-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (A) ID=18 H=23 L=28 THA	1-09700-860-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (B) ID=21 L=30 H=40 THA	1-09700-991-1	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (C) ID=24 L=24 THA	1-09701-001-1	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (D) THA	1-09987-281-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (E) ID=12 B=13 ID=6.5 THA	5-09700-348-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (F) ID=21 L=47.5 THA	8-94178-108-0	01	1	1410-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (G) L=36 THA	8-94224-891-1	01	1	1410-

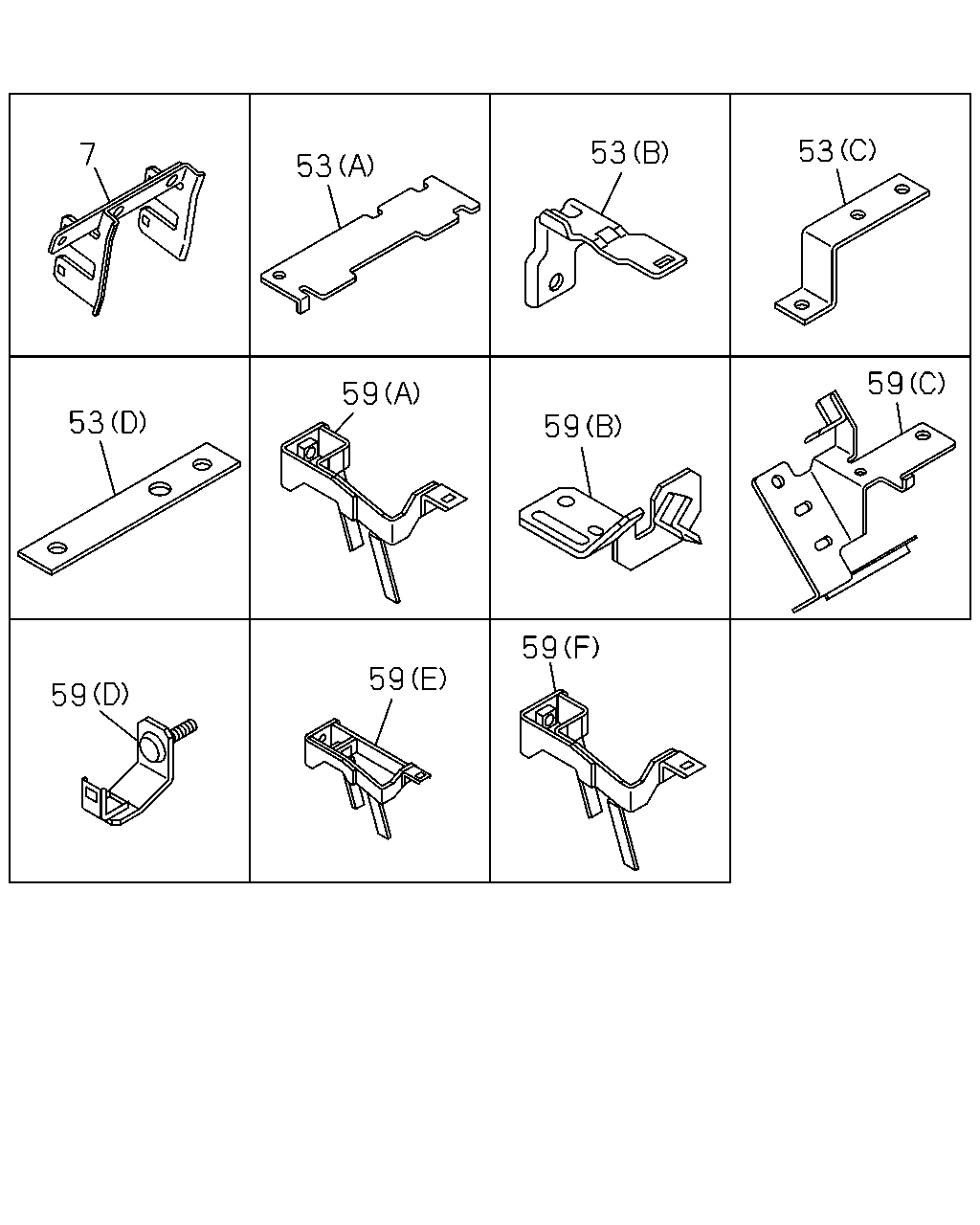

59 59 59 53 59 59 59 53 53 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1410-
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (D) L=170 THA	1-47479-380-0	01	1	1410-
53	BRACKET; HARNESS 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) THA	8-98124-778-0	01	1	1410-
53	BRACKET; HARNESS (B) THA	8-98052-458-0	01	1	1410-
53	BRACKET; HARNESS (A) THA	8-98127-093-0	01	1	1410-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG<RJS> (D) THA	8-97612-957-1	02	1	1410-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG<RJS> (E) THA	8-98099-963-0	01	1	1410-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG<RJS> (F) THA	8-98211-162-0	01	1	1410-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG<82L> (A) THA	8-97609-264-2	01	1	1410-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG<82L> (C) THA	8-98107-611-0	01	1	1410-
59	BRACKET; FRAME HARNESS (B) THA	8-97616-305-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
