◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#15032) — 129 parça

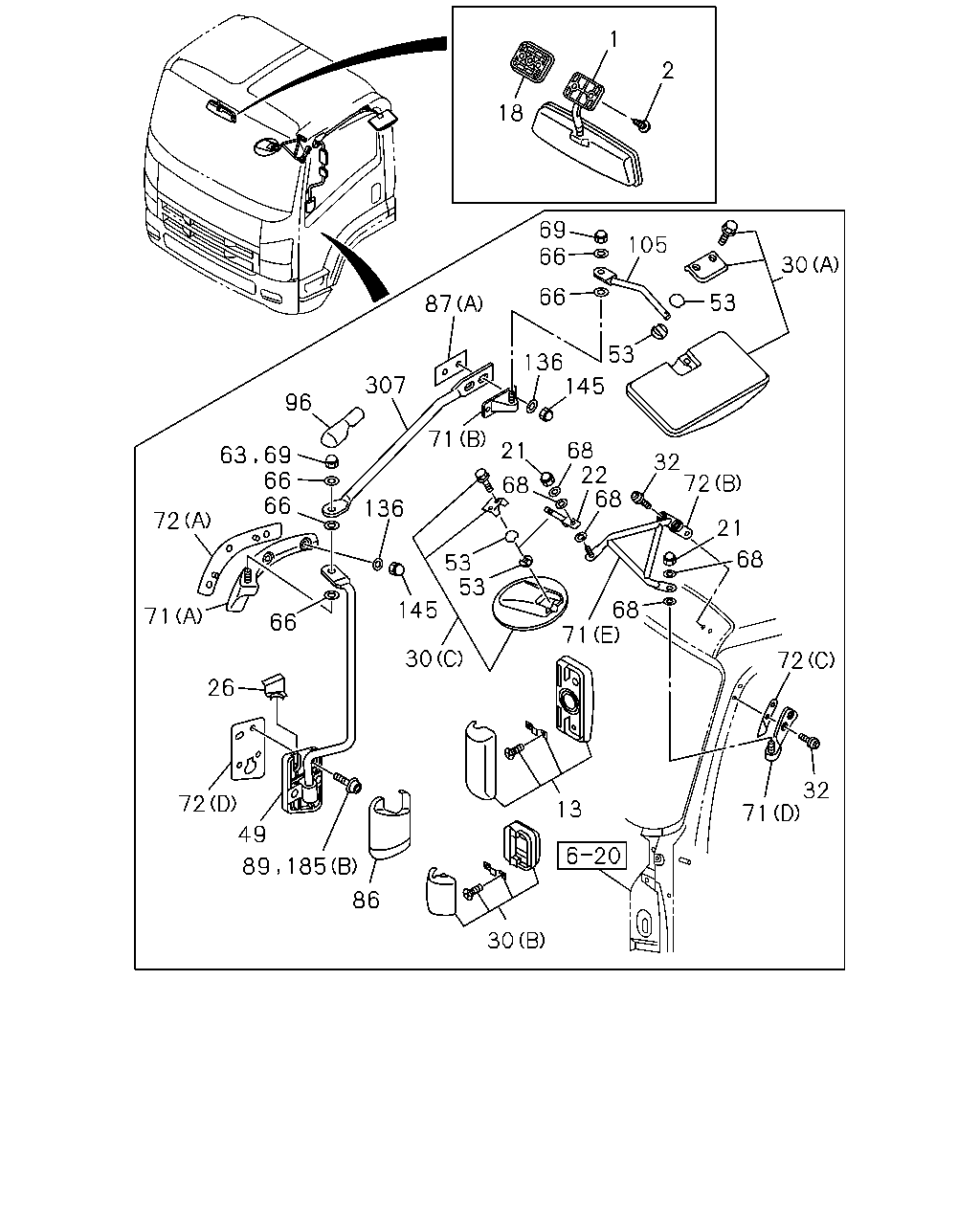

çizim 28634
1 2 18 69 66 105 30 66 53 87 53 136 145 307 96 71 68 22 68 21 66 66 32 72 68 136 72 21 68 53 53 68 71 145 71 66 30 72 26 32 71 72 13 49 86 30 63 69 89 185
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
RR VIEW MIRROR<D31> DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
RR VIEW MIRROR<D31> M6X26 		8-98033-674-0 02 1 0803- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0803- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0803- ● ●
18 CLIP; MIRROR
RR VIEW MIRROR<D31> DARK GRAY 		8-97408-241-0 01 1 0803- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 0803- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0803- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0803- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0803- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0803- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0803- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0803- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0803- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0803- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0803- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0808- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0803- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0803- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 05 1 0803-0805 ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0806- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0803- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0803-0807 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0803- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0803- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0803- ● ●
72 SHEET
(B) 		8-98060-245-1 01 1 0803- ● ●
72 SHEET
(C) 		8-98064-776-0 01 1 0803- ● ●
72 SHEET
(D) 		8-98080-418-0 02 1 0803-0804 ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0805- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0805- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0803- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0803- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0803- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0803- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0803- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0803- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0803- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0803- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0803-0807 ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0803- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0803- ● ●

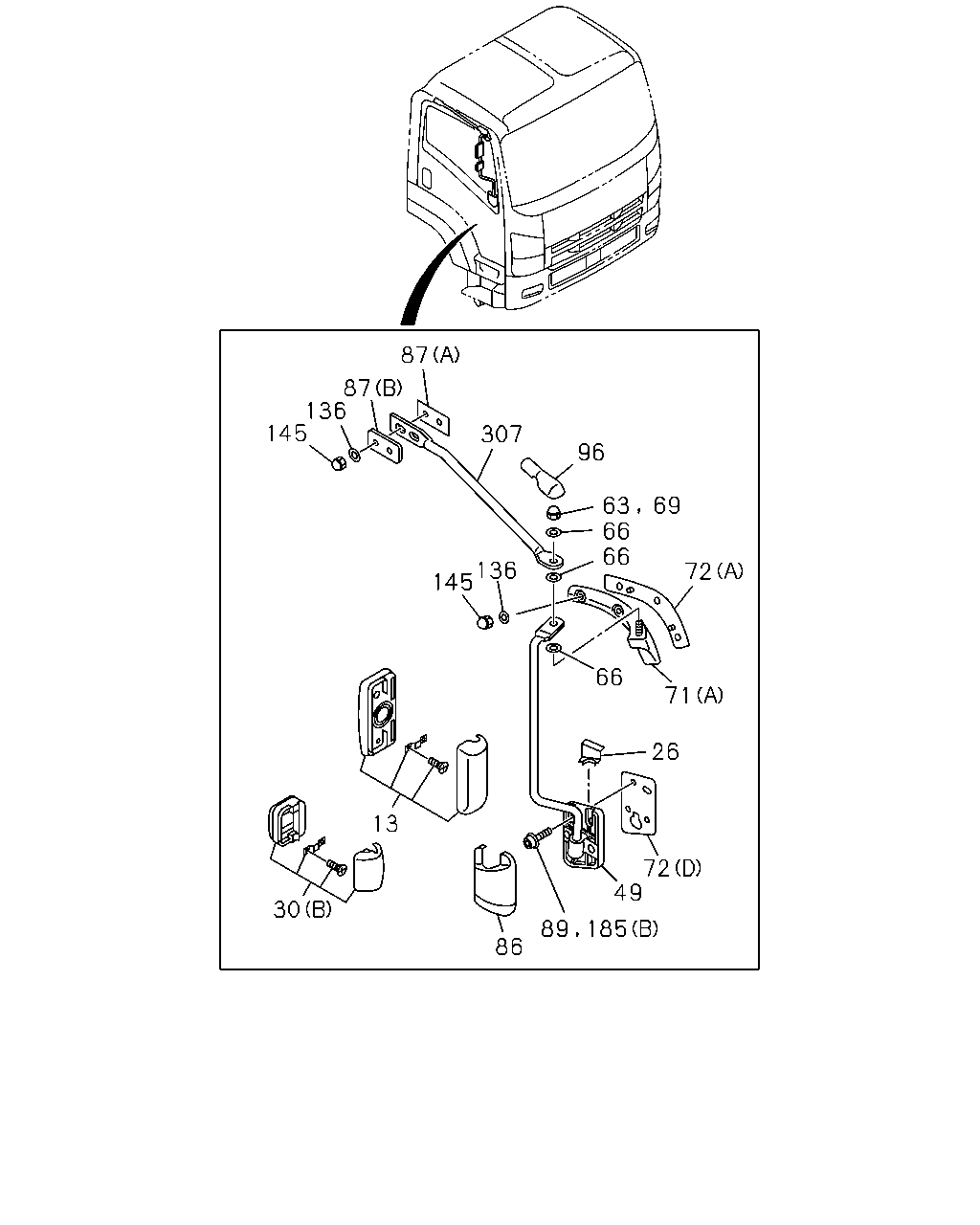

çizim 95204
87 87 136 145 307 96 63 66 66 69 136 145 72 66 71 26 13 72 49 30 86 89 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0803- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0803- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0803- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0803- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0803- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0803- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0803- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0803-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0808- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0803- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0803- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0803- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0803-0807 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0803- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 0803- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 0803- ● ●
72 SHEET
(B) 		8-98060-245-1 01 1 0803- ● ●
72 SHEET
(C) 		8-98064-776-0 01 1 0803- ● ●
72 SHEET
(D) 		8-98080-418-0 02 1 0803-0804 ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0805- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0805- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0803- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0803- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0803- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0803- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0808- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0803- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0803- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0803- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0803-0807 ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0803- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0803- ● ●

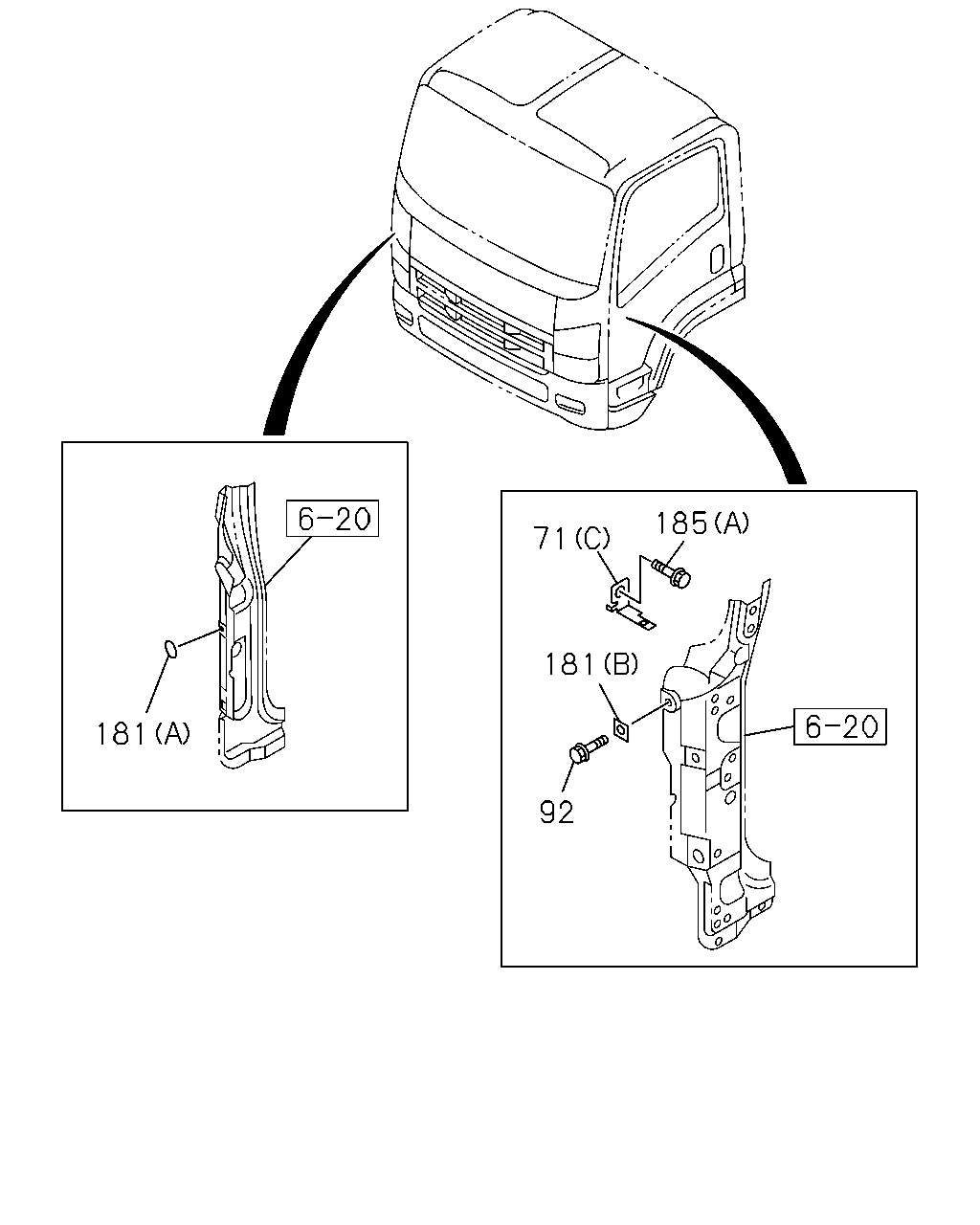

çizim 95584
185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0803- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0803- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0803- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0803-0808 ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0803- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0803-0807 ● ●
