Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#150302) — 35 parça
◀

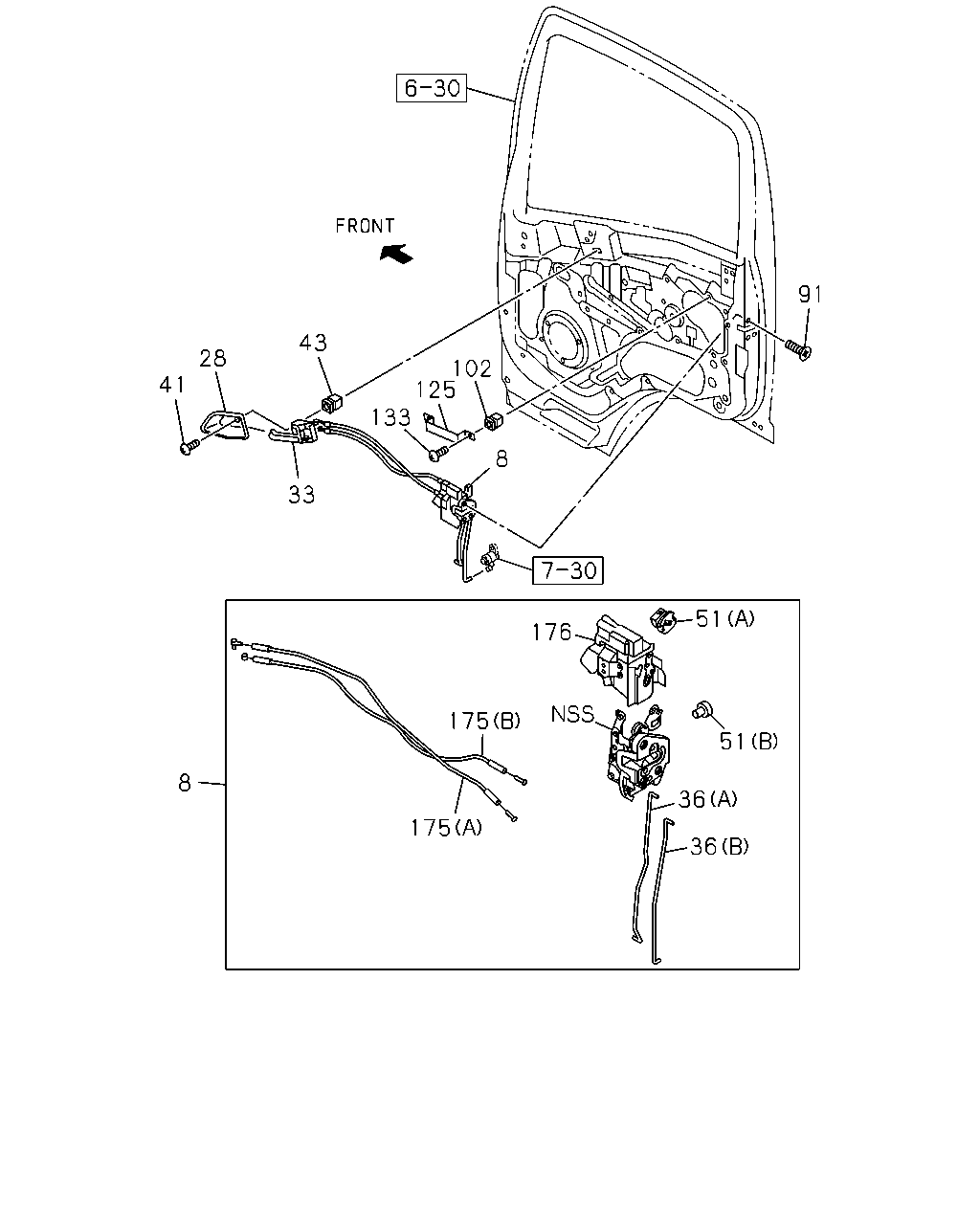

[632A] DOOR LOCK (25 parça)
[632A] OTHER PARTS (10 parça)
▶
41
28
43
133
125
102
91
8
33
8
175
175
176
51
51
36
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LOCK; DOOR,FRT DOOR
THA
8-97520-627-0
01
1
1410-
8
LOCK; DOOR,FRT DOOR
THA
8-97520-628-0
01
1
1410-
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY THA
8-97405-311-0
01
1
1410-
28
BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY THA
8-97405-312-0
01
1
1410-
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY THA
8-97405-309-1
01
1
1410-
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY THA
8-97405-310-1
01
1
1410-
36
LINK; DOOR LOCK,OUTSIDE
(A) THA
8-97520-804-0
01
1
1410-
36
LINK; DOOR LOCK,OUTSIDE
(A) THA
8-97520-805-0
01
1
1410-
36
LINK; DOOR LOCK,OUTSIDE
(B) THA
8-97520-806-0
01
1
1410-
36
LINK; DOOR LOCK,OUTSIDE
(B) THA
8-97520-807-0
01
1
1410-
41
SCREW; INSIDE HANDLE
M5X16 HEX SOCKET THA
0-72380-516-0
02
1
1410-
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 THA
8-94279-078-0
02
1
1410-
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-226-0
02
1
1410-
51
SNAP; FRT DOOR LOCK CONT ROD
(A) THA
8-98058-227-0
02
1
1410-
51
SNAP; FRT DOOR LOCK CONT ROD
(B) THA
8-98058-228-0
01
1
1410-
51
SNAP; FRT DOOR LOCK CONT ROD
(B) THA
8-98058-229-0
01
1
1410-
91
BOLT; DOOR LOCK
M6X14.5 THA
8-98004-342-0
06
1
1410-
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 THA
8-94279-078-0
06
1
1410-
125
BRACKET; DOOR PULL
THA
8-97585-927-0
02
1
1410-
133
SCREW; DOOR PULL STAY
M5X16 HEX SOCKET THA
0-72380-516-0
06
1
1410-
175
CABLE ASM; LOCK CONTROL
(A) THA
8-97520-808-0
01
1
1410-
175
CABLE ASM; LOCK CONTROL
(A) THA
8-97520-809-0
01
1
1410-
175
CABLE ASM; LOCK CONTROL
(B) THA
8-97520-810-0
02
1
1410-
176
COVER; DOOR LOCK
THA
8-98058-238-0
01
1
1410-
176
COVER; DOOR LOCK
THA
8-98058-239-0
01
1
1410-
131
56
89
139
1
14
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HANDLE; OUTSIDE,FRT DOOR
THA
8-98037-100-2
01
1
1410-
1
HANDLE; OUTSIDE,FRT DOOR
THA
8-98037-101-2
01
1
1410-
14
STRIKER; FRT DOOR
THA
8-98029-173-2
02
1
1410-
18
SCREW; DOOR STRIKER
M8X20 CK-HEAD THA
8-98004-343-2
04
1
1410-
56
ESCUTCHEON; LOCK KNOB
GRAY THA
8-97405-314-1
01
1
1410-
56
ESCUTCHEON; LOCK KNOB
GRAY THA
8-97405-315-1
01
1
1410-
89
BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE THA
0-28050-610-0
04
1
1410-
131
SCREW; ESCUTCHEON,DOOR PULL
M5X16 HEX SOCKET THA
0-72380-516-0
02
1
1410-
139
HOLDER; ROD,DOOR HANDLE
WHITE THA
8-97333-303-0
01
1
1410-
139
HOLDER; ROD,DOOR HANDLE
BLACK THA
8-98095-813-0
01
1
1410-
