◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11647 - FTR THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#150299) — 74 parça

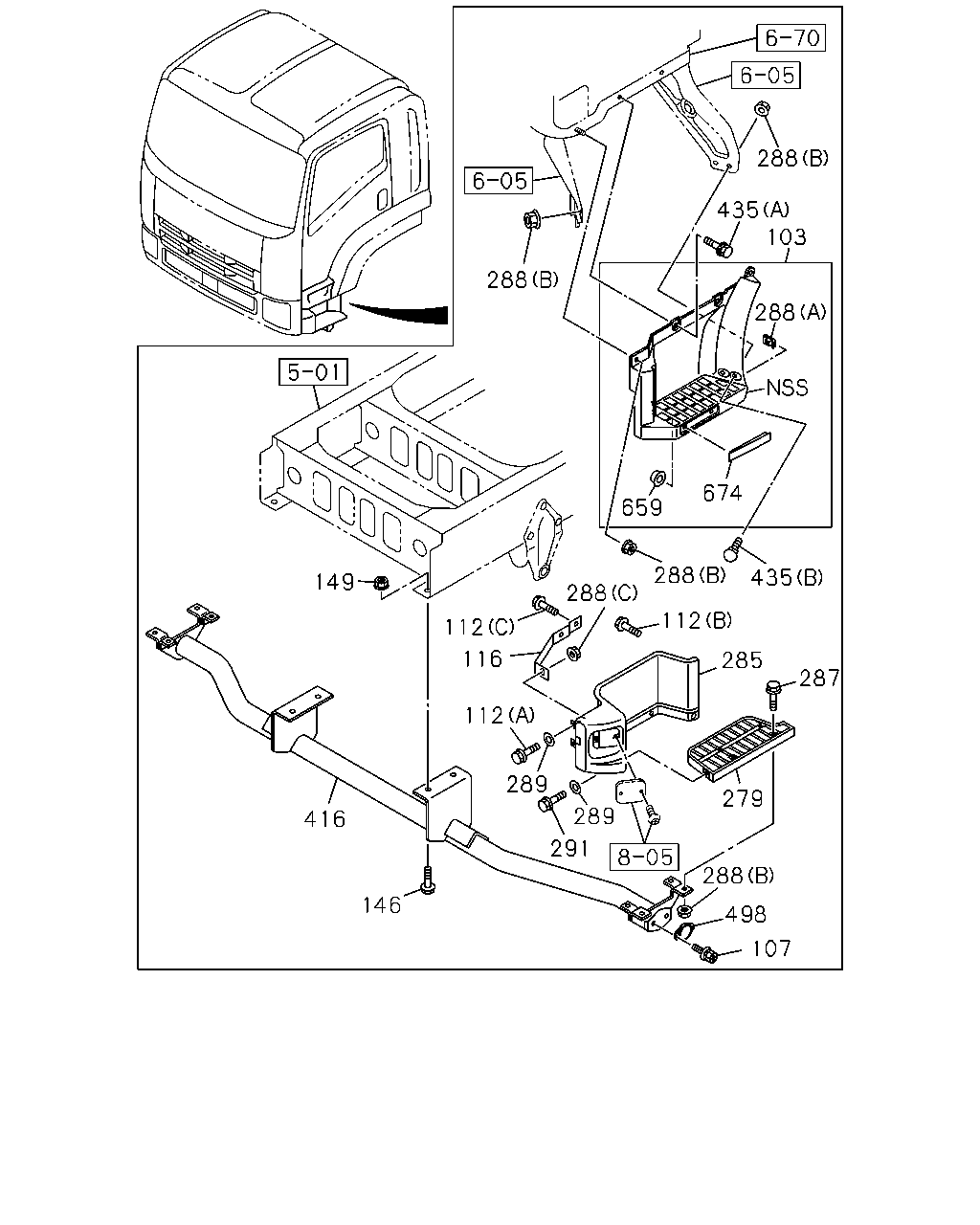

çizim 450838
288 435 103 288 674 659 288 435 288 112 288 285 287 112 116 112 289 289 291 279 288 498 107 146 416 149
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
THA 		8-98069-976-2 01 1 1410-
103 PLATE; STEP
THA 		8-98069-977-2 01 1 1410-
107 BOLT; SIDE STEP
M5X16 W/LK&PL WASHER THA 		8-94198-538-0 04 1 1410-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE THA 		0-28050-620-0 02 1 1410-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1410-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE THA 		0-28050-812-0 04 1 1410-
116 STAY; 1ST STEP,FRT
THA 		8-98196-756-0 02 1 1410-
146 BOLT; STEP BRKT
M14X45 FLANGE THA 		0-28851-445-0 04 1 1410-
149 NUT; STEP BRKT
M14 FLANGE THA 		0-91180-214-0 04 1 1410-
279 BOARD; STEP 1ST
THA 		8-97924-109-0 01 1 1410-
279 BOARD; STEP 1ST
THA 		8-97924-110-0 01 1 1410-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1410-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1410-
287 BOLT; BOARD STEP
M8X35 FLANGE THA 		0-28650-835-0 08 1 1410-
288 NUT; STEP
(A) M8 THA 		8-98040-792-0 02 1 1410-
288 NUT; STEP
(C) M6 FLANGE THA 		0-91180-106-0 02 1 1410-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 08 1 1410-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1410-
289 WASHER; PL,STEP
ID=6.4 OD=18 THA 		0-91610-706-0 10 1 1410-
291 BOLT; STEP PLATE
M6X12 FLANGE THA 		0-28050-612-0 06 1 1410-
416 BRACKET; ASSIST STEP
THA 		8-98167-277-2 01 1 1410-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER THA 		8-98059-720-0 04 1 1410-
435 BOLT; RR STEP
(B) M8X18 THA 		8-98146-670-0 08 1 1410-
498 REFLECTOR
THA 		1-82290-011-1 02 1 1410-
659 CLIP; SPRING NUT
THA 		8-97811-510-0 04 1 1410-
674 COVER; REFLECTOR
THA 		8-98092-733-0 01 1 1410-
674 COVER; REFLECTOR
THA 		8-98092-734-0 01 1 1410-

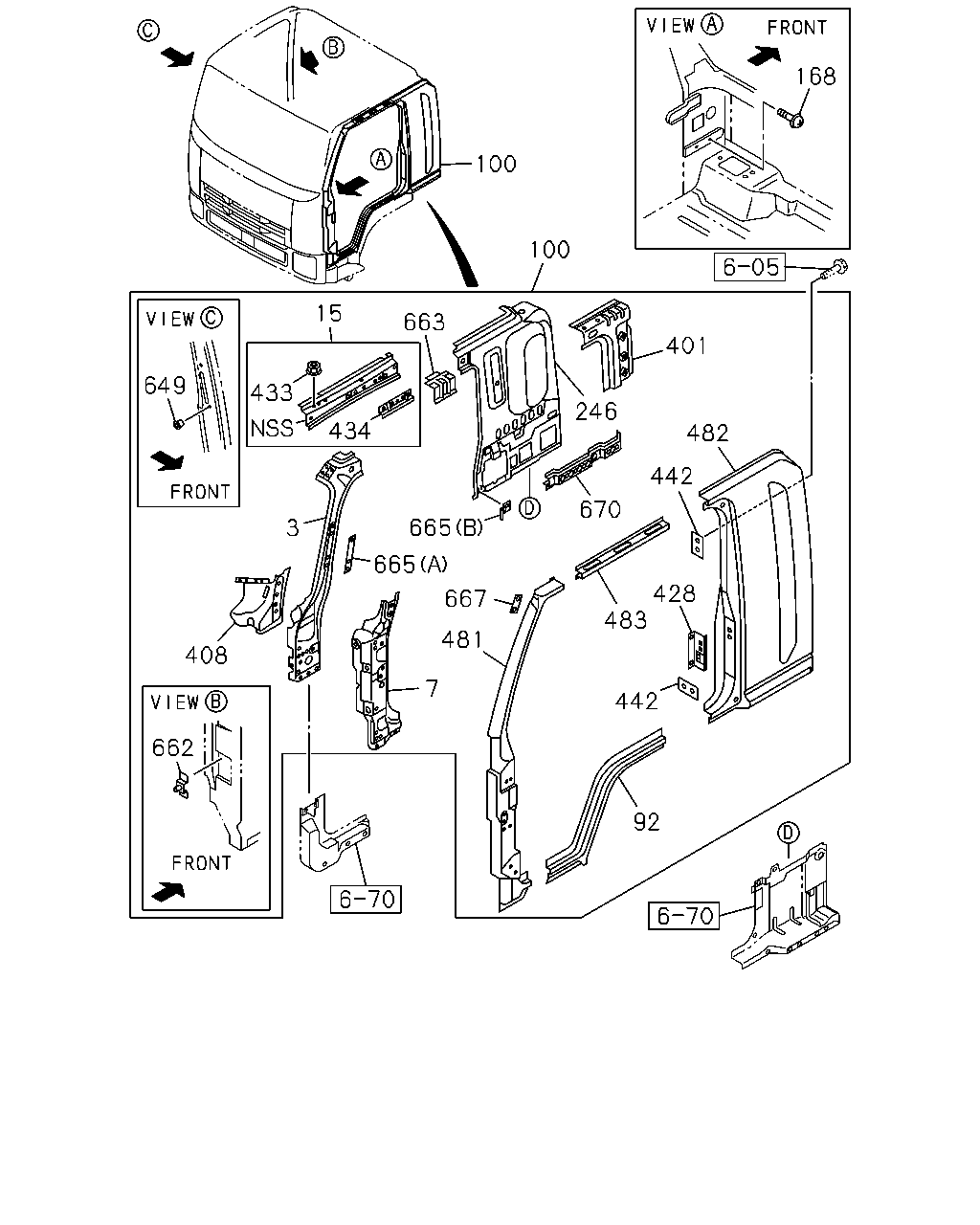

çizim 451203
100 100 168 401 482 442 246 670 663 15 434 433 649 3 665 665 667 481 483 442 428 92 662 408 7
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
THA 		8-98058-236-1 01 1 1410-
3 PANEL; CLOSING,FRT PILLAR
THA 		8-98058-237-1 01 1 1410-
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1410-
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1410-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1410-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1410-
92 PANEL; SIDE SILL,CAB
THA 		8-98055-461-1 01 1 1410-
92 PANEL; SIDE SILL,CAB
THA 		8-98055-462-1 01 1 1410-
100 PANEL ASM; BODY SIDE
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W> THA 		8-97948-561-1 01 1 1410-
100 PANEL ASM; BODY SIDE
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W> THA 		8-97948-575-1 01 1 1410-
100 PANEL ASM; BODY SIDE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA 		8-97948-562-1 01 1 1410-
100 PANEL ASM; BODY SIDE
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA 		8-97948-576-1 01 1 1410-
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1410-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1410-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1410-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1410-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1410-
408 GUSSET; PILLAR
THA 		8-97586-193-3 01 1 1410-
408 GUSSET; PILLAR
THA 		8-97586-194-2 01 1 1410-
428 REINFORCEMENT; DOOR STRIKER
THA 		8-97585-260-4 01 1 1410-
428 REINFORCEMENT; DOOR STRIKER
THA 		8-97585-261-4 01 1 1410-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1410-
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1410-
434 PATCH; ASSIST GRIP
THA 		8-98039-019-0 01 1 1410-
434 PATCH; ASSIST GRIP
THA 		8-98039-020-0 01 1 1410-
442 PATCH
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA 		8-98096-158-0 02 1 1410-
442 PATCH
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA 		8-98096-158-0 02 1 1410-
481 PANEL; SIDE FRT PILLAR
THA 		8-98055-453-0 01 1 1410-
481 PANEL; SIDE FRT PILLAR
THA 		8-98055-471-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W> THA 		8-98055-468-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W> THA 		8-98055-469-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA 		8-98103-377-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA 		8-98103-378-0 01 1 1410-
483 PANEL; SIDE CANTRAIL
THA 		8-98055-458-0 01 1 1410-
483 PANEL; SIDE CANTRAIL
THA 		8-98055-460-0 01 1 1410-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1410-
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1410-
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1410-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1410-
665 REINFORCEMENT; GRIP,ASSIST
(A) THA 		8-97585-314-0 01 1 1410-
665 REINFORCEMENT; GRIP,ASSIST
(A) THA 		8-97585-314-0 01 1 1410-
665 REINFORCEMENT; GRIP,ASSIST
(B) THA 		8-98012-287-1 01 1 1410-
665 REINFORCEMENT; GRIP,ASSIST
(B) THA 		8-98012-287-1 01 1 1410-
667 BRACKET; MIRROR
THA 		8-98109-948-0 01 1 1410-
667 BRACKET; MIRROR
THA 		8-98109-948-0 02 1 1410-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1410-
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1410-
