◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11647 - FTR THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#150297) — 146 parça

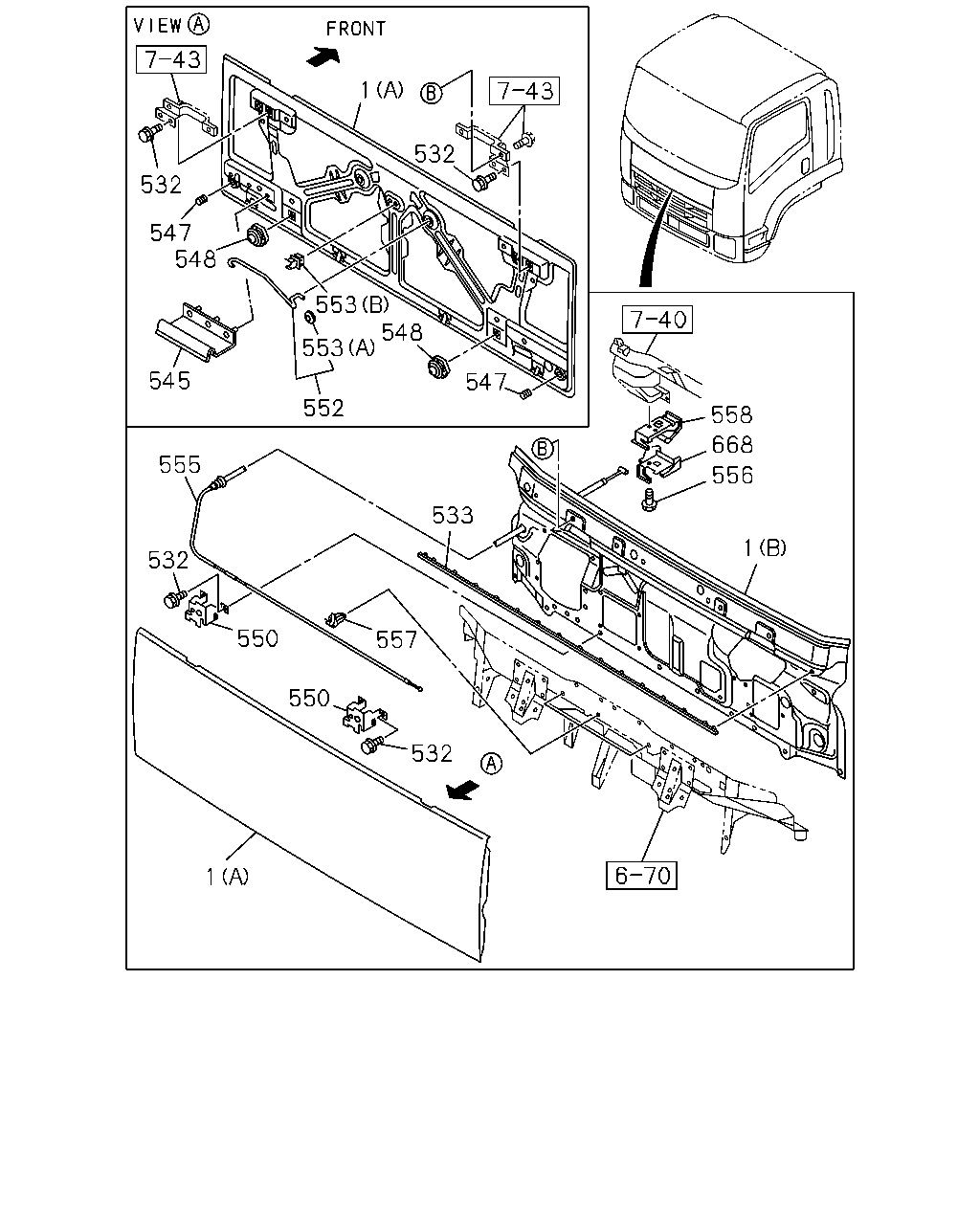

çizim 450866
532 547 548 553 545 552 553 548 547 532 1 555 532 550 550 557 533 532 1 558 668 556 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(A) THA 		8-98030-234-4 01 1 1410-
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1410-
532 BOLT; FRT PANEL
M8X20 FLANGE THA 		0-28650-820-0 08 1 1410-
533 SEAL; FRT PANEL
THA 		8-97926-493-0 01 1 1410-
545 SEAL; FRT LID
THA 		8-97926-489-0 01 1 1410-
547 RUBBER; CUSHION
OD=22 L=29 THA 		8-94324-556-2 02 1 1410-
548 STRIKER; FRT LID PANEL
THA 		8-98068-145-1 02 1 1410-
550 LOCK ASM; FRT LID
THA 		8-98036-569-2 02 1 1410-
552 STAY; FRT LID
THA 		8-98089-838-0 01 1 1410-
553 CLIP; STAY
(B) THA 		8-97031-428-0 01 1 1410-
553 CLIP; STAY
(A) THA 		8-98071-399-0 01 1 1410-
555 CABLE; FRT LID
THA 		8-98036-574-1 01 1 1410-
556 BOLT; CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1410-
557 CLIP; CABLE
ID=4.8 THA 		8-94128-483-0 03 1 1410-
558 LEVER; FRT LID
THA 		1-79338-007-0 01 1 1410-
668 COVER; LEVER,FRT LID
THA 		8-97926-883-0 01 1 1410-

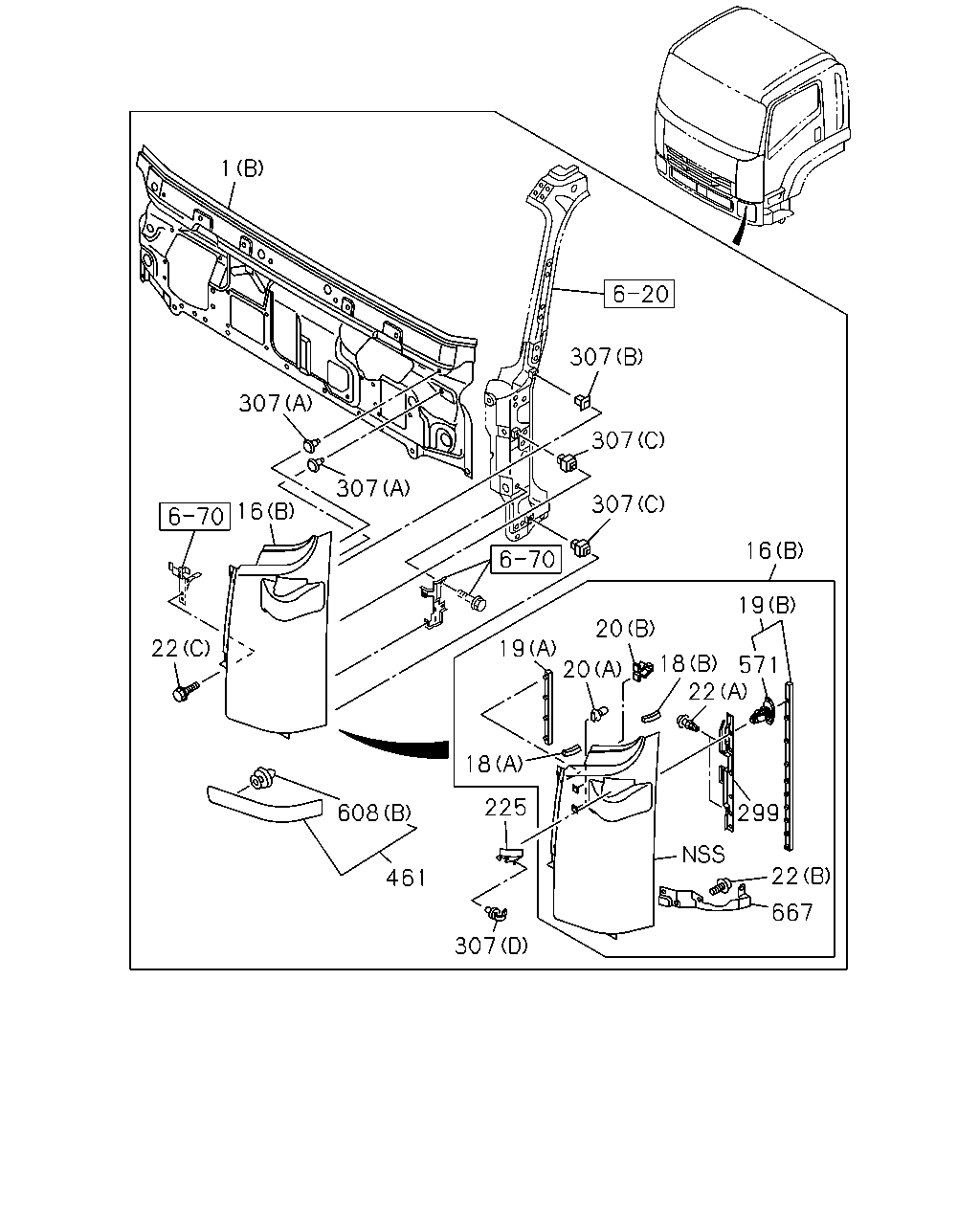

çizim 450899
307 307 1 307 16 19 571 22 18 20 20 19 18 225 307 22 667 299 461 608 22 307 307 16
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(A) THA 		8-98030-234-4 01 1 1410-
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1410-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-421-4 01 1 1410-
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-168-5 01 1 1410-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) THA 		8-98038-608-0 02 1 1410-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) THA 		8-98043-511-1 02 1 1410-
19 SEAL; FRT SIDE PANEL
(A) THA 		8-98036-580-0 01 1 1410-
19 SEAL; FRT SIDE PANEL
(A) THA 		8-98036-581-0 01 1 1410-
19 SEAL; FRT SIDE PANEL
(B) THA 		8-98041-358-2 01 1 1410-
19 SEAL; FRT SIDE PANEL
(B) THA 		8-98041-359-2 01 1 1410-
20 CLIP; FRT PANEL SIDE
(A) THA 		8-97410-739-0 04 1 1410-
20 CLIP; FRT PANEL SIDE
(B) THA 		8-97410-740-2 02 1 1410-
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE THA 		8-98061-108-0 06 1 1410-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING THA 		0-72180-516-0 06 1 1410-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER THA 		0-74360-410-0 06 1 1410-
225 COVER; SIDE,FRT
THA 		8-98041-431-1 01 1 1410-
299 COVER; FRT PANEL SIDE
THA 		8-98034-813-1 01 1 1410-
299 COVER; FRT PANEL SIDE
THA 		8-98034-814-1 01 1 1410-
307 GROMMET; FRT PANEL
(B) THA 		8-97410-738-0 02 1 1410-
307 GROMMET; FRT PANEL
(C) THA 		8-98021-300-1 04 1 1410-
307 GROMMET; FRT PANEL
(D) THA 		8-98028-743-0 01 1 1410-
307 GROMMET; FRT PANEL
(A) THA 		8-98034-363-1 04 1 1410-
461 PANEL; FRT SIDE
THA 		8-98058-163-2 01 1 1410-
461 PANEL; FRT SIDE
THA 		8-98058-164-2 01 1 1410-
571 CLIP; SEAL
NATURAL THA 		8-98027-457-0 20 1 1410-
608 CLIP
(B) D5.4X8 THA 		1-09983-154-0 06 1 1410-
608 CLIP
(A) THA 		8-98282-490-0 02 1 1410-
667 STAY; EXT,SIDE PANEL
THA 		8-98063-343-0 01 1 1410-
667 STAY; EXT,SIDE PANEL
THA 		8-98063-344-0 01 1 1410-

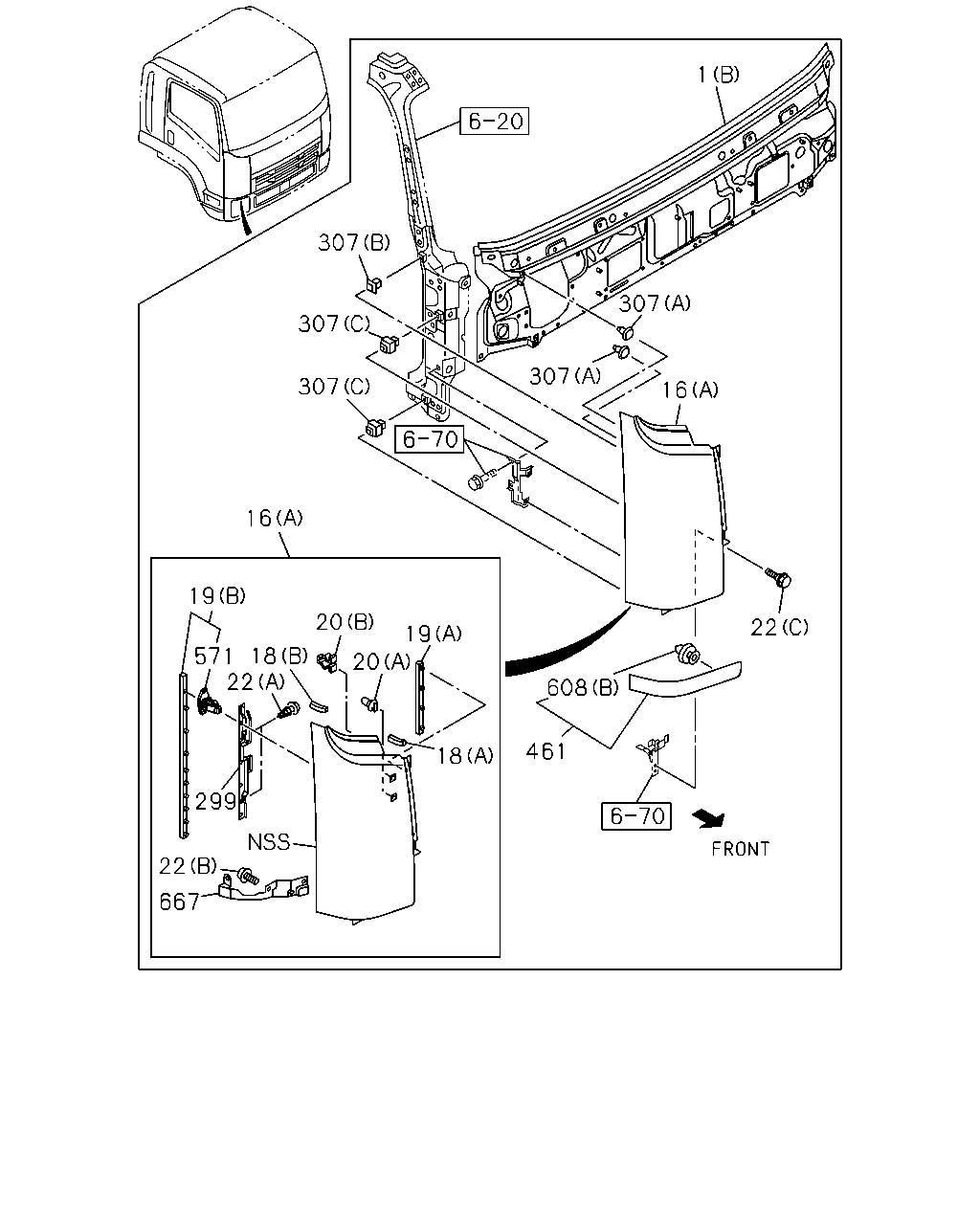

çizim 451001
307 307 307 1 307 16 307 608 22 461 18 19 20 19 571 18 20 299 22 667 16 22
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(A) THA 		8-98030-234-4 01 1 1410-
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1410-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-421-4 01 1 1410-
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-168-5 01 1 1410-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) THA 		8-98038-608-0 02 1 1410-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) THA 		8-98043-511-1 02 1 1410-
19 SEAL; FRT SIDE PANEL
(A) THA 		8-98036-580-0 01 1 1410-
19 SEAL; FRT SIDE PANEL
(A) THA 		8-98036-581-0 01 1 1410-
19 SEAL; FRT SIDE PANEL
(B) THA 		8-98041-358-2 01 1 1410-
19 SEAL; FRT SIDE PANEL
(B) THA 		8-98041-359-2 01 1 1410-
20 CLIP; FRT PANEL SIDE
(A) THA 		8-97410-739-0 04 1 1410-
20 CLIP; FRT PANEL SIDE
(B) THA 		8-97410-740-2 02 1 1410-
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE THA 		8-98061-108-0 06 1 1410-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING THA 		0-72180-516-0 06 1 1410-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER THA 		0-74360-410-0 06 1 1410-
299 COVER; FRT PANEL SIDE
THA 		8-98034-813-1 01 1 1410-
299 COVER; FRT PANEL SIDE
THA 		8-98034-814-1 01 1 1410-
307 GROMMET; FRT PANEL
(B) THA 		8-97410-738-0 02 1 1410-
307 GROMMET; FRT PANEL
(C) THA 		8-98021-300-1 04 1 1410-
307 GROMMET; FRT PANEL
(D) THA 		8-98028-743-0 01 1 1410-
307 GROMMET; FRT PANEL
(A) THA 		8-98034-363-1 04 1 1410-
461 PANEL; FRT SIDE
THA 		8-98058-163-2 01 1 1410-
461 PANEL; FRT SIDE
THA 		8-98058-164-2 01 1 1410-
571 CLIP; SEAL
NATURAL THA 		8-98027-457-0 20 1 1410-
608 CLIP
(B) D5.4X8 THA 		1-09983-154-0 06 1 1410-
608 CLIP
(A) THA 		8-98282-490-0 02 1 1410-
667 STAY; EXT,SIDE PANEL
THA 		8-98063-343-0 01 1 1410-
667 STAY; EXT,SIDE PANEL
THA 		8-98063-344-0 01 1 1410-

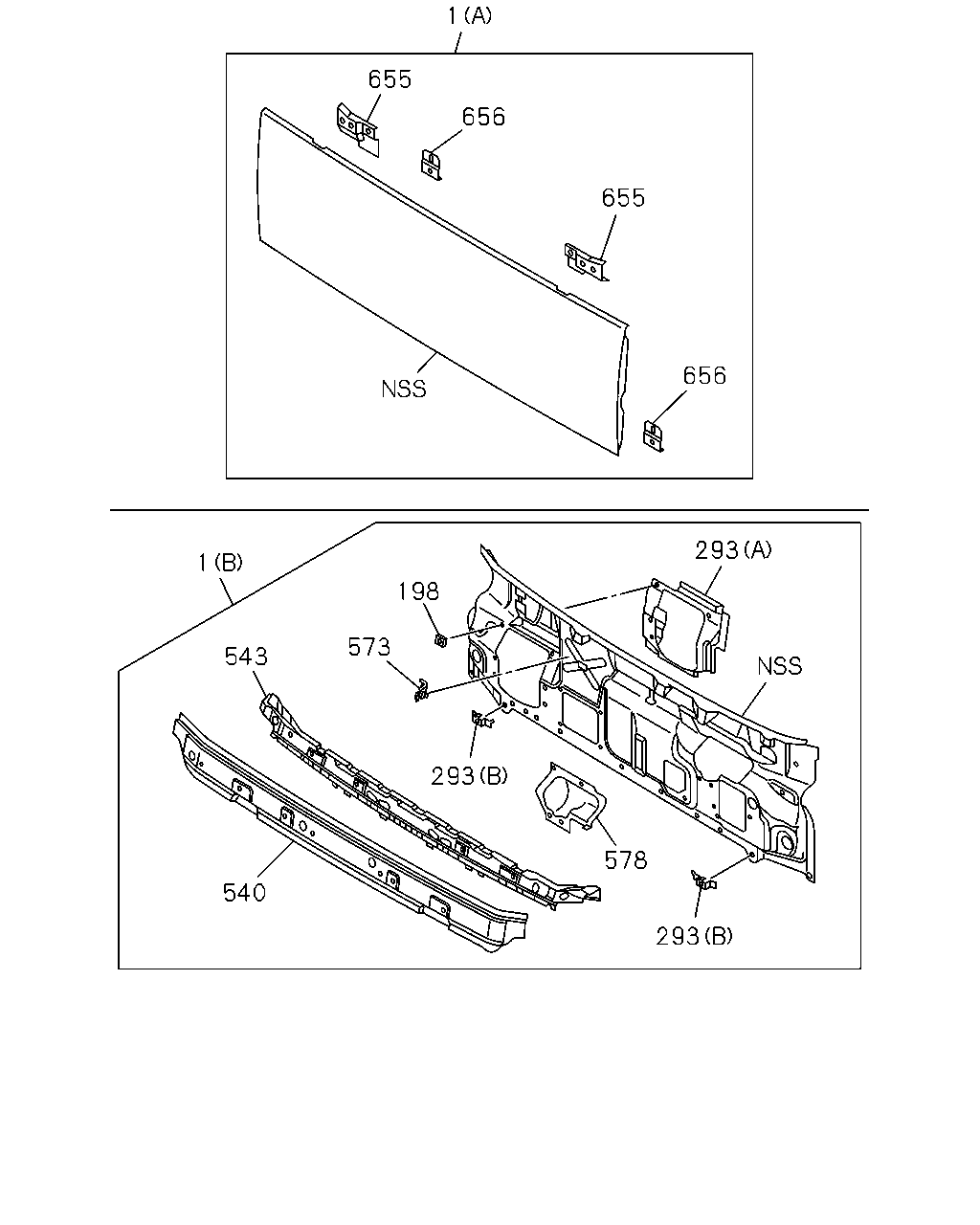

çizim 451083
1 655 656 655 656 1 543 573 198 293 578 293 293 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(A) THA 		8-98030-234-4 01 1 1410-
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1410-
198 NUT; PANEL
M6 THA 		9-09114-086-0 02 1 1410-
293 BRACKET; PANEL
(A) THA 		8-97586-007-3 01 1 1410-
293 BRACKET; PANEL
(B) THA 		8-98008-124-1 01 1 1410-
293 BRACKET; PANEL
(B) THA 		8-98008-126-1 01 1 1410-
540 PANEL; FRONT,OUTER
THA 		8-97585-966-2 01 1 1410-
543 CLOSING; FRT MTG RAIL
THA 		8-97585-990-4 01 1 1410-
573 BRACKET; SUPPORT
THA 		8-98017-700-2 01 1 1410-
578 COVER; WIPER MOTOR
THA 		8-97586-018-3 01 1 1410-
655 PATCH; HINGE
THA 		8-98031-263-0 01 1 1410-
655 PATCH; HINGE
THA 		8-98031-264-0 01 1 1410-
656 PATCH; STRIKER
THA 		8-98031-265-0 02 1 1410-

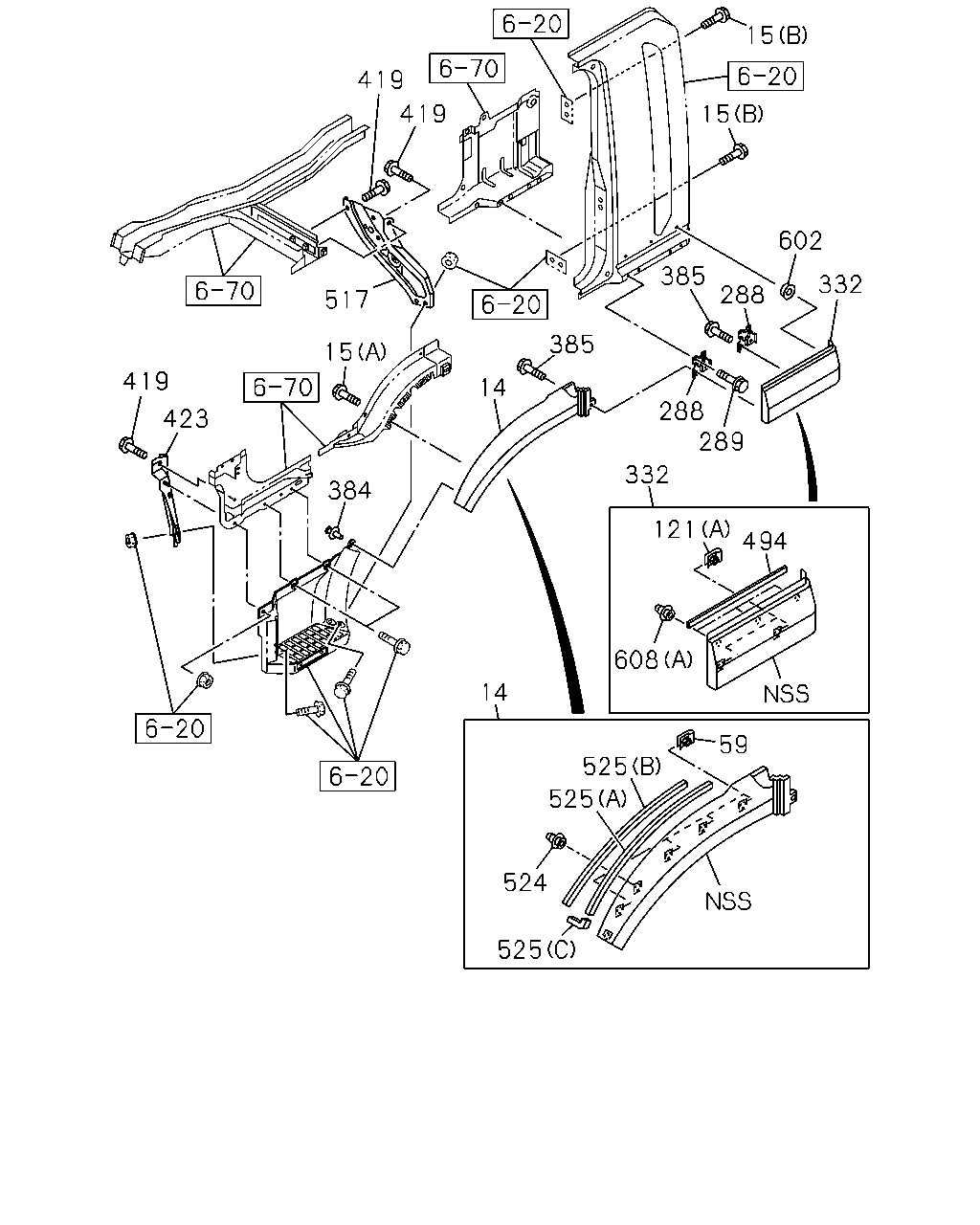

çizim 451202
419 419 15 15 517 385 602 288 332 385 15 419 423 14 288 332 289 384 121 494 608 14 525 59 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
THA 		8-98132-739-0 01 1 1410-
14 FENDER; FRT
THA 		8-98132-740-0 01 1 1410-
15 BOLT; FENDER
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) M8X15.5 HEX SOCKET THA 		8-98141-874-0 08 1 1410-
15 BOLT; FENDER
(A) M6X20 W/PL WASHER THA 		8-98059-504-0 06 1 1410-
59 GROMMET; SCREW
THA 		8-94279-723-0 02 1 1410-
59 GROMMET; SCREW
THA 		8-94279-723-0 06 1 1410-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 THA 		8-94279-078-0 06 1 1410-
121 GROMMET; FENDER
(D) OD=8.3 THA 		8-94279-989-0 12 1 1410-
121 GROMMET; FENDER
(B) H=15 THA 		8-94463-268-1 04 1 1410-
121 GROMMET; FENDER
(E) THA 		8-98073-420-0 01 1 1410-
121 GROMMET; FENDER
(E) THA 		8-98073-421-0 01 1 1410-
121 GROMMET; FENDER
(A) THA 		8-94279-723-0 04 1 1410-
288 BRACKET; FENDER SKIRT
THA 		8-98041-162-1 04 1 1410-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE THA 		0-28650-616-0 08 1 1410-
332 FENDER; RR
WHITE THA 		8-97413-423-2 01 1 1410-
332 FENDER; RR
WHITE THA 		8-97413-424-2 01 1 1410-
384 CLIP; FENDER LWR
D8X13.5 THA 		1-09987-248-1 02 1 1410-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER THA 		8-98059-504-0 04 1 1410-
419 BOLT; STEP
M8X20 FLANGE THA 		0-28650-820-0 08 1 1410-
423 SUPPORT ASM; STEP
THA 		8-98037-335-1 01 1 1410-
423 SUPPORT ASM; STEP
THA 		8-98037-336-1 01 1 1410-
494 FINISHER; FENDER
THA 		8-98041-172-1 01 1 1410-
494 FINISHER; FENDER
THA 		8-98072-723-0 01 1 1410-
517 SUPPORT; STEP PANEL
THA 		8-98037-350-2 01 1 1410-
517 SUPPORT; STEP PANEL
THA 		8-98037-351-2 01 1 1410-
524 CLIP; FENDER COVER
OD=7.9 BLACK THA 		8-94279-974-1 02 1 1410-
525 SEAL; FENDER
(A) THA 		8-98061-760-0 02 1 1410-
525 SEAL; FENDER
(B) THA 		8-98061-761-0 02 1 1410-
525 SEAL; FENDER
(C) THA 		8-98061-762-0 02 1 1410-
602 RETAINER; COVER
ID=5.4 OD=6.8 THA 		8-98241-984-0 06 1 1410-
608 CLIP
(B) D5.4X8 THA 		1-09983-154-0 06 1 1410-
608 CLIP
(A) THA 		8-98282-490-0 02 1 1410-

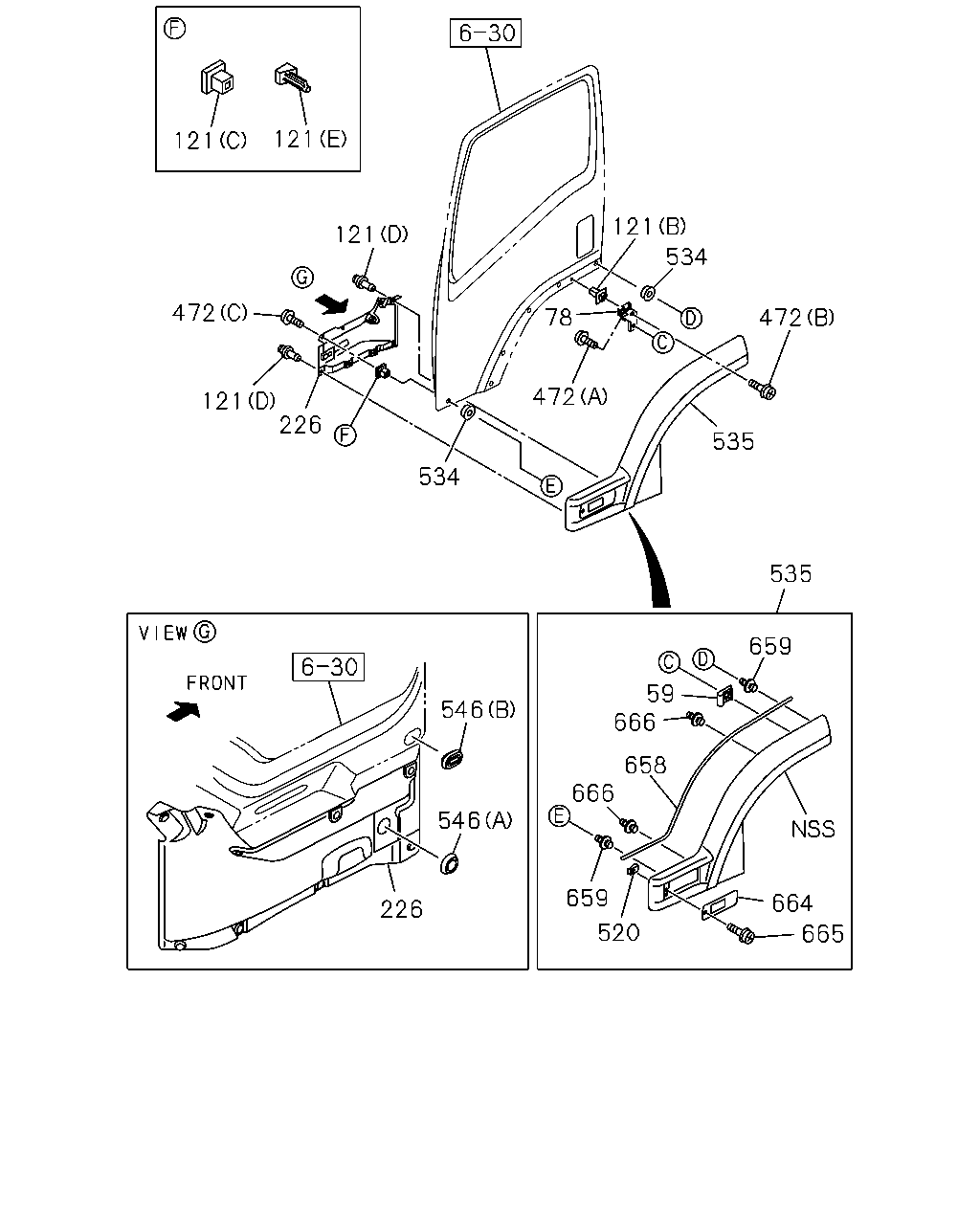

çizim 451371
121 121 121 121 472 121 226 534 78 472 534 472 535 546 546 226 535 659 59 666 658 666 659 520 664 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
THA 		8-94279-723-0 02 1 1410-
59 GROMMET; SCREW
THA 		8-94279-723-0 06 1 1410-
78 BRACKET; FENDER
THA 		8-98041-165-1 01 1 1410-
78 BRACKET; FENDER
THA 		8-98041-166-1 01 1 1410-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 THA 		8-94279-078-0 06 1 1410-
121 GROMMET; FENDER
(D) OD=8.3 THA 		8-94279-989-0 12 1 1410-
121 GROMMET; FENDER
(B) H=15 THA 		8-94463-268-1 04 1 1410-
121 GROMMET; FENDER
(E) THA 		8-98073-420-0 01 1 1410-
121 GROMMET; FENDER
(E) THA 		8-98073-421-0 01 1 1410-
121 GROMMET; FENDER
(A) THA 		8-94279-723-0 04 1 1410-
226 PROTECTOR; FRT
THA 		8-98037-714-2 01 1 1410-
226 PROTECTOR; FRT
THA 		8-98037-715-2 01 1 1410-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING THA 		8-98059-505-0 02 1 1410-
472 SCREW; FENDER TO CAB
(C) M5X16 THA 		8-98090-737-0 08 1 1410-
472 SCREW; FENDER TO CAB
(B) M5X12 THA 		8-98093-669-0 04 1 1410-
520 NUT; FENDER
THA 		8-94279-501-0 02 1 1410-
534 FASTENER
ID=5.4 OD=6.8 THA 		8-98241-984-0 12 1 1410-
535 FENDER; BLISTER
WHITE THA 		8-97415-366-1 01 1 1410-
535 FENDER; BLISTER
WHITE THA 		8-97415-386-1 01 1 1410-
546 PLUG; DUMMY HOLE
(A) OD=38 THA 		8-94159-507-0 02 1 1410-
546 PLUG; DUMMY HOLE
(B) THA 		8-94430-184-1 02 1 1410-
658 FINISHER; BLISTER FENDER
THA 		8-98041-168-3 01 1 1410-
658 FINISHER; BLISTER FENDER
THA 		8-98041-169-3 01 1 1410-
659 CLIP; FENDER
D5.4X8 THA 		1-09983-154-0 08 1 1410-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-529-0 01 1 1410-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-557-0 01 1 1410-
665 SCREW; FENDER
M6X20 W/PL WASHER THA 		0-36210-620-0 02 1 1410-
666 CLIP; BLISTER FENDER
THA 		8-98071-178-0 04 1 1410-
