Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

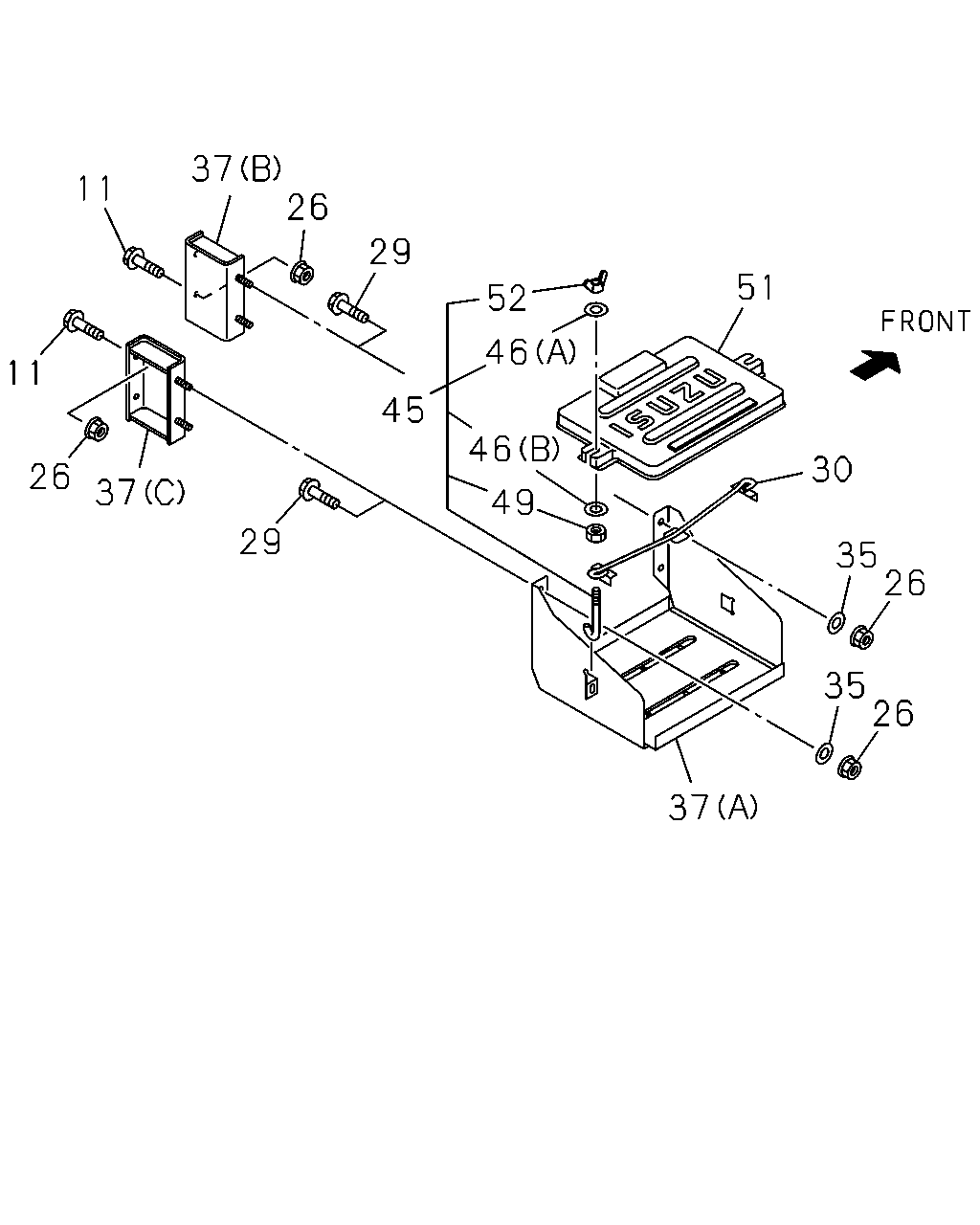

5-20 — BATTERY CARRIER
(#150293) — 15 parça
37
11
11
26
29
37
45
49
37
26
35
26
35
30
51
46
46
52
29
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
6HK1-TCN ENG<82L> M10X40 FLANGE THA
0-28651-040-0
04
1
1410-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1410-
26
NUT; BRKT
6HK1-TCN ENG<82L> M10 FLANGE THA
0-91180-210-0
04
1
1410-
29
BOLT; BRKT TO FRAME
4HK1-TCS ENG<RJS> M10X40 FLANGE THA
0-28651-040-0
04
1
1410-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1410-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 THA
0-91614-610-0
04
1
1410-
37
BRACKET; BATTERY
6HK1-TCN ENG<82L> (B) THA
8-97948-024-0
01
1
1410-
37
BRACKET; BATTERY
6HK1-TCN ENG<82L> (C) THA
8-98162-291-0
01
1
1410-
37
BRACKET; BATTERY
(A) THA
8-97923-653-1
01
1
1410-
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1410-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 THA
0-91614-608-0
02
1
1410-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1410-
49
NUT; ROD,BATTERY
M8 THA
0-91110-508-0
02
1
1410-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1410-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
