Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#150292) — 51 parça
◀
[515A] CAB LOCK AND TILT HANDLE (27 parça)
[515A] TORSION LEVER AND CAB TILT STAY (12 parça)
[515A] COMPONENT;CAB TILT STAY (12 parça)
▶

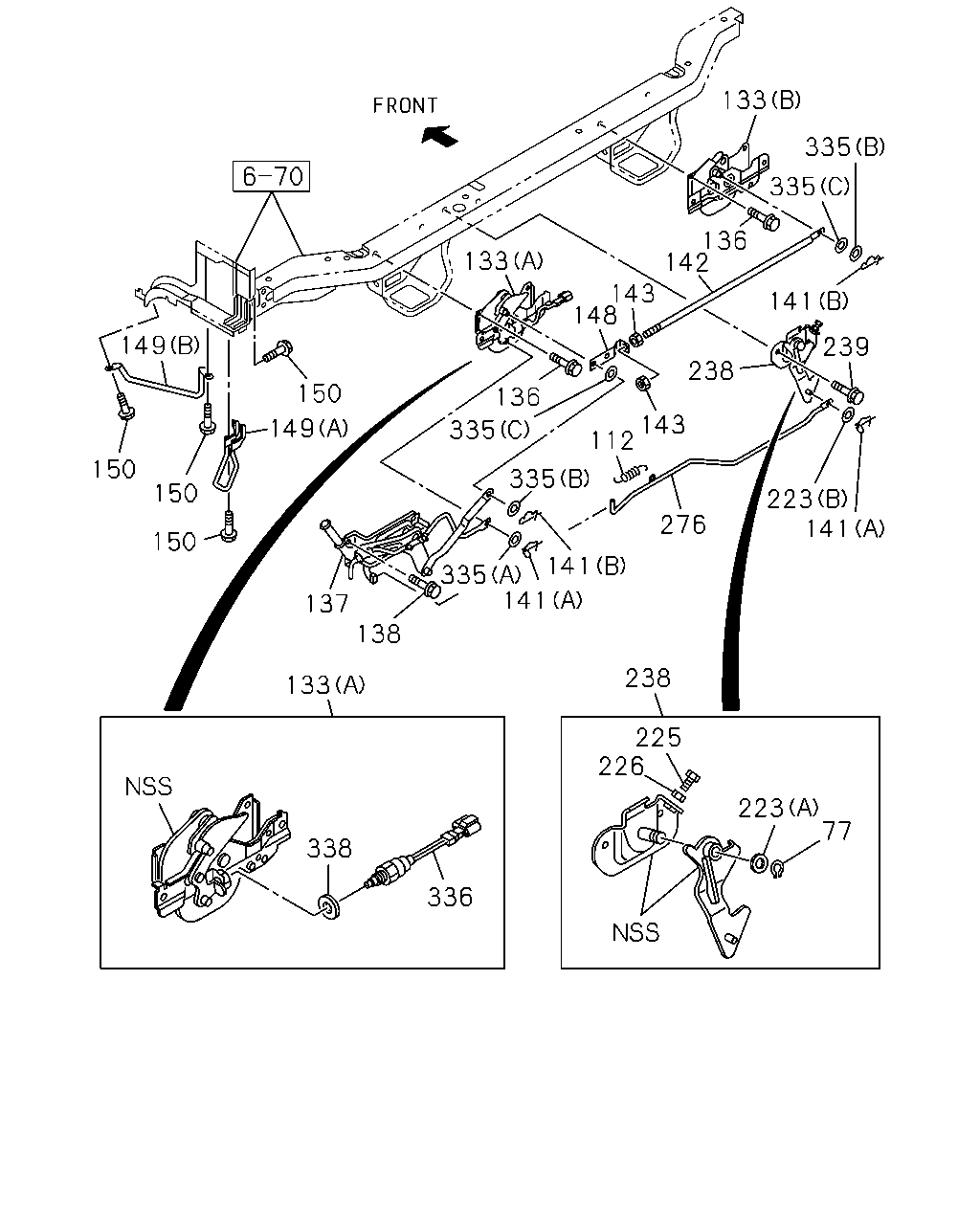

223
141
276
141
141
238
225
226
223
77
336
338
133
137
138
335
335
335
136
112
143
238
141
239
136
142
143
148
133
133
335
335
150
149
150
150
150
149
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
RING; SNAP
ID=14.7 THA
0-91800-616-0
01
1
1410-
112
SPRING; RETURN,SAFETY ROD
THA
1-79718-655-0
01
1
1410-
133
LOCK ASM; CAB
(B) THA
8-98061-489-1
01
1
1410-
133
LOCK ASM; CAB
(A) THA
8-98094-285-2
01
1
1410-
136
BOLT; CAB LK
M8X20 FLANGE THA
0-28650-820-0
08
1
1410-
137
CONTROL UNIT; CAB LOCK
THA
8-97587-592-5
01
1
1410-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE THA
0-28650-820-0
04
1
1410-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3 THA
8-98039-045-1
02
1
1410-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6 THA
8-98062-280-0
02
1
1410-
142
ROD; HOOK TO HOOK
THA
8-97587-990-0
01
1
1410-
143
NUT; JAW JOINT,HOOK TO HOOK
M10 THA
0-91110-510-0
02
1
1410-
148
JOINT; JAW,HOOK TO HOOK
THA
8-97410-736-0
01
1
1410-
149
HANDLE; TILT
(B) THA
8-97586-206-1
01
1
1410-
149
HANDLE; TILT
(A) THA
8-98025-707-3
01
1
1410-
150
BOLT; TILT HANDLE
M8X20 FLANGE THA
0-28650-820-0
06
1
1410-
223
WASHER; PL,SAFETY LK
(A) ID=17 OD=30 THA
0-91610-516-0
01
1
1410-
223
WASHER; PL,SAFETY LK
(B) ID=8.4 OD=16 THA
0-91610-508-0
01
1
1410-
225
BOLT; SAFETY LK
M8X30 FLANGE THA
0-28050-830-0
01
1
1410-
226
NUT; SAFETY LK
M8 THA
0-91110-508-0
01
1
1410-
238
LOCK ASM; SAFETY,CAB TILT
THA
8-98048-899-1
01
1
1410-
239
BOLT; SAFETY LK
M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
276
ROD ASM; CAB LOCK,HOOK TO HOOK
THA
8-98048-831-1
01
1
1410-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 THA
0-91610-612-0
02
1
1410-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22 THA
8-98060-839-0
02
1
1410-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 THA
0-91610-508-0
01
1
1410-
336
SWITCH; CAB LOCK
THA
8-98091-155-1
01
1
1410-
338
WASHER; CAB LOCK
ID=17 OD=30 THA
0-91610-516-0
01
1
1410-

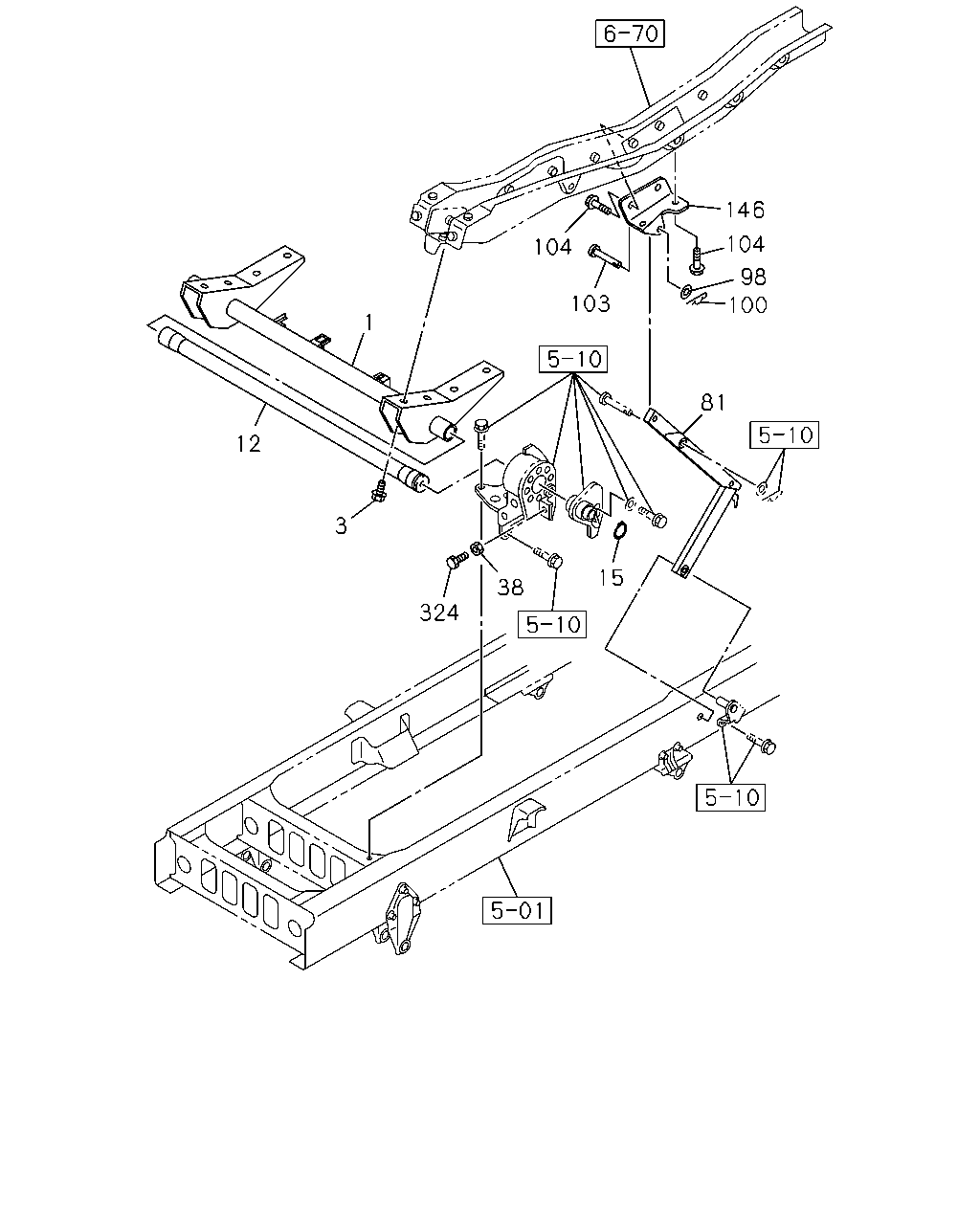

12
3
324
38
15
104
103
146
104
98
100
81
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
THA
8-98010-752-7
01
1
1410-
3
BOLT; LEVER
M12X42 FLANGE THA
8-98090-287-1
08
1
1410-
12
BAR; TORSION,UPR
THA
8-98010-947-1
01
1
1410-
15
RING; SNAP,TORSION BAR
T=1.90 BLUE THA
8-97129-615-0
01
1
1410-
38
NUT; LK
M14 THA
0-91110-514-0
01
1
1410-
81
STAY ASM; CAB TILT
THA
8-98278-116-0
01
1
1410-
98
WASHER; CAB STAY
ID=10.5 T=2.0 THA
1-09985-183-0
01
1
1410-
100
PIN; SNAP,CAB STAY TO CAB
L=34 THA
8-98039-426-1
01
1
1410-
103
PIN; JOINT,CAB STAY
THA
1-09744-108-1
01
1
1410-
104
BOLT; CAB STAY BRKT
M10X30 FLANGE THA
0-28661-030-0
04
1
1410-
146
BRACKET ASM; CAB STAY UPR
THA
8-98019-506-0
01
1
1410-
324
BOLT; ADJUST
M14X55 THA
8-98004-319-1
01
1
1410-

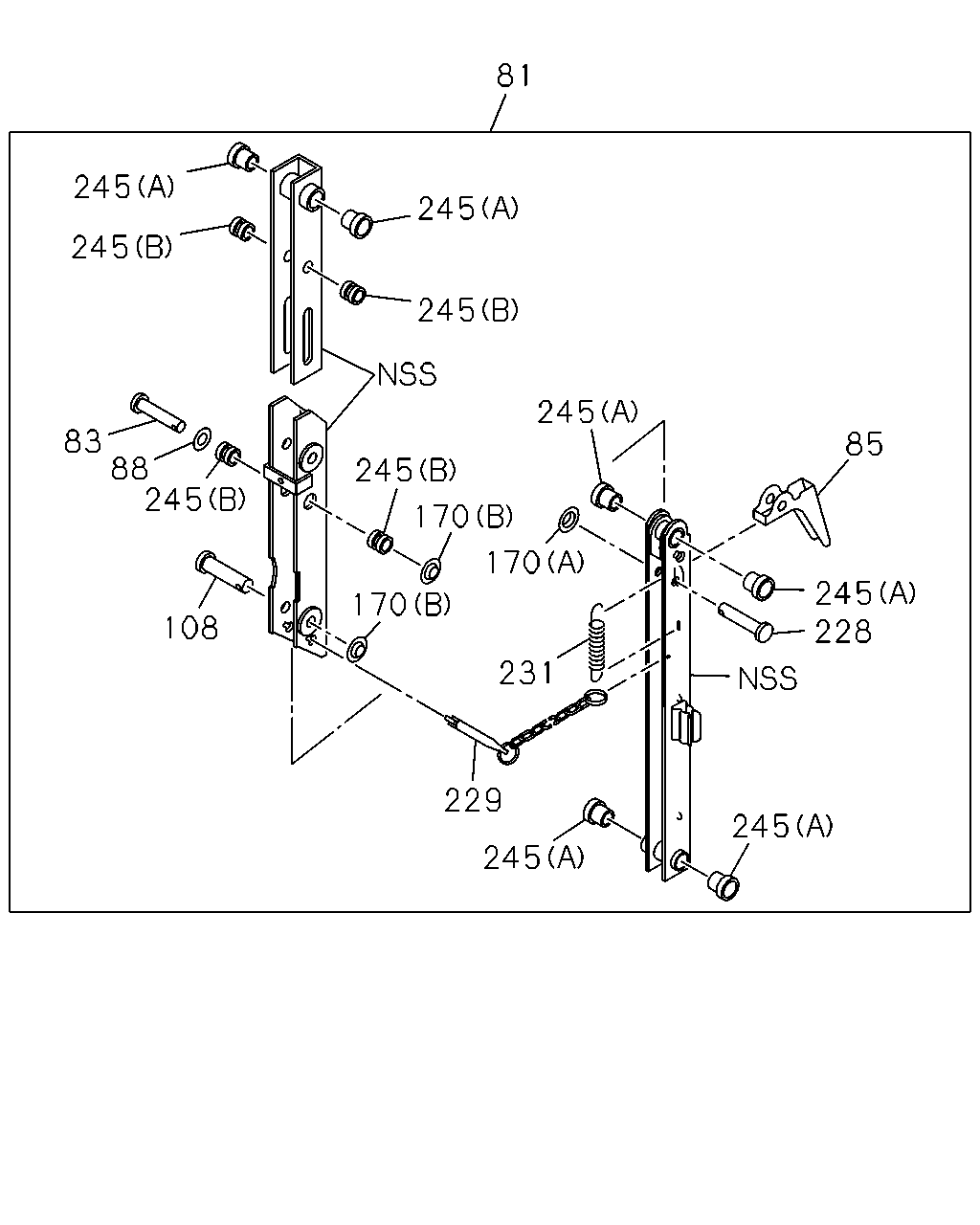

245
85
245
228
245
245
229
231
170
170
108
170
245
245
245
81
245
245
83
245
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
STAY ASM; CAB TILT
THA
8-98278-116-0
01
1
1410-
83
PIN; JOINT,CAB STAY
OD=10 L=42 THA
1-09744-106-0
01
1
1410-
85
LEVER; LOCK,CAB STAY
THA
1-62500-503-0
01
1
1410-
88
WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 THA
1-09985-183-0
01
1
1410-
108
PIN; ADJ,CAB STAY
OD=10 L=42 THA
1-09744-106-0
01
1
1410-
170
NUT
(A) ID=7.9 PUSH NUT THA
8-97022-565-0
01
1
1410-
170
NUT
(B) ID=9.9 PUSH NUT THA
8-97022-566-0
02
1
1410-
228
PIN; SAFETY LOCK SPRING,CAB STAY
THA
1-09744-086-2
01
1
1410-
229
PIN ASM; SAFETY
THA
1-62500-517-1
01
1
1410-
231
SPRING; RETURN,LOCK LEVER,CAB STAY
THA
1-09583-244-0
01
1
1410-
245
BUSHING; CAB STAY
(A) THA
1-62500-587-0
06
1
1410-
245
BUSHING; CAB STAY
(B) THA
1-62500-588-0
04
1
1410-
