Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

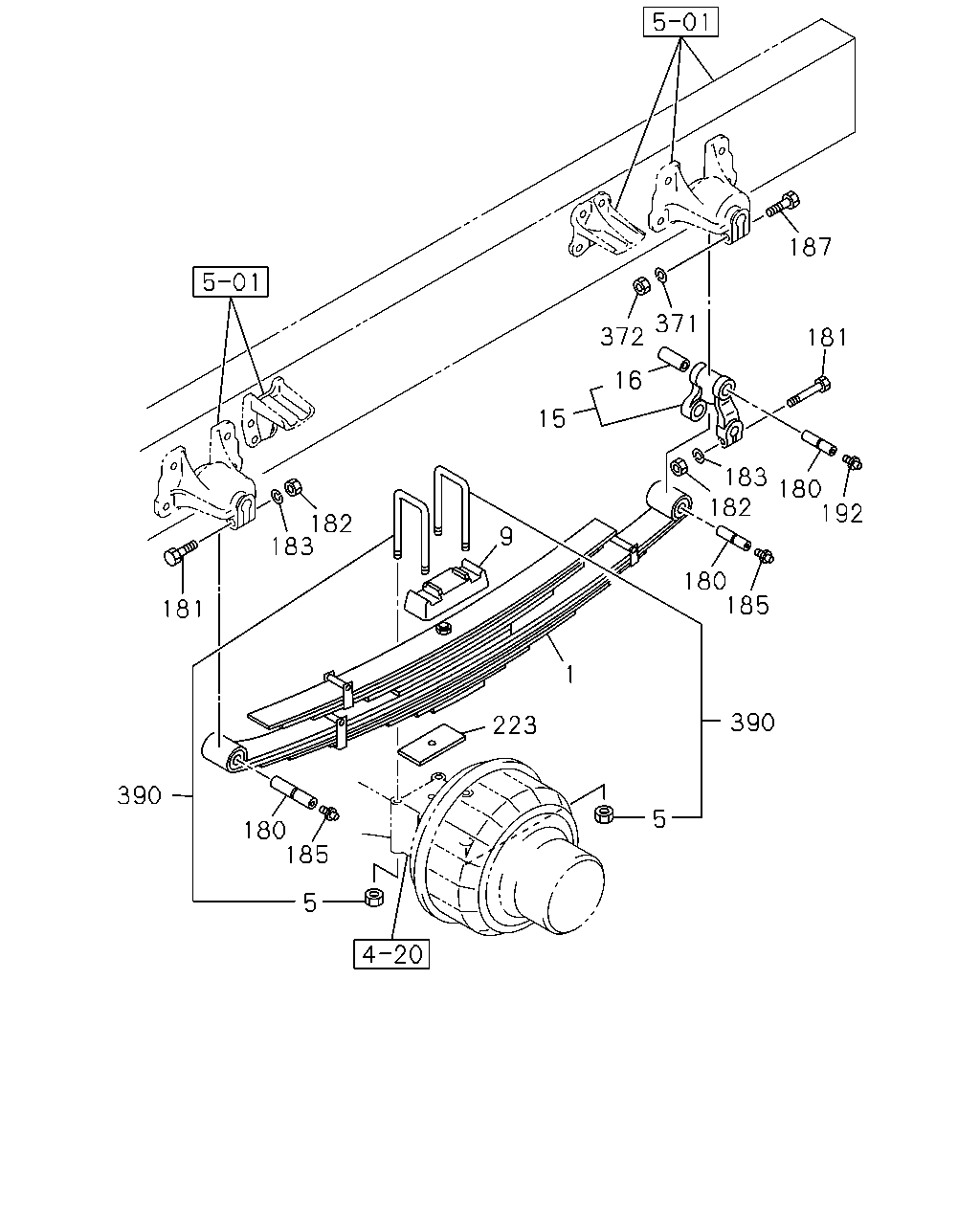

4-60 — REAR SUSPENSION
(#150287) — 22 parça
187
181
371
372
16
15
183
180
192
182
180
185
390
182
183
181
9
223
5
390
180
185
5
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA
8-97948-198-0
02
1
1410-
5
NUT; U-BOLT,RR SPR
M24 THA
0-91112-824-0
08
1
1410-
9
PAD; U BOLT,RR SPR
THA
8-97916-138-0
02
1
1410-
15
SHACKLE; RR SPR
THA
1-51362-049-2
02
1
1410-
16
BUSHING; SHACKLE,RR SPR
THA
8-98081-830-0
02
1
1410-
180
PIN; RR SPR
THA
8-97927-131-0
06
1
1410-
181
BOLT; SPR & SHACKLE
M14X65 THA
0-10811-465-0
04
1
1410-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1410-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1410-
183
WASHER; LK,PIN,RR SPR
ID=14.2 THA
0-91510-514-0
02
1
1410-
183
WASHER; LK,PIN,RR SPR
ID=14.2 THA
0-91510-514-0
02
1
1410-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1410-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1410-
187
BOLT; SPR & SHACKLE
M14X65 THA
0-10811-465-0
02
1
1410-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1410-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3600MM<36W> THA
8-98083-789-0
02
1
1410-
223
SPACER; U BOLT,RR SPR
4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W> THA
8-98083-789-0
02
1
1410-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA
1-51377-166-0
02
1
1410-
223
SPACER; U BOLT,RR SPR
6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W> THA
1-51377-166-0
02
1
1410-
371
WASHER; LK,SHACKLE
ID=14.2 THA
0-91510-514-0
02
1
1410-
372
NUT; SHACKLE
M14 THA
0-91110-514-0
02
1
1410-
390
U-BOLT SET; RR SPRING
L=455 THA
1-87870-268-1
04
1
1410-
