◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11647 - FTR THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#150285) — 30 parça

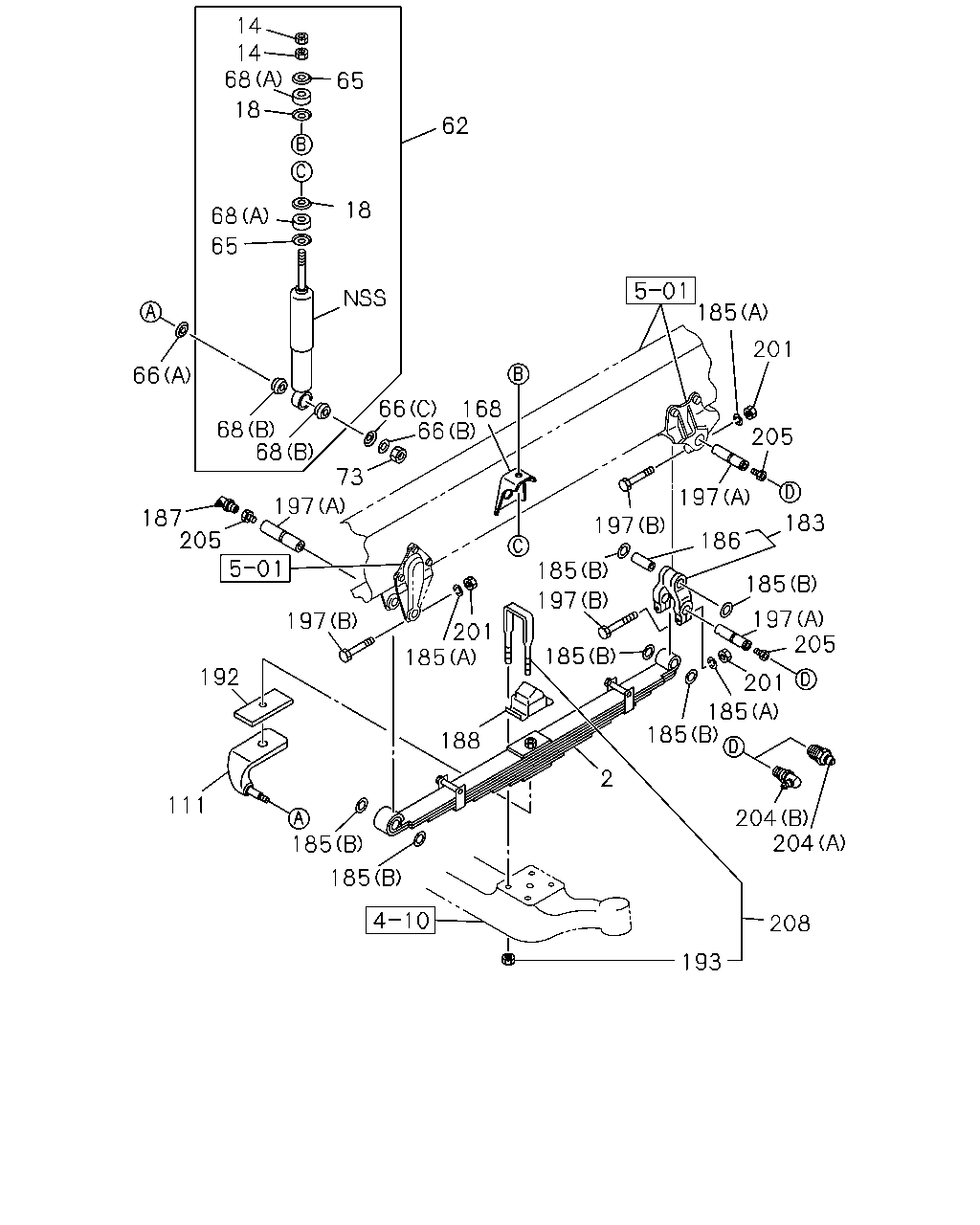

çizim 449197
193 204 208 204 185 2 185 205 201 197 186 185 183 197 205 201 185 185 197 197 185 188 185 185 201 185 111 192 197 205 187 197 73 66 66 168 68 68 66 65 68 18 62 65 18 68 14 14
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG<RJS> 8-LEAF THA 		8-98228-700-0 02 1 1410-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG<82L> 7-LEAF THA 		8-97948-186-0 02 1 1410-
14 NUT; S/ABS,UPR
M12 THA 		8-98010-412-0 04 1 1410-
18 WASHER; CENTERING,S/ABS
ID=16.8 THA 		1-51631-022-0 04 1 1410-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-225-0 02 1 1410-
65 WASHER; S/ABS
ID=14.5 THA 		9-51631-051-0 04 1 1410-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 THA 		0-91610-516-0 02 1 1410-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 THA 		1-51631-019-0 02 1 1410-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 THA 		1-51631-020-0 02 1 1410-
68 BUSHING; S/ABS
(B) THA 		1-51631-009-1 04 1 1410-
68 BUSHING; S/ABS
(A) THA 		9-51631-050-0 04 1 1410-
73 NUT; BRKT,SHOCK
M16 THA 		0-91110-516-0 02 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-499-0 01 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-500-0 01 1 1410-
168 BRACKET; S/ABS,FRT SUSP
THA 		1-51681-306-0 02 1 1410-
183 SHACKLE; FRT SUSP
THA 		1-51162-029-5 02 1 1410-
185 WASHER; LK,PIN
(A) ID=12.2 THA 		0-91510-612-0 12 1 1410-
185 WASHER; LK,PIN
(B) ID=32.4 THA 		1-51169-018-0 12 1 1410-
186 BUSHING; SHACKLE
OD=38 THA 		8-98081-829-0 02 1 1410-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW THA 		0-90301-610-0 02 1 1410-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97948-187-0 02 1 1410-
192 PIECE; DIST
80X144 ID=17.5 THA 		1-51177-284-1 AR 1 1410-
193 NUT; U BOLT
M22 THA 		8-98179-318-0 08 1 1410-
197 PIN; FRT SPR,FRT
(B) M12X80 THA 		0-10856-280-0 12 1 1410-
197 PIN; FRT SPR,FRT
(A) THA 		8-97948-141-0 06 1 1410-
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 1410-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1410-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410-
205 ATTACHMENT; GREASE NIPPLE
THA 		9-43165-001-0 06 1 1410-
208 U-BOLT SET; FRT SPRING
L=230 THA 		1-87870-493-0 04 1 1410-
