Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#150281) — 200 parça

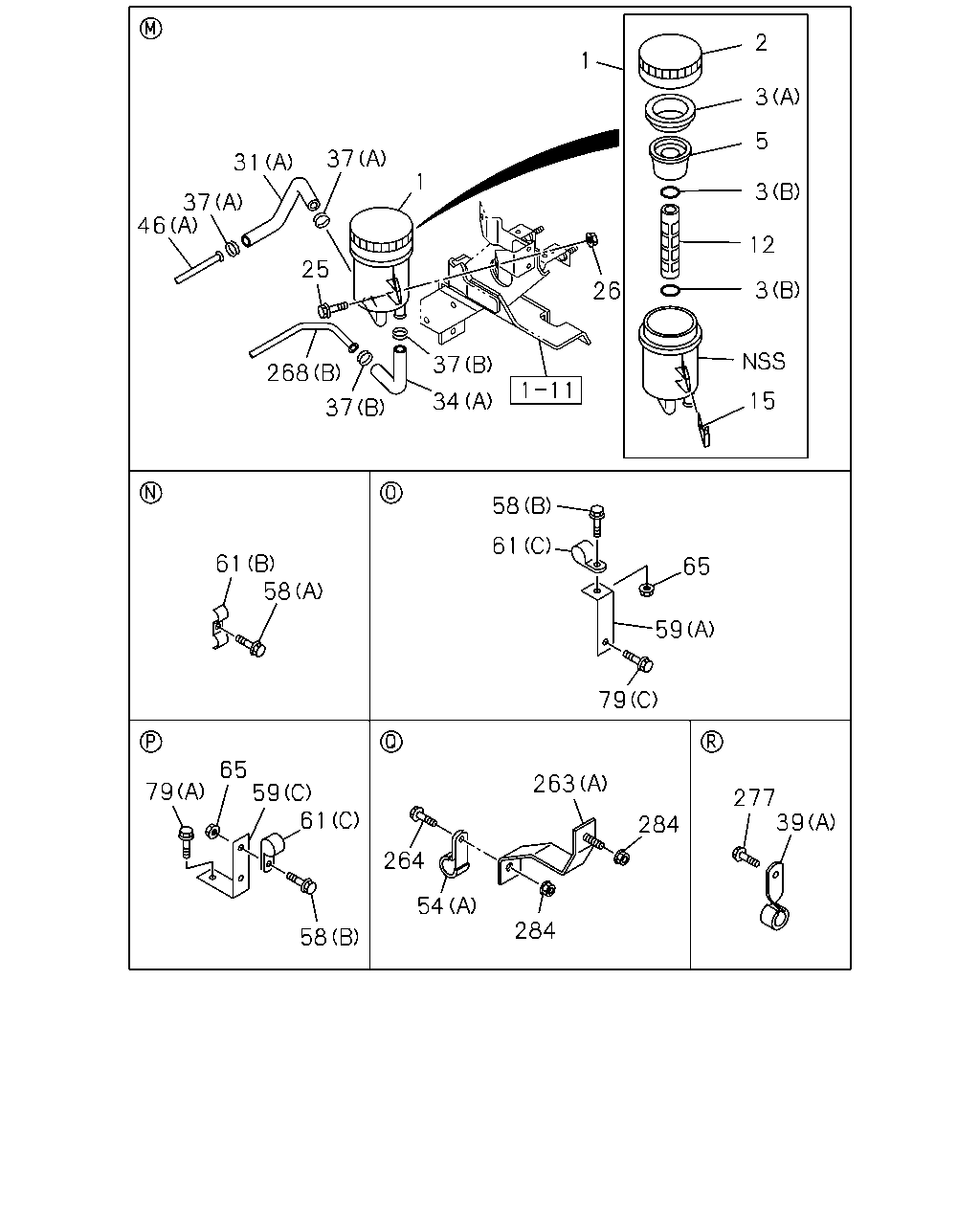

31 37 37 46 268 37 37 34 61 58 58 61 59 79 79 25 65 65 59 61 58 263 284 284 54 264 277 39 2 3 5 3 12 3 15 26 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1410-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1410-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1410-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1410-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1410-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1410-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1410-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG<RJS> (B) THA	8-98196-261-0	01	1	1410-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG<82L> (A) THA	8-98092-730-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B) THA	8-98194-565-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A) THA	8-98021-827-0	01	1	1410-
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	1410-
37	CLIP; HOSE,P/S (B) ID=32 THA	1-09704-085-0	02	1	1410-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (A) ID=19 L=58 THA	1-09700-733-1	01	1	1410-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (B) ID=40 THA	8-94226-553-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20 THA	0-95235-836-0	02	1	1410-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20 THA	0-95235-836-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B) THA	1-09701-284-0	04	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32 THA	1-09704-085-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG<RJS> (D) THA	1-36183-202-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (C) THA	1-21464-481-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (B) THA	1-47475-427-1	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (A) L=95 THA	1-82699-085-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50 THA	0-95235-286-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5 THA	1-09700-668-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20 THA	1-09700-806-1	02	1	1410-
65	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1410-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
79	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
263	BRACKET; P/S PIPE 4HK1-TCS ENG<RJS> (B) THA	8-98249-963-0	01	1	1410-
263	BRACKET; P/S PIPE 6HK1-TCN ENG<82L> (A) THA	8-98081-189-0	01	1	1410-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C) THA	8-98249-962-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B) THA	8-98092-722-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1410-
277	BOLT; HOSE CLIP 6HK1-TCN ENG<82L> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
284	NUT; PIPE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1410-
284	NUT; PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-

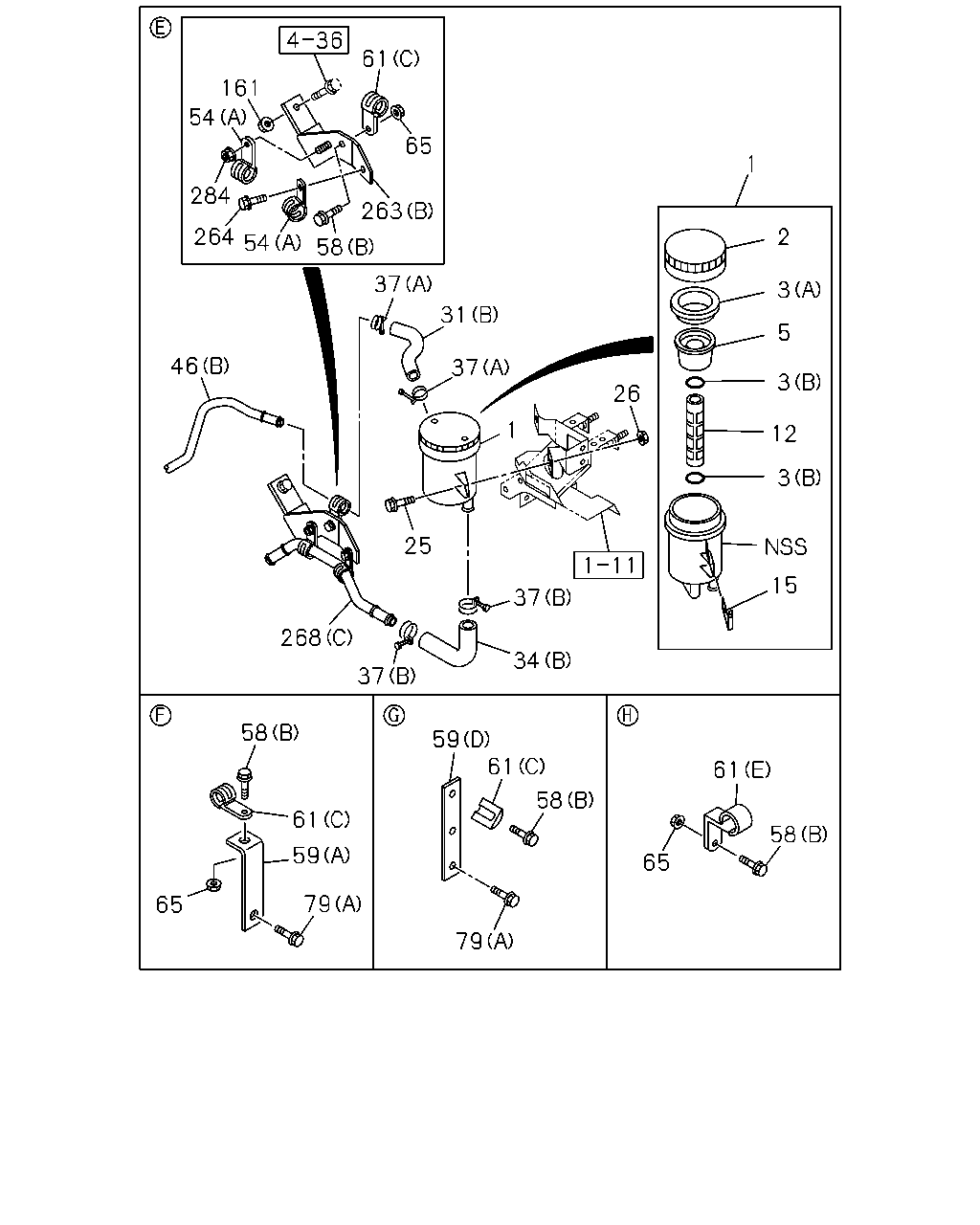

161 61 54 65 284 263 264 54 58 37 31 37 46 26 1 25 268 37 37 34 58 61 59 65 79 59 61 58 79 61 58 65 1 2 3 5 3 12 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1410-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1410-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1410-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1410-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1410-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1410-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1410-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG<RJS> (B) THA	8-98196-261-0	01	1	1410-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG<82L> (A) THA	8-98092-730-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B) THA	8-98194-565-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A) THA	8-98021-827-0	01	1	1410-
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	1410-
37	CLIP; HOSE,P/S (B) ID=32 THA	1-09704-085-0	02	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20 THA	0-95235-836-0	02	1	1410-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20 THA	0-95235-836-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B) THA	1-09701-284-0	04	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32 THA	1-09704-085-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG<RJS> (D) THA	1-36183-202-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (C) THA	1-21464-481-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (B) THA	1-47475-427-1	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (A) L=95 THA	1-82699-085-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50 THA	0-95235-286-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5 THA	1-09700-668-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20 THA	1-09700-806-1	02	1	1410-
65	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1410-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
79	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
161	NUT; P/S PIPE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1410-
263	BRACKET; P/S PIPE 4HK1-TCS ENG<RJS> (B) THA	8-98249-963-0	01	1	1410-
263	BRACKET; P/S PIPE 6HK1-TCN ENG<82L> (A) THA	8-98081-189-0	01	1	1410-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C) THA	8-98249-962-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B) THA	8-98092-722-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1410-
284	NUT; PIPE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1410-
284	NUT; PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-

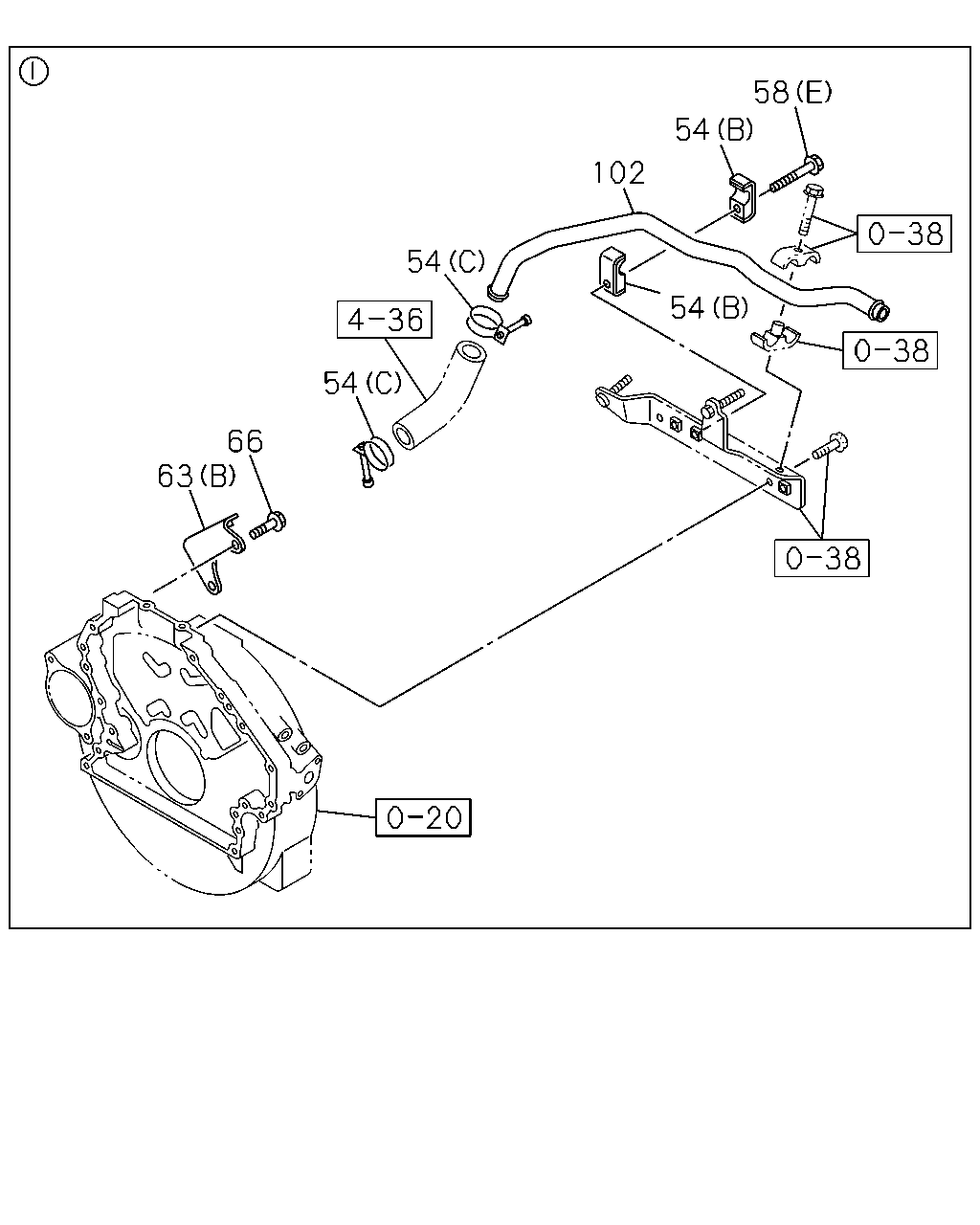

58 54 102 54 54 66 63 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20 THA	0-95235-836-0	02	1	1410-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20 THA	0-95235-836-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B) THA	1-09701-284-0	04	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32 THA	1-09704-085-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG<82L> (A) THA	1-47476-396-1	01	1	1410-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG<RJS> (B) THA	8-97375-107-0	01	1	1410-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG<RJS> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG<RJS> THA	8-98080-186-2	01	1	1410-

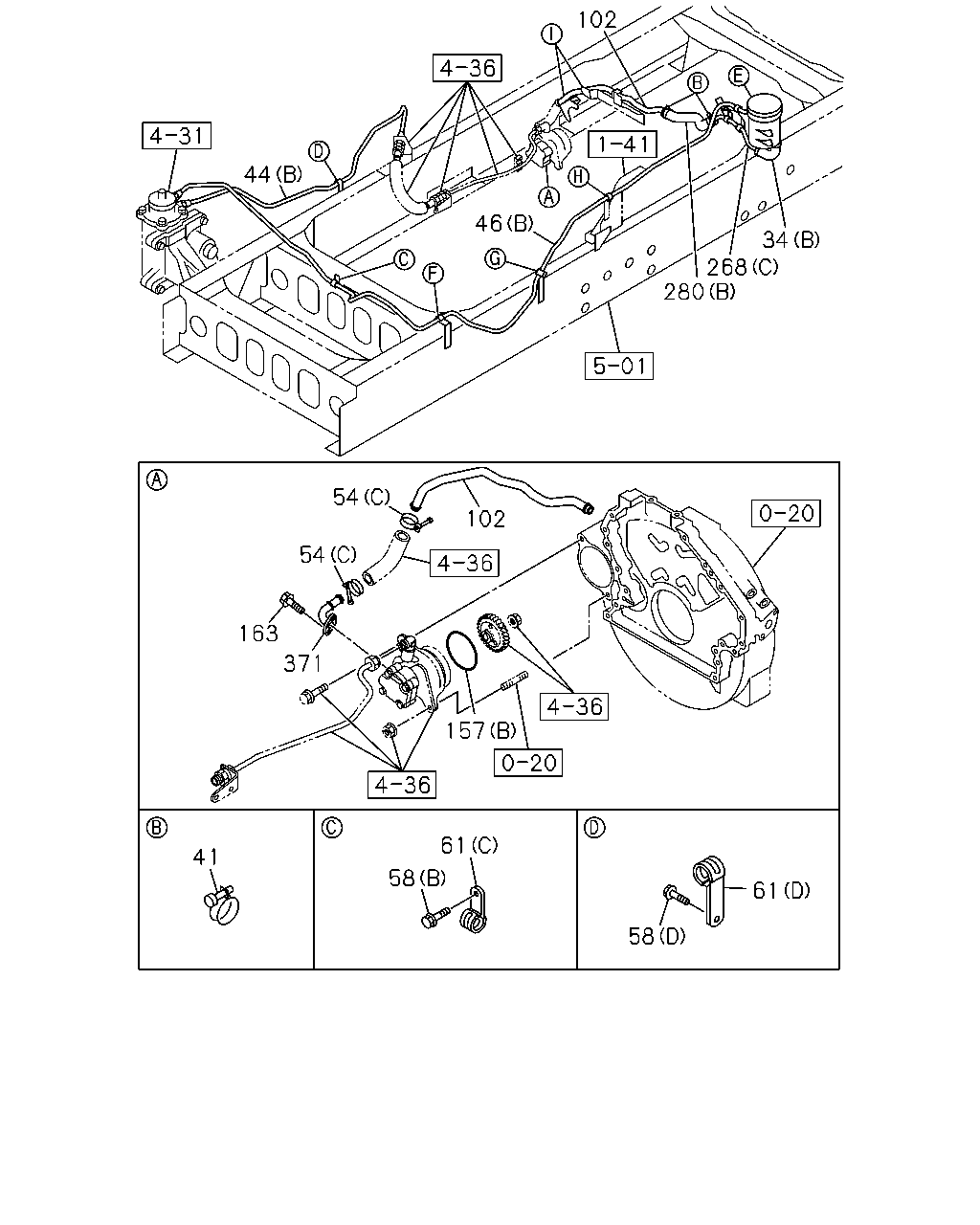

31 268 268 46 280 34 44 157 41 280 65 79 63 39 277 58 61 59 68 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG<RJS> (B) THA	8-98196-261-0	01	1	1410-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG<82L> (A) THA	8-98092-730-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B) THA	8-98194-565-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A) THA	8-98021-827-0	01	1	1410-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (A) ID=19 L=58 THA	1-09700-733-1	01	1	1410-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (B) ID=40 THA	8-94226-553-0	01	1	1410-
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG<RJS> (B) THA	8-98205-780-0	01	1	1410-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG<82L> (A) THA	8-97948-229-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG<RJS> (D) THA	1-36183-202-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (C) THA	1-21464-481-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (B) THA	1-47475-427-1	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (A) L=95 THA	1-82699-085-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50 THA	0-95235-286-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5 THA	1-09700-668-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20 THA	1-09700-806-1	02	1	1410-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG<82L> (A) THA	1-47476-396-1	01	1	1410-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG<RJS> (B) THA	8-97375-107-0	01	1	1410-
65	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1410-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1410-
79	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS> (B) ID=105.6 THA	8-97386-295-0	01	1	1410-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG<82L> (A) ID=96.4 THA	1-09623-467-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C) THA	8-98249-962-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B) THA	8-98092-722-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1410-
277	BOLT; HOSE CLIP 6HK1-TCN ENG<82L> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG<RJS> (B) THA	8-98179-991-0	01	1	1410-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG<82L> (A) THA	8-98081-190-0	01	1	1410-

102 46 280 268 34 54 54 102 157 163 371 41 61 58 58 61 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B) THA	8-98194-565-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A) THA	8-98021-827-0	01	1	1410-
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG<RJS> (B) THA	8-98205-780-0	01	1	1410-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG<82L> (A) THA	8-97948-229-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20 THA	0-95235-836-0	02	1	1410-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20 THA	0-95235-836-0	01	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B) THA	1-09701-284-0	04	1	1410-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32 THA	1-09704-085-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1410-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50 THA	0-95235-286-0	01	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1410-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5 THA	1-09700-668-0	01	1	1410-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20 THA	1-09700-806-1	02	1	1410-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG<RJS> THA	8-98080-186-2	01	1	1410-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS> (B) ID=105.6 THA	8-97386-295-0	01	1	1410-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG<82L> (A) ID=96.4 THA	1-09623-467-0	01	1	1410-
163	BOLT; OIL PIPE 4HK1-TCS ENG<RJS> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C) THA	8-98249-962-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B) THA	8-98092-722-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1410-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG<RJS> (B) THA	8-98179-991-0	01	1	1410-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG<82L> (A) THA	8-98081-190-0	01	1	1410-
371	PIPE; OIL,INLET 4HK1-TCS ENG<RJS> THA	8-98072-089-1	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
