4-25 — REAR FINAL DRIVE (#150277) — 74 parça

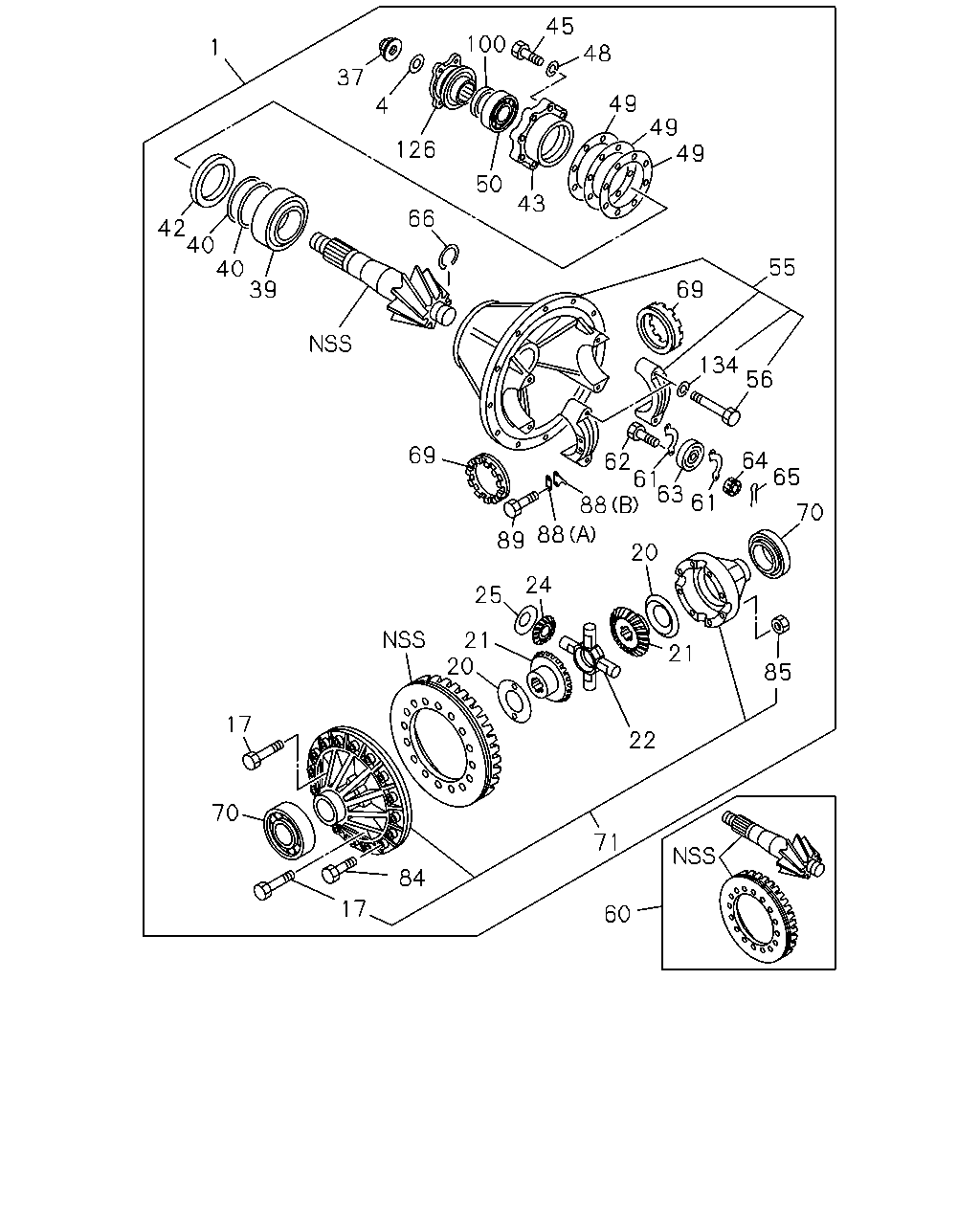

çizim 449467
42 40 40 39 37 4 126 50 43 100 45 48 49 49 49 66 69 69 55 134 56 89 88 88 62 61 63 61 64 65 70 20 21 25 24 20 17 70 17 84 22 21 85 71 60 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/6 THA 		1-41001-130-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
39/7 THA 		1-41001-257-0 01 1 1410- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 THA 		9-09921-116-0 01 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE THA 		1-09044-007-0 12 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 THA 		1-41562-139-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 THA 		1-41562-140-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 THA 		1-41562-141-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 THA 		1-41562-142-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 THA 		1-41562-143-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 THA 		1-41562-144-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 THA 		1-41562-145-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 THA 		1-41562-146-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 THA 		1-41562-147-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 THA 		1-41562-148-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 THA 		1-41562-149-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 THA 		1-41562-150-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 THA 		1-41562-151-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 THA 		1-41562-152-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 THA 		1-41562-153-0 AR 1 1410- ● ●
21 GEAR; SIDE,DIFF
Z=16 THA 		1-41561-159-1 02 1 1410- ● ●
22 SPIDER; DIFF PINION
THA 		1-41521-061-0 01 1 1410- ● ●
24 GEAR; PINION,DIFF
Z=10 THA 		1-41551-051-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
THA 		1-41552-012-0 04 1 1410- ● ●
37 NUT; DRIVING PINION
M36 FLANGE THA 		1-09449-067-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
KOYO THA 		1-09812-218-0 01 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.50 THA 		1-41229-256-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.51 THA 		1-41229-257-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.52 THA 		1-41229-258-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.53 THA 		1-41229-259-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.54 THA 		1-41229-260-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.55 THA 		1-41229-261-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.56 THA 		1-41229-262-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.57 THA 		1-41229-263-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.58 THA 		1-41229-264-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.59 THA 		1-41229-265-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.60 THA 		1-41229-266-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 THA 		1-41229-267-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 THA 		1-41229-268-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 THA 		1-41229-269-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 THA 		1-41229-270-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 THA 		1-41229-271-0 AR 1 1410- ● ●
43 CAGE; FINAL PINION
THA 		1-41151-028-1 01 1 1410- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 THA 		0-16806-450-0 08 1 1410- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 THA 		0-91510-514-0 08 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 THA 		1-41154-063-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 THA 		1-41154-064-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 THA 		9-41154-013-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 THA 		9-41154-014-0 AR 1 1410- ● ●
50 BEARING; FINAL PINION
NSK THA 		1-09812-041-2 01 1 1410- ● ●
50 BEARING; FINAL PINION
KOYO THA 		1-09812-042-1 01 1 1410- ● ●
55 CARRIER; DIFF
THA 		1-41110-052-0 01 1 1410- ● ●
56 BOLT; BRG CAP
M18X107 THA 		1-09050-002-1 04 1 1410- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/6 THA 		1-41210-276-3 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
39/7 THA 		1-41210-280-3 01 1 1410- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 THA 		1-41227-006-0 02 1 1410- ● ●
62 BOLT; RET
M8X36 W/PIN HOLE THA 		1-09042-035-0 02 1 1410- ● ●
63 BEARING; PINION PILOT
KOYO THA 		1-09810-229-2 01 1 1410- ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-230-1 01 1 1410- ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ●
66 RING; SNAP,PILOT BRG
OD=42 THA 		9-09950-179-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 THA 		1-41121-005-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 THA 		1-41121-006-0 01 1 1410- ● ●
70 BEARING; DIFF CAGE
NSK THA 		1-09812-150-0 02 1 1410- ● ●
70 BEARING; DIFF CAGE
NACHI THA 		1-09812-151-0 02 1 1410- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-127-0 01 1 1410- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE THA 		1-09020-167-0 16 1 1410- ● ●
85 NUT; DIFF CAGE SETTING
M14 THA 		1-09400-077-1 12 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 THA 		1-41124-002-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 THA 		9-41124-005-0 02 1 1410- ● ●
89 BOLT; LK PLATE
M8X16 THA 		0-20850-816-0 04 1 1410- ● ●
100 SEAL; OIL,FINAL PINION
NOK THA 		1-09625-017-0 01 1 1410- ● ●
126 COUPLING; DRIVING PINION
THA 		1-37245-388-0 01 1 1410- ● ●
134 WASHER; LK,BRG CAP
ID=18.2 THA 		0-91510-518-0 04 1 1410- ● ●
