3-78 — FIXING PARTS; AIR PIPING (#150271) — 67 parça

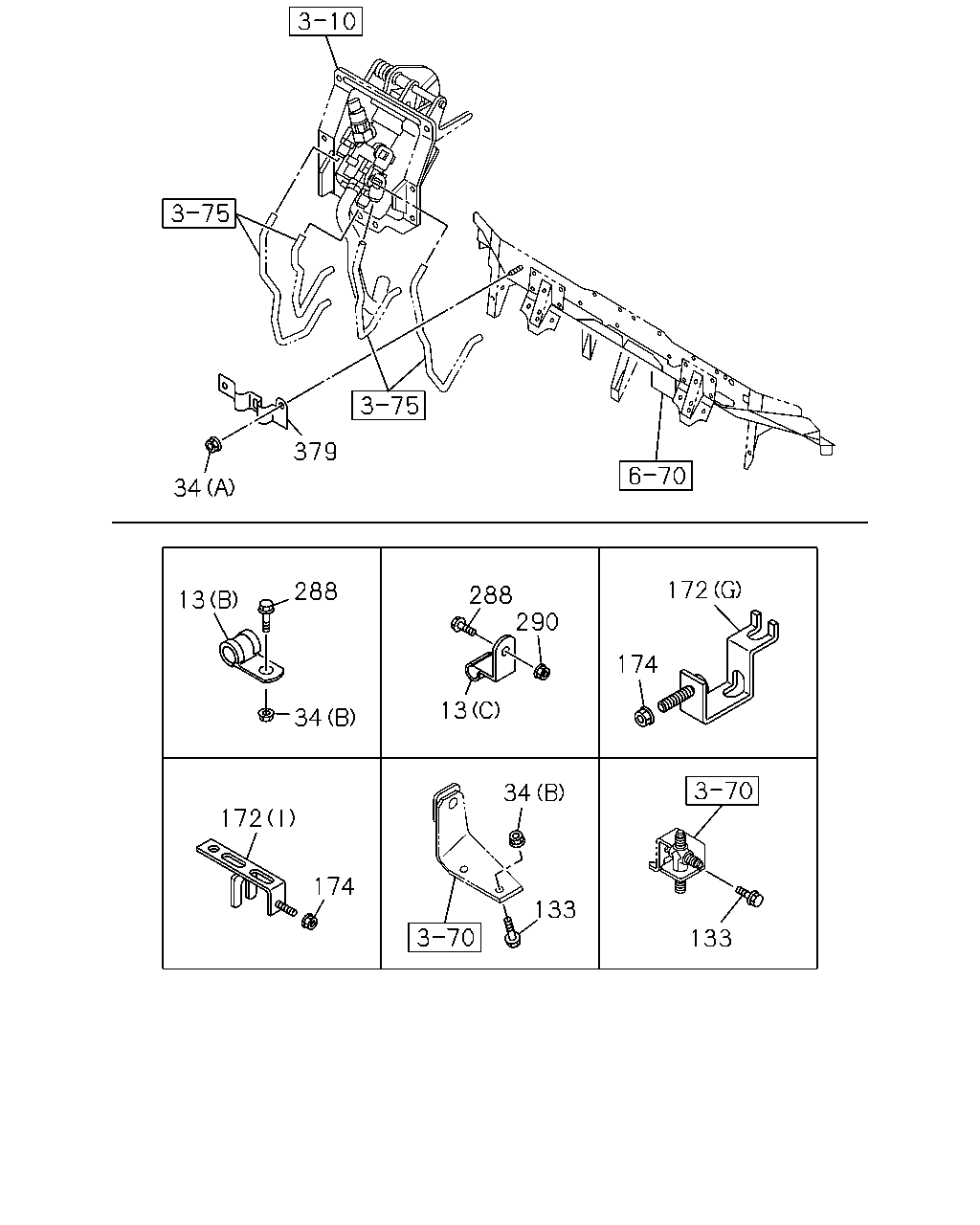

34 379 13 288 34 288 290 13 174 172 172 174 34 133 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (B) ID=7 L=16 THA	0-95234-625-0	01	1	1410-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (C) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	1410-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (A) ID=6.35 & 15 THA	1-09709-276-1	01	1	1410-
13	CLIP; AIR PIPE (A) ID=6.35 & 6.35 THA	1-09709-273-1	01	1	1410-
34	NUT; BRKT 6HK1-TCN ENG<82L> (B) M8 FLANGE THA	0-91180-108-0	02	1	1410-
34	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	02	1	1410-
133	BOLT; BRKT 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (C) L=225 THA	1-47477-646-3	02	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=115 H=30 THA	1-47477-715-3	01	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=60 H=30 THA	1-47477-716-1	02	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=125 THA	1-47477-975-1	02	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=130 THA	1-47479-575-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (F) THA	1-47477-514-3	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=150 H=30 THA	1-47477-629-2	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=100 H=30 THA	1-47477-645-2	02	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (C) L=225 THA	1-47477-646-3	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (E) L=60 H=30 THA	1-47477-716-1	03	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (H) THA	8-98047-730-0	02	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (G) THA	8-98169-222-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (I) THA	8-98177-873-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (J) THA	8-98139-764-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (K) THA	8-98182-764-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (K) THA	8-98182-760-0	01	1	1410-
172	BRACKET; TUBE CLIP (B) THA	1-47479-693-0	02	1	1410-
172	BRACKET; TUBE CLIP (D) THA	8-98031-420-2	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (J) THA	8-98139-765-0	01	1	1410-
174	NUT; CLIP BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	09	1	1410-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	15	1	1410-
288	BOLT; CLIP,AIR PIPE 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
288	BOLT; CLIP,AIR PIPE 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
290	NUT; CLIP,AIR PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1410-
379	BRACKET; NYLON TUBE THA	8-98044-013-0	01	1	1410-

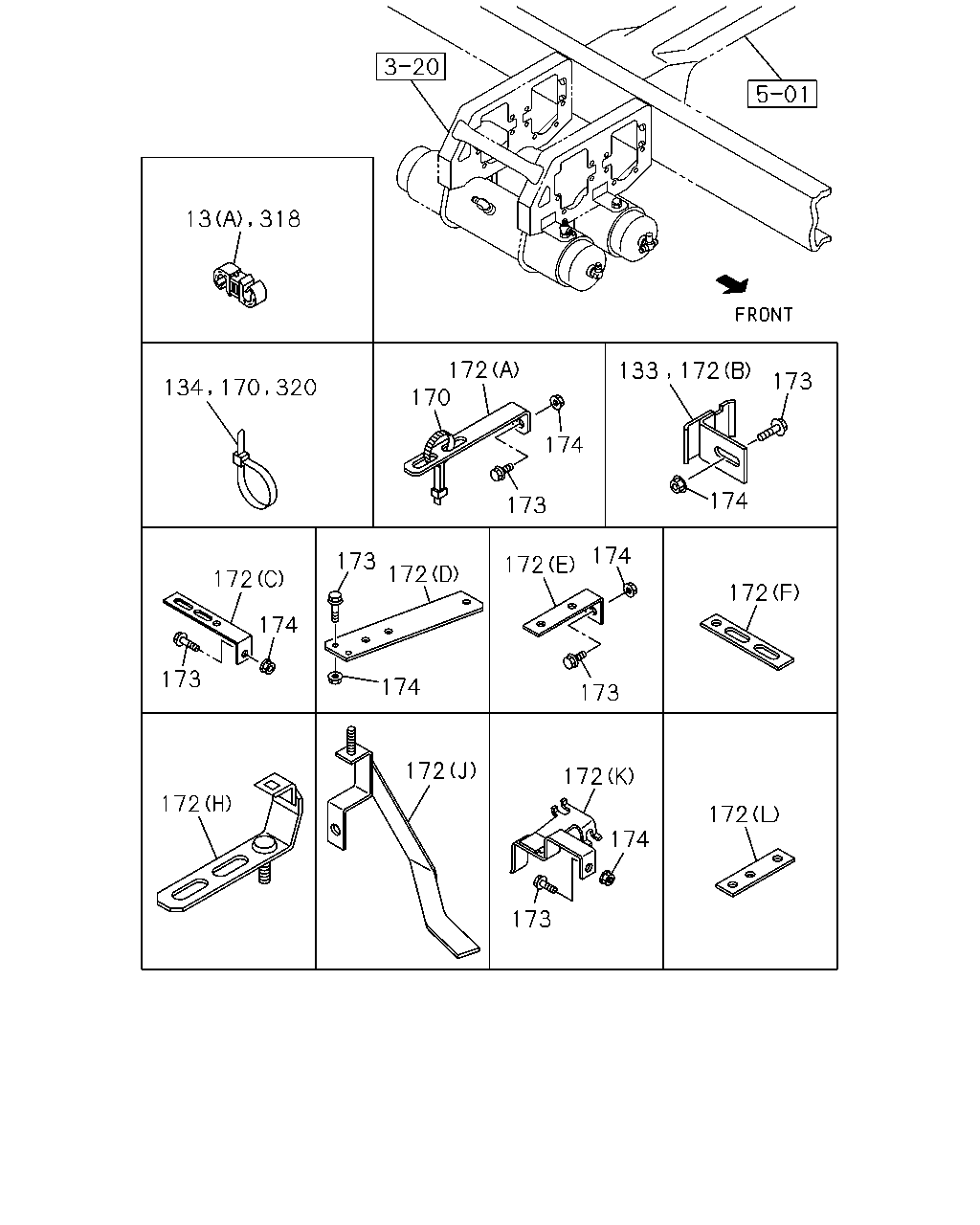

13 318 134 170 320 170 172 174 173 133 172 173 174 173 172 174 173 172 174 172 174 173 172 172 172 173 172 174 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (B) ID=7 L=16 THA	0-95234-625-0	01	1	1410-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (C) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	1410-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (A) ID=6.35 & 15 THA	1-09709-276-1	01	1	1410-
13	CLIP; AIR PIPE (A) ID=6.35 & 6.35 THA	1-09709-273-1	01	1	1410-
133	BOLT; BRKT 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
134	CLIP; AIR PIPE L=350 THA	1-09707-183-0	01	1	1410-
170	CLIP; NYLON TUBE 4HK1-TCS ENG<RJS> L=350 THA	1-09707-183-0	21	1	1410-
170	CLIP; NYLON TUBE 6HK1-TCN ENG<82L> L=350 THA	1-09707-183-0	26	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (C) L=225 THA	1-47477-646-3	02	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=115 H=30 THA	1-47477-715-3	01	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=60 H=30 THA	1-47477-716-1	02	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=125 THA	1-47477-975-1	02	1	1410-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=130 THA	1-47479-575-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (F) THA	1-47477-514-3	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=150 H=30 THA	1-47477-629-2	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=100 H=30 THA	1-47477-645-2	02	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (C) L=225 THA	1-47477-646-3	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (E) L=60 H=30 THA	1-47477-716-1	03	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (H) THA	8-98047-730-0	02	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (G) THA	8-98169-222-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (I) THA	8-98177-873-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (J) THA	8-98139-764-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (K) THA	8-98182-764-0	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (K) THA	8-98182-760-0	01	1	1410-
172	BRACKET; TUBE CLIP (B) THA	1-47479-693-0	02	1	1410-
172	BRACKET; TUBE CLIP (D) THA	8-98031-420-2	01	1	1410-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (J) THA	8-98139-765-0	01	1	1410-
173	BOLT; CLIP BRKT 4HK1-TCS ENG<RJS> M8X30 FLANGE THA	0-28650-830-0	05	1	1410-
173	BOLT; CLIP BRKT 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	06	1	1410-
173	BOLT; CLIP BRKT M8X20 FLANGE THA	0-28650-820-0	05	1	1410-
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
174	NUT; CLIP BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	09	1	1410-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	15	1	1410-
318	CLIP; AIR PIPE 6HK1-TCN ENG<82L> ID=6.35 & 15 THA	1-09709-276-1	04	1	1410-
320	CLIP; BAND,FLEX FIX 6HK1-TCN ENG<82L> L=250 THA	5-09707-030-1	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
