◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11647 - FTR THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#150267) — 19 parça
çizim 448956
57 59
BalonParca AdiParca NoAdetTipApplied Date
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 THA 		0-95234-635-0 04 1 1410-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE THA 		0-28050-810-0 04 1 1410-

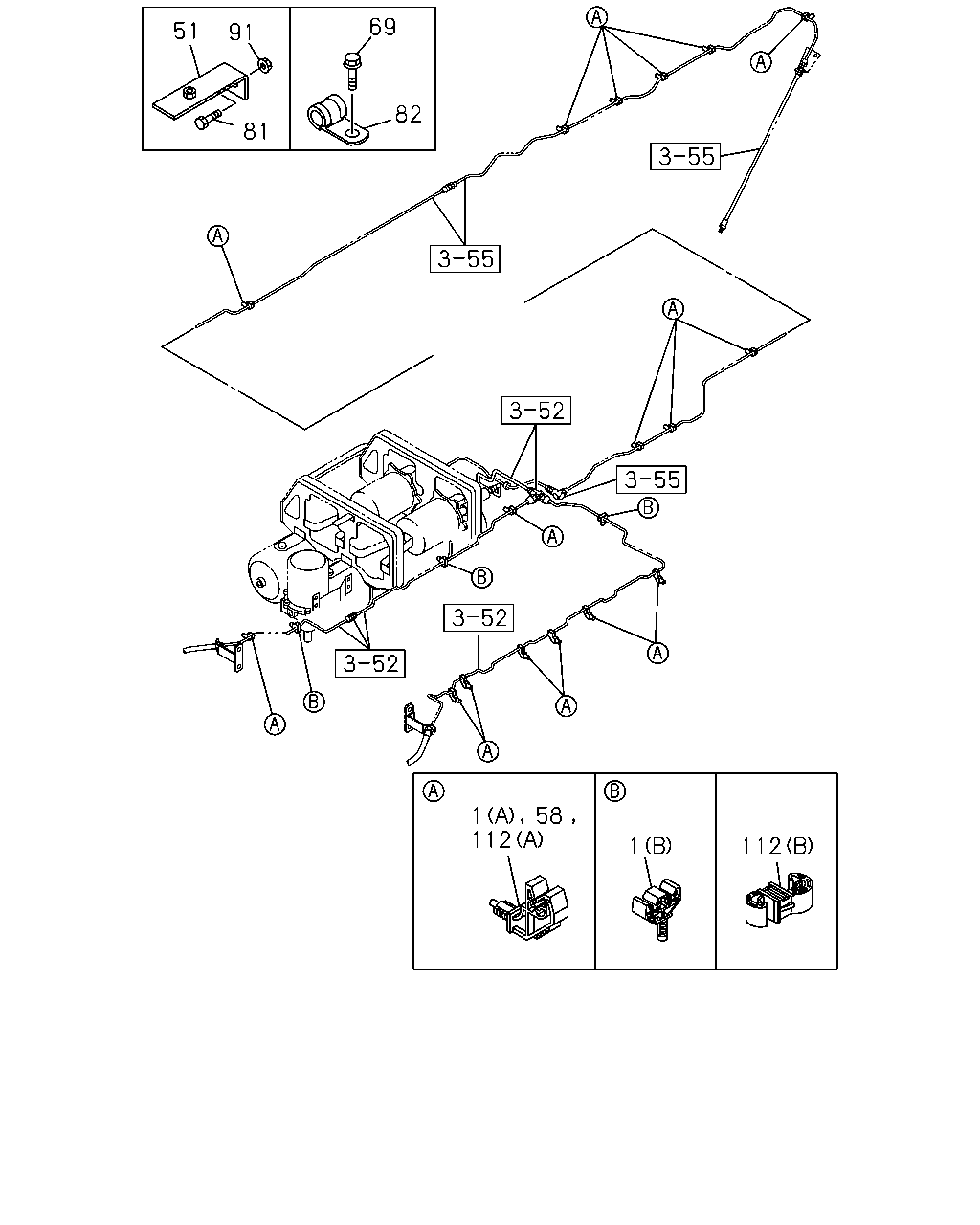

çizim 450710
51 81 91 69 82 1 58 112 1 112
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
4HK1-TCS ENG<RJS> (A) ID=6.35 THA 		1-09701-247-1 04 1 1410-
1 CLIP; OIL PIPE TO BODY
4HK1-TCS ENG<RJS> (B) THA 		8-98012-254-1 06 1 1410-
1 CLIP; OIL PIPE TO BODY
6HK1-TCN ENG<82L> (A) ID=6.35 THA 		1-09701-247-1 06 1 1410-
1 CLIP; OIL PIPE TO BODY
6HK1-TCN ENG<82L> (B) THA 		8-98012-254-1 04 1 1410-
51 BRACKET; OIL PIPE
THA 		1-47475-519-0 01 1 1410-
58 CLIP; OIL PIPE
ID=6.35 THA 		1-09701-247-1 05 1 1410-
69 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
81 BOLT; BRKT,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
82 CLIP; OIL PIPE
ID=7 L=16 THA 		0-95234-625-0 01 1 1410-
91 NUT; BRKT,OIL PIPE
4HK1-TCS ENG<RJS> M8 FLANGE THA 		0-91180-108-0 01 1 1410-
112 CLIP; OIL PIPE
4HK1-TCS ENG<RJS> WHEEL BASE 5000MM<50W> (A) ID=6.35 THA 		1-09701-247-1 05 1 1410-
112 CLIP; OIL PIPE
6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) ID=6.35 THA 		1-09701-247-1 05 1 1410-
112 CLIP; OIL PIPE
4HK1-TCS ENG<RJS> WHEEL BASE 5500MM<55W> (A) ID=6.35 THA 		1-09701-247-1 06 1 1410-
112 CLIP; OIL PIPE
WHEEL BASE 3600MM<36W> (A) ID=6.35 THA 		1-09701-247-1 01 1 1410-
112 CLIP; OIL PIPE
WHEEL BASE 4200MM<42W> (A) ID=6.35 THA 		1-09701-247-1 03 1 1410-
112 CLIP; OIL PIPE
6HK1-TCN ENG<82L> WHEEL BASE 5000MM<50W> (A) ID=6.35 THA 		1-09701-247-1 04 1 1410-
112 CLIP; OIL PIPE
(B) ID=6.35 & 6.35 THA 		1-09709-273-1 01 1 1410-
