◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11647 - FTR THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#150266) — 23 parça

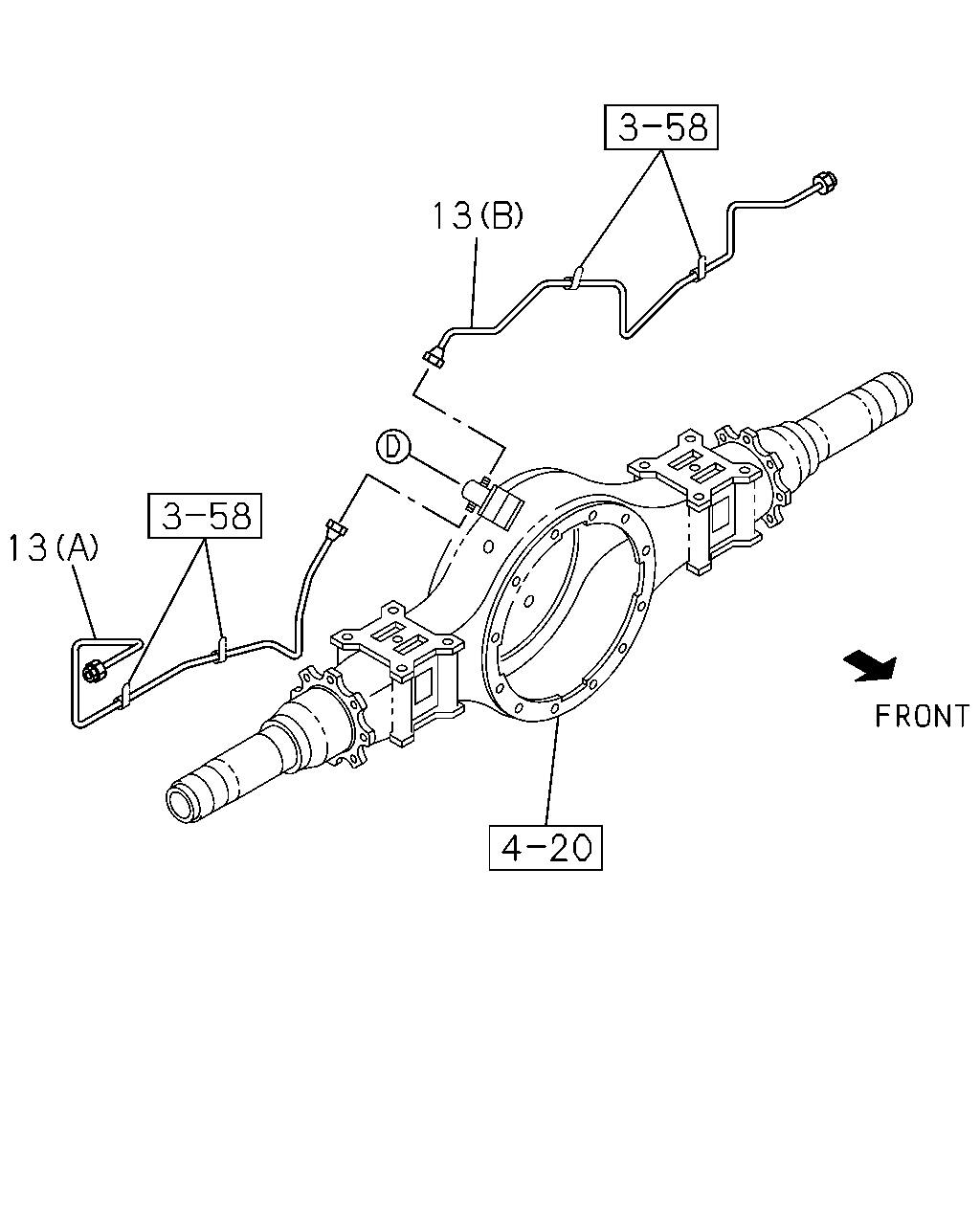

çizim 449298
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
(A) THA 		8-98134-989-0 01 1 1410-
13 PIPE; BRK,RR AXLE
(B) THA 		8-98134-990-0 01 1 1410-

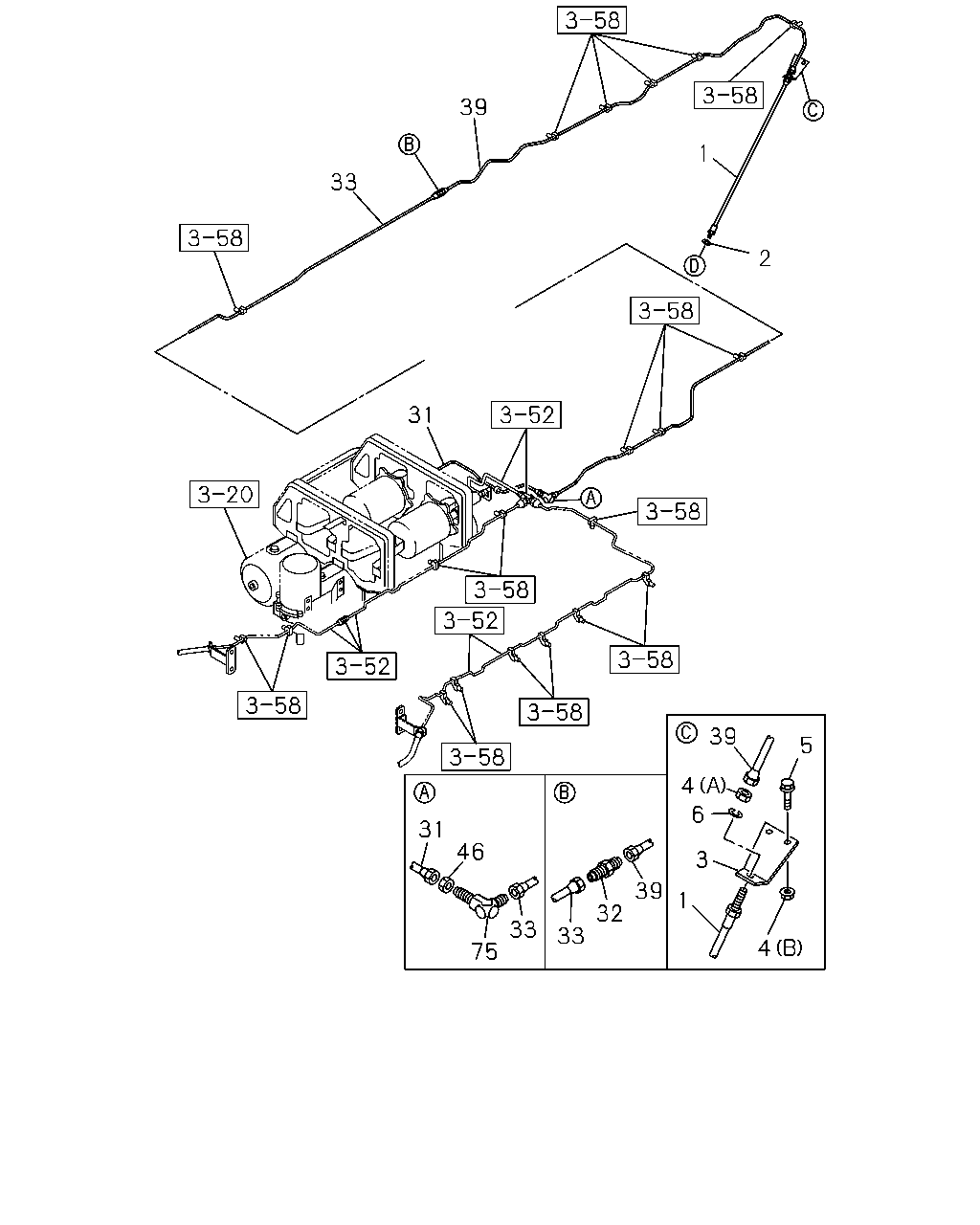

çizim 450511
39 33 1 2 31 31 46 75 33 33 32 39 39 4 6 3 5 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=700 THA 		0-05212-700-0 01 1 1410-
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 THA 		9-09920-472-0 01 1 1410-
3 BRACKET; FLEX HOSE,RR BRK
THA 		1-47465-251-0 01 1 1410-
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M12 THA 		9-09840-280-0 01 1 1410-
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
6 WASHER; LK,FLEX HOSE
ID=12.2 THA 		0-91510-512-0 01 1 1410-
31 PIPE; OIL,AIR MASTER TO UNION
4HK1-TCS ENG<RJS> L=546 THA 		8-98206-488-0 01 1 1410-
31 PIPE; OIL,AIR MASTER TO UNION
6HK1-TCN ENG<82L> L=561 SERVICED BY L=600 THA 		1-47428-725-0 01 1 1410-
32 UNION; OIL PIPE
M12 L=40 THA 		0-92113-006-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=567 SERVICED BY L=600 THA 		1-47428-725-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W> L=1133 SERVICED BY L=1200 THA 		1-47428-732-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> WHEEL BASE 5000MM<50W> L=1933 SERVICED BY L=2000 THA 		1-47428-739-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> WHEEL BASE 5500MM<55W> L=2434 SERVICED BY L=2500 THA 		1-47428-742-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> L=640 SERVICED BY L=650 THA 		1-47428-726-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W> L=1238 SERVICED BY L=1250 THA 		1-47428-733-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> WHEEL BASE 5000MM<50W> L=2035 SERVICED BY L=2200 THA 		1-47428-740-0 01 1 1410-
33 PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> L=2529 SERVICED BY L=2650 THA 		1-47428-743-0 01 1 1410-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=2062 SERVICED BY L=2200 THA 		1-47428-740-0 01 1 1410-
46 NUT; UNION,OIL PIPE
M12 THA 		9-09840-280-0 01 1 1410-
75 UNION; OIL PIPE
M12 ELBOW THA 		0-92125-206-0 01 1 1410-
