3-52 — BRAKE PIPING; OIL,FRONT
(#150265) — 36 parça
◀

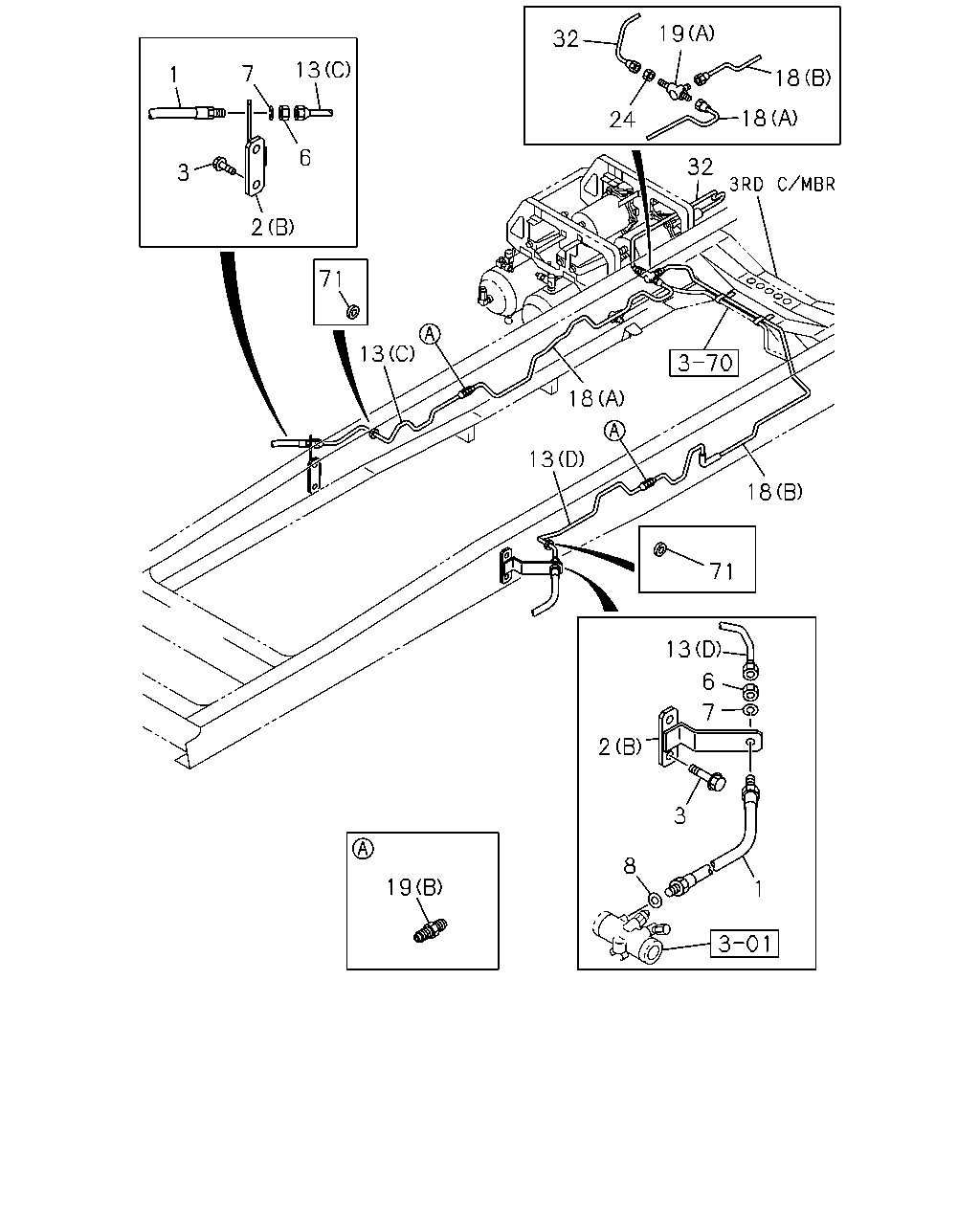

[352A] 4HK1 (19 parça)

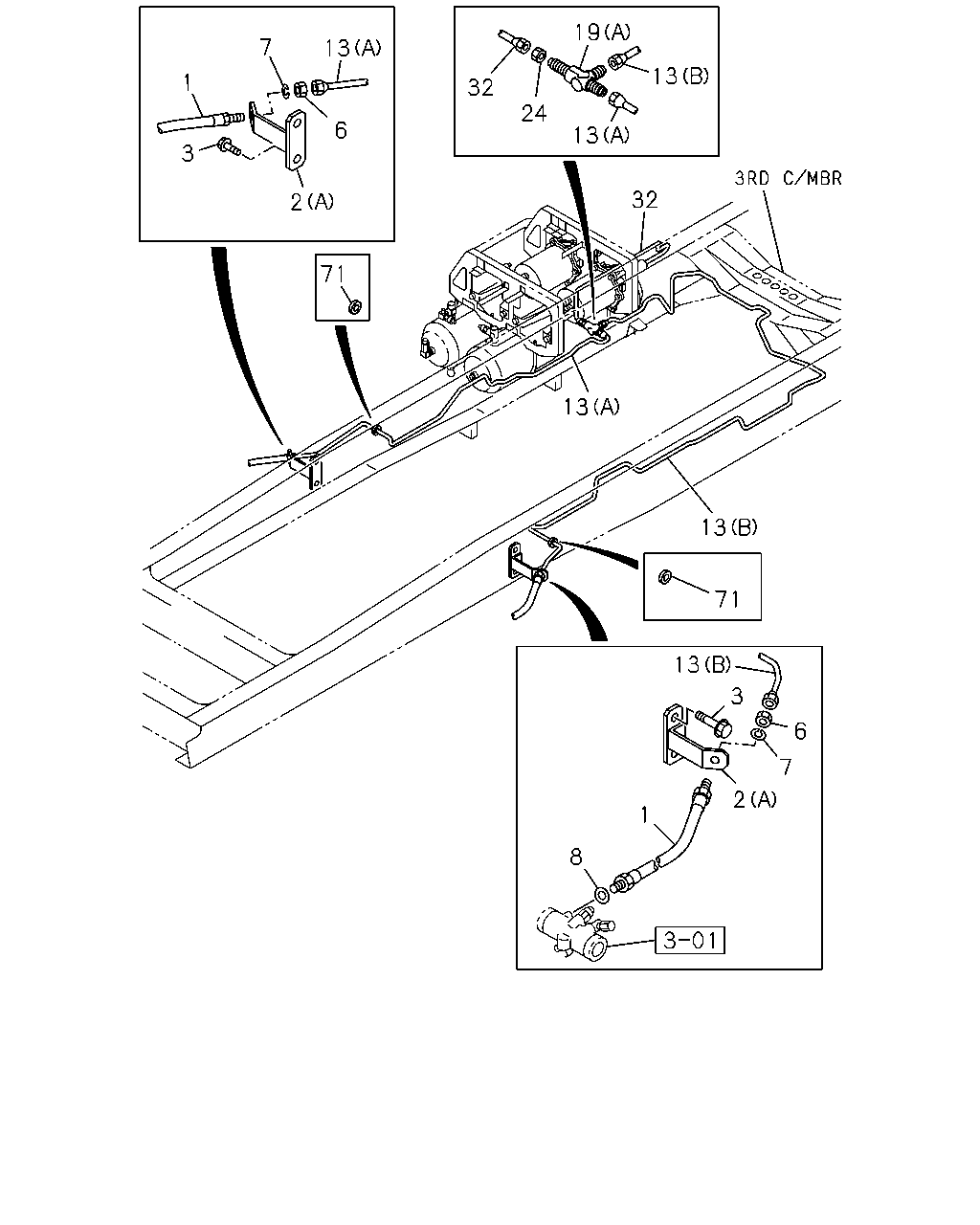

[352A] 6HK1 (17 parça)
▶
1
7
3
6
13
2
71
13
32
24
19
18
18
32
18
13
18
71
13
6
7
2
3
1
8
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610 THA
0-05212-610-0
02
1
1410-
2
BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG<RJS> (B) THA
8-98180-131-0
02
1
1410-
2
BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG<82L> (A) THA
8-98177-524-0
02
1
1410-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE THA
0-28650-825-0
04
1
1410-
6
NUT; FLEX HOSE,FRT BRK
M12 THA
9-09840-280-0
02
1
1410-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 THA
0-91510-512-0
02
1
1410-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 THA
9-09920-472-0
02
1
1410-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> (C) L=643 SERVICED BY L=650 THA
1-47428-726-0
01
1
1410-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> (D) L=737 SERVICED BY L=800 THA
1-47428-728-0
01
1
1410-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> (B) L=3360 SERVICED BY L=3400 THA
1-47428-746-0
01
1
1410-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> (A) L=1631 SERVICED BY L=1700 THA
1-47428-737-0
01
1
1410-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG<RJS> (A) L=1250 SERVICED BY L=1250 THA
1-47428-733-0
01
1
1410-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG<RJS> (B) L=2385 SERVICED BY L=2500 THA
1-47428-742-0
01
1
1410-
19
UNION; OIL PIPE
4HK1-TCS ENG<RJS> (B) M12 L=40 THA
0-92113-006-0
02
1
1410-
19
UNION; OIL PIPE
(A) M12 3WAY THA
0-92138-906-0
01
1
1410-
24
NUT; UNION,OIL PIPE
M12 THA
9-09840-280-0
01
1
1410-
32
PIPE; OIL,AIR MASTER TO UNION
4HK1-TCS ENG<RJS> L=943 THA
8-98229-713-0
01
1
1410-
32
PIPE; OIL,AIR MASTER TO UNION
6HK1-TCN ENG<82L> L=895 THA
8-97948-203-0
01
1
1410-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17 THA
9-09956-092-1
02
1
1410-
1
3
7
13
6
2
71
32
24
13
19
13
32
13
13
71
13
3
6
7
2
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610 THA
0-05212-610-0
02
1
1410-
2
BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG<RJS> (B) THA
8-98180-131-0
02
1
1410-
2
BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG<82L> (A) THA
8-98177-524-0
02
1
1410-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE THA
0-28650-825-0
04
1
1410-
6
NUT; FLEX HOSE,FRT BRK
M12 THA
9-09840-280-0
02
1
1410-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 THA
0-91510-512-0
02
1
1410-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 THA
9-09920-472-0
02
1
1410-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> (C) L=643 SERVICED BY L=650 THA
1-47428-726-0
01
1
1410-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG<RJS> (D) L=737 SERVICED BY L=800 THA
1-47428-728-0
01
1
1410-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> (B) L=3360 SERVICED BY L=3400 THA
1-47428-746-0
01
1
1410-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG<82L> (A) L=1631 SERVICED BY L=1700 THA
1-47428-737-0
01
1
1410-
19
UNION; OIL PIPE
4HK1-TCS ENG<RJS> (B) M12 L=40 THA
0-92113-006-0
02
1
1410-
19
UNION; OIL PIPE
(A) M12 3WAY THA
0-92138-906-0
01
1
1410-
24
NUT; UNION,OIL PIPE
M12 THA
9-09840-280-0
01
1
1410-
32
PIPE; OIL,AIR MASTER TO UNION
4HK1-TCS ENG<RJS> L=943 THA
8-98229-713-0
01
1
1410-
32
PIPE; OIL,AIR MASTER TO UNION
6HK1-TCN ENG<82L> L=895 THA
8-97948-203-0
01
1
1410-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17 THA
9-09956-092-1
02
1
1410-
