Sayfa 3-22 - Isuzu EPC

35 31 34 30 93 33 108 38 237

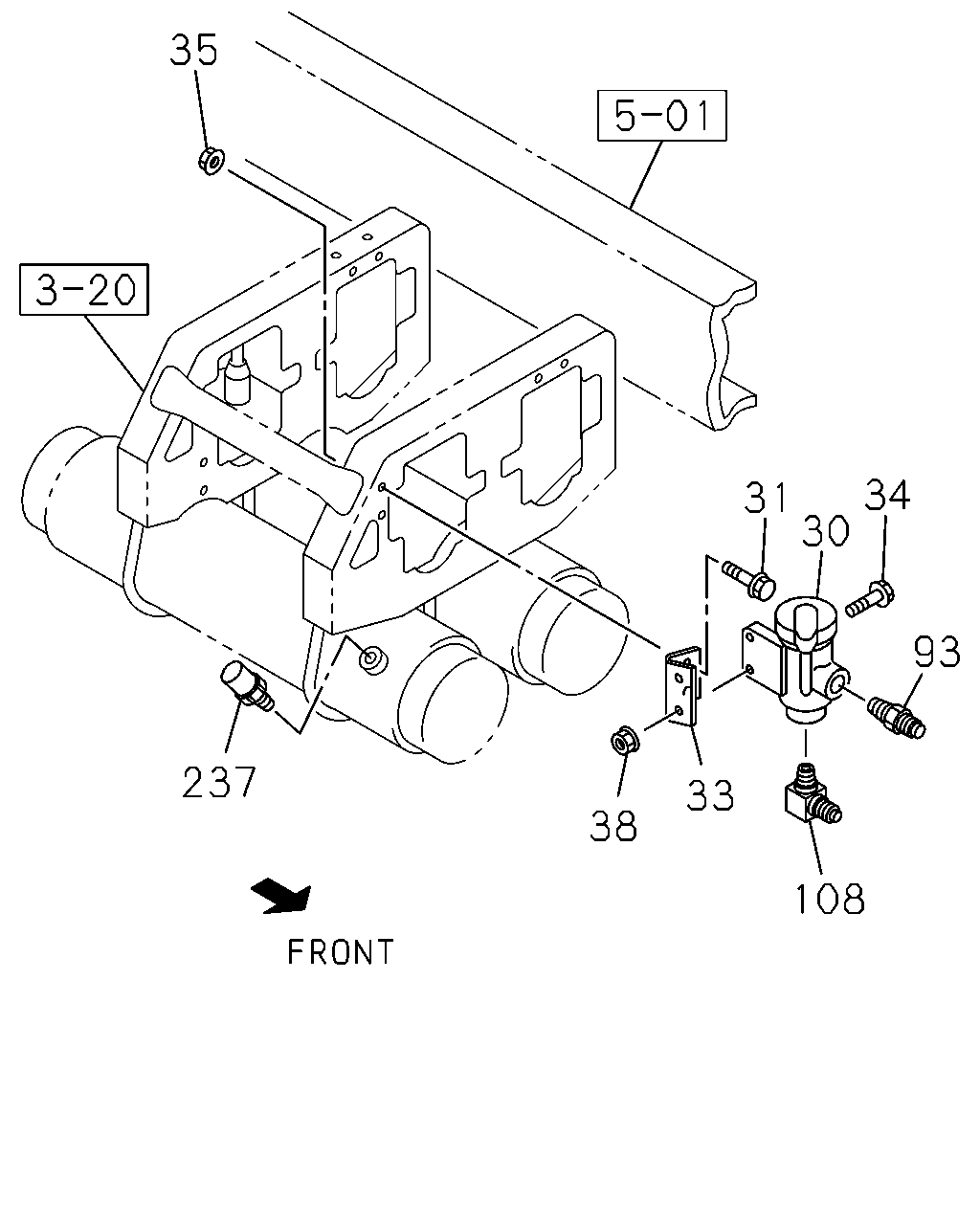

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT 6HK1-TCN ENG<82L> THA	1-48350-093-2	01	1	1410-
31	BOLT; GOV TO FRAME 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
33	BRACKET; GOV,AIR CONT 6HK1-TCN ENG<82L> THA	8-98120-459-1	01	1	1410-
34	BOLT; BRKT,GOV 6HK1-TCN ENG<82L> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
35	NUT; GOV TO FRAME 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
38	NUT; BRKT,GOV 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
93	CONNECTOR; GOV 6HK1-TCN ENG<82L> M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1410-
108	CONNECTOR; ELBOW 6HK1-TCN ENG<82L> M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1410-
237	VALVE; SAFETY THA	1-48320-012-2	01	1	1410-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV 6HK1-TCN ENG<82L> THA	1-85576-467-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
