3-20 — AIR TANK (#150259) — 77 parça

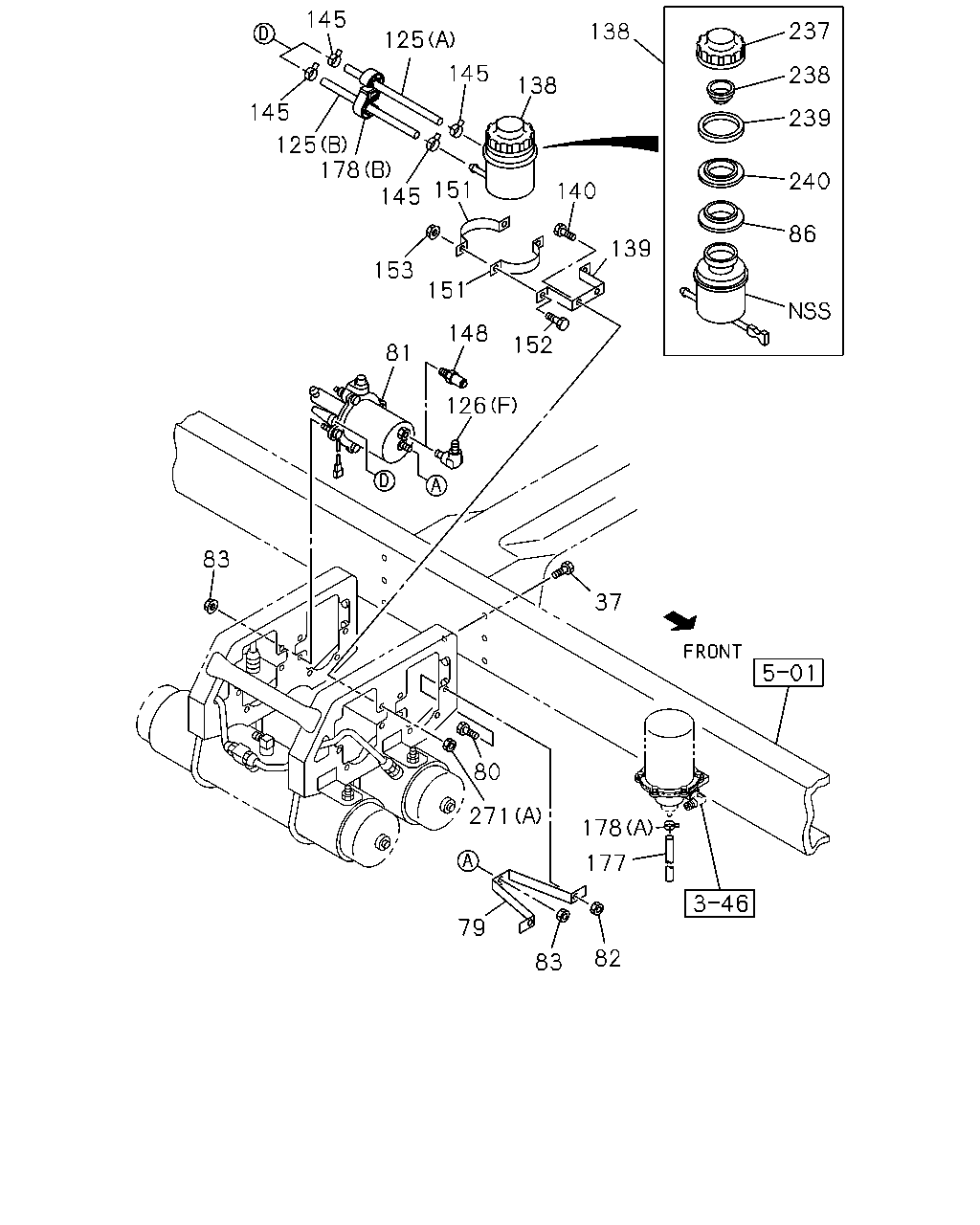

çizim 450702
145 125 138 145 138 145 125 178 145 151 140 139 153 151 148 152 81 126 83 80 271 79 83 82 178 177 37 237 238 239 240 86
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE THA 		0-28651-240-0 06 1 1410-
79 STAY; AIR MASTER TO BRKT
THA 		8-98120-254-0 02 1 1410-
80 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1410-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. THA 		1-47800-663-1 02 1 1410-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1410-
83 NUT; AIR MASTER
M10 FLANGE THA 		0-91180-210-0 10 1 1410-
86 SEAL; DUST
THA 		1-47529-019-0 01 1 1410-
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 THA 		1-09360-320-0 01 1 1410-
125 HOSE; OIL TANK TO AIR MASTER
(B) THA 		8-98197-596-0 01 1 1410-
126 CONNECTOR; ELBOW
4HK1-TCS ENG<RJS> (H) M22 THA 		1-09650-277-0 01 1 1410-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (A) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1410-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1410-
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY THA 		1-09656-340-1 01 1 1410-
126 CONNECTOR; ELBOW
(G) PT1/4 2WAY THA 		1-09660-693-0 01 1 1410-
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT THA 		1-09660-878-0 01 1 1410-
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
138 TANK ASM; OIL,AIR MASTER
THA 		1-47530-185-1 01 1 1410-
139 BRACKET; OIL TANK
THA 		1-47537-081-2 01 1 1410-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 THA 		1-09704-102-0 04 1 1410-
148 CONNECTOR; AIR MASTER
DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
151 BAND; OIL TANK,AIR MASTER
THA 		1-47537-056-2 02 1 1410-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
153 NUT; OIL TANK TO BAND
M8 THA 		0-91110-508-0 02 1 1410-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 1410-
178 CLIP; HOSE
(B) ID=12 & 12 THA 		1-09709-280-1 01 1 1410-
178 CLIP; HOSE
(A) ID=21 THA 		8-94242-034-0 01 1 1410-
178 CLIP; HOSE
(C) THA 		9-09917-171-0 01 1 1410-
237 CAP; OIL TANK
THA 		1-47525-030-0 01 1 1410-
238 PLATE; BAFFLE
THA 		1-47529-022-0 01 1 1410-
239 FILTER; DUST
THA 		1-47529-017-0 01 1 1410-
240 HOLDER; FILTER
THA 		1-47529-018-0 01 1 1410-
271 NUT; BRKT,HOSE
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
271 NUT; BRKT,HOSE
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1410-

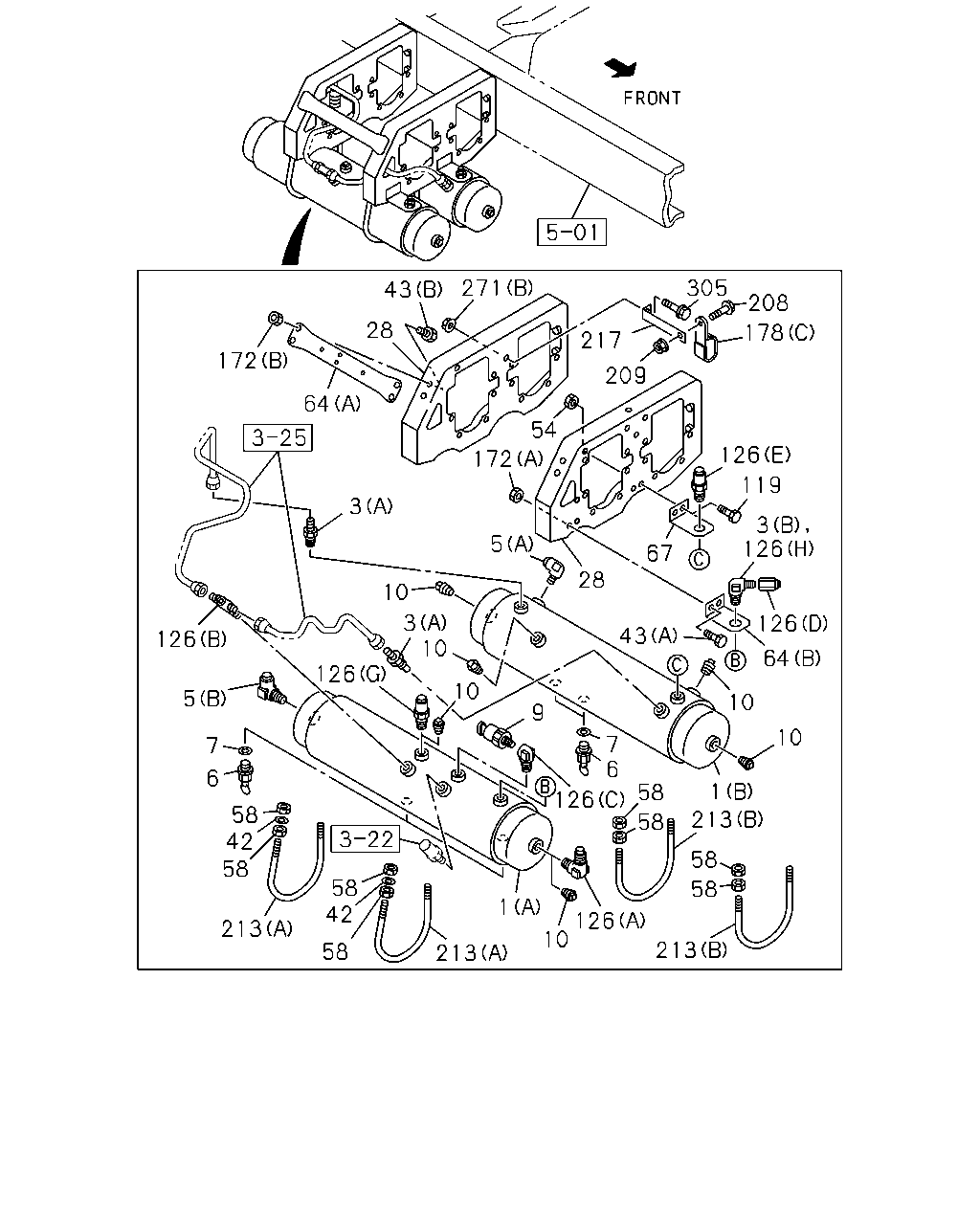

çizim 452012
43 172 64 271 217 305 208 178 209 54 172 126 119 3 3 5 67 28 126 126 64 43 10 10 1 213 58 58 213 126 10 1 213 58 42 58 213 58 42 58 6 7 5 126 126 10 3 10 10 9 7 6 126 58 58 28
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) THA 		1-48330-598-0 01 1 1410-
1 TANK ASM; AIR
(B) THA 		1-48370-541-0 01 1 1410-
3 VALVE; CHECK,AIR TANK
6HK1-TCN ENG<82L> (B) M22 & PT3/4 ELBOW THA 		1-48410-134-3 01 1 1410-
3 VALVE; CHECK,AIR TANK
(A) THA 		1-48410-182-3 02 1 1410-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
THA 		1-48312-015-0 04 1 1410-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 04 1 1410-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1410-
10 PLUG; AIR TANK
4HK1-TCS ENG<RJS> PT1/4 THA 		9-99204-513-0 06 1 1410-
10 PLUG; AIR TANK
6HK1-TCN ENG<82L> PT1/4 THA 		9-99204-513-0 04 1 1410-
28 BRACKET; AIR TANK
THA 		8-97913-537-3 02 1 1410-
42 WASHER; PL
ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1410-
54 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
58 NUT; BAND,AIR TANK
M8 THA 		0-91110-508-0 16 1 1410-
64 STAY; AIR TANK,MAIN
(A) THA 		1-53318-293-1 01 1 1410-
64 STAY; AIR TANK,MAIN
(B) THA 		8-94301-490-0 01 1 1410-
67 STAY; SUB TANK
THA 		1-48317-349-0 01 1 1410-
119 BOLT; STAY
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
126 CONNECTOR; ELBOW
4HK1-TCS ENG<RJS> (H) M22 THA 		1-09650-277-0 01 1 1410-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (A) M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1410-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (C) DIN8 R1/4 STRAIGHT THA 		1-09660-963-0 01 1 1410-
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY THA 		1-09656-340-1 01 1 1410-
126 CONNECTOR; ELBOW
(G) PT1/4 2WAY THA 		1-09660-693-0 01 1 1410-
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT THA 		1-09660-878-0 01 1 1410-
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1410-
178 CLIP; HOSE
(B) ID=12 & 12 THA 		1-09709-280-1 01 1 1410-
178 CLIP; HOSE
(A) ID=21 THA 		8-94242-034-0 01 1 1410-
178 CLIP; HOSE
(C) THA 		9-09917-171-0 01 1 1410-
208 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
209 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
213 BOLT; U AIR TANK
(A) L=97.5 THA 		1-48317-323-1 02 1 1410-
213 BOLT; U AIR TANK
(B) L=195 THA 		1-48317-367-2 02 1 1410-
217 BRACKET; RUBBER HOSE
L=112 THA 		1-47475-694-1 01 1 1410-
271 NUT; BRKT,HOSE
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
271 NUT; BRKT,HOSE
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1410-
305 BOLT; BRKT,HOSE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
