3-11 — PARKING BRAKE CONTROL (#150258) — 78 parça

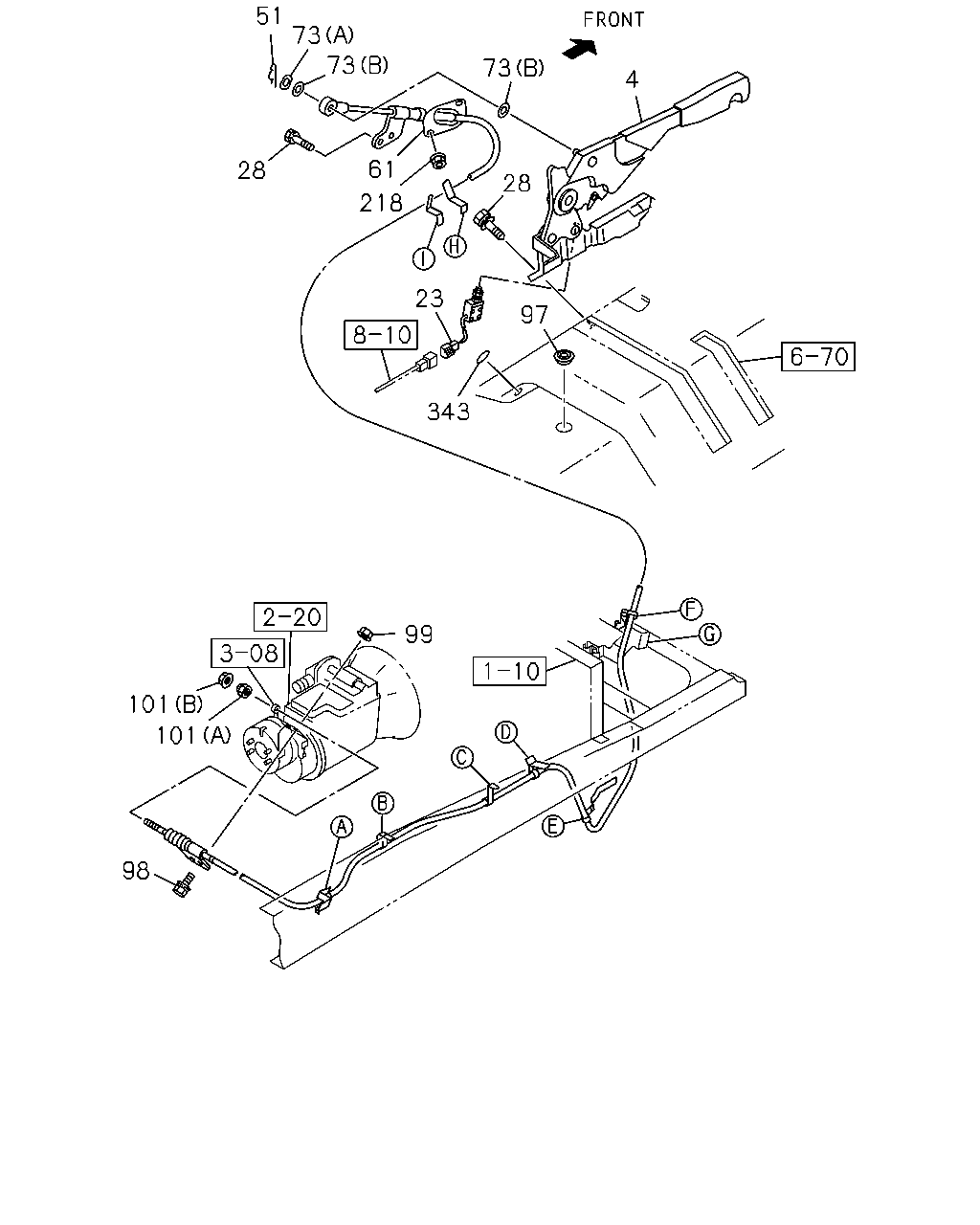

101 101 98 99 343 23 4 73 97 28 218 61 28 73 51 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK THA	1-79996-549-0	01	1	1410-
23	SWITCH; PARKING BRK THA	1-82440-100-0	01	1	1410-
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER THA	8-98059-720-0	04	1	1410-
51	PIN; JOINT,RELAY LEVER THA	1-09987-243-1	01	1	1410-
61	CABLE; PARKING BRK 4HK1-TCS ENG<RJS> L=4233 THA	8-98257-636-0	01	1	1410-
61	CABLE; PARKING BRK 6HK1-TCN ENG<82L> L=4631 THA	8-98257-633-0	01	1	1410-
73	WASHER; PL,CABLE (A) ID=17 OD=30 THA	0-91610-516-0	01	1	1410-
73	WASHER; PL,CABLE (B) ID=19 THA	8-94206-429-1	02	1	1410-
97	GROMMET; PARKING BRK CABLE OD=35 THA	8-94122-971-0	01	1	1410-
98	BOLT; RR COVER M10X30 FLANGE THA	0-28651-030-0	02	1	1410-
99	NUT; CONT CABLE M10 FLANGE THA	0-91180-210-0	02	1	1410-
101	NUT; CABLE TO LEVER (A) THA	1-46259-007-0	01	1	1410-
101	NUT; CABLE TO LEVER (B) M8 FLANGE THA	0-91180-108-0	01	1	1410-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
343	SEAL OD=25 BLACK THA	1-76798-019-0	04	1	1410-

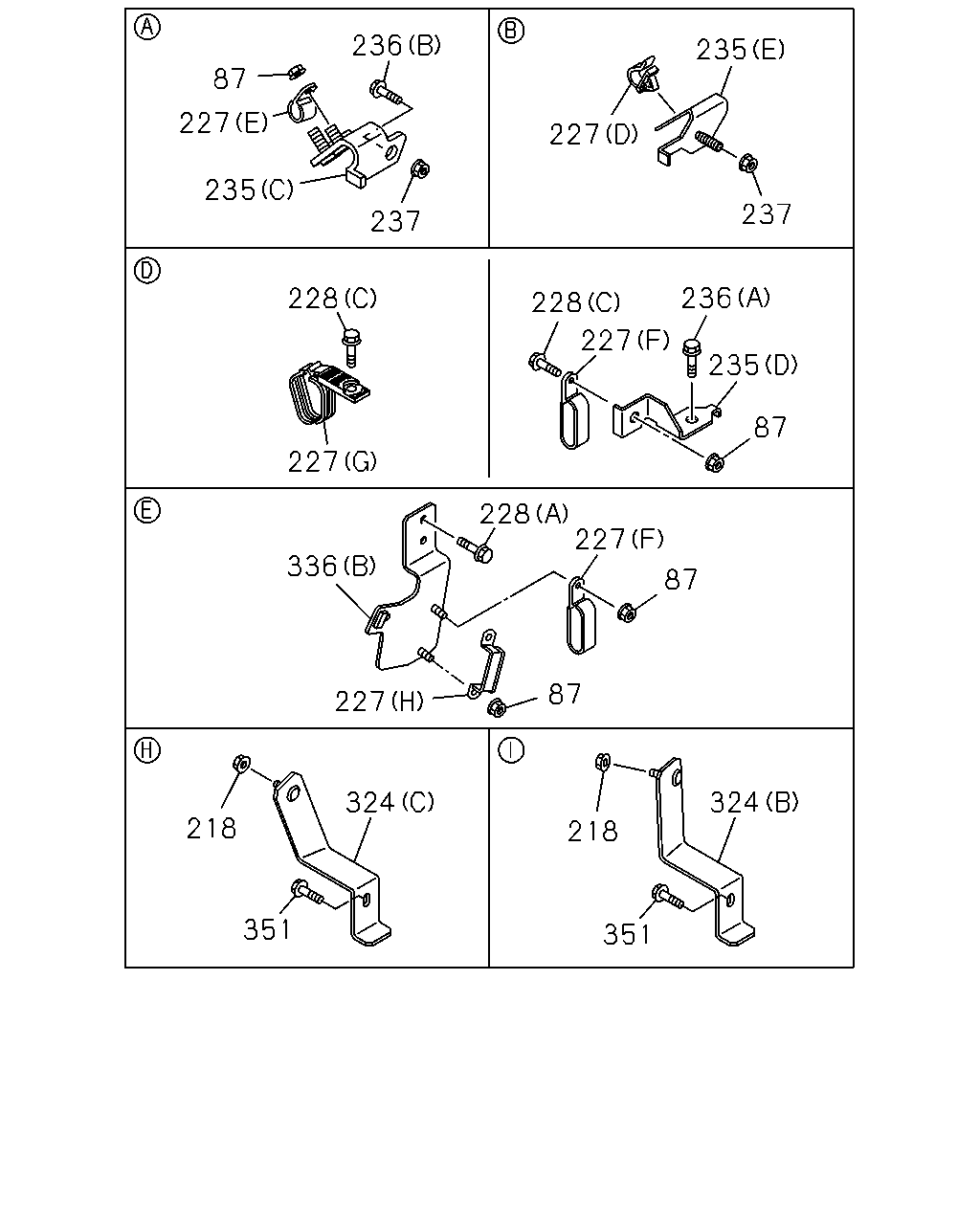

324 351 218 324 218 351 87 87 227 228 336 227 87 235 236 228 227 237 235 227 237 235 227 87 236 227 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	NUT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
87	NUT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (E) ID=16 L=20 THA	0-95235-535-0	01	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (F) ID=13 & 13 L=32 THA	8-97389-264-0	02	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (G) ID=13 & 10 & 10 L=35.5 THA	8-98023-991-0	01	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (H) THA	8-98080-966-0	01	1	1410-
227	CLIP; RAD 6HK1-TCN ENG<82L> (B) ID=13 L=20 THA	0-95235-235-0	02	1	1410-
227	CLIP; RAD 6HK1-TCN ENG<82L> (C) ID=25 H=60 L=35 THA	1-09701-103-0	01	1	1410-
227	CLIP; RAD 6HK1-TCN ENG<82L> (A) ID=14.5 L=40 THA	8-98119-885-0	01	1	1410-
227	CLIP; RAD (D) ID=9.5 THA	5-09709-020-0	01	1	1410-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER THA	1-09980-498-0	02	1	1410-
228	BOLT; CLIP RAD MTG (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1410-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (C) THA	8-98077-903-2	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (D) THA	8-98126-426-0	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (E) THA	8-98126-934-0	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (A) THA	1-82699-199-0	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (B) THA	8-98111-492-0	01	1	1410-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
236	BOLT; BRKT TO FRAME (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1410-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-210-0	02	1	1410-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	01	1	1410-
324	BRACKET 4HK1-TCS ENG<RJS> (C) THA	8-98227-661-1	01	1	1410-
324	BRACKET 4HK1-TCS ENG<RJS> (B) THA	8-98227-663-1	01	1	1410-
324	BRACKET 6HK1-TCN ENG<82L> (A) THA	8-98067-482-1	01	1	1410-
336	BRACKET; RADIATOR 4HK1-TCS ENG<RJS> (B) THA	8-98208-200-4	01	1	1410-
336	BRACKET; RADIATOR 6HK1-TCN ENG<82L> (A) THA	8-98044-680-0	01	1	1410-
351	BOLT; CLIP M8X25 W/WASHER THA	0-51640-825-0	03	1	1410-

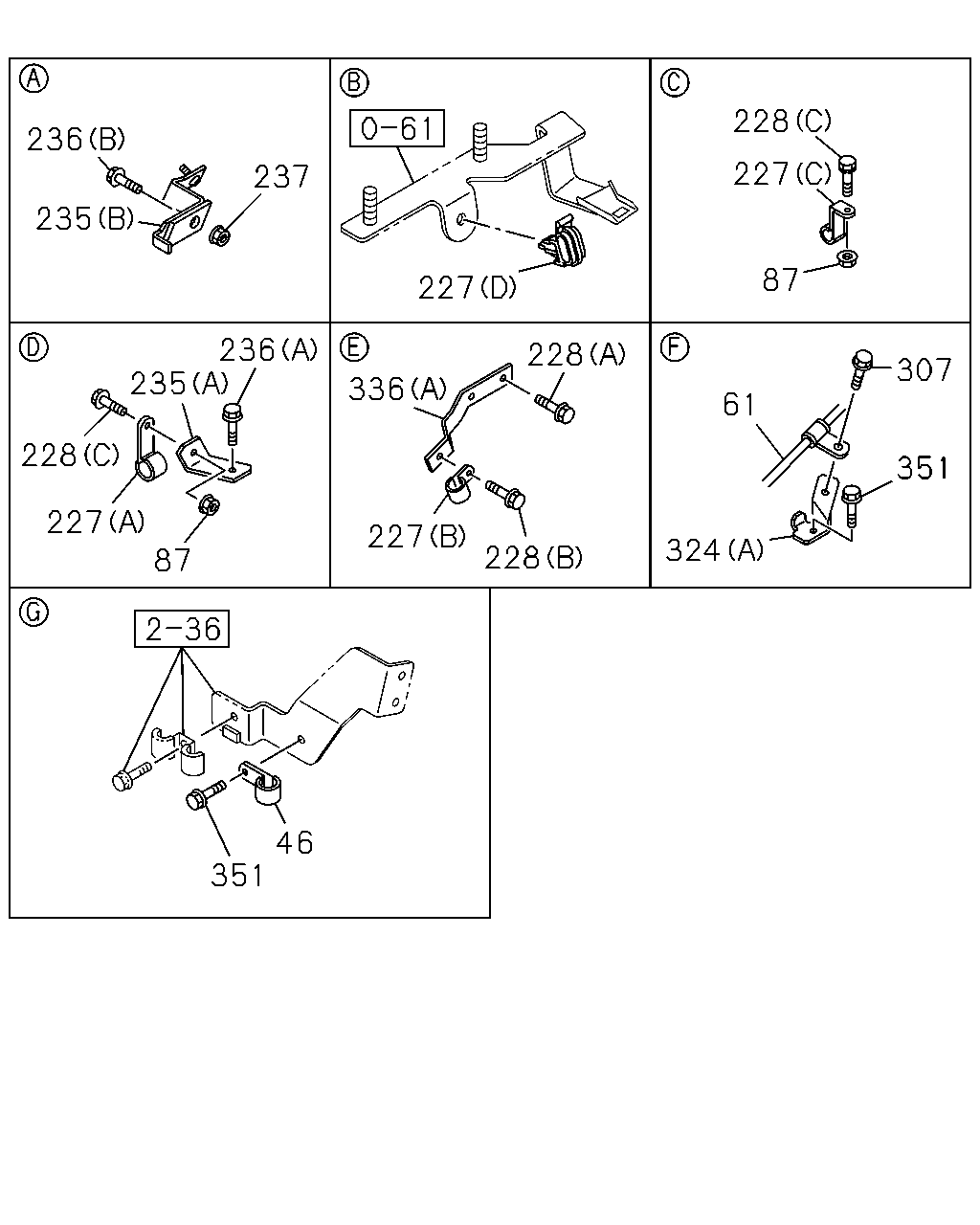

324 351 307 61 87 227 228 227 235 236 237 235 236 228 227 227 228 228 336 46 351 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR ID=13 L=20 THA	0-95235-235-0	01	1	1410-
61	CABLE; PARKING BRK 4HK1-TCS ENG<RJS> L=4233 THA	8-98257-636-0	01	1	1410-
61	CABLE; PARKING BRK 6HK1-TCN ENG<82L> L=4631 THA	8-98257-633-0	01	1	1410-
87	NUT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1410-
87	NUT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (E) ID=16 L=20 THA	0-95235-535-0	01	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (F) ID=13 & 13 L=32 THA	8-97389-264-0	02	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (G) ID=13 & 10 & 10 L=35.5 THA	8-98023-991-0	01	1	1410-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (H) THA	8-98080-966-0	01	1	1410-
227	CLIP; RAD 6HK1-TCN ENG<82L> (B) ID=13 L=20 THA	0-95235-235-0	02	1	1410-
227	CLIP; RAD 6HK1-TCN ENG<82L> (C) ID=25 H=60 L=35 THA	1-09701-103-0	01	1	1410-
227	CLIP; RAD 6HK1-TCN ENG<82L> (A) ID=14.5 L=40 THA	8-98119-885-0	01	1	1410-
227	CLIP; RAD (D) ID=9.5 THA	5-09709-020-0	01	1	1410-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER THA	1-09980-498-0	02	1	1410-
228	BOLT; CLIP RAD MTG (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1410-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (C) THA	8-98077-903-2	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (D) THA	8-98126-426-0	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (E) THA	8-98126-934-0	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (A) THA	1-82699-199-0	01	1	1410-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (B) THA	8-98111-492-0	01	1	1410-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
236	BOLT; BRKT TO FRAME (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1410-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-210-0	02	1	1410-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	01	1	1410-
307	BOLT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> M8X25 W/WASHER THA	0-51640-825-0	01	1	1410-
324	BRACKET 4HK1-TCS ENG<RJS> (C) THA	8-98227-661-1	01	1	1410-
324	BRACKET 4HK1-TCS ENG<RJS> (B) THA	8-98227-663-1	01	1	1410-
324	BRACKET 6HK1-TCN ENG<82L> (A) THA	8-98067-482-1	01	1	1410-
336	BRACKET; RADIATOR 4HK1-TCS ENG<RJS> (B) THA	8-98208-200-4	01	1	1410-
336	BRACKET; RADIATOR 6HK1-TCN ENG<82L> (A) THA	8-98044-680-0	01	1	1410-
351	BOLT; CLIP M8X25 W/WASHER THA	0-51640-825-0	03	1	1410-
