Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#150252) — 18 parça
◀

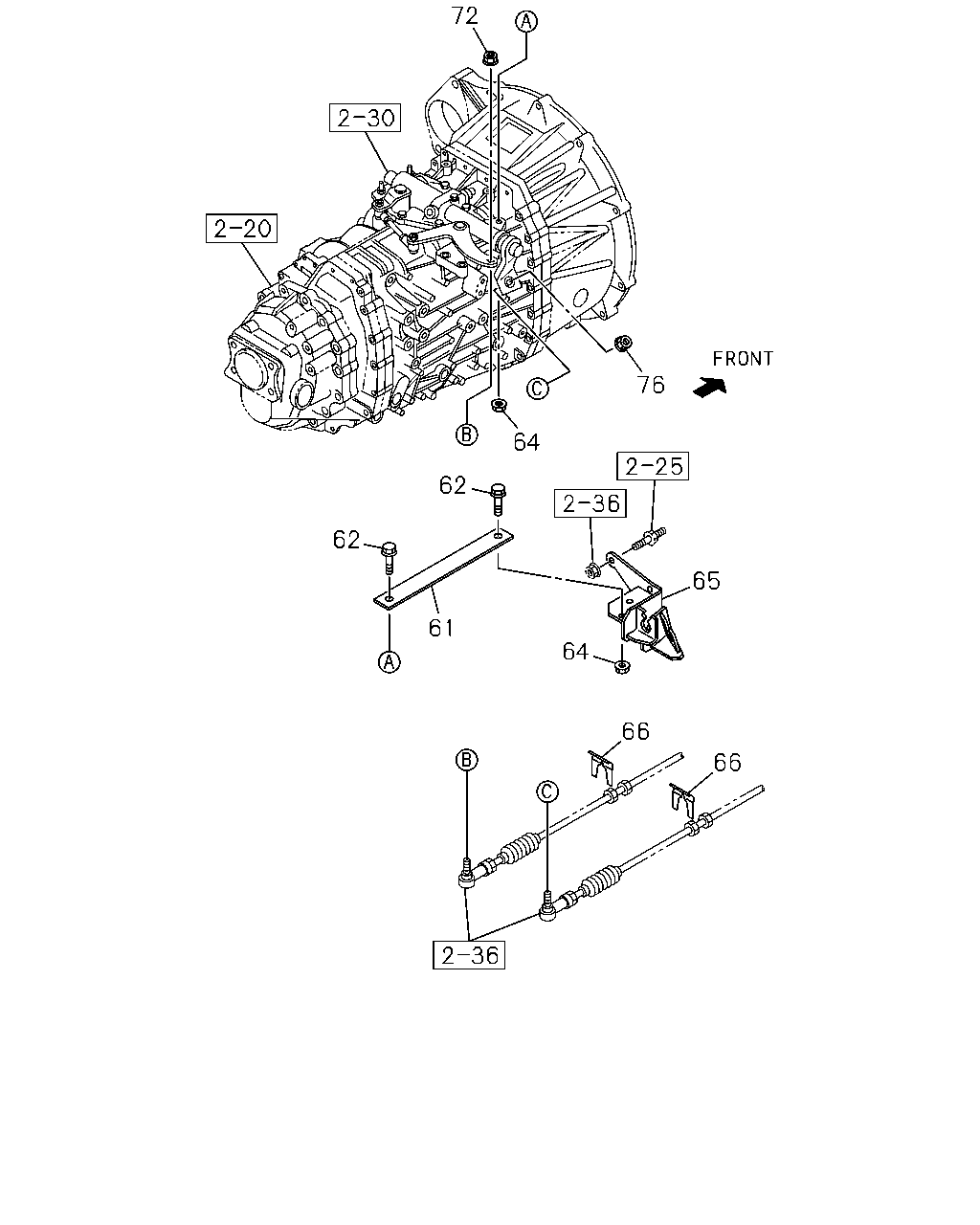

[237A] 4HK1 (9 parça)

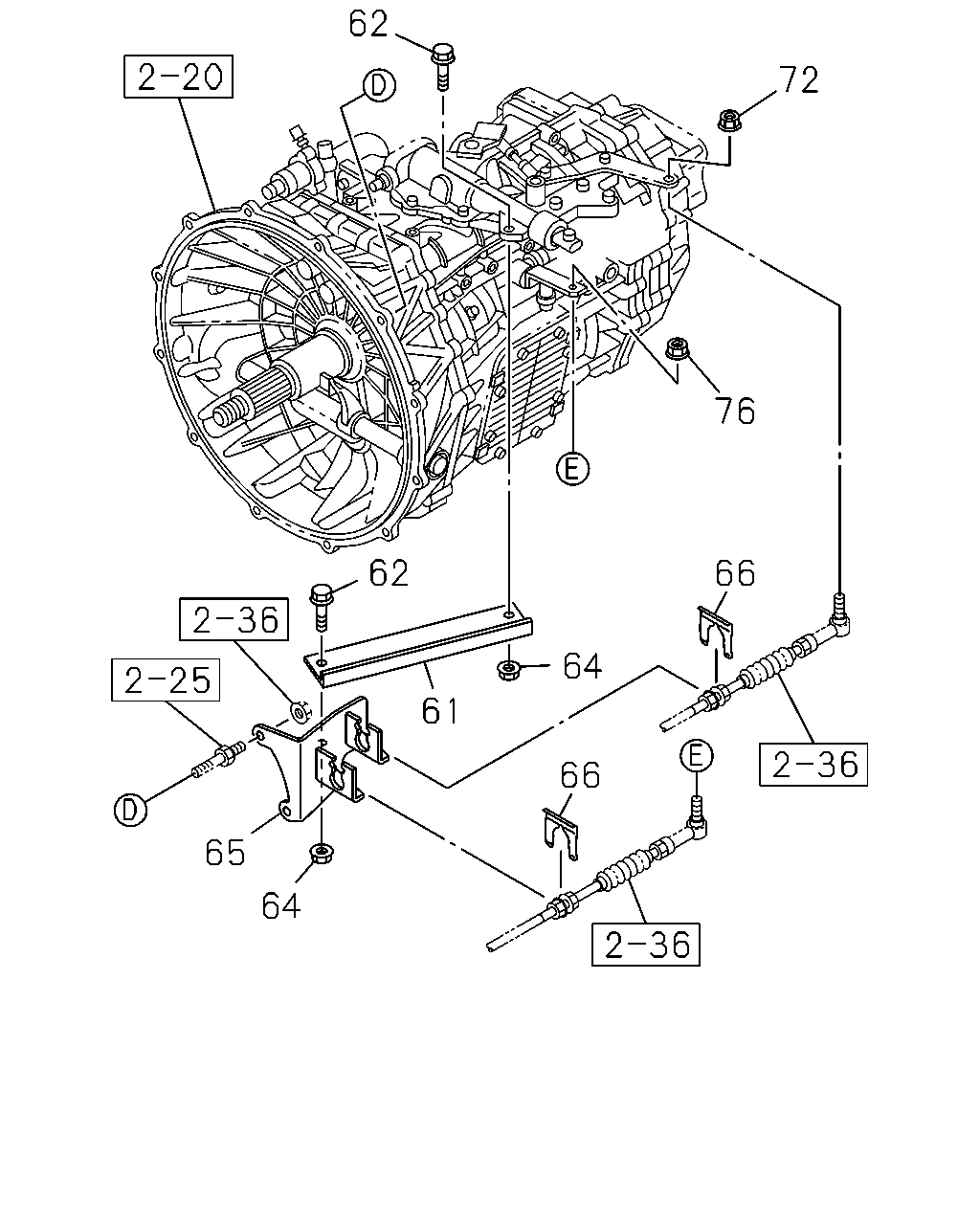

[237A] 6HK1 (9 parça)
▶
72
64
76
62
62
61
64
65
66
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
STAY; BRKT,TRANS CONT
4HK1-TCS ENG<RJS> THA
8-98251-404-0
01
1
1410-
61
STAY; BRKT,TRANS CONT
6HK1-TCN ENG<82L> THA
1-33657-267-0
01
1
1410-
62
BOLT; STAY
M10X30 FLANGE THA
0-28651-030-0
02
1
1410-
64
NUT; STAY
M10 FLANGE THA
0-91180-210-0
02
1
1410-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG<RJS> THA
8-98050-563-1
01
1
1410-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG<82L> THA
8-98017-428-0
01
1
1410-
66
CLIP; SELECT BRKT
ID=22.2 THA
1-09701-209-1
02
1
1410-
72
NUT; TRANS CONT,SELECT
M8 FLANGE THA
1-09440-049-0
01
1
1410-
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE THA
1-09440-049-0
01
1
1410-
62
72
76
66
64
61
62
65
64
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
STAY; BRKT,TRANS CONT
4HK1-TCS ENG<RJS> THA
8-98251-404-0
01
1
1410-
61
STAY; BRKT,TRANS CONT
6HK1-TCN ENG<82L> THA
1-33657-267-0
01
1
1410-
62
BOLT; STAY
M10X30 FLANGE THA
0-28651-030-0
02
1
1410-
64
NUT; STAY
M10 FLANGE THA
0-91180-210-0
02
1
1410-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG<RJS> THA
8-98050-563-1
01
1
1410-
65
BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG<82L> THA
8-98017-428-0
01
1
1410-
66
CLIP; SELECT BRKT
ID=22.2 THA
1-09701-209-1
02
1
1410-
72
NUT; TRANS CONT,SELECT
M8 FLANGE THA
1-09440-049-0
01
1
1410-
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE THA
1-09440-049-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
