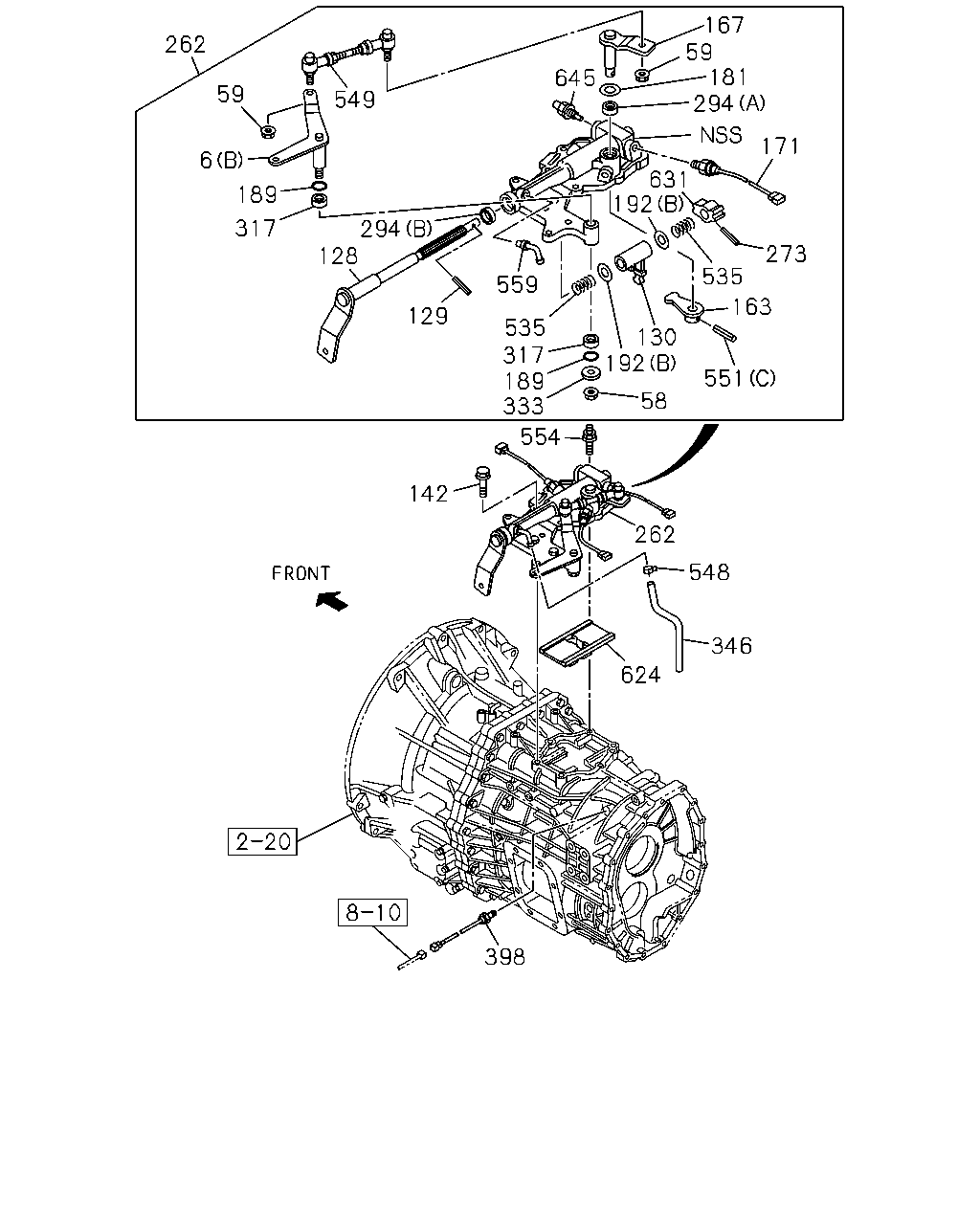

2-30 — GEAR SHIFTER AND QUADRANT BOX (#150249) — 113 parça

262 167 59 181 294 549 59 189 317 128 6 243 294 559 171 317 333 189 58 551 163 129 645 631 535 130 535 273 192 192 554 262 142 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG<RJS> (B) THA	8-98014-157-1	01	1	1410-
6	LEVER; RELAY (A) THA	8-97241-342-0	03	1	1410-
6	LEVER; RELAY 6HK1-TCN ENG<82L> (B) THA	8-98022-855-0	01	1	1410-
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1410-
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1410-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG<RJS> THA	8-98212-106-0	01	1	1410-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG<82L> THA	8-97306-927-0	01	1	1410-
129	PIN; SPR,SHIFT L=30 OD=4 THA	1-09748-031-0	01	1	1410-
130	LEVER; SHIFT,INTERNAL THA	8-97306-647-0	01	1	1410-
142	BOLT; QUAD BOX M8X22 FLANGE THA	8-97365-376-0	04	1	1410-
163	LEVER; SELECT,INTERNAL THA	8-97305-663-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG<RJS> THA	8-98021-489-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG<82L> THA	8-98022-857-0	01	1	1410-
171	SWITCH; NEUTRAL THA	8-98242-172-1	01	1	1410-
181	WASHER; PL,SELECT LEVER THA	8-97367-327-0	01	1	1410-
189	GASKET; SELECT LEVER,CONT BOX THA	1-09623-594-0	02	1	1410-
192	WASHER; PL (A) ID=18.2 OD=29 THA	1-09503-032-0	04	1	1410-
192	WASHER; PL (B) THA	8-97305-661-0	02	1	1410-
243	BOLT; COVER 4HK1-TCS ENG<RJS> M6X12 FLANGE THA	1-33739-842-0	01	1	1410-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG<RJS> THA	8-98276-157-1	01	1	1410-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG<82L> THA	8-98276-161-1	01	1	1410-
273	PIN; SPR,STOPPER D=4.2 L=25 THA	8-97103-142-0	01	1	1410-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A) THA	8-97305-662-0	01	1	1410-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B) THA	8-97363-225-0	01	1	1410-
317	BUSHING; LEVER THA	1-09330-119-0	02	1	1410-
333	WASHER; PL,LEVER ID=10.5 THA	0-91610-710-0	01	1	1410-
346	HOSE; AIR THA	8-97309-855-0	01	1	1410-
398	SWITCH; REV LAMP THA	8-98242-173-1	01	1	1410-
535	SPRING; LEVER THA	8-97385-713-0	02	1	1410-
548	CLIP; HOSE THA	8-97031-674-0	01	1	1410-
549	ROD; LINK 4HK1-TCS ENG<RJS> THA	8-98023-095-0	01	1	1410-
549	ROD; LINK 6HK1-TCN ENG<82L> THA	8-98022-841-0	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5 THA	1-09748-032-0	01	1	1410-
551	PIN; SPRING (A) L=32 THA	8-97011-596-2	05	1	1410-
551	PIN; SPRING (B) L=20 THA	8-97241-340-0	01	1	1410-
554	STUD; CONT BOX M8X15,M8X25 L=49 THA	8-97365-378-0	02	1	1410-
559	PIPE; BREATHER THA	8-97358-318-0	01	1	1410-
624	PLATE; INTER LOCK THA	8-97241-317-3	01	1	1410-
631	STOPPER; SPRING 4HK1-TCS ENG<RJS> THA	8-98014-158-0	01	1	1410-
631	STOPPER; SPRING 6HK1-TCN ENG<82L> THA	8-97305-666-0	01	1	1410-
645	DETENT ASM THA	8-98019-536-0	01	1	1410-

554 143 398 624 346 548 262 551 163 535 273 171 294 181 59 167 645 631 192 130 192 58 333 189 317 535 559 129 128 294 317 189 6 59 262 549

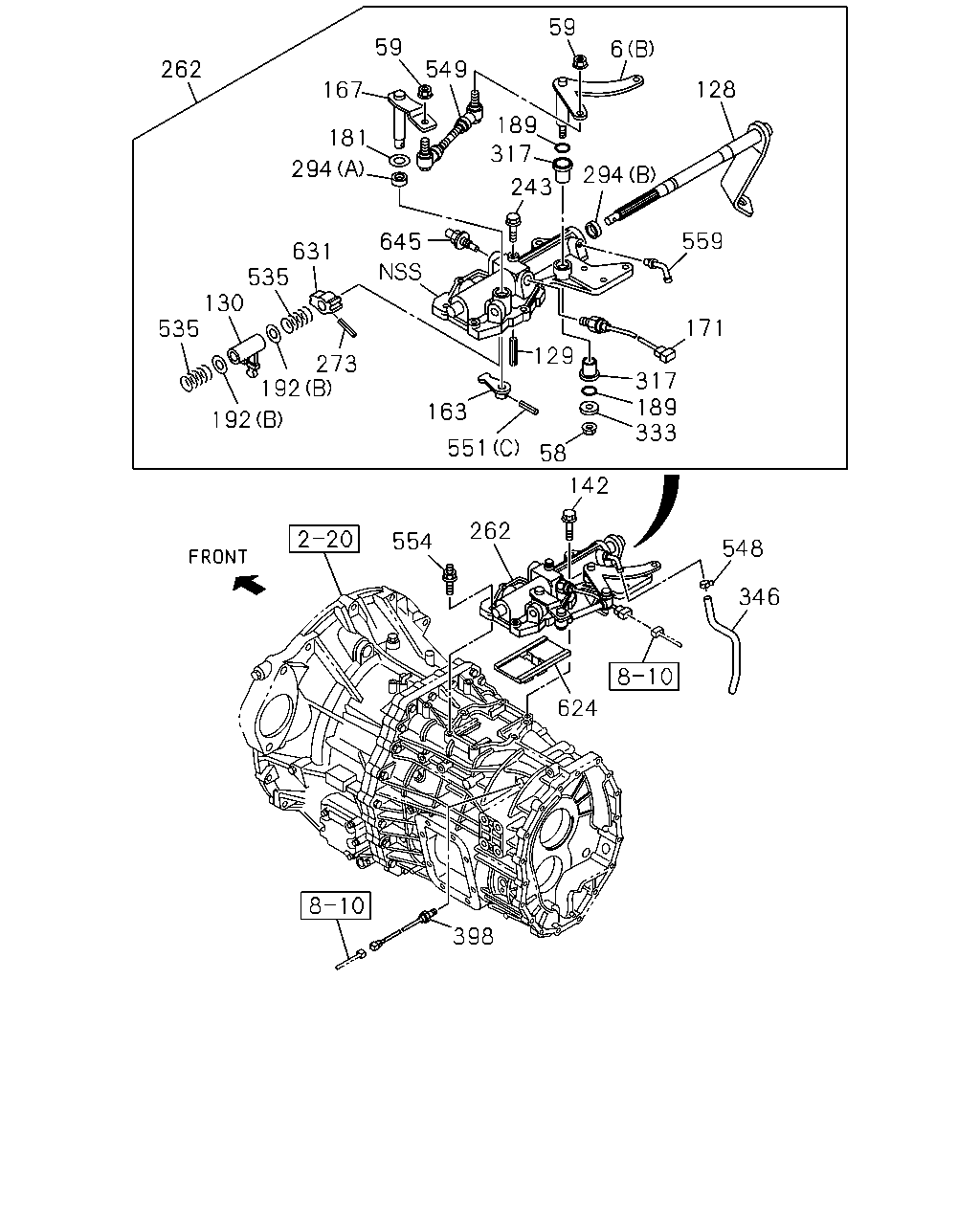

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG<RJS> (B) THA	8-98014-157-1	01	1	1410-
6	LEVER; RELAY (A) THA	8-97241-342-0	03	1	1410-
6	LEVER; RELAY 6HK1-TCN ENG<82L> (B) THA	8-98022-855-0	01	1	1410-
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1410-
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1410-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG<RJS> THA	8-98212-106-0	01	1	1410-
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG<82L> THA	8-97306-927-0	01	1	1410-
129	PIN; SPR,SHIFT L=30 OD=4 THA	1-09748-031-0	01	1	1410-
130	LEVER; SHIFT,INTERNAL THA	8-97306-647-0	01	1	1410-
163	LEVER; SELECT,INTERNAL THA	8-97305-663-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG<RJS> THA	8-98021-489-0	01	1	1410-
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG<82L> THA	8-98022-857-0	01	1	1410-
171	SWITCH; NEUTRAL THA	8-98242-172-1	01	1	1410-
181	WASHER; PL,SELECT LEVER THA	8-97367-327-0	01	1	1410-
189	GASKET; SELECT LEVER,CONT BOX THA	1-09623-594-0	02	1	1410-
192	WASHER; PL (A) ID=18.2 OD=29 THA	1-09503-032-0	04	1	1410-
192	WASHER; PL (B) THA	8-97305-661-0	02	1	1410-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG<RJS> THA	8-98276-157-1	01	1	1410-
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG<82L> THA	8-98276-161-1	01	1	1410-
273	PIN; SPR,STOPPER D=4.2 L=25 THA	8-97103-142-0	01	1	1410-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A) THA	8-97305-662-0	01	1	1410-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B) THA	8-97363-225-0	01	1	1410-
317	BUSHING; LEVER THA	1-09330-119-0	02	1	1410-
333	WASHER; PL,LEVER ID=10.5 THA	0-91610-710-0	01	1	1410-
346	HOSE; AIR THA	8-97309-855-0	01	1	1410-
398	SWITCH; REV LAMP THA	8-98242-173-1	01	1	1410-
535	SPRING; LEVER THA	8-97385-713-0	02	1	1410-
548	CLIP; HOSE THA	8-97031-674-0	01	1	1410-
549	ROD; LINK 4HK1-TCS ENG<RJS> THA	8-98023-095-0	01	1	1410-
549	ROD; LINK 6HK1-TCN ENG<82L> THA	8-98022-841-0	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5 THA	1-09748-032-0	01	1	1410-
551	PIN; SPRING (A) L=32 THA	8-97011-596-2	05	1	1410-
551	PIN; SPRING (B) L=20 THA	8-97241-340-0	01	1	1410-
554	STUD; CONT BOX M8X15,M8X25 L=49 THA	8-97365-378-0	02	1	1410-
559	PIPE; BREATHER THA	8-97358-318-0	01	1	1410-
624	PLATE; INTER LOCK THA	8-97241-317-3	01	1	1410-
631	STOPPER; SPRING 4HK1-TCS ENG<RJS> THA	8-98014-158-0	01	1	1410-
631	STOPPER; SPRING 6HK1-TCN ENG<82L> THA	8-97305-666-0	01	1	1410-
645	DETENT ASM THA	8-98019-536-0	01	1	1410-

637 636 636 637 630 178 391 381 406 158

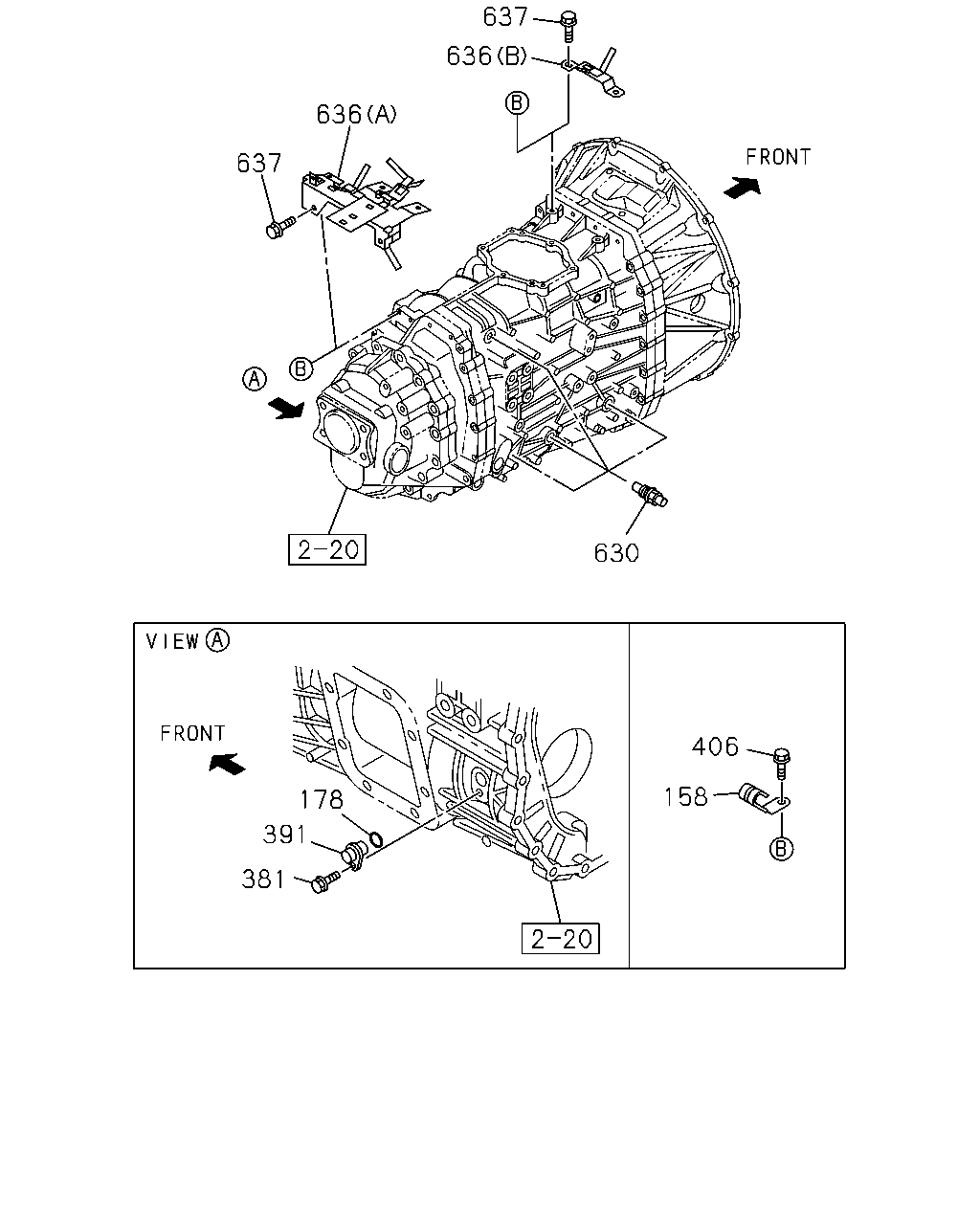

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE THA	8-97367-984-1	02	1	1410-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). THA	9-09567-113-0	01	1	1410-
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1410-
391	PLUG; SW HOLE THA	8-97300-273-1	01	1	1410-
406	BOLT; HARNESS CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
630	DETENT ASM THA	8-98019-536-0	04	1	1410-
636	BRACKET; CLIP 4HK1-TCS ENG<RJS> (B) THA	8-97610-092-1	01	1	1410-
636	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) THA	8-97610-096-2	01	1	1410-
637	BOLT; BRACKET M8X16 FLANGE THA	0-28050-816-0	02	1	1410-

51 551 78 551 65 551 82 551 682 683 32 551 684 89 102 551 99 66 6 192 234 453 685 320 192 6 6 192 192

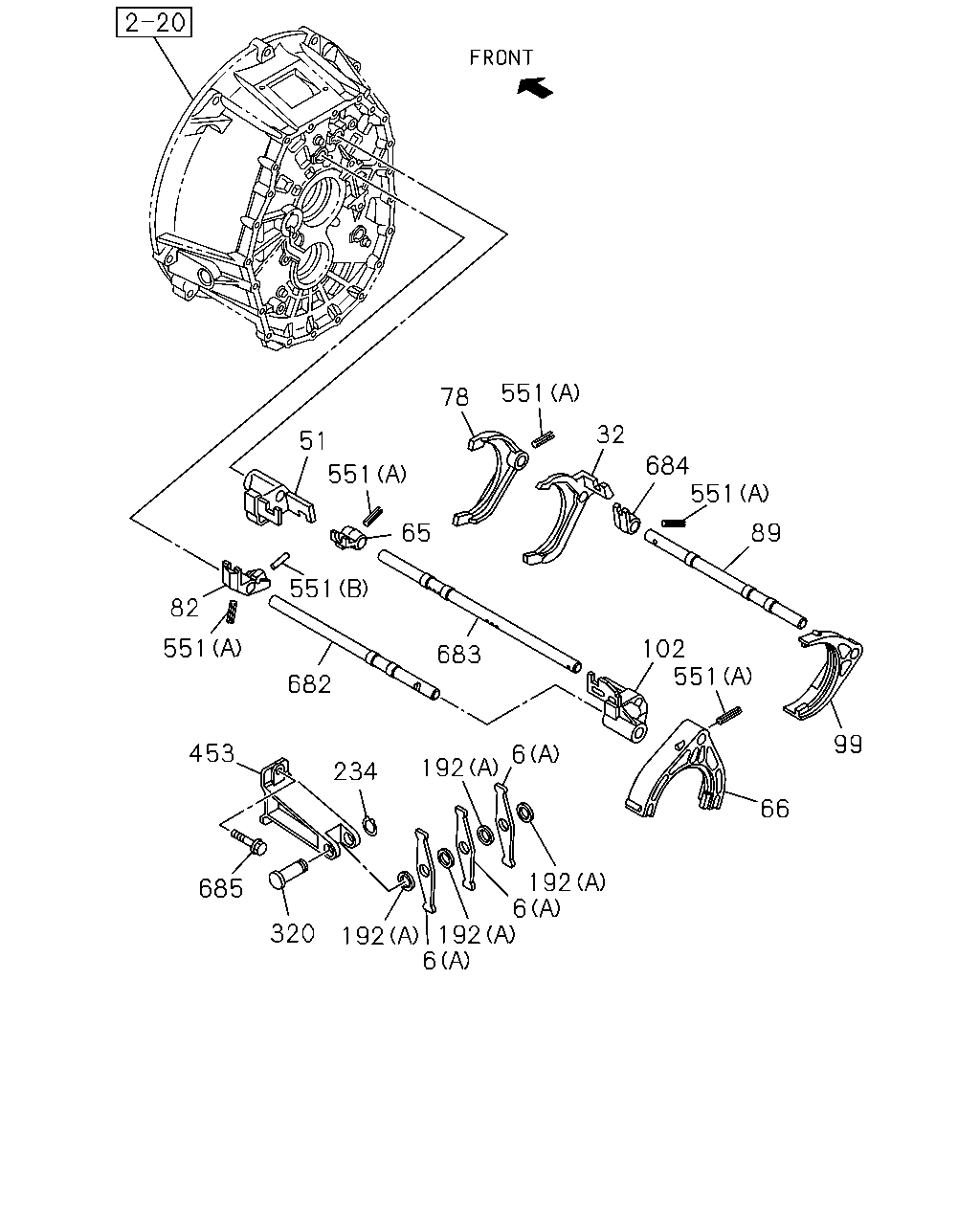

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG<RJS> (B) THA	8-98014-157-1	01	1	1410-
6	LEVER; RELAY (A) THA	8-97241-342-0	03	1	1410-
6	LEVER; RELAY 6HK1-TCN ENG<82L> (B) THA	8-98022-855-0	01	1	1410-
32	ARM; SHIFT,1ST & 2ND THA	8-98236-424-1	01	1	1410-
51	BLOCK; SHIFT,1ST & 2ND THA	8-98074-457-1	01	1	1410-
65	BLOCK ASM; SHIFT,5TH & 6TH THA	8-97388-980-1	01	1	1410-
66	ARM; SHIFT,5TH & 6TH THA	8-97388-981-0	01	1	1410-
78	ARM; SHIFT,REV THA	8-97388-975-1	01	1	1410-
82	BLOCK; SHIFT,REV THA	8-97388-969-0	01	1	1410-
89	ROD; SHIFT,REV THA	8-98062-172-0	01	1	1410-
99	ARM; SHIFT,4TH & 3RD THA	8-98062-170-0	01	1	1410-
102	BLOCK; SHIFT,3RD & 4TH THA	8-97388-978-2	01	1	1410-
192	WASHER; PL (A) ID=18.2 OD=29 THA	1-09503-032-0	04	1	1410-
192	WASHER; PL (B) THA	8-97305-661-0	02	1	1410-
234	RING; SNAP ID=16.5 THA	0-91800-618-0	01	1	1410-
320	SHAFT; LEVER THA	8-97377-928-0	01	1	1410-
453	BLOCK; RELAY LEVER THA	8-97377-927-1	01	1	1410-
551	PIN; SPRING (C) L=25 OD=5 THA	1-09748-032-0	01	1	1410-
551	PIN; SPRING (A) L=32 THA	8-97011-596-2	05	1	1410-
551	PIN; SPRING (B) L=20 THA	8-97241-340-0	01	1	1410-
682	ROD; SHIFT,REV,SUB THA	8-97388-974-0	01	1	1410-
683	ROD; SHIFT,5TH & 6TH THA	8-98062-173-1	01	1	1410-
684	BLOCK; SHIFT,REV,SUB THA	8-97388-970-0	01	1	1410-
685	BOLT; BLOCK M8X30 FLANGE THA	8-98034-764-0	02	1	1410-
