2-26 — MANUAL TRANSMISSION GEAR (#150248) — 105 parça

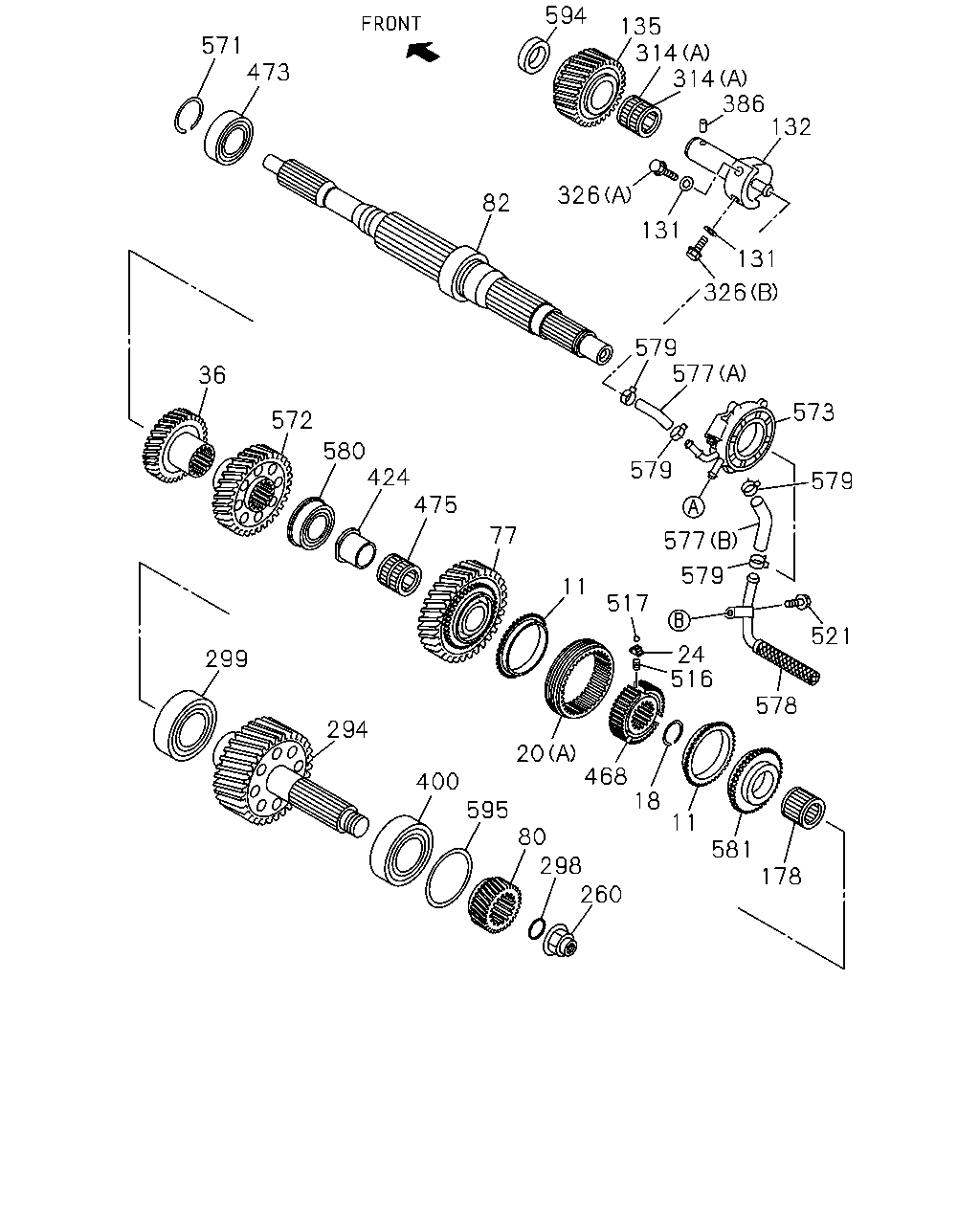

594 314 135 386 314 132 326 131 131 326 473 571 36 572 424 580 77 475 579 579 573 579 577 579 521 24 517 11 516 578 178 581 11 18 468 20 82 577 299 294 400 595 80 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	RING; BLOCK,5TH & 6TH Z=45 THA	8-97241-306-1	02	1	1410-
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 THA	8-97256-855-0	01	1	1410-
20	SLEEVE (B) Z=45 THA	8-98034-769-0	01	1	1410-
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-
24	BLOCK; INDEX,SYN THA	8-97241-313-1	09	1	1410-
36	GEAR; 3RD,MAINSHAFT Z=29 THA	8-98168-499-0	01	1	1410-
77	GEAR; 6TH,MAINSHAFT Z=46 THA	8-98137-256-0	01	1	1410-
80	GEAR; SPD DRIVE Z=5 THA	8-97377-978-0	01	1	1410-
82	SHAFT; MAIN,TRANS Z=13-21-19-26 THA	8-98245-057-0	01	1	1410-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1410-
132	SHAFT; REV THA	8-98009-372-0	01	1	1410-
135	GEAR; REV IDLER Z=27 THA	8-98005-601-1	01	1	1410-
178	BEARING; NEEDLE,MAINSHAFT THA	8-97253-099-1	01	1	1410-
260	NUT; MAINSHAFT END M36 FLANGE THA	8-98014-140-0	01	1	1410-
294	SHAFT; OUTPUT Z=43 THA	8-97380-571-0	01	1	1410-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 THA	1-09623-380-0	01	1	1410-
299	BEARING; OUTPUT SHAFT FRT THA	8-97377-970-0	01	1	1410-
314	BEARING; NEEDLE,REV GEAR (A) KOYO THA	1-09811-017-0	02	1	1410-
314	BEARING; NEEDLE,REV GEAR (B) NSK THA	8-97253-111-0	01	1	1410-
326	BOLT; REV SHAFT (A) M10X50 FLANGE THA	0-29261-050-0	01	1	1410-
326	BOLT; REV SHAFT (B) M10X50 THA	8-98014-738-0	01	1	1410-
386	PIN; REV SHAFT THA	9-08150-408-0	01	1	1410-
400	BEARING; OUTPUT SHAFT RR THA	8-97377-977-0	01	1	1410-
424	COLLAR; 6TH GEAR THA	8-98125-318-0	01	1	1410-
468	HUB; CLU,5TH & 6TH THA	8-98075-734-0	01	1	1410-
473	BEARING; INPUT SHAFT THA	8-97377-950-0	01	1	1410-
475	BEARING; 6TH COLLAR OD=-49.999 THA	8-98101-505-0	01	1	1410-
475	BEARING; 6TH COLLAR OD=50.000- THA	8-98142-265-0	01	1	1410-
516	SPRING; SYNCHRO,INDEX THA	8-98032-197-0	09	1	1410-
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	09	1	1410-
521	BOLT M8X12 FLANGE THA	0-28050-812-0	01	1	1410-
571	RING; SNAP,BRG THA	8-97377-951-0	01	1	1410-
572	GEAR; 4TH,INPUT Z=37 THA	8-98168-500-0	01	1	1410-
573	PUMP ASM; OIL THA	8-98212-241-0	01	1	1410-
577	HOSE; OIL PUMP (A) THA	8-98033-981-0	02	1	1410-
577	HOSE; OIL PUMP (B) THA	8-98033-982-0	02	1	1410-
578	SCREEN; OIL PUMP THA	8-98009-345-0	02	1	1410-
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1410-
580	BEARING; MAINSHAFT RR THA	8-97377-953-0	01	1	1410-
581	CLUTCH; DOG,5TH GEAR THA	8-97377-956-0	01	1	1410-
594	WASHER; THRUST,REV IDLE THA	8-98005-633-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.44 THA	8-97377-984-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.50 THA	8-97377-985-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.56 THA	8-97377-986-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.62 THA	8-97377-987-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.68 THA	8-97377-988-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.74 THA	8-97377-989-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.80 THA	8-97377-990-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.86 THA	8-97377-991-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.38 THA	8-98009-379-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.26 THA	8-98022-221-0	01	1	1410-
595	SHIM; OUTPUT SHAFT T=1.32 THA	8-98022-222-0	01	1	1410-

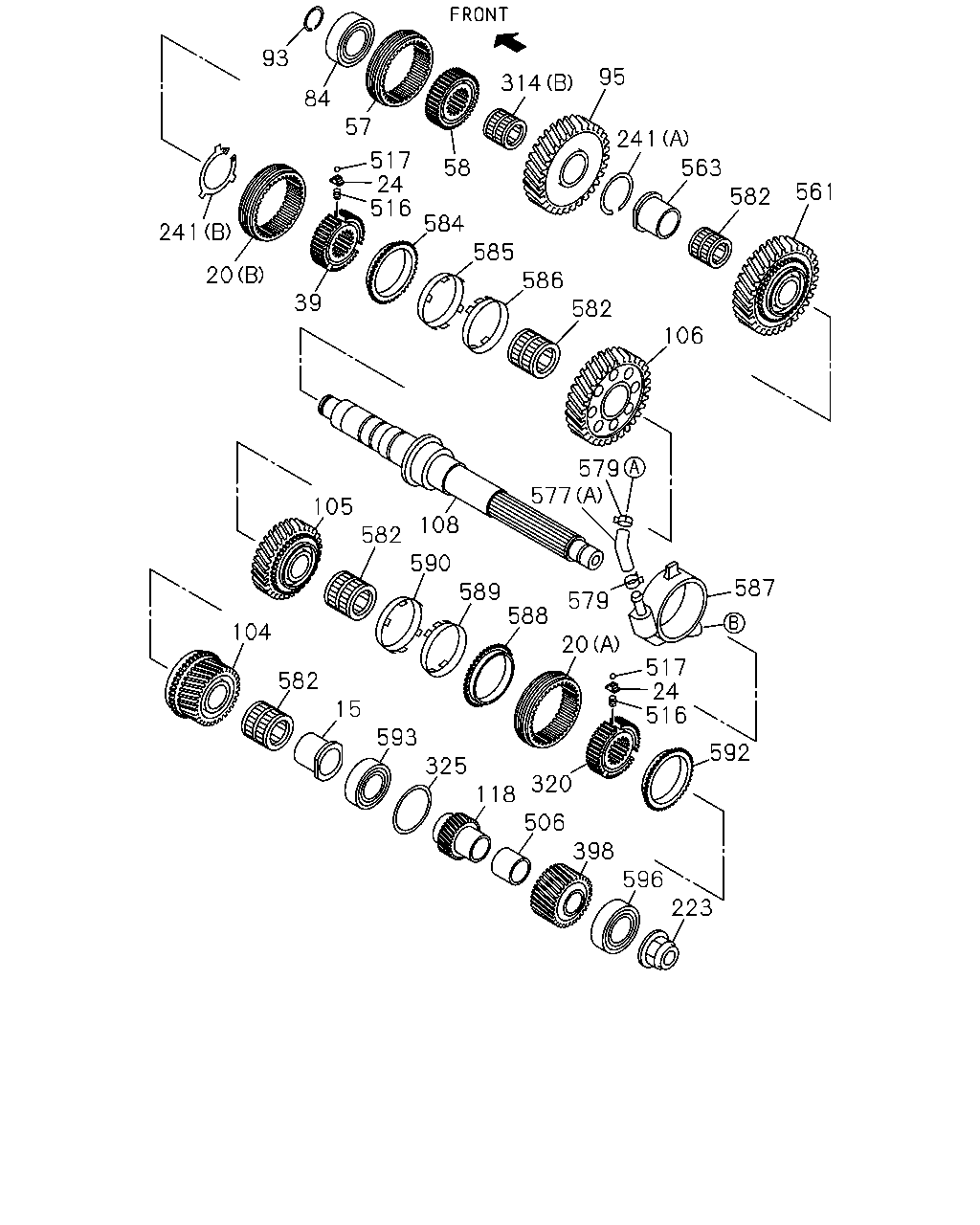

93 84 57 314 95 241 563 582 561 241 20 39 517 24 516 58 584 585 586 582 106 579 577 105 582 108 590 589 588 579 20 587 517 24 516 592 104 582 15 593 325 118 506 320 398 596 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	COLLAR; 4TH GEAR THA	8-98146-345-0	01	1	1410-
20	SLEEVE (B) Z=45 THA	8-98034-769-0	01	1	1410-
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-
24	BLOCK; INDEX,SYN THA	8-97241-313-1	09	1	1410-
39	HUB; CLU,LOW & 2ND Z=45 THA	8-98075-732-0	01	1	1410-
57	SLEEVE; REV Z=45 THA	8-94421-871-1	01	1	1410-
58	HUB; CLU,REV Z=45-27 THA	8-98005-296-0	01	1	1410-
84	BEARING; COUNTER SHAFT,FRT THA	8-97377-957-0	01	1	1410-
93	RING; SNAP,COUNTER FRT BRG THA	8-97377-958-0	01	1	1410-
95	GEAR; REV,COUNTER Z=44 THA	8-98005-229-0	01	1	1410-
104	GEAR; 4TH,COUNTER Z=29 THA	8-98198-297-0	01	1	1410-
105	GEAR; 3RD,COUNTER Z=35 THA	8-98168-501-0	01	1	1410-
106	GEAR; 2ND,COUNTER Z=44 THA	8-98140-884-0	01	1	1410-
108	SHAFT; COUNTER Z=27-42-26 THA	8-98223-607-0	01	1	1410-
118	GEAR; 6TH,COUNTER Z=17 THA	8-98005-292-1	01	1	1410-
223	NUT; COUNTER SHAFT END M34 FLANGE THA	8-98005-894-0	01	1	1410-
241	RING; SNAP (A) ID=46.5 T=1.8 THA	8-97254-743-0	01	1	1410-
241	RING; SNAP (B) ID=96 T=2.5 THA	8-98009-391-0	01	1	1410-
314	BEARING; NEEDLE,REV GEAR (A) KOYO THA	1-09811-017-0	02	1	1410-
314	BEARING; NEEDLE,REV GEAR (B) NSK THA	8-97253-111-0	01	1	1410-
320	HUB; CLU,4TH & 3RD THA	8-98075-733-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.56 THA	8-97377-994-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.62 THA	8-97377-995-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.68 THA	8-97377-996-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.74 THA	8-97377-997-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.80 THA	8-97377-998-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.26 THA	8-98009-373-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.32 THA	8-98009-374-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.38 THA	8-98009-375-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.44 THA	8-98009-376-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.50 THA	8-98009-377-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.14 THA	8-98022-218-0	01	1	1410-
325	SHIM; COUNTER SHAFT BRG T=1.20 THA	8-98022-219-0	01	1	1410-
398	GEAR; COUNTER Z=22 THA	8-97380-568-0	01	1	1410-
506	COLLAR; 6TH,COUNTER THA	8-97377-965-0	01	1	1410-
516	SPRING; SYNCHRO,INDEX THA	8-98032-197-0	09	1	1410-
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	09	1	1410-
561	GEAR; LOW,COUNTER Z=44 THA	8-98000-330-0	01	1	1410-
563	COLLAR; 1ST GEAR THA	8-98146-345-0	01	1	1410-
577	HOSE; OIL PUMP (A) THA	8-98033-981-0	02	1	1410-
577	HOSE; OIL PUMP (B) THA	8-98033-982-0	02	1	1410-
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1410-
582	BEARING; NEEDLE,COUNTER GEAR THA	8-97253-110-0	04	1	1410-
584	RING; BLOCK,2ND Z=45 THA	8-98034-770-0	01	1	1410-
585	RING; OUTSIDE,2ND THA	8-97241-309-1	01	1	1410-
586	RING; INSIDE,2ND THA	8-97241-312-1	01	1	1410-
587	CASE; PUMP,COUNTER THA	8-98212-196-0	01	1	1410-
588	RING; BLOCK,3RD Z=45 THA	8-97241-306-1	01	1	1410-
589	RING; OUTSIDE,3RD THA	8-97241-309-1	01	1	1410-
590	RING; INSIDE,3RD THA	8-97241-312-1	01	1	1410-
592	RING; BLOCK,4TH Z=45 THA	8-97241-306-1	01	1	1410-
593	BEARING; COUNTER MIDDLE THA	8-97377-976-0	01	1	1410-
596	BEARING; ROOLER,COUNTER END THA	8-97377-968-0	01	1	1410-
