2-20 — MANUAL TRANSMISSION ASM AND CASE (#150246) — 30 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

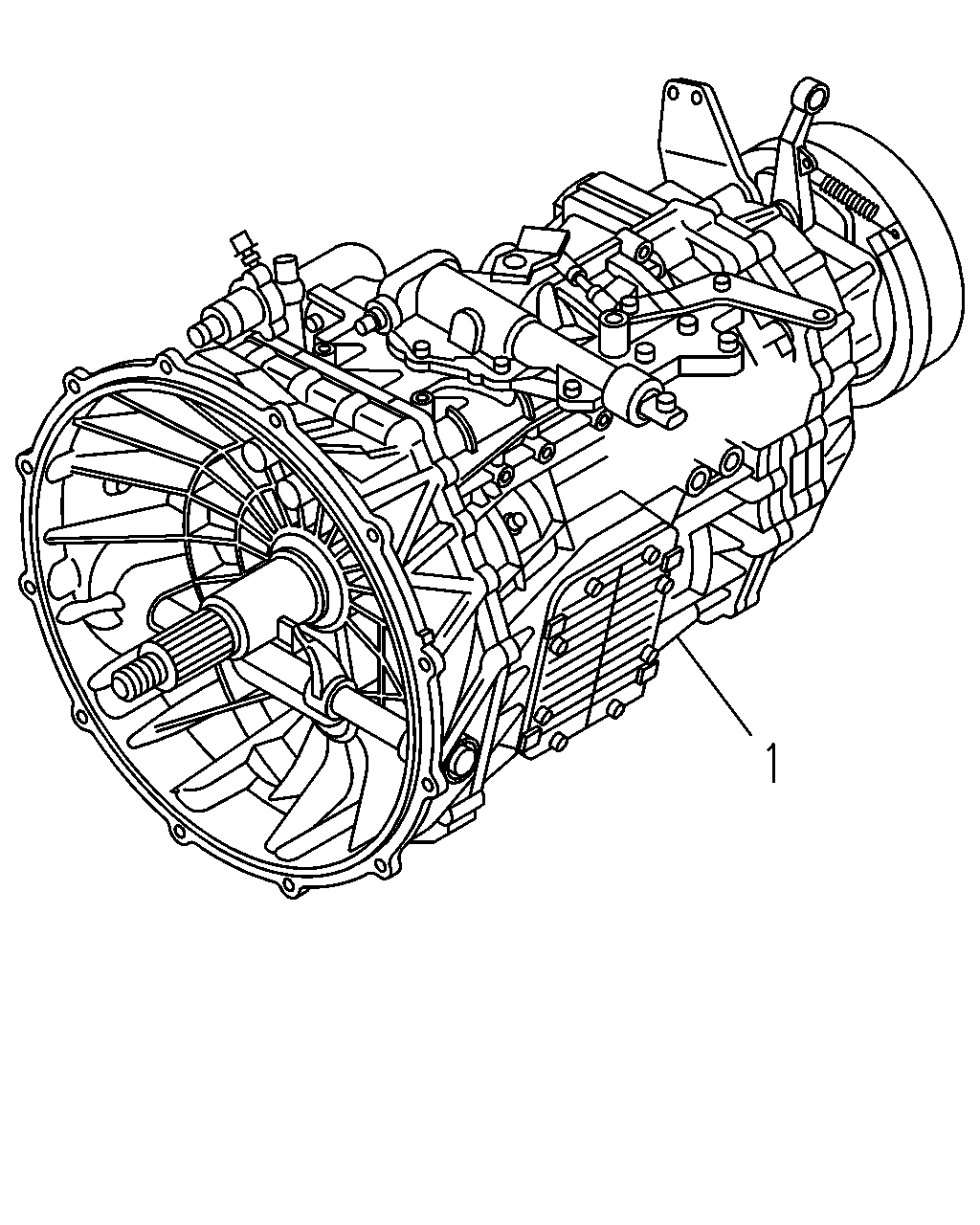

	1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG<RJS> EXC. TRANSMISSION SIDE PTO GEAR=36/16<C5L> THA	8-98228-563-0	01	1	1410-
	1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG<82L> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-98228-560-0	01	1	1410-

651 406 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

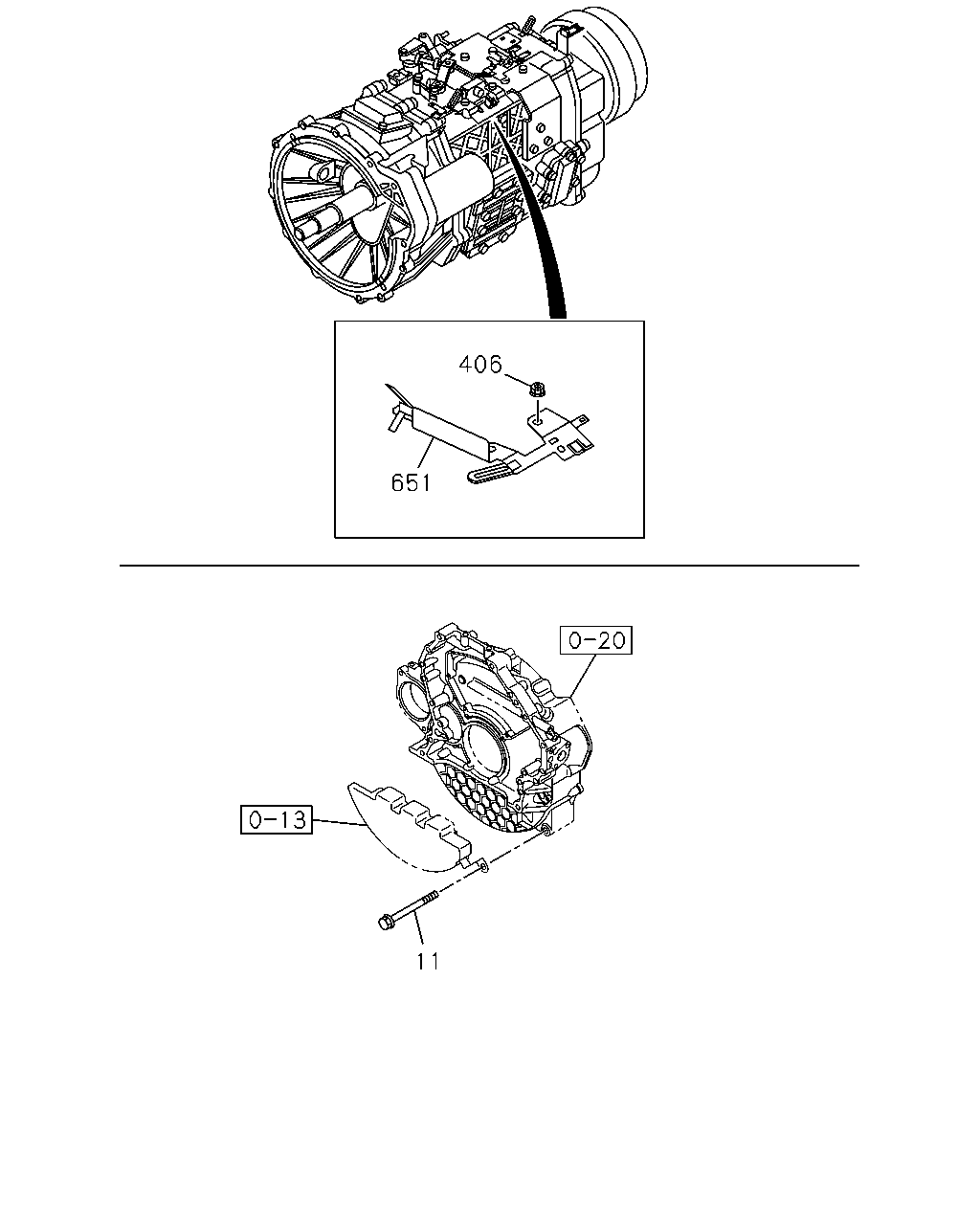

11	BOLT; BRKT 4HK1-TCS ENG<RJS> M12X25 FLANGE THA	0-28151-225-0	01	1	1410-
406	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	02	1	1410-
651	BRACKET; T/M HARNESS 4HK1-TCS ENG<RJS> THA	8-97609-800-3	01	1	1410-

27 24 685 33 434 688 316 434 435 692 256 417 430 50 45 692 686 421 86 90 86 692 315 50 430 72 71 609 692 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

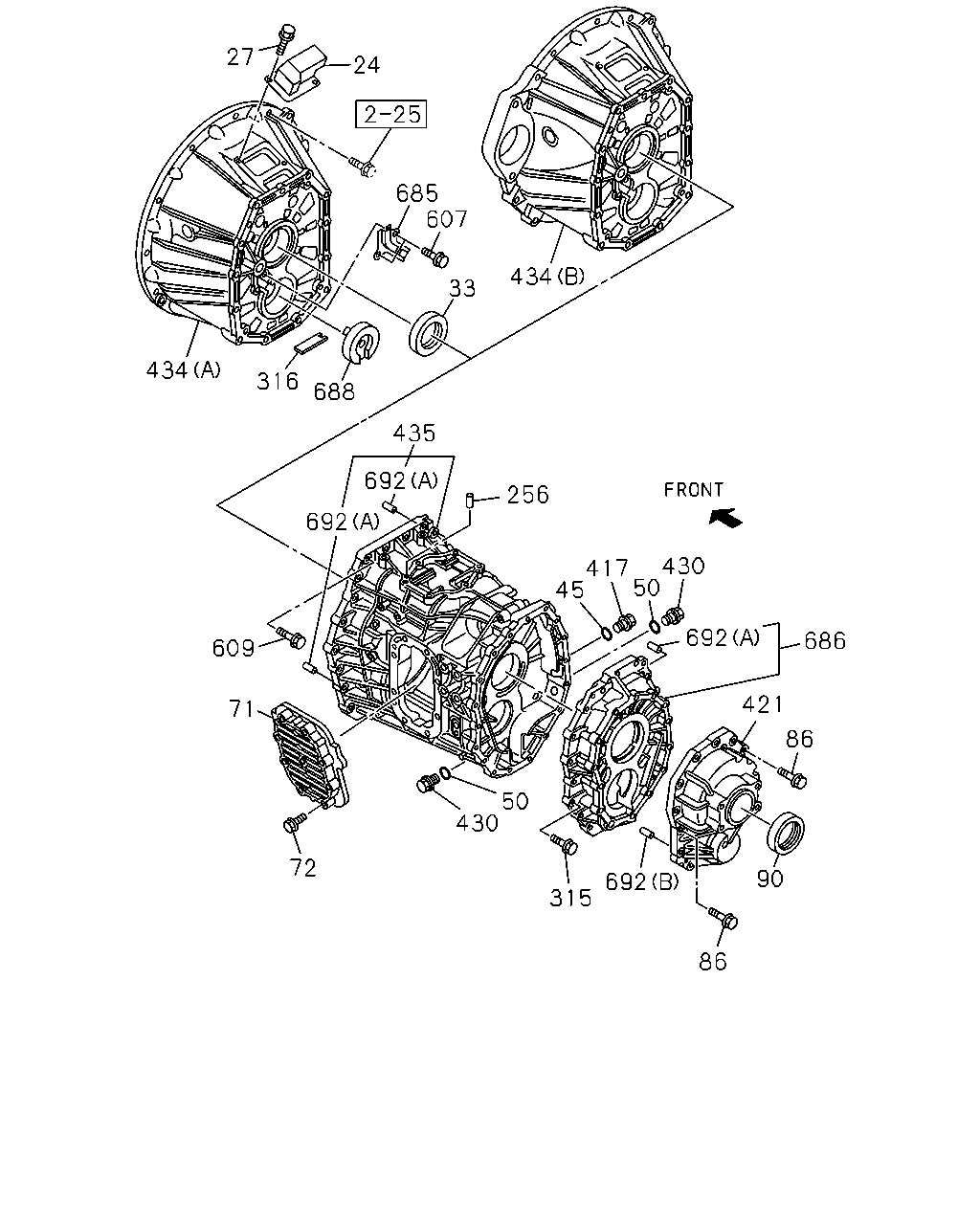

24	COVER; CHECK HOLE,DUST THA	1-31131-041-0	01	1	1410-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1410-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97377-947-0	01	1	1410-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	02	1	1410-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO GEAR=36/16<C5L>, TRANSMISSION SIDE PTO WO/LEVER<SH5> THA	8-98270-265-0	01	1	1410-
72	BOLT; SIDE COVER M10X50 FLANGE THA	1-09044-081-0	08	1	1410-
86	BOLT; RR COVER M10X40 FLANGE THA	8-98045-397-0	14	1	1410-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97377-948-0	01	1	1410-
256	PIN; KNOCK OD=6 L=12 THA	9-08150-612-0	02	1	1410-
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1410-
316	MAGNET; TRANS CASE THA	8-94249-524-2	01	1	1410-
417	PLUG; OIL FILLER,TRANS M20X10.5 THA	8-98009-333-0	01	1	1410-
421	COVER; RR,TRANS THA	8-98004-790-1	01	1	1410-
430	PLUG; OIL DRAIN THA	8-97365-374-0	02	1	1410-
434	HOUSING; CLU 4HK1-TCS ENG<RJS> (B) THA	8-98004-507-2	01	1	1410-
434	HOUSING; CLU 6HK1-TCN ENG<82L> (A) THA	8-98004-506-2	01	1	1410-
435	CASE; TRANS THA	8-98236-421-1	01	1	1410-
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1410-
685	COVER; OIL PORT THA	8-98018-864-1	01	1	1410-
686	CASE; RR,TRANS THA	8-97388-873-1	01	1	1410-
688	NOZZLE; OIL,COUNTER THA	8-98202-402-0	01	1	1410-
692	PIN; DOWEL (A) OD=11 L=8 THA	9-11229-058-1	04	1	1410-
692	PIN; DOWEL (B) OD=14 L=10 THA	9-11319-065-3	02	1	1410-
