2-05 — CLUTCH PIPING (#150242) — 28 parça

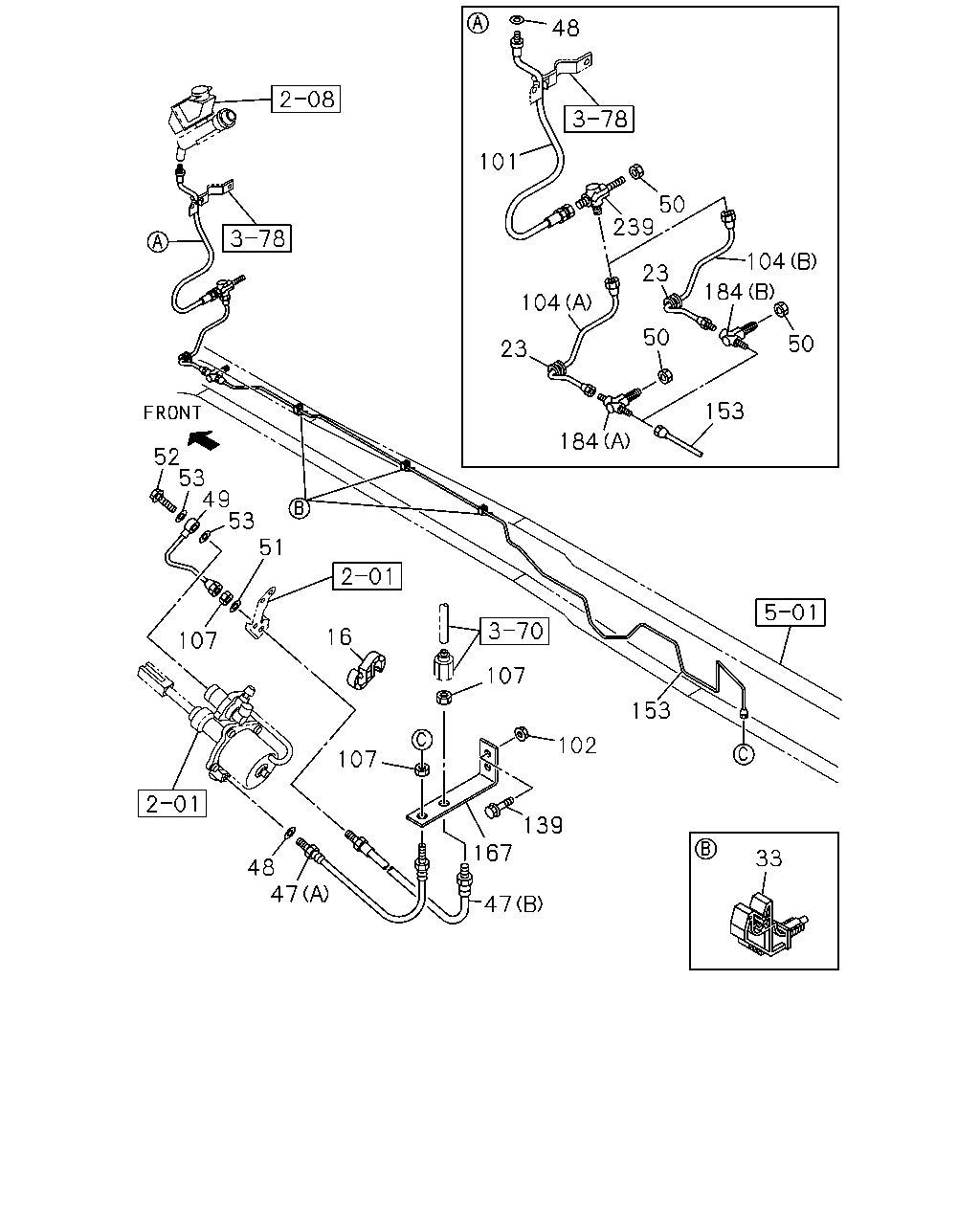

çizim 450166
48 101 50 239 23 104 184 50 50 104 23 184 153 52 53 49 53 51 107 153 102 139 167 47 33 47 48 107 107 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 THA 		1-09709-278-1 01 1 1410-
23 GROMMET; CLU PIPE
4HK1-TCS ENG<RJS> ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
23 GROMMET; CLU PIPE
6HK1-TCN ENG<82L> ID=15 OD=20 T=17.5 THA 		1-09332-130-0 01 1 1410-
33 CLIP; OIL PIPE
ID=6.35 THA 		1-09701-247-1 03 1 1410-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG<RJS> (B) L=520 THA 		1-09363-657-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
4HK1-TCS ENG<RJS> (A) L=460 THA 		1-09364-264-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG<82L> (B) L=500 THA 		1-09363-720-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
6HK1-TCN ENG<82L> (A) L=500 THA 		1-09364-267-0 01 1 1410-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1410-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 THA 		8-97948-221-0 01 1 1410-
50 NUT; UNION
M12 THA 		0-91111-512-0 01 1 1410-
50 NUT; UNION
M12 THA 		0-91111-512-0 01 1 1410-
51 WASHER; LK
ID=12.2 THA 		0-91510-512-0 01 1 1410-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE THA 		1-09675-086-0 01 1 1410-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 THA 		8-98072-346-0 01 1 1410-
102 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
4HK1-TCS ENG<RJS> (B) L=554 THA 		8-97948-219-0 01 1 1410-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6HK1-TCN ENG<82L> (A) L=585 SERVICED BY L=600 THA 		1-47428-725-0 01 1 1410-
107 NUT; UNION,OIL PIPE
M12 THA 		9-09840-280-0 03 1 1410-
139 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
4HK1-TCS ENG<RJS> L=2594 SERVICED BY L=2650 THA 		1-47428-743-0 01 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
6HK1-TCN ENG<82L> L=2982 SERVICED BY L=3200 THA 		1-47428-745-0 01 1 1410-
167 BRACKET; UNION
4HK1-TCS ENG<RJS> THA 		8-98180-225-0 01 1 1410-
167 BRACKET; UNION
6HK1-TCN ENG<82L> THA 		8-98077-571-0 01 1 1410-
184 UNION; FLEX HOSE
4HK1-TCS ENG<RJS> (B) THA 		8-98150-865-0 01 1 1410-
184 UNION; FLEX HOSE
6HK1-TCN ENG<82L> (A) M12 3WAY THA 		1-09654-137-2 01 1 1410-
239 UNION; CLU HOSE
M12 2WAY THA 		1-09654-059-2 01 1 1410-
