2-01 — CLUTCH (#150240) — 80 parça

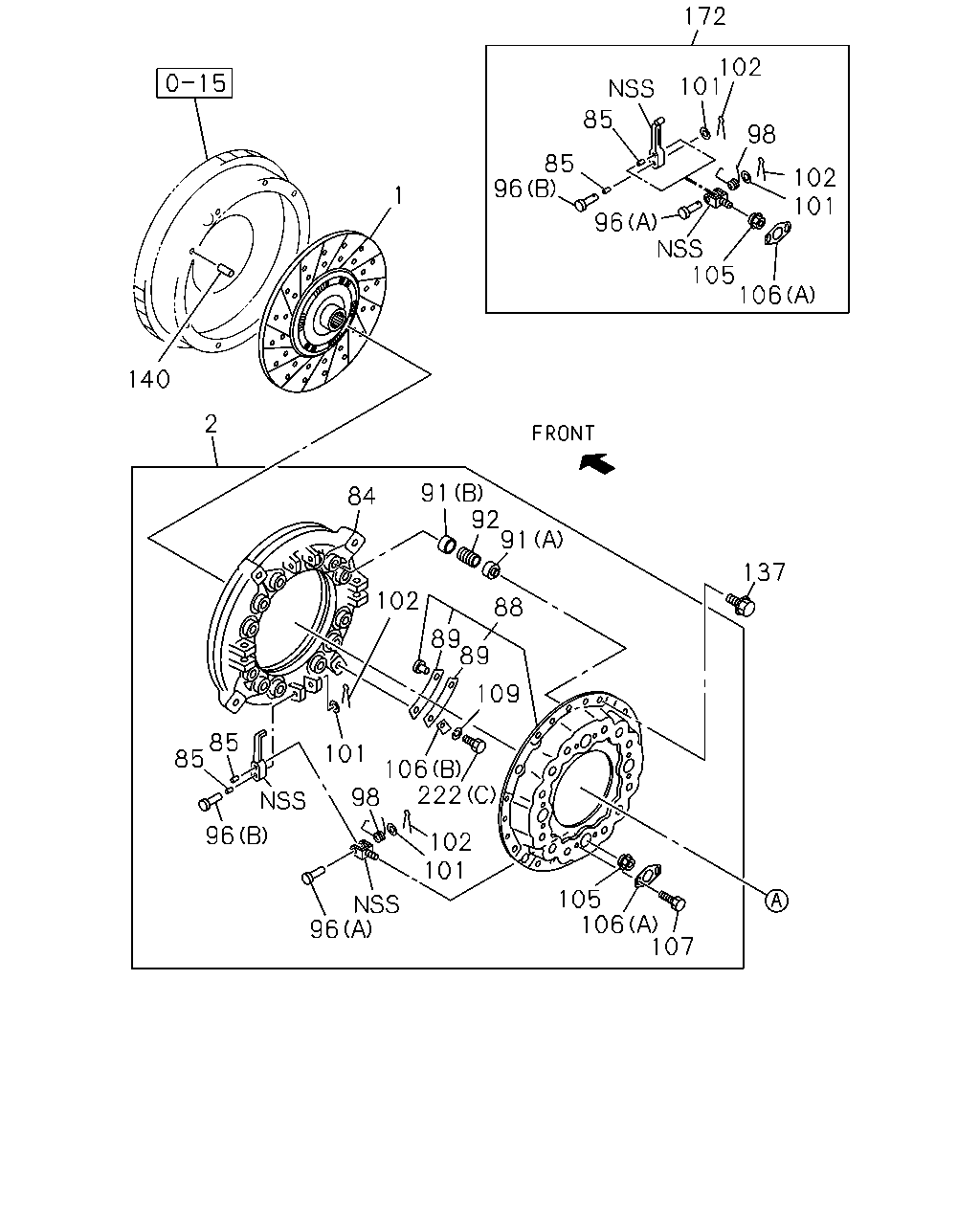

çizim 448814
107 106 105 137 101 102 96 96 85 85 101 106 98 222 109 89 88 89 102 84 91 92 91 2 140 1 172 102 101 98 102 101 106 105 96 96 85 85
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH<RE9> 15" THA 		1-31240-851-2 01 1 1410-
1 DISC; CLUTCH
14" CLUTCH<WF6> 14" THA 		1-31260-040-1 01 1 1410-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH<RE9> THA 		1-31220-377-2 01 1 1410-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH<WF6> THA 		1-31220-451-0 01 1 1410-
84 PLATE; PRESSURE
15" CLUTCH<RE9> 15" THA 		1-31221-100-0 01 1 1410-
84 PLATE; PRESSURE
14" CLUTCH<WF6> 14" THA 		1-31221-136-0 01 1 1410-
85 BUSHING; RELEASE LEVER
THA 		9-31239-116-0 08 1 1410-
88 COVER SUB ASM; CLU
14" CLUTCH<WF6> THA 		1-31211-038-0 01 1 1410-
89 PLATE; STRAP
15" CLUTCH<RE9> THA 		1-31229-050-0 16 1 1410-
89 PLATE; STRAP
14" CLUTCH<WF6> THA 		1-31229-001-0 08 1 1410-
91 SEAT; SPR
(A) ID=37 H=25 THA 		1-31219-012-0 12 1 1410-
91 SEAT; SPR
(B) ID=37 H=15 THA 		1-31219-013-0 12 1 1410-
92 SPRING; CLU
15" CLUTCH<RE9> THA 		1-31214-066-0 12 1 1410-
92 SPRING; CLU
14" CLUTCH<WF6> THA 		1-31214-092-0 12 1 1410-
96 PIN; RELEASE LEVER
(A) L=49.0 THA 		1-31232-005-0 04 1 1410-
96 PIN; RELEASE LEVER
(B) L=57.0 THA 		1-31232-014-0 04 1 1410-
98 SPRING; RETURN
THA 		1-31233-003-0 04 1 1410-
101 WASHER; RELEASE LEVER
THA 		1-31239-058-0 08 1 1410-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH<RE9> OD=2.7 L=22 THA 		9-08103-022-0 08 1 1410-
102 PIN; SPLIT,RELEASE LEVER
14" CLUTCH<WF6> OD=2.7 L=22 THA 		9-08113-022-0 08 1 1410-
105 NUT; SUPPORT
THA 		1-31235-014-0 04 1 1410-
106 PLATE; LK,LEVER SUPPORT
(A) THA 		1-31239-019-0 04 1 1410-
106 PLATE; LK,LEVER SUPPORT
14" CLUTCH<WF6> (B) THA 		1-31235-008-0 04 1 1410-
107 BOLT; LK PLATE
THA 		1-31239-061-0 08 1 1410-
109 WASHER; LK,STRAP
14" CLUTCH<WF6> ID=10.2 THA 		0-91510-510-0 04 1 1410-
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 1410-
140 PIN; STRAIGHT
4HK1-TCS ENG<RJS> L=25 THA 		8-94410-361-0 02 1 1410-
172 LEVER KIT; RELEASE,CLU
THA 		1-87831-170-1 01 1 1410-
222 BOLT; STRAP
15" CLUTCH<RE9> (B) M10X23.2 THA 		1-09040-042-0 04 1 1410-
222 BOLT; STRAP
15" CLUTCH<RE9> (A) M10X26 HEX SOCKET THA 		1-09040-043-0 04 1 1410-
222 BOLT; STRAP
14" CLUTCH<WF6> (C) THA 		1-31239-059-0 04 1 1410-

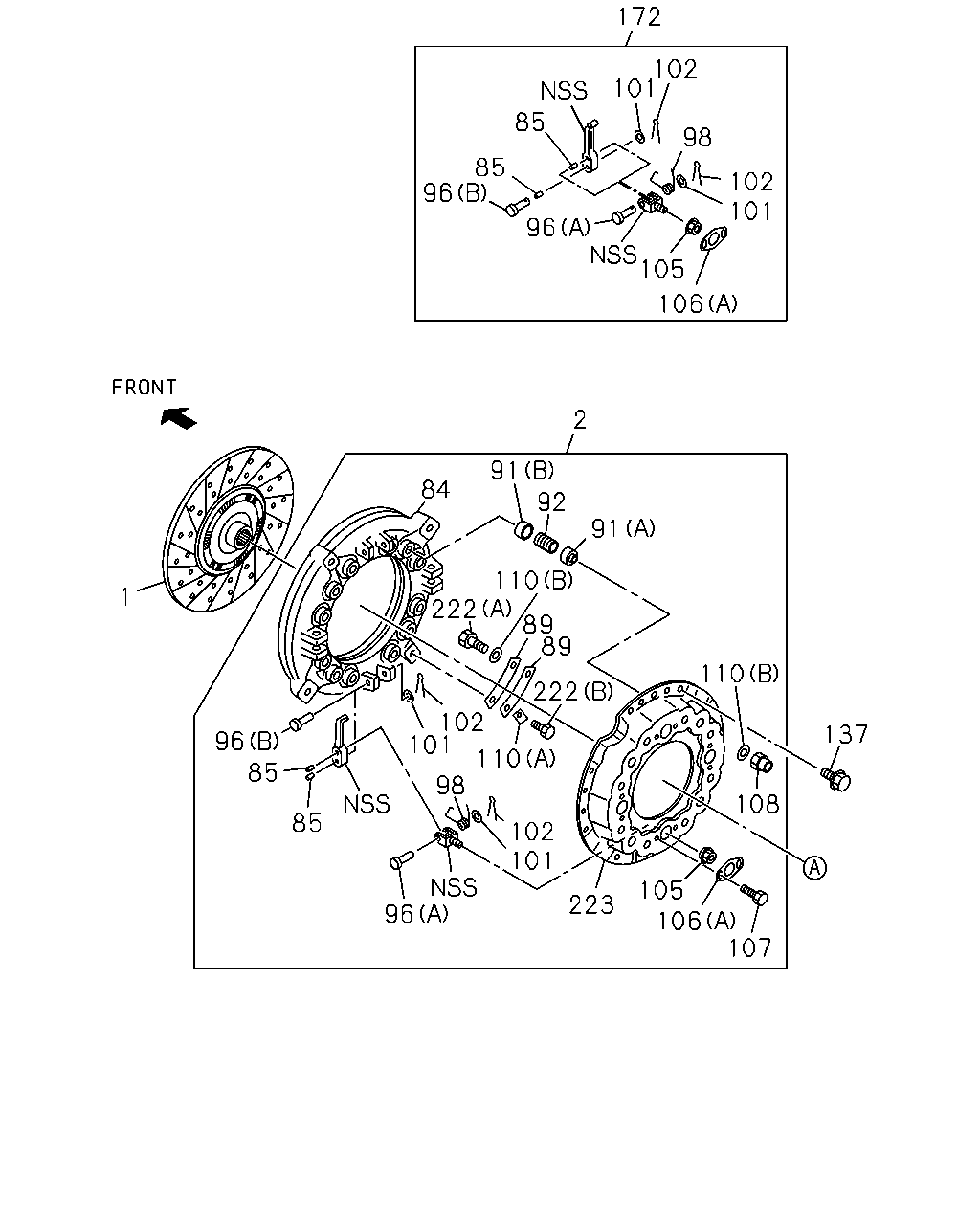

çizim 449251
172 102 101 98 102 101 106 105 96 96 84 85 137 110 108 107 106 105 223 101 102 98 102 110 222 89 89 222 110 91 92 91 2 84 96 85 85 96 1 101
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" CLUTCH<RE9> 15" THA 		1-31240-851-2 01 1 1410-
1 DISC; CLUTCH
14" CLUTCH<WF6> 14" THA 		1-31260-040-1 01 1 1410-
2 PLATE ASM; PRESSURE,CLU
15" CLUTCH<RE9> THA 		1-31220-377-2 01 1 1410-
2 PLATE ASM; PRESSURE,CLU
14" CLUTCH<WF6> THA 		1-31220-451-0 01 1 1410-
84 PLATE; PRESSURE
15" CLUTCH<RE9> 15" THA 		1-31221-100-0 01 1 1410-
84 PLATE; PRESSURE
14" CLUTCH<WF6> 14" THA 		1-31221-136-0 01 1 1410-
85 BUSHING; RELEASE LEVER
THA 		9-31239-116-0 08 1 1410-
89 PLATE; STRAP
15" CLUTCH<RE9> THA 		1-31229-050-0 16 1 1410-
89 PLATE; STRAP
14" CLUTCH<WF6> THA 		1-31229-001-0 08 1 1410-
91 SEAT; SPR
(A) ID=37 H=25 THA 		1-31219-012-0 12 1 1410-
91 SEAT; SPR
(B) ID=37 H=15 THA 		1-31219-013-0 12 1 1410-
92 SPRING; CLU
15" CLUTCH<RE9> THA 		1-31214-066-0 12 1 1410-
92 SPRING; CLU
14" CLUTCH<WF6> THA 		1-31214-092-0 12 1 1410-
96 PIN; RELEASE LEVER
(A) L=49.0 THA 		1-31232-005-0 04 1 1410-
96 PIN; RELEASE LEVER
(B) L=57.0 THA 		1-31232-014-0 04 1 1410-
98 SPRING; RETURN
THA 		1-31233-003-0 04 1 1410-
101 WASHER; RELEASE LEVER
THA 		1-31239-058-0 08 1 1410-
102 PIN; SPLIT,RELEASE LEVER
15" CLUTCH<RE9> OD=2.7 L=22 THA 		9-08103-022-0 08 1 1410-
102 PIN; SPLIT,RELEASE LEVER
14" CLUTCH<WF6> OD=2.7 L=22 THA 		9-08113-022-0 08 1 1410-
105 NUT; SUPPORT
THA 		1-31235-014-0 04 1 1410-
106 PLATE; LK,LEVER SUPPORT
(A) THA 		1-31239-019-0 04 1 1410-
106 PLATE; LK,LEVER SUPPORT
14" CLUTCH<WF6> (B) THA 		1-31235-008-0 04 1 1410-
107 BOLT; LK PLATE
THA 		1-31239-061-0 08 1 1410-
108 NUT; STRAP
15" CLUTCH<RE9> THA 		1-09449-036-0 04 1 1410-
110 WASHER; SPECIAL,STRAP
15" CLUTCH<RE9> (A) T=1.2 THA 		1-31229-009-0 04 1 1410-
110 WASHER; SPECIAL,STRAP
15" CLUTCH<RE9> (B) T=3.2 THA 		8-97374-512-0 08 1 1410-
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 1410-
172 LEVER KIT; RELEASE,CLU
THA 		1-87831-170-1 01 1 1410-
222 BOLT; STRAP
15" CLUTCH<RE9> (B) M10X23.2 THA 		1-09040-042-0 04 1 1410-
222 BOLT; STRAP
15" CLUTCH<RE9> (A) M10X26 HEX SOCKET THA 		1-09040-043-0 04 1 1410-
222 BOLT; STRAP
14" CLUTCH<WF6> (C) THA 		1-31239-059-0 04 1 1410-
223 COVER; CLU
15" CLUTCH<RE9> THA 		1-31211-019-1 01 1 1410-

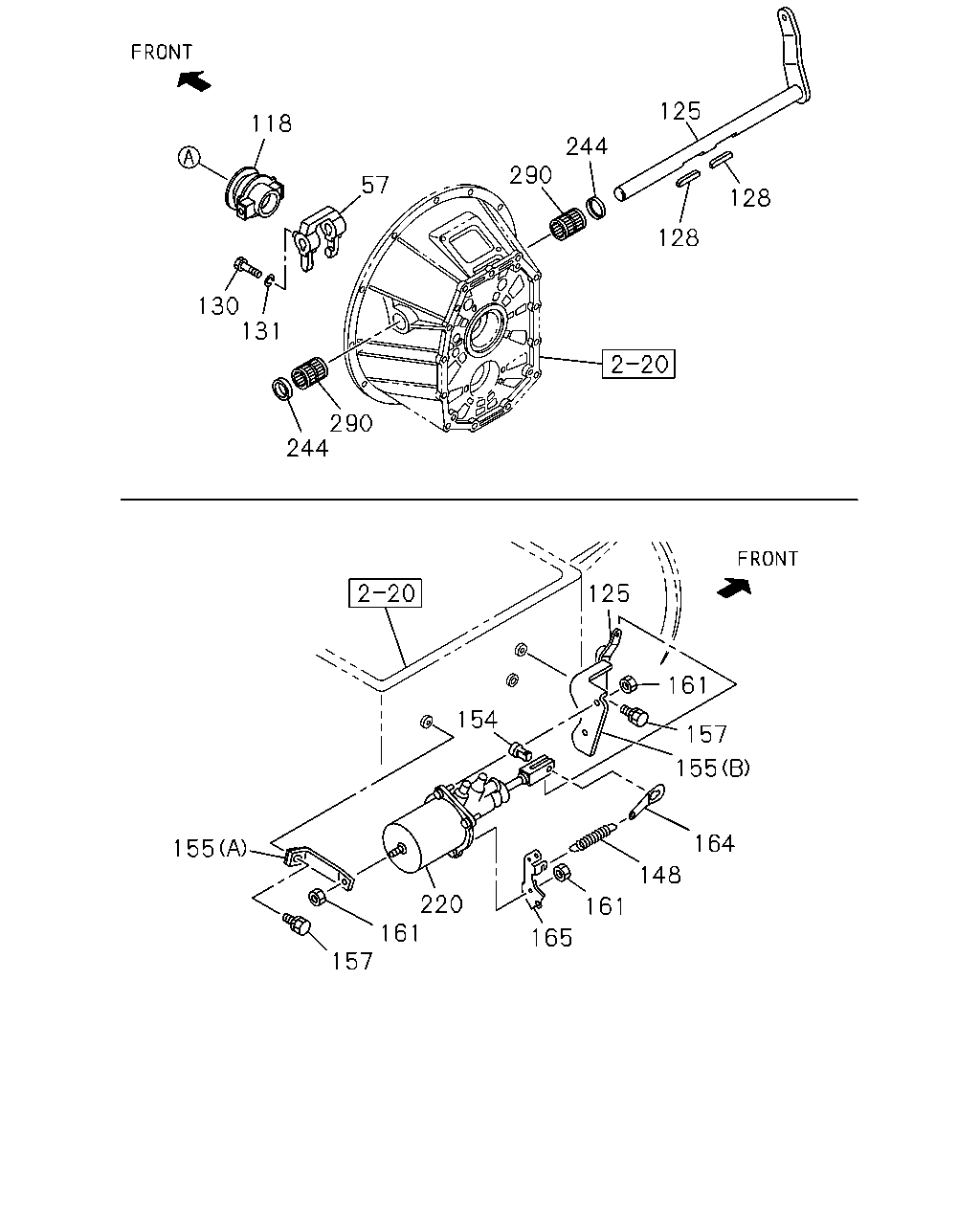

çizim 449870
118 57 131 130 290 244 290 244 125 128 128 125 161 157 155 164 148 161 165 220 154 161 157 155
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU
THA 		1-31341-048-2 01 1 1410-
118 BEARING; CLU RELEASE
THA 		1-31310-026-0 01 1 1410-
125 SHAFT; CLU
THA 		1-31342-335-0 01 1 1410-
128 KEY; FEATHER,CLU SHAFT
THA 		9-09867-008-0 02 1 1410-
130 SCREW; SHIFT FORK
M8X14 THA 		0-61200-814-0 01 1 1410-
131 WASHER; LK,SHIFT FORK
ID=8.2 THA 		0-91510-508-0 01 1 1410-
148 SPRING; CLU RETURN
L=135 THA 		1-09583-305-0 01 1 1410-
154 PIN; JAW JOINT
THA 		1-31424-009-0 01 1 1410-
155 BRACKET; MINIPACK
(A) THA 		1-31429-475-1 01 1 1410-
155 BRACKET; MINIPACK
(B) THA 		1-31429-478-0 01 1 1410-
157 BOLT; BRKT
M10X25 FLANGE THA 		0-28751-025-0 03 1 1410-
161 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 05 1 1410-
164 EYE; SPRING
THA 		1-31426-041-0 01 1 1410-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE
THA 		1-47477-789-0 01 1 1410-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. THA 		1-31800-511-2 01 1 1410-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-09625-002-0 02 1 1410-
290 BEARING; NEEDLE
NTN THA 		1-09811-002-1 02 1 1410-
