1-50 — EXHAUST PIPE AND SILENCER (#150237) — 139 parça

12 1 1 20 476 20 476 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG<RJS> (A) THA	8-97924-565-0	01	1	1410-
1	PIPE; EXH 4HK1-TCS ENG<RJS> (B) THA	8-98206-298-0	01	1	1410-
1	PIPE; EXH 6HK1-TCN ENG<82L> (A) THA	8-98212-603-0	01	1	1410-
12	SILENCER ASM; EXH 4HK1-TCS ENG<RJS> THA	8-97926-369-0	01	1	1410-
12	SILENCER ASM; EXH 6HK1-TCN ENG<82L> THA	8-97926-409-0	01	1	1410-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG<82L> M10X49.8 THA	8-97039-586-0	02	1	1410-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG<82L> OD=112 THA	1-22119-294-1	01	1	1410-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG<82L> THA	8-94141-851-0	02	1	1410-

36 17 1 36 34 107 81 118 81 60 121 75 75 56 94 70 22 63 105 22 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG<RJS> (A) THA	8-97924-565-0	01	1	1410-
1	PIPE; EXH 4HK1-TCS ENG<RJS> (B) THA	8-98206-298-0	01	1	1410-
1	PIPE; EXH 6HK1-TCN ENG<82L> (A) THA	8-98212-603-0	01	1	1410-
17	BOLT; EXH PIPE 6HK1-TCN ENG<82L> (B) M12X120 THA	1-09000-293-0	01	1	1410-
17	BOLT; EXH PIPE 4HK1-TCS ENG<RJS> (A) M12X35 FLANGE THA	0-28051-235-0	04	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B) THA	8-97646-674-0	01	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1410-
34	WASHER; EXH PIPE 6HK1-TCN ENG<82L> ID=13 OD=24 DISH THA	1-09500-030-0	03	1	1410-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	8-97096-192-1	03	1	1410-
36	NUT; EXH PIPE 6HK1-TCN ENG<82L> (A) M12 THA	1-09400-010-0	03	1	1410-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-210-0	02	1	1410-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (C) THA	8-98206-303-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (B) THA	8-98206-304-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> (A) L=40 B=50 H=74 THA	1-22139-045-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) L=40 B=50 H=74 THA	1-22139-045-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=60 B=50 H=74 THA	8-98219-141-0	01	1	1410-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG<RJS> THA	8-98206-302-0	02	1	1410-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> THA	8-98183-955-0	01	1	1410-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> THA	8-98183-955-0	01	1	1410-
63	TUBE; DIST,BRKT 6HK1-TCN ENG<82L> L=11 THA	1-22139-026-0	01	1	1410-
63	TUBE; DIST,BRKT 6HK1-TCN ENG<82L> L=11 THA	1-22139-026-0	01	1	1410-
70	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X70 FLANGE THA	0-28051-070-0	02	1	1410-
70	BOLT; BRKT 6HK1-TCN ENG<82L> M10X50 THA	0-10856-050-0	01	1	1410-
70	BOLT; BRKT 6HK1-TCN ENG<82L> M10X50 THA	0-10856-050-0	01	1	1410-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG<82L> OD=30 THA	1-22159-106-1	02	1	1410-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG<82L> OD=30 THA	1-22159-106-1	02	1	1410-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT THA	0-91370-010-0	01	1	1410-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT THA	0-91370-010-0	01	1	1410-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M8 FLANGE THA	0-91180-108-0	02	1	1410-
94	BOLT; CLAMP 6HK1-TCN ENG<82L> M10X40 FLANGE THA	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1410-
105	NUT; CLAMP 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	01	1	1410-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1410-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
118	NUT; SILENCER MTG BRKT M10 FLANGE THA	0-91180-210-0	02	1	1410-
121	WASHER; PL,BRKT 4HK1-TCS ENG<RJS> ID=8.4 OD=22 THA	1-09503-154-2	02	1	1410-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> ID=10.5 OD=32 THA	0-91614-810-0	01	1	1410-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> ID=10.5 OD=32 THA	0-91614-810-0	01	1	1410-

128 415 22 97 11 105 126 64 360 68 107 58 81 68 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> THA	8-97924-667-0	01	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B) THA	8-97646-674-0	01	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1410-
58	BRACKET; EXH PIPE,RR 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98056-460-0	01	1	1410-
64	U-BOLT; EXH PIPE,RR 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) THA	1-22113-100-0	01	1	1410-
64	U-BOLT; EXH PIPE,RR 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97926-650-0	01	1	1410-
68	NUT; U BOLT 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE THA	0-91180-108-0	02	1	1410-
68	NUT; U BOLT 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE THA	0-91180-108-0	02	1	1410-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT THA	0-91370-010-0	01	1	1410-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT THA	0-91370-010-0	01	1	1410-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M8 FLANGE THA	0-91180-108-0	02	1	1410-
97	WASHER; PL,CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 THA	0-91610-710-0	01	1	1410-
105	NUT; CLAMP 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	01	1	1410-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1410-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98210-836-0	01	1	1410-
128	PIPE; EXH,RR 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> TAIL PIPE SINGLE HORIZONTAL<NC2> THA	8-98219-144-0	01	1	1410-
360	PIECE; DIST,EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-97917-674-1	01	1	1410-
415	BOLT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE THA	0-28651-035-0	01	1	1410-

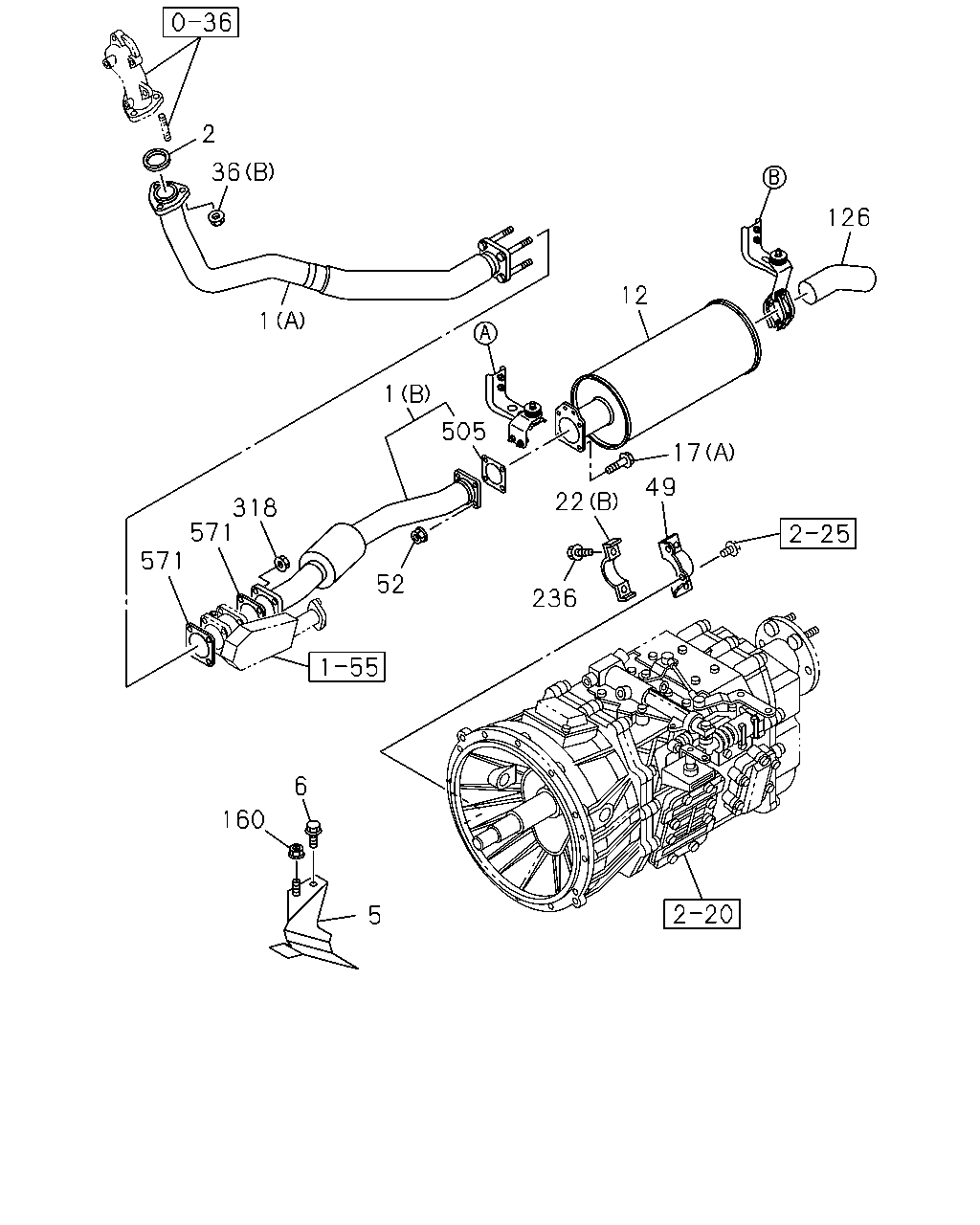

2 36 1 12 126 17 49 22 236 52 505 1 318 571 571 6 160 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG<RJS> (A) THA	8-97924-565-0	01	1	1410-
1	PIPE; EXH 4HK1-TCS ENG<RJS> (B) THA	8-98206-298-0	01	1	1410-
1	PIPE; EXH 6HK1-TCN ENG<82L> (A) THA	8-98212-603-0	01	1	1410-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS> THA	8-97381-455-0	01	1	1410-
5	PROTECTOR; HEAT 4HK1-TCS ENG<RJS> THA	8-98208-210-1	01	1	1410-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG<RJS> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
12	SILENCER ASM; EXH 4HK1-TCS ENG<RJS> THA	8-97926-369-0	01	1	1410-
12	SILENCER ASM; EXH 6HK1-TCN ENG<82L> THA	8-97926-409-0	01	1	1410-
17	BOLT; EXH PIPE 6HK1-TCN ENG<82L> (B) M12X120 THA	1-09000-293-0	01	1	1410-
17	BOLT; EXH PIPE 4HK1-TCS ENG<RJS> (A) M12X35 FLANGE THA	0-28051-235-0	04	1	1410-
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B) THA	8-97646-674-0	01	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1410-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	8-97096-192-1	03	1	1410-
36	NUT; EXH PIPE 6HK1-TCN ENG<82L> (A) M12 THA	1-09400-010-0	03	1	1410-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-210-0	02	1	1410-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG<RJS> THA	8-98234-530-0	01	1	1410-
52	NUT; BRKT 4HK1-TCS ENG<RJS> M12 FLANGE THA	0-91180-212-0	04	1	1410-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98210-836-0	01	1	1410-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1410-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG<RJS> M10X30 FLANGE THA	0-28651-030-0	02	1	1410-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG<RJS> M8 W/LK WASHER THA	8-97581-234-0	04	1	1410-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG<RJS> THA	8-98096-305-0	01	1	1410-
571	GASKET 4HK1-TCS ENG<RJS> ID=64 THA	8-97373-108-0	02	1	1410-

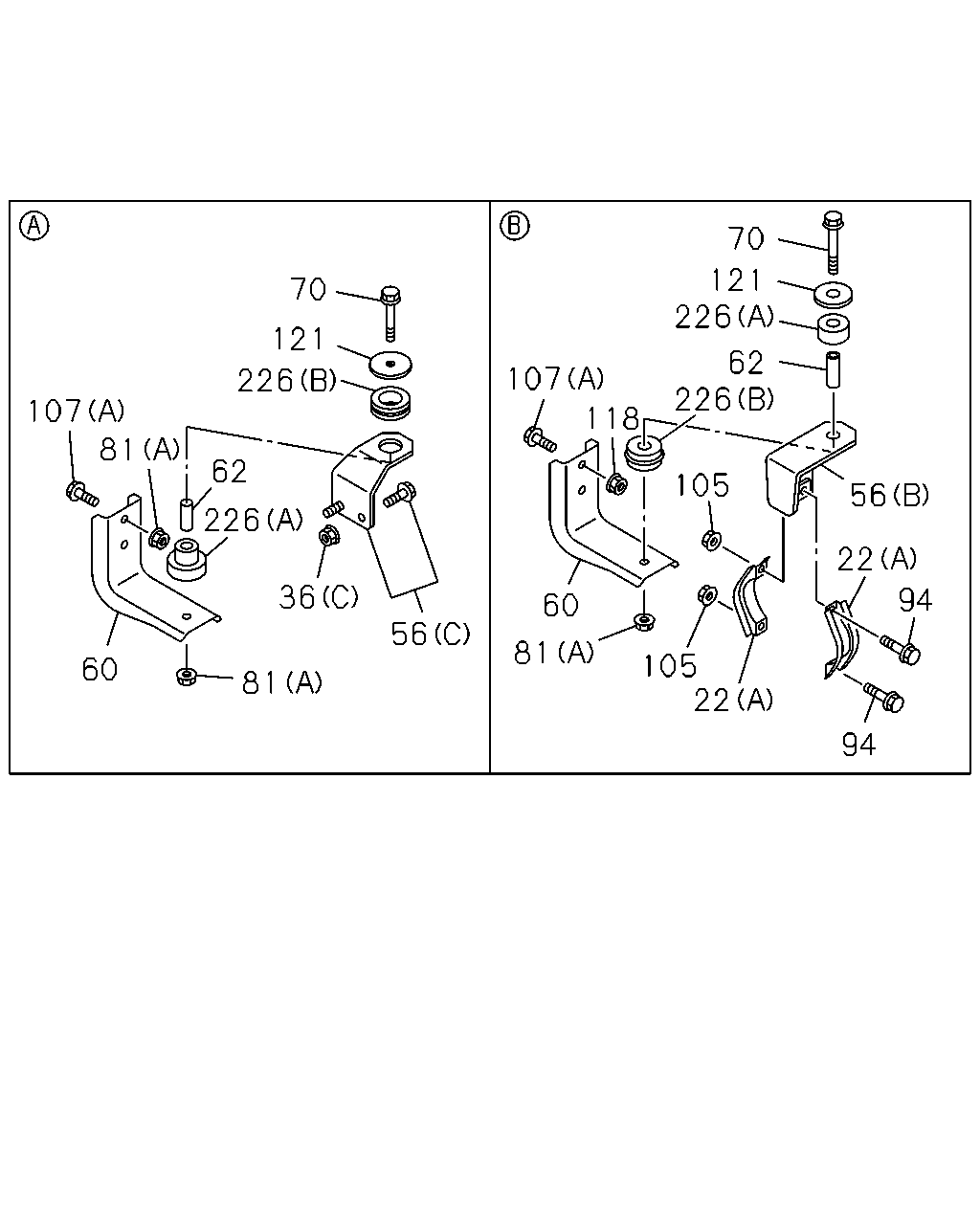

70 121 226 107 226 62 118 105 56 22 94 94 22 105 81 60 56 36 226 62 226 121 70 81 107 60 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B) THA	8-97646-674-0	01	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE (A) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1410-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	8-97096-192-1	03	1	1410-
36	NUT; EXH PIPE 6HK1-TCN ENG<82L> (A) M12 THA	1-09400-010-0	03	1	1410-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-210-0	02	1	1410-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (C) THA	8-98206-303-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (B) THA	8-98206-304-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> (A) L=40 B=50 H=74 THA	1-22139-045-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) L=40 B=50 H=74 THA	1-22139-045-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=60 B=50 H=74 THA	8-98219-141-0	01	1	1410-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG<RJS> THA	8-98206-302-0	02	1	1410-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> THA	8-98183-955-0	01	1	1410-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> THA	8-98183-955-0	01	1	1410-
62	TUBE; DIST,BRKT 4HK1-TCS ENG<RJS> THA	8-97948-228-0	02	1	1410-
70	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X70 FLANGE THA	0-28051-070-0	02	1	1410-
70	BOLT; BRKT 6HK1-TCN ENG<82L> M10X50 THA	0-10856-050-0	01	1	1410-
70	BOLT; BRKT 6HK1-TCN ENG<82L> M10X50 THA	0-10856-050-0	01	1	1410-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT THA	0-91370-010-0	01	1	1410-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT THA	0-91370-010-0	01	1	1410-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M8 FLANGE THA	0-91180-108-0	02	1	1410-
94	BOLT; CLAMP 6HK1-TCN ENG<82L> M10X40 FLANGE THA	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1410-
105	NUT; CLAMP 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	01	1	1410-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1410-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
118	NUT; SILENCER MTG BRKT M10 FLANGE THA	0-91180-210-0	02	1	1410-
121	WASHER; PL,BRKT 4HK1-TCS ENG<RJS> ID=8.4 OD=22 THA	1-09503-154-2	02	1	1410-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> ID=10.5 OD=32 THA	0-91614-810-0	01	1	1410-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> ID=10.5 OD=32 THA	0-91614-810-0	01	1	1410-
226	RUBBER; CUSHION 4HK1-TCS ENG<RJS> (A) THA	8-97948-226-0	02	1	1410-
226	RUBBER; CUSHION 4HK1-TCS ENG<RJS> (B) THA	8-97948-227-0	02	1	1410-
