Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#150235) — 303 parça

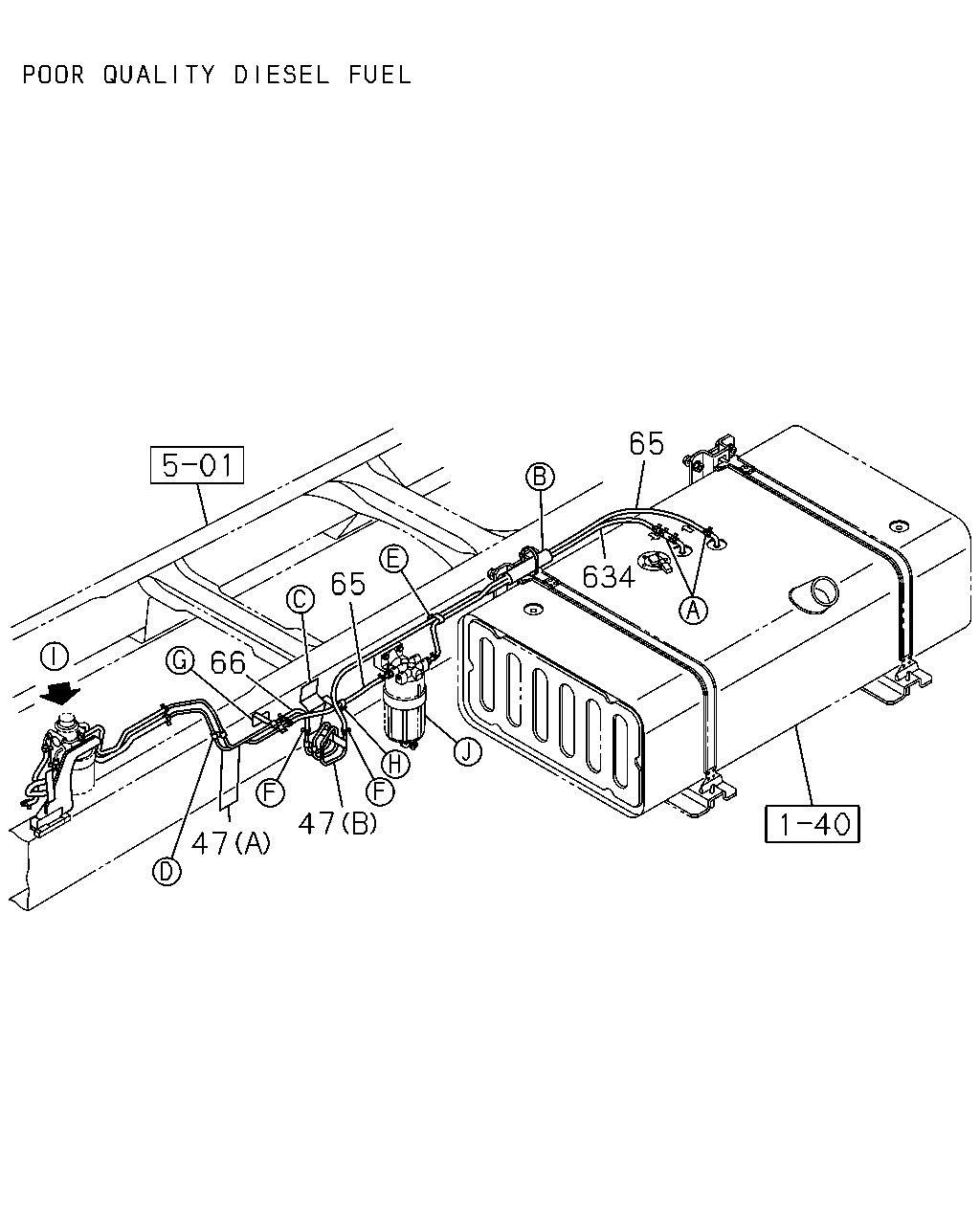

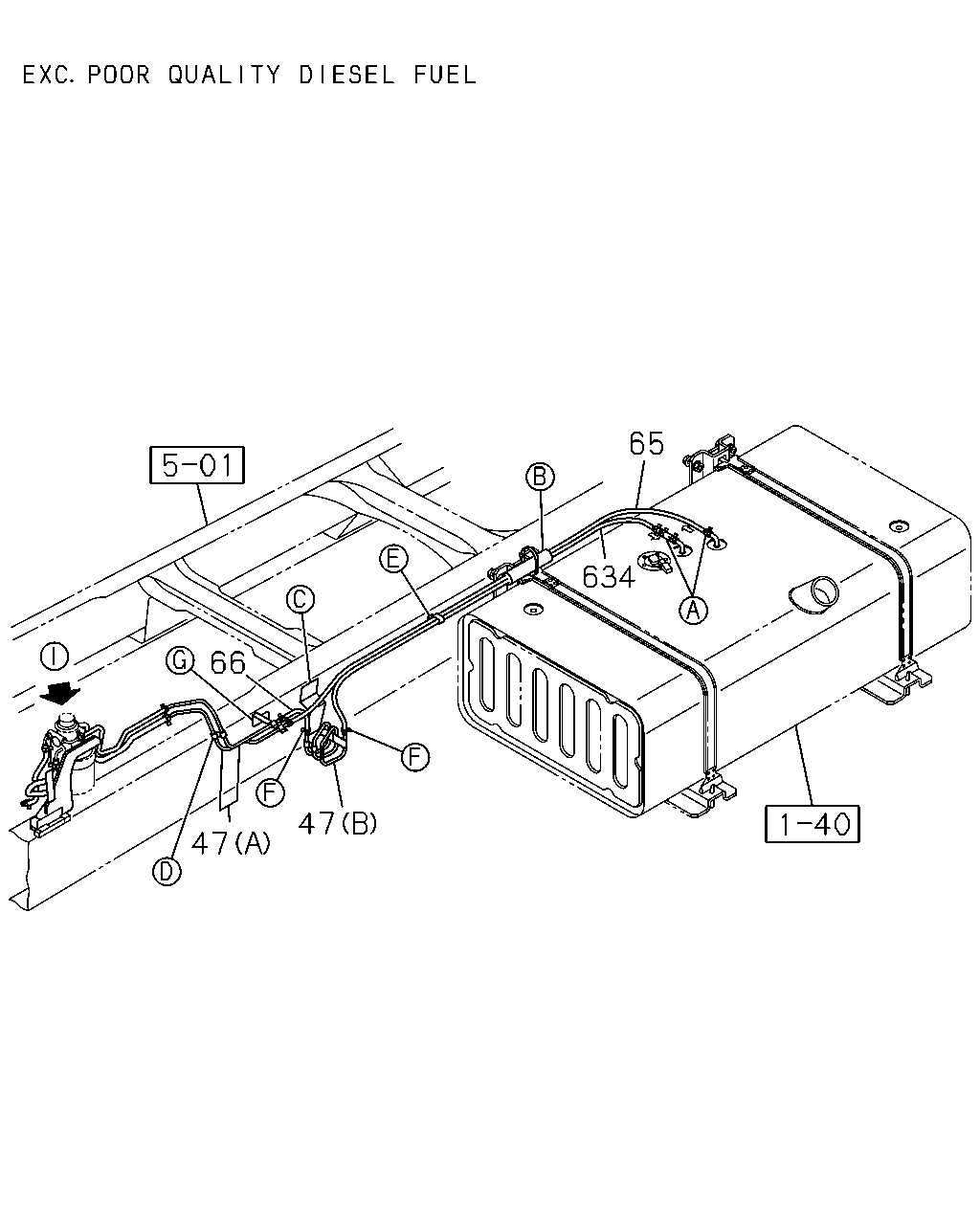

47 47 634 65 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> L=200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

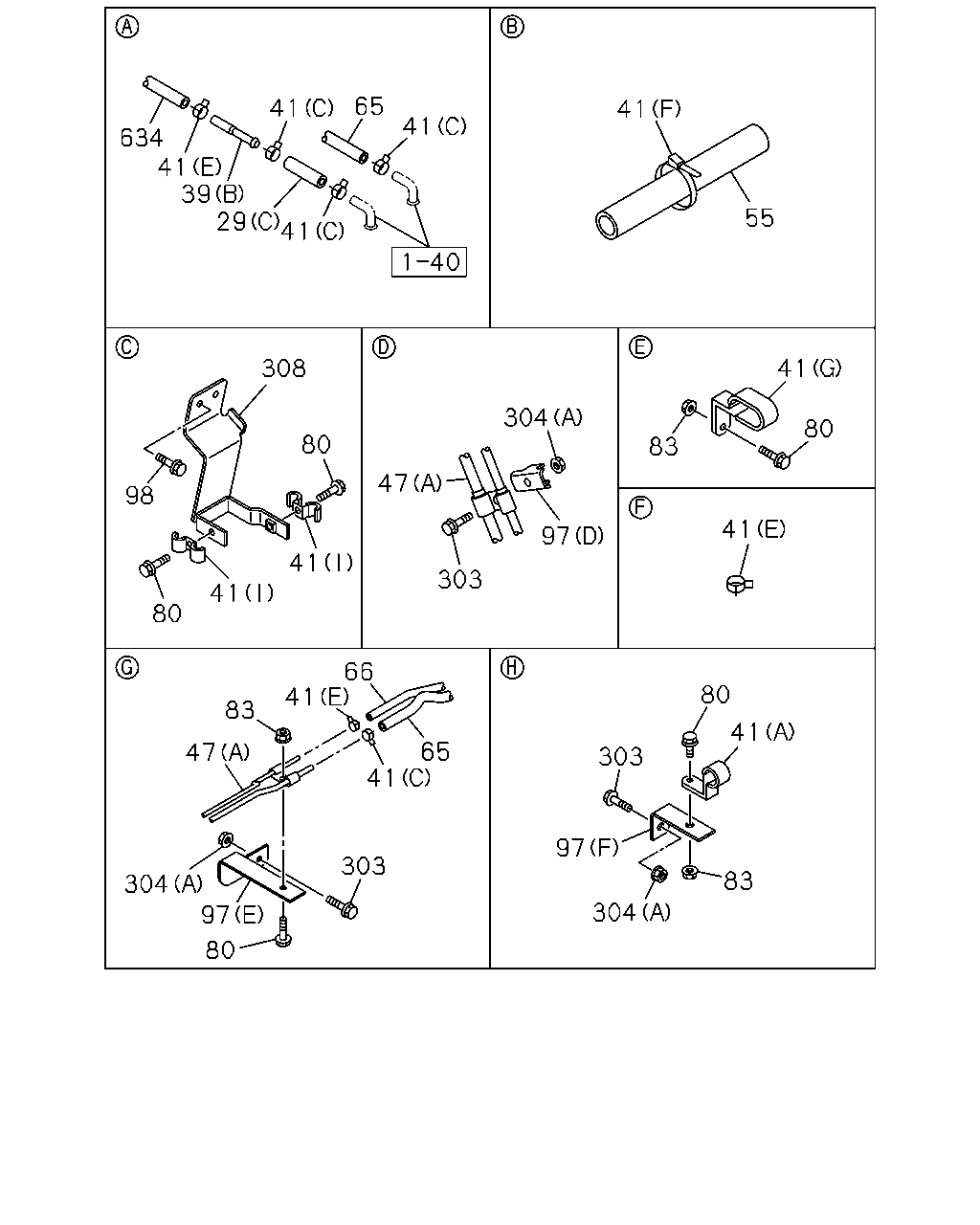

41 634 41 39 29 41 65 41 41 55 41 83 80 41 304 97 47 303 308 80 98 41 41 80 66 41 83 65 41 47 303 304 97 80 80 41 303 97 304 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D) THA	8-98281-200-0	01	1	1410-
29	HOSE; FUEL (C) L=60 THA	8-98009-718-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1410-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1410-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17 THA	1-09700-651-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5 THA	1-09709-290-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16 THA	8-94238-568-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13 THA	8-94238-571-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	03	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> ID=32 OD=36 L=50 THA	1-09337-023-0	01	1	1410-
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300 THA	1-09360-677-1	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> L=200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	05	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (D) THA	1-47475-427-1	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (E) THA	8-98126-612-0	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (F) L=90 B=25 THA	1-47475-530-0	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) L=50 THA	1-47475-299-2	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (B) THA	8-98053-654-0	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (C) THA	8-98076-024-0	01	1	1410-
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG<RJS> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
303	BOLT; BRKT 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1410-
304	NUT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1410-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1410-
308	BRACKET; FUEL PIPE 4HK1-TCS ENG<RJS> THA	8-98213-361-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

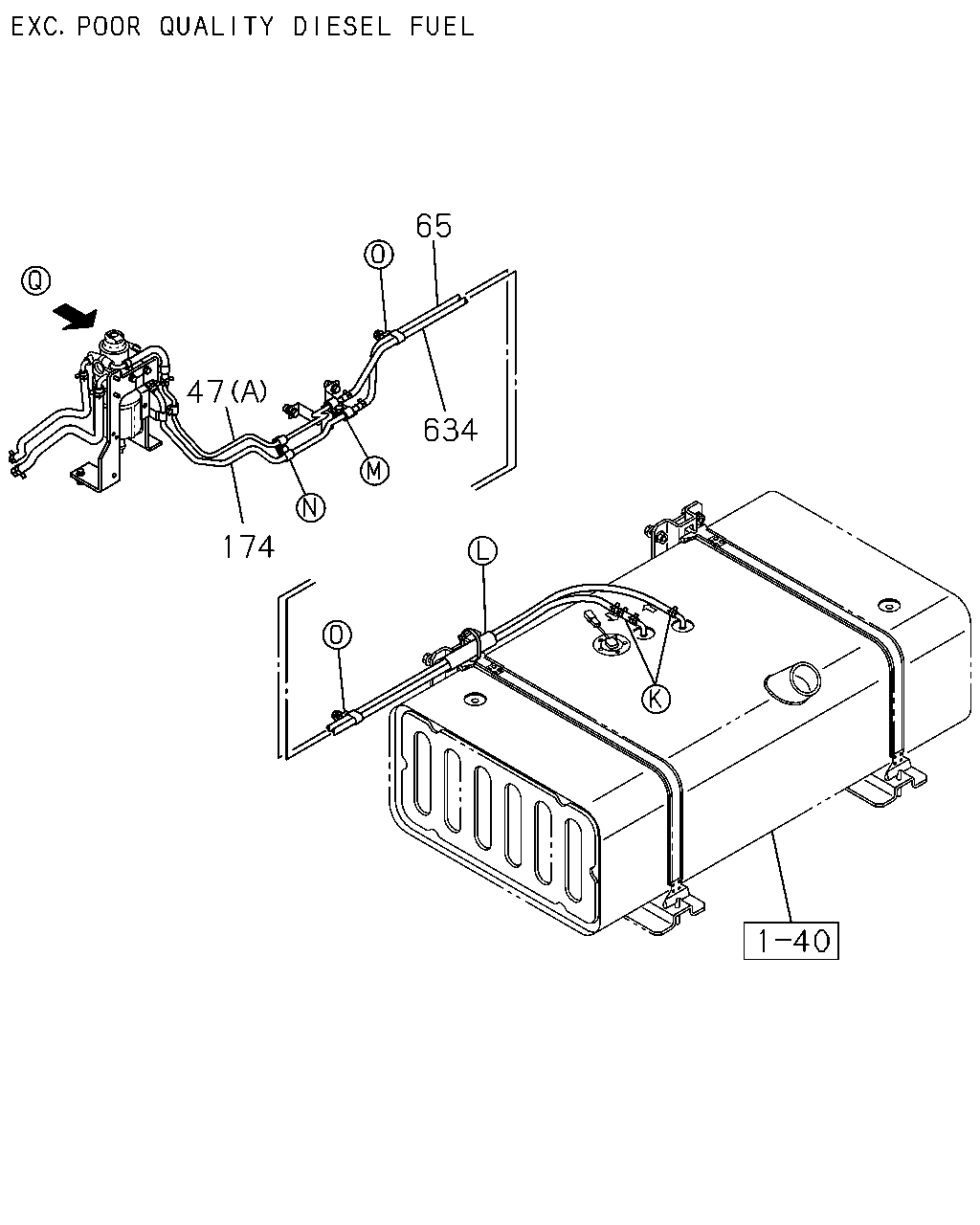

634 47 174 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

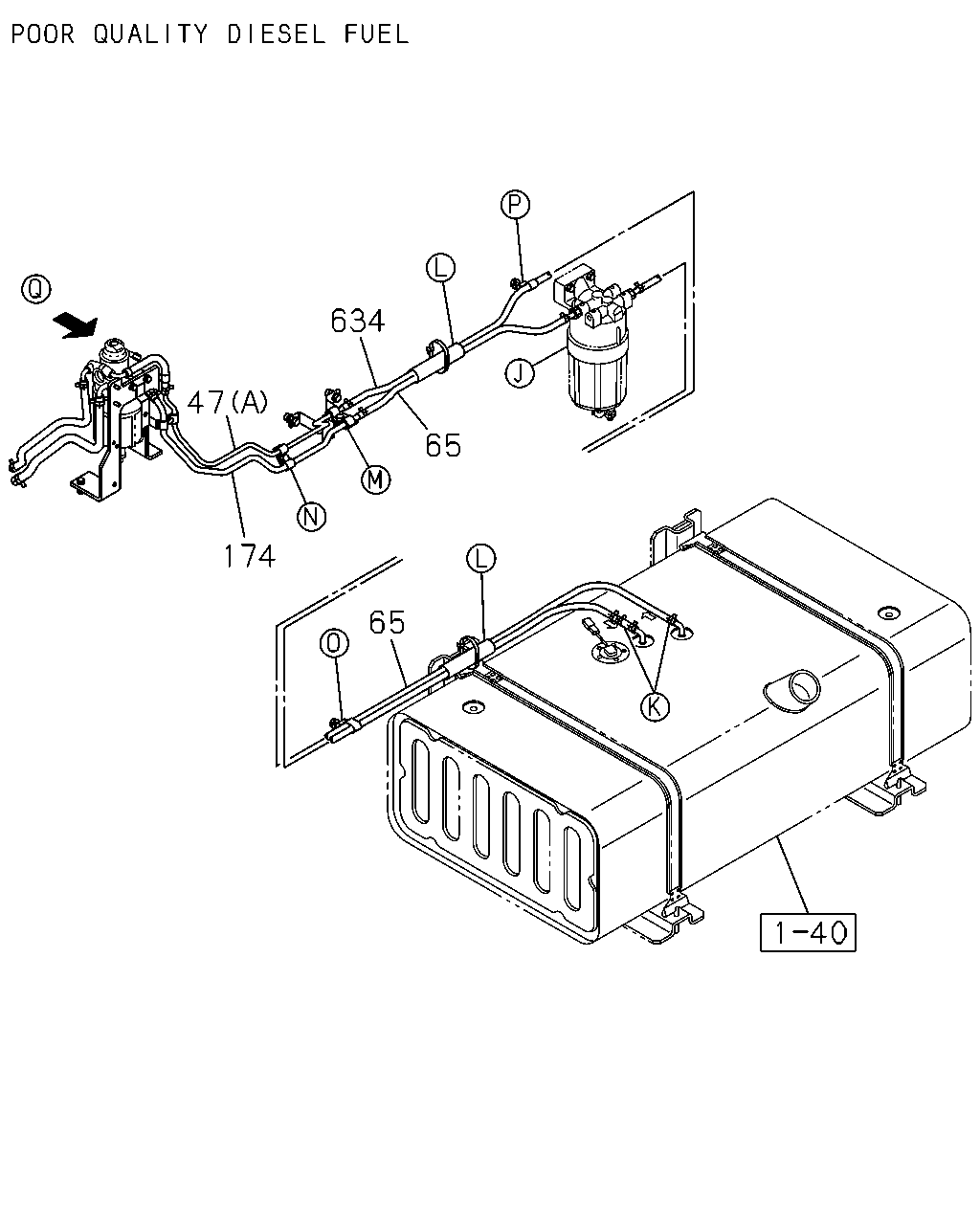

65 47 634 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

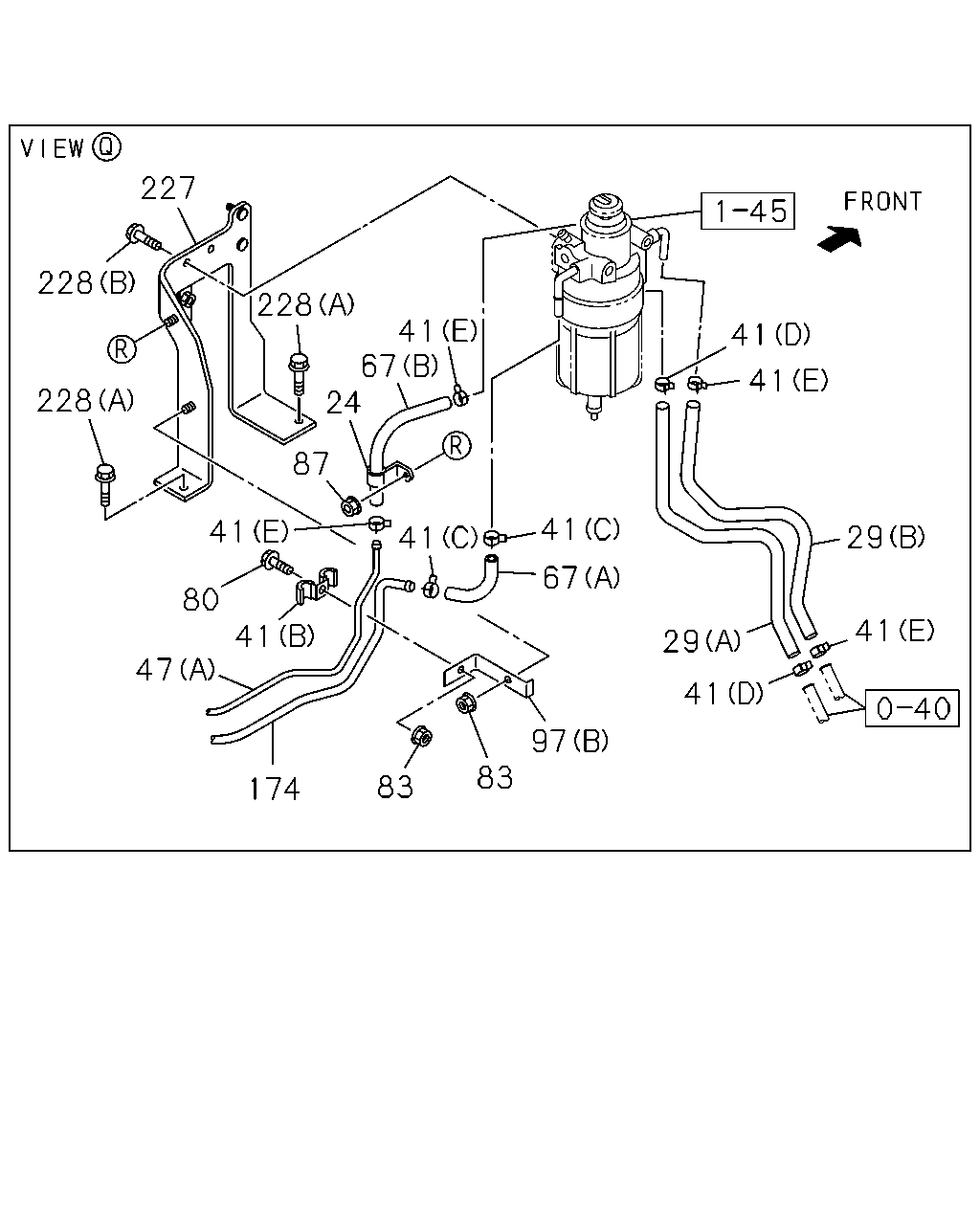

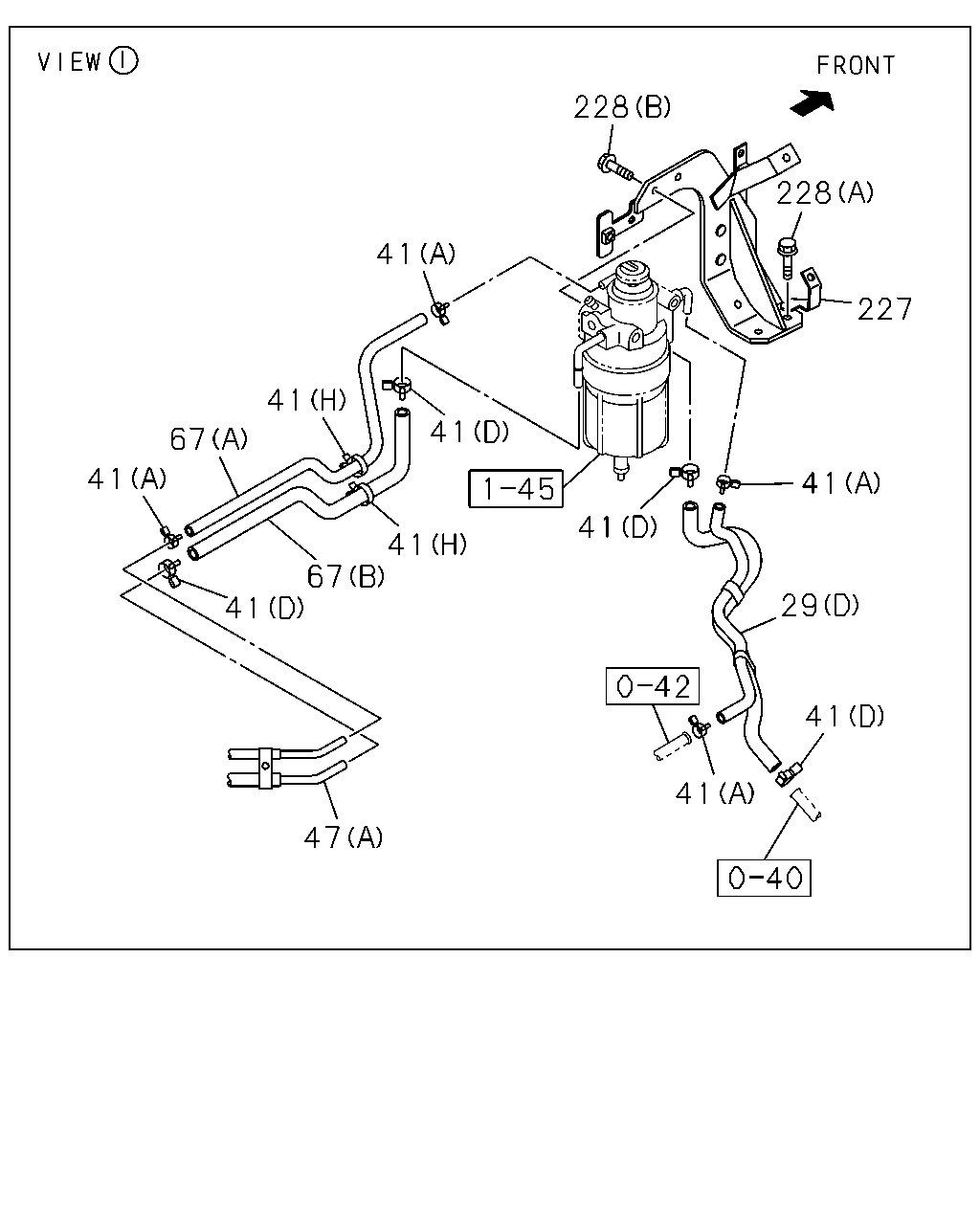

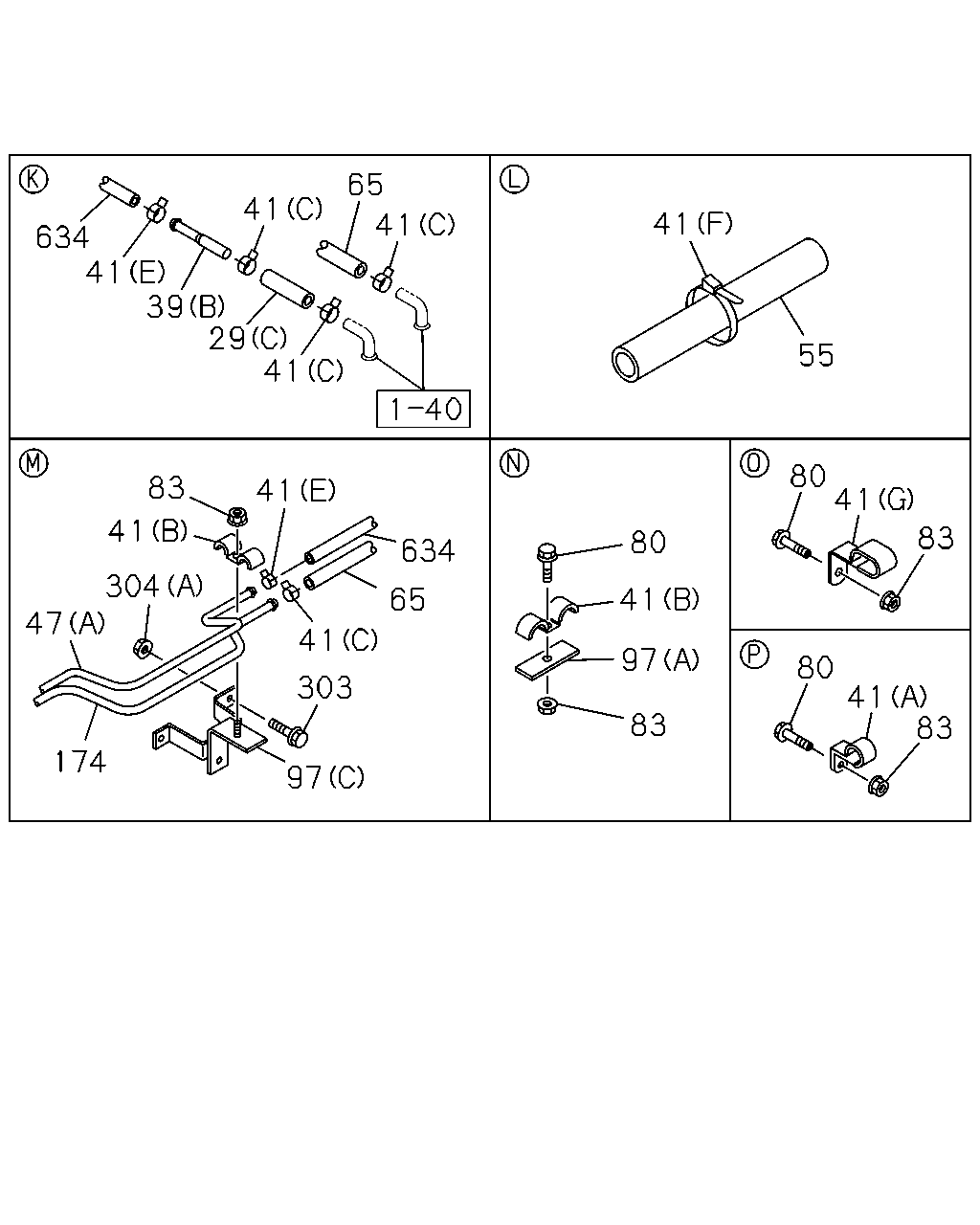

41 65 41 41 634 39 29 41 41 83 41 304 47 174 97 303 41 65 634 80 41 97 83 80 41 83 41 83 80 55 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D) THA	8-98281-200-0	01	1	1410-
29	HOSE; FUEL (C) L=60 THA	8-98009-718-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1410-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1410-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17 THA	1-09700-651-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5 THA	1-09709-290-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16 THA	8-94238-568-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13 THA	8-94238-571-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	03	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> ID=32 OD=36 L=50 THA	1-09337-023-0	01	1	1410-
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300 THA	1-09360-677-1	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	05	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (D) THA	1-47475-427-1	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (E) THA	8-98126-612-0	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (F) L=90 B=25 THA	1-47475-530-0	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) L=50 THA	1-47475-299-2	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (B) THA	8-98053-654-0	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (C) THA	8-98076-024-0	01	1	1410-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1410-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X35 FLANGE THA	0-28650-835-0	02	1	1410-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
303	BOLT; BRKT 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1410-
304	NUT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1410-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

227 228 228 228 41 67 24 87 41 80 47 41 41 41 67 41 41 29 41 97 83 83 174 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 6HK1-TCN ENG<82L> ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D) THA	8-98281-200-0	01	1	1410-
29	HOSE; FUEL (C) L=60 THA	8-98009-718-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17 THA	1-09700-651-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5 THA	1-09709-290-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16 THA	8-94238-568-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13 THA	8-94238-571-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	03	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (A) THA	8-98206-489-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (B) THA	8-98208-821-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (A) L=110 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (B) L=210 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	05	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1410-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1410-
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (D) THA	1-47475-427-1	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (E) THA	8-98126-612-0	01	1	1410-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (F) L=90 B=25 THA	1-47475-530-0	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) L=50 THA	1-47475-299-2	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (B) THA	8-98053-654-0	01	1	1410-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (C) THA	8-98076-024-0	01	1	1410-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1410-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS> THA	8-98203-480-0	01	1	1410-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG<82L> THA	8-97948-225-0	01	1	1410-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-

304 345 39 41 345 279 39 41 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1410-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17 THA	1-09700-651-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5 THA	1-09709-290-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16 THA	8-94238-568-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13 THA	8-94238-571-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	03	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	1410-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 THA	0-91614-710-0	02	1	1410-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1410-
304	NUT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1410-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1410-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 THA	8-97329-623-0	02	1	1410-

66 65 47 47 634 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> L=200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

228 41 41 67 41 41 41 41 67 41 47 41 41 29 41 227 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D) THA	8-98281-200-0	01	1	1410-
29	HOSE; FUEL (C) L=60 THA	8-98009-718-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1410-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17 THA	1-09700-651-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5 THA	1-09709-290-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16 THA	8-94238-568-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13 THA	8-94238-571-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25 THA	1-09701-101-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	03	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14 THA	1-09704-102-0	08	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250 THA	5-09707-030-1	02	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B) THA	8-98213-750-0	01	1	1410-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A) THA	8-98229-613-0	01	1	1410-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (A) THA	8-98206-489-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (B) THA	8-98208-821-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (A) L=110 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (B) L=210 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS> THA	8-98203-480-0	01	1	1410-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG<82L> THA	8-97948-225-0	01	1	1410-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
