Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#150230) — 45 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

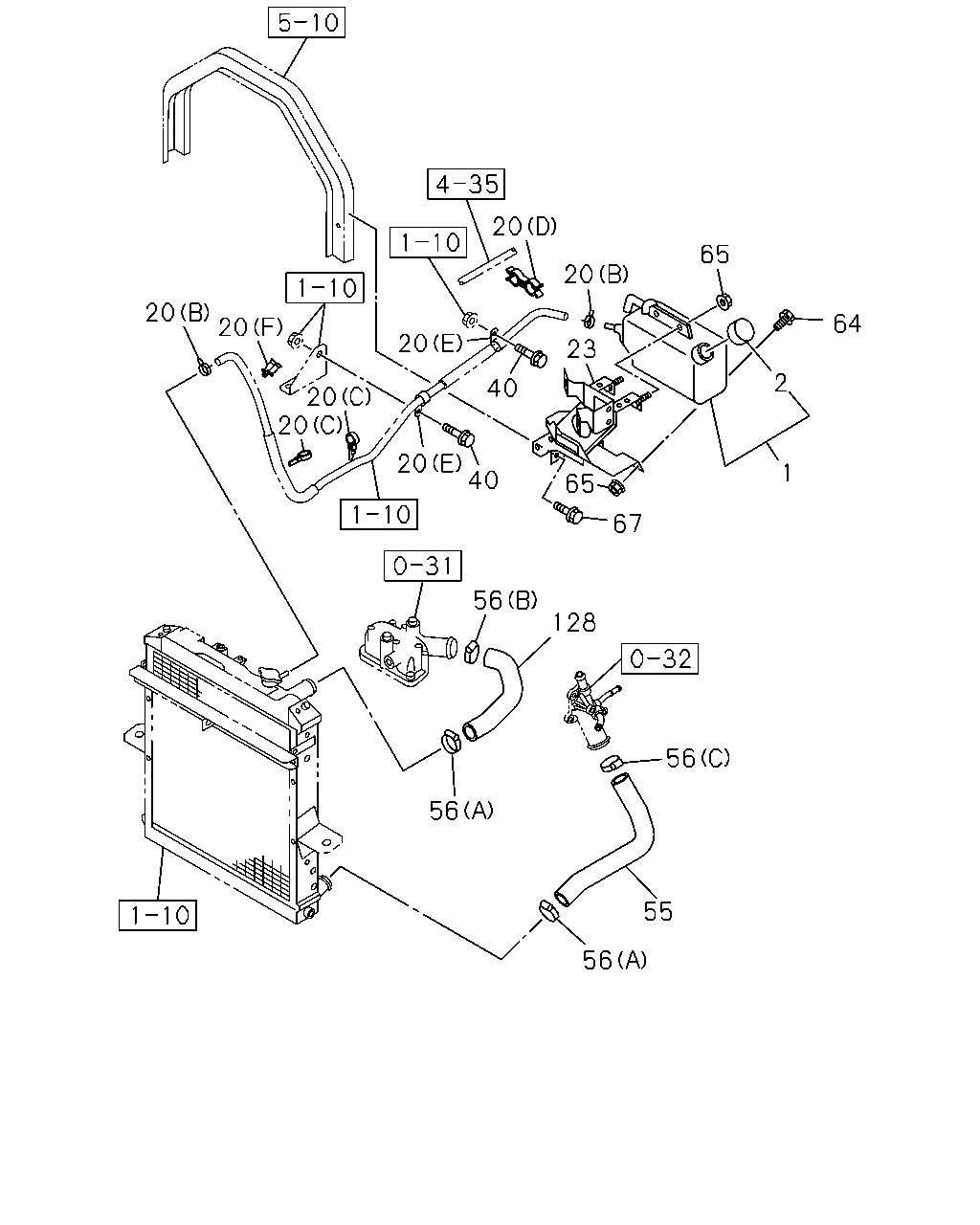

[111A] 4HK1 (24 parça)

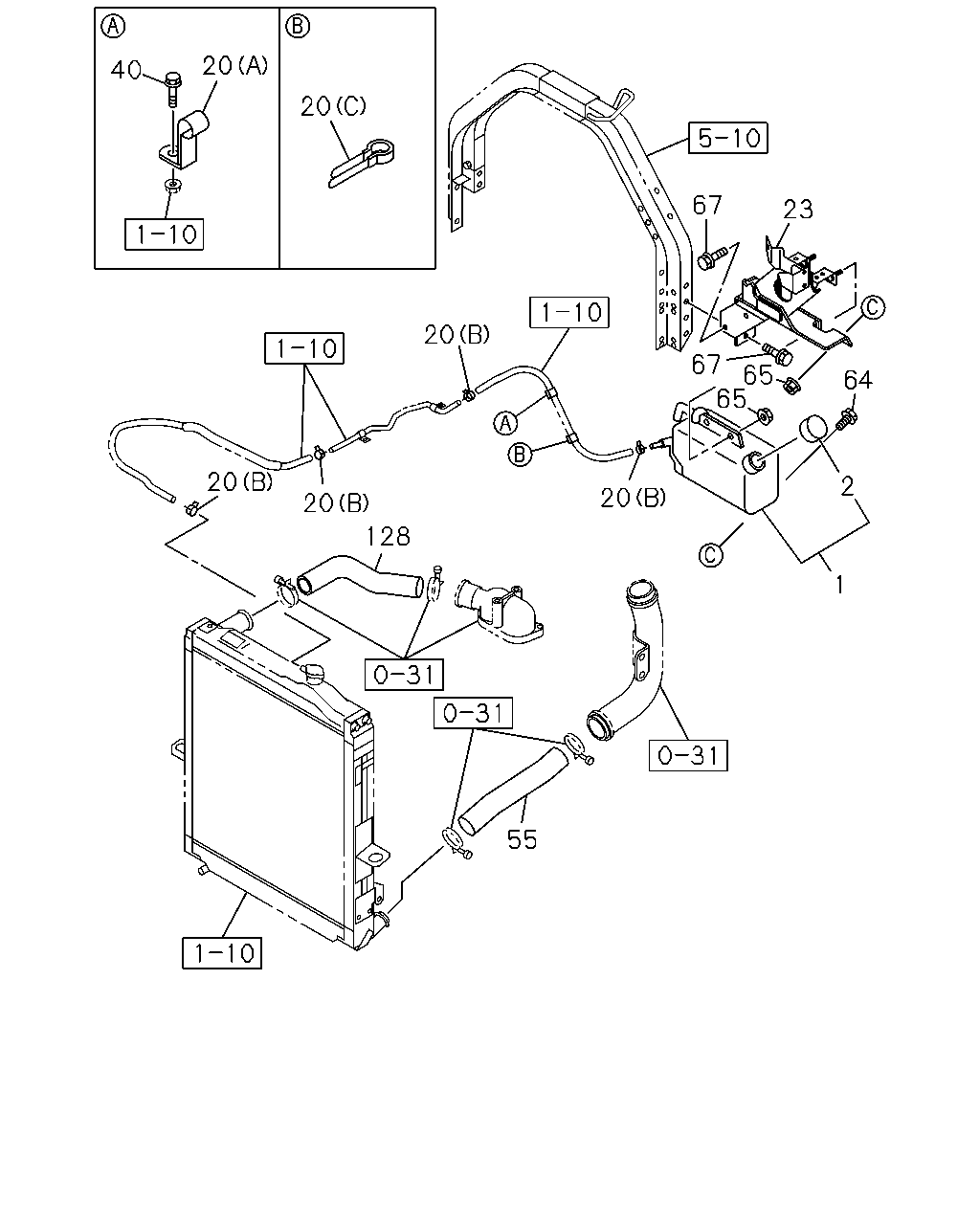

[111A] 6HK1 (21 parça)
▶
20
20
65
64
2
1
23
20
40
40
20
20
20
20
20
56
128
56
56
55
65
67
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
THA
8-98171-757-0
01
1
1410-
●
●
2
CAP; SURGE TANK
THA
8-98178-074-0
01
1
1410-
●
●
20
CLIP; HOSE,RAD
(E) ID=13 L=20 THA
0-95235-235-0
02
1
1410-
●
20
CLIP; HOSE,RAD
(E) ID=12 L=70 THA
1-09700-097-1
01
1
1410-
●
20
CLIP; HOSE,RAD
(D) ID=11.5 & 14.5 THA
8-94314-293-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(B) ID=11.5 THA
8-97375-638-0
02
1
1410-
●
20
CLIP; HOSE,RAD
(F) ID=12 THA
8-98029-256-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50 THA
9-09917-430-0
01
1
1410-
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50 THA
9-09917-430-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25 THA
1-09700-620-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(B) ID=11.5 THA
8-97375-638-0
04
1
1410-
●
23
BRACKET; RESERVE TANK
THA
8-97948-686-0
01
1
1410-
●
●
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
03
1
1410-
●
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1410-
●
55
HOSE; WATER,RAD OUTLET
THA
8-97924-242-1
01
1
1410-
●
55
HOSE; WATER,RAD OUTLET
THA
8-97924-163-0
01
1
1410-
●
56
CLIP; WATER HOSE,RAD
(B) ID=52 THA
1-09704-057-0
01
1
1410-
●
56
CLIP; WATER HOSE,RAD
(A) ID=48 THA
8-98133-956-0
02
1
1410-
●
56
CLIP; WATER HOSE,RAD
(C) ID=62 THA
8-98133-957-0
01
1
1410-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER THA
1-09030-093-0
01
1
1410-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE THA
0-91180-108-0
03
1
1410-
●
●
67
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
03
1
1410-
●
●
128
HOSE; WATER,RAD INL
THA
8-98205-873-0
01
1
1410-
●
128
HOSE; WATER,RAD INL
THA
8-97924-161-0
01
1
1410-
●
20
20
40
67
23
64
67
65
65
2
1
20
20
20
20
128
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
THA
8-98171-757-0
01
1
1410-
●
●
2
CAP; SURGE TANK
THA
8-98178-074-0
01
1
1410-
●
●
20
CLIP; HOSE,RAD
(E) ID=13 L=20 THA
0-95235-235-0
02
1
1410-
●
20
CLIP; HOSE,RAD
(E) ID=12 L=70 THA
1-09700-097-1
01
1
1410-
●
20
CLIP; HOSE,RAD
(D) ID=11.5 & 14.5 THA
8-94314-293-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(B) ID=11.5 THA
8-97375-638-0
02
1
1410-
●
20
CLIP; HOSE,RAD
(F) ID=12 THA
8-98029-256-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50 THA
9-09917-430-0
01
1
1410-
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50 THA
9-09917-430-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25 THA
1-09700-620-0
01
1
1410-
●
20
CLIP; HOSE,RAD
(B) ID=11.5 THA
8-97375-638-0
04
1
1410-
●
23
BRACKET; RESERVE TANK
THA
8-97948-686-0
01
1
1410-
●
●
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
03
1
1410-
●
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1410-
●
55
HOSE; WATER,RAD OUTLET
THA
8-97924-242-1
01
1
1410-
●
55
HOSE; WATER,RAD OUTLET
THA
8-97924-163-0
01
1
1410-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER THA
1-09030-093-0
01
1
1410-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE THA
0-91180-108-0
03
1
1410-
●
●
67
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
03
1
1410-
●
●
128
HOSE; WATER,RAD INL
THA
8-98205-873-0
01
1
1410-
●
128
HOSE; WATER,RAD INL
THA
8-97924-161-0
01
1
1410-
●
