Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#150229) — 168 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[110A] 6HK1;NO.1 (38 parça)
[110A] 6HK1;NO.3 (12 parça)
[110A] 6HK1;NO.2 (34 parça)
[110A] 4HK1;NO.1 (41 parça)
[110A] 4HK1;NO.2 (43 parça)
▶

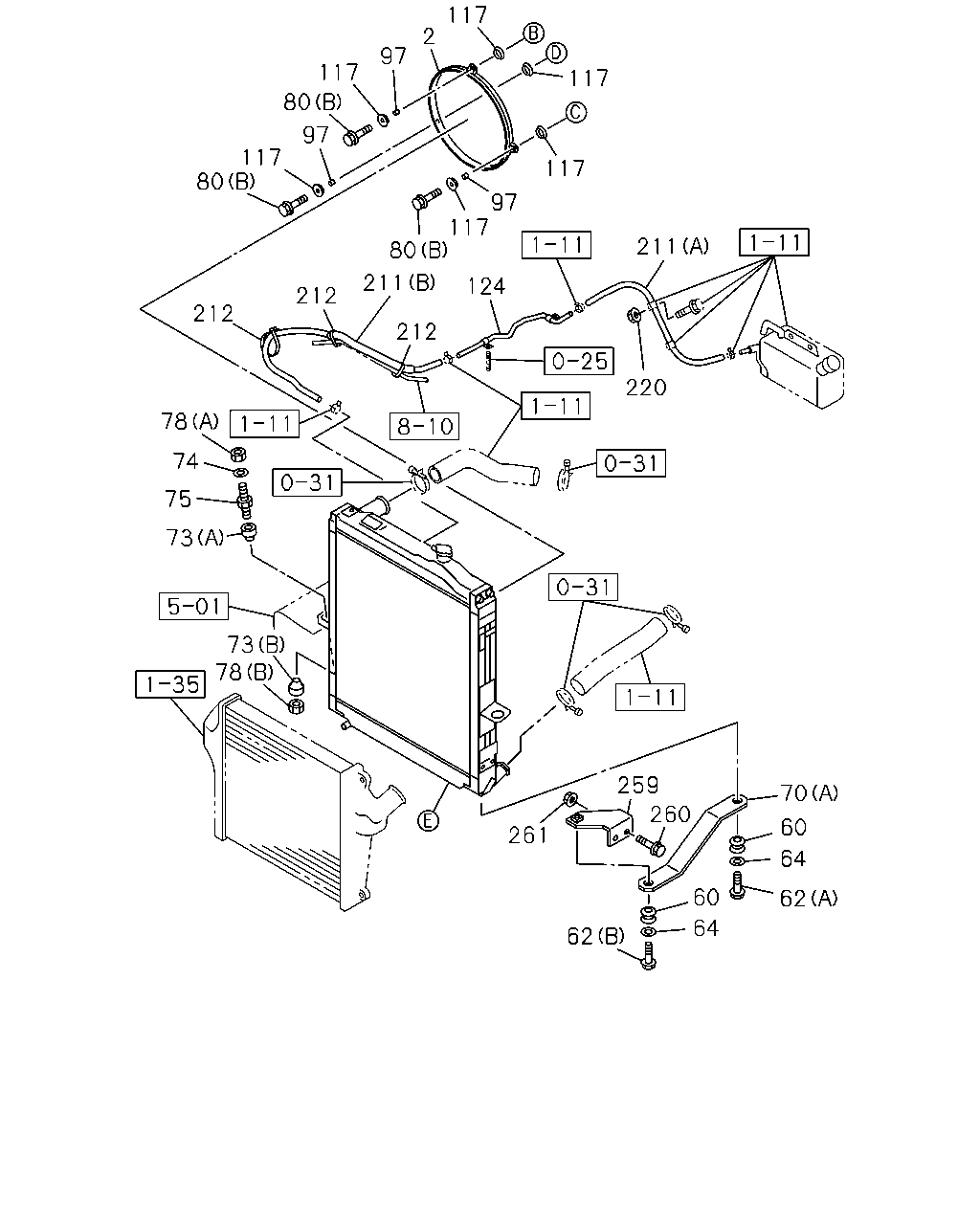

117
117
117
117
211
212
212
117
80
80
117
97
97
2
124
211
220
78
73
75
74
212
78
73
261
62
64
60
260
259
70
60
64
62
80
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
THA
8-97350-995-0
01
1
1410-
●
2
GUIDE; FAN
THA
8-94393-779-1
01
1
1410-
●
60
GROMMET
THA
1-09332-117-0
04
1
1410-
●
62
BOLT; STAY
(C) M8X12 FLANGE THA
0-28050-812-0
02
1
1410-
●
62
BOLT; STAY
(A) M8X30 THA
1-09009-020-1
02
1
1410-
●
62
BOLT; STAY
(B) M8X26 THA
1-09009-175-0
02
1
1410-
●
64
WASHER; STAY TO RAD
ID=10.5 THA
0-91610-510-0
02
1
1410-
●
64
WASHER; STAY TO RAD
ID=12.5 OD=26 THA
0-91610-612-0
04
1
1410-
●
70
STAY; RAD
(B) THA
8-98010-657-0
01
1
1410-
●
70
STAY; RAD
(C) THA
8-98018-941-0
01
1
1410-
●
70
STAY; RAD
(A) THA
8-98004-132-2
02
1
1410-
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14 THA
1-21467-004-0
02
1
1410-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24 THA
1-21467-011-1
02
1
1410-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 THA
1-09503-154-2
02
1
1410-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 THA
1-21466-007-3
02
1
1410-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE THA
0-91180-110-0
02
1
1410-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE THA
0-91180-212-0
02
1
1410-
●
●
80
BOLT; FAN GUIDE
(C) M6X16 FLANGE THA
0-28050-616-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1410-
●
●
97
TUBE; DIST,FAN GUIDE
THA
9-09651-072-0
03
1
1410-
●
117
RUBBER; MTG,FAN GUIDE
THA
1-09337-027-0
06
1
1410-
●
117
RUBBER; MTG,FAN GUIDE
THA
8-94395-766-0
06
1
1410-
●
124
PIPE; WATER,TANK TO RAD
THA
8-97611-022-1
01
1
1410-
●
211
HOSE; RAD TO PIPE
(C) THA
8-98206-622-3
01
1
1410-
●
211
HOSE; RAD TO PIPE
(B) L=940 THA
8-98073-544-0
01
1
1410-
●
211
HOSE; RAD TO PIPE
(A) L=560 THA
8-98119-375-0
01
1
1410-
●
212
CLIP; HOSE
L=250 THA
5-09707-030-1
02
1
1410-
●
212
CLIP; HOSE
L=140 THA
5-09707-031-1
01
1
1410-
●
220
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
●
220
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
259
BRACKET; RAD STAY
THA
8-98179-846-0
01
1
1410-
●
259
BRACKET; RAD STAY
THA
8-98071-821-0
01
1
1410-
●
259
BRACKET; RAD STAY
THA
8-98071-822-0
01
1
1410-
●
260
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
●
260
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
04
1
1410-
●
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1410-
●

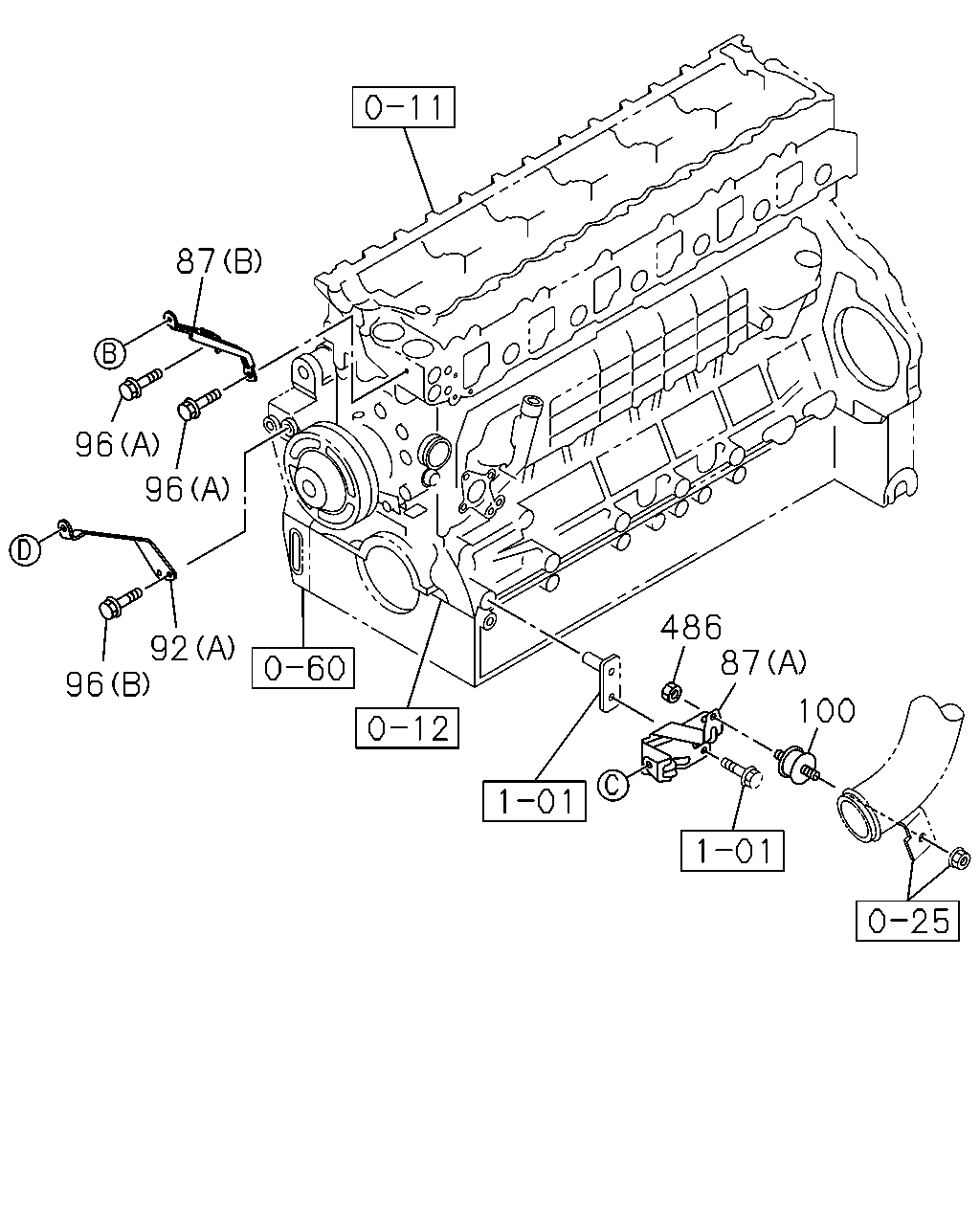

87
96
96
92
96
486
87
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
87
STAY; FAN GUIDE
(B) THA
8-94393-776-1
01
1
1410-
●
87
STAY; FAN GUIDE
(A) THA
8-94393-778-2
01
1
1410-
●
92
BRACKET; FAN GUIDE
(A) THA
8-97350-997-0
01
1
1410-
●
92
BRACKET; FAN GUIDE
(B) THA
8-97386-233-0
01
1
1410-
●
92
BRACKET; FAN GUIDE
(A) THA
8-97602-988-0
01
1
1410-
●
92
BRACKET; FAN GUIDE
(C) THA
8-97382-827-2
01
1
1410-
●
96
BOLT; STAY FIX
(A) M10X75 FLANGE THA
8-94399-669-1
02
1
1410-
●
96
BOLT; STAY FIX
(A) M10X16 FLANGE THA
0-28151-016-0
02
1
1410-
●
96
BOLT; STAY FIX
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1410-
●
96
BOLT; STAY FIX
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
●
100
RUBBER; MTG
THA
8-98148-109-0
01
1
1410-
●
486
NUT; MTG RUBBER
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●

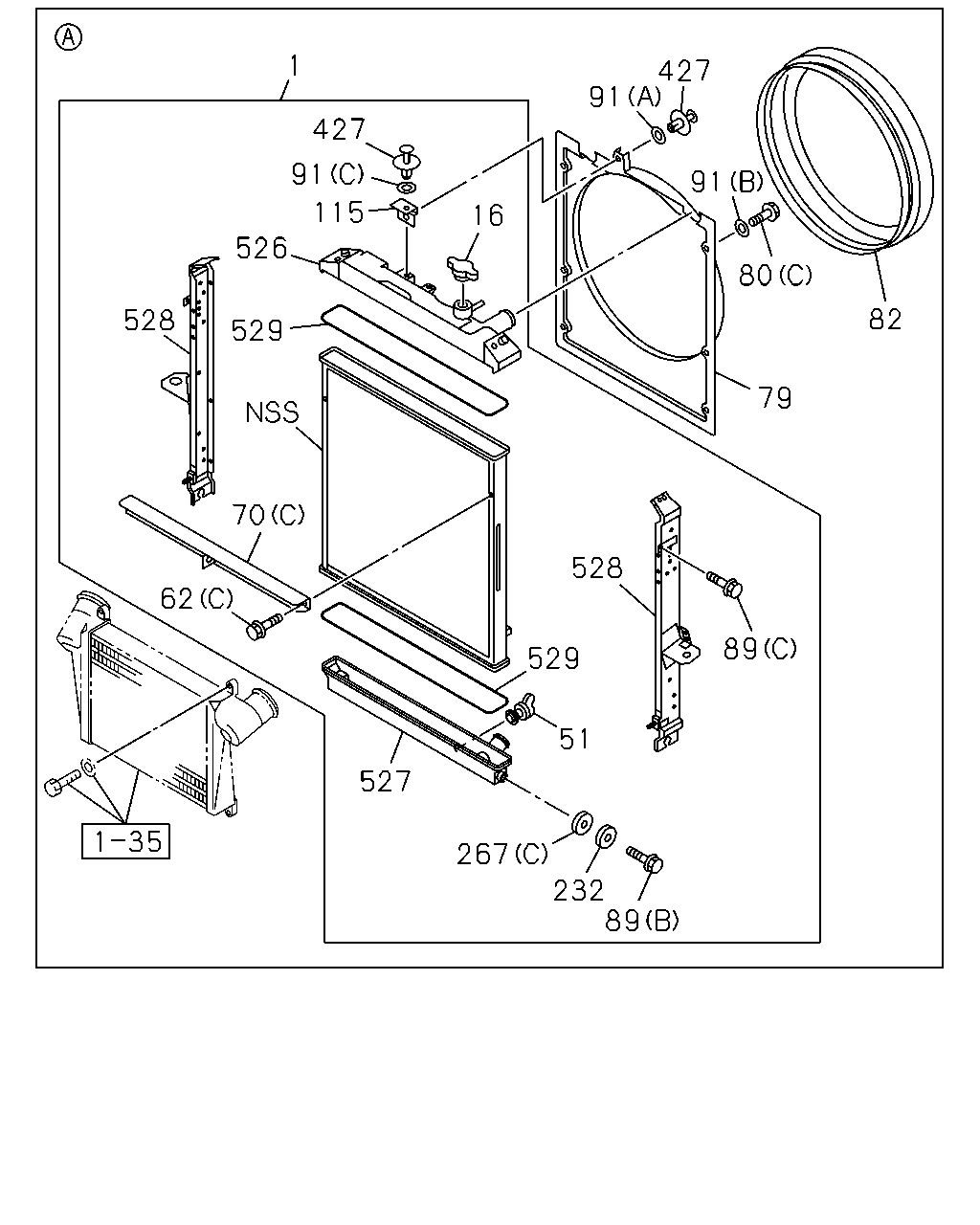

1
427
79
16
526
529
528
267
80
82
89
232
528
529
267
235
89
527
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
THA
8-98206-624-0
01
1
1410-
●
1
RADIATOR ASM
THA
8-98042-837-3
01
1
1410-
●
16
CAP; RAD
THA
8-98096-226-0
01
1
1410-
●
16
CAP; RAD
THA
8-97239-187-0
01
1
1410-
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1410-
●
●
79
GUIDE; FAN,RAD
THA
8-98010-297-0
01
1
1410-
●
79
GUIDE; FAN,RAD
THA
8-98004-207-0
01
1
1410-
●
80
BOLT; FAN GUIDE
(C) M6X16 FLANGE THA
0-28050-616-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1410-
●
●
82
COVER; FAN,RAD
THA
8-98006-478-0
01
1
1410-
●
82
COVER; FAN,RAD
THA
8-98004-211-0
01
1
1410-
●
89
BOLT
(C) M8X12 FLANGE THA
0-28050-812-0
02
1
1410-
●
89
BOLT
(B) M8X25 THA
1-21469-153-0
02
1
1410-
●
89
BOLT
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1410-
●
89
BOLT
(B) M8X25 THA
1-21469-153-0
04
1
1410-
●
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
02
1
1410-
●
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
04
1
1410-
●
235
WASHER; CUSHION RUBBER
THA
1-21469-133-0
02
1
1410-
●
267
RUBBER; CUSHION
(C) THA
1-21467-023-0
02
1
1410-
●
267
RUBBER; CUSHION
(A) THA
1-21469-130-0
04
1
1410-
●
267
RUBBER; CUSHION
(B) THA
1-21469-131-0
02
1
1410-
●
427
CLIP; FAN GUIDE
THA
1-09470-009-0
02
1
1410-
●
427
CLIP; FAN GUIDE
THA
1-09470-009-0
01
1
1410-
●
526
TANK; UPR,RADIATOR CORE
THA
8-98107-793-0
01
1
1410-
●
526
TANK; UPR,RADIATOR CORE
THA
8-98004-202-2
01
1
1410-
●
527
TANK; LWR,RADIATOR CORE
THA
8-98032-433-1
01
1
1410-
●
527
TANK; LWR,RADIATOR CORE
THA
8-98004-203-0
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98206-626-0
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98206-627-0
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98042-838-3
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98042-839-2
01
1
1410-
●
529
GASKET; CORE,RADIATOR
THA
8-98032-435-0
02
1
1410-
●
529
GASKET; CORE,RADIATOR
THA
8-98004-206-0
02
1
1410-
●

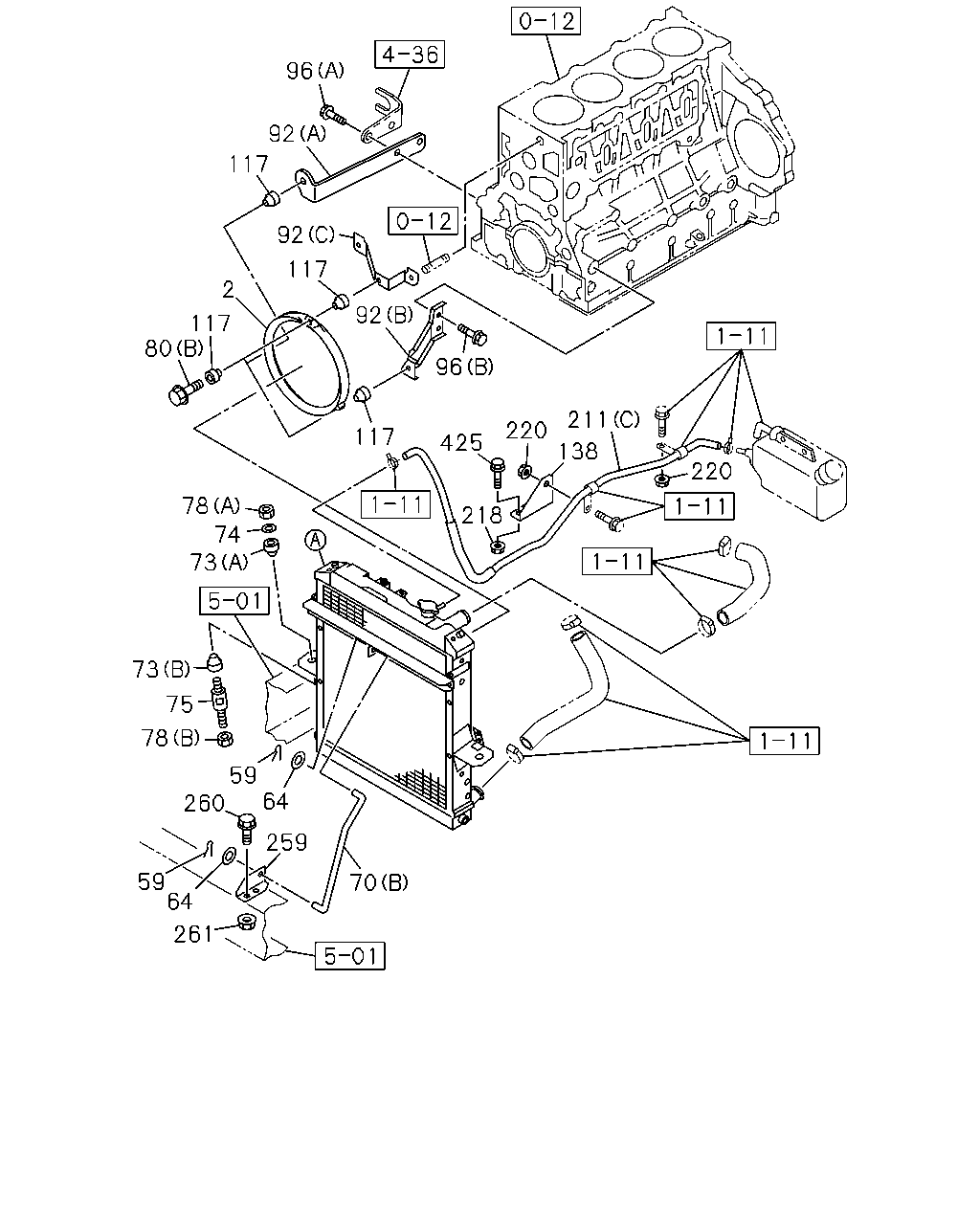

211
220
425
218
220
138
96
117
92
117
92
117
92
96
78
73
73
75
78
260
64
59
261
59
64
2
117
70
259
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GUIDE; FAN
THA
8-97350-995-0
01
1
1410-
●
2
GUIDE; FAN
THA
8-94393-779-1
01
1
1410-
●
59
PIN; SNAP,STAY
L=32.6 THA
8-97359-052-0
02
1
1410-
●
64
WASHER; STAY TO RAD
ID=10.5 THA
0-91610-510-0
02
1
1410-
●
64
WASHER; STAY TO RAD
ID=12.5 OD=26 THA
0-91610-612-0
04
1
1410-
●
70
STAY; RAD
(B) THA
8-98010-657-0
01
1
1410-
●
70
STAY; RAD
(C) THA
8-98018-941-0
01
1
1410-
●
70
STAY; RAD
(A) THA
8-98004-132-2
02
1
1410-
●
73
RUBBER; CUSHION,RAD MTG
(A) T=14 THA
1-21467-004-0
02
1
1410-
●
●
73
RUBBER; CUSHION,RAD MTG
(B) T=24 THA
1-21467-011-1
02
1
1410-
●
●
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 THA
1-21466-007-3
02
1
1410-
●
●
78
NUT; CUSHION RUBBER
(A) M10 FLANGE THA
0-91180-110-0
02
1
1410-
●
●
78
NUT; CUSHION RUBBER
(B) M12 FLANGE THA
0-91180-212-0
02
1
1410-
●
●
80
BOLT; FAN GUIDE
(C) M6X16 FLANGE THA
0-28050-616-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1410-
●
●
92
BRACKET; FAN GUIDE
(A) THA
8-97350-997-0
01
1
1410-
●
92
BRACKET; FAN GUIDE
(B) THA
8-97386-233-0
01
1
1410-
●
92
BRACKET; FAN GUIDE
(A) THA
8-97602-988-0
01
1
1410-
●
92
BRACKET; FAN GUIDE
(C) THA
8-97382-827-2
01
1
1410-
●
96
BOLT; STAY FIX
(A) M10X75 FLANGE THA
8-94399-669-1
02
1
1410-
●
96
BOLT; STAY FIX
(A) M10X16 FLANGE THA
0-28151-016-0
02
1
1410-
●
96
BOLT; STAY FIX
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1410-
●
96
BOLT; STAY FIX
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
●
117
RUBBER; MTG,FAN GUIDE
THA
1-09337-027-0
06
1
1410-
●
117
RUBBER; MTG,FAN GUIDE
THA
8-94395-766-0
06
1
1410-
●
138
BRACKET; CLIP
THA
8-98226-427-0
01
1
1410-
●
211
HOSE; RAD TO PIPE
(C) THA
8-98206-622-3
01
1
1410-
●
211
HOSE; RAD TO PIPE
(B) L=940 THA
8-98073-544-0
01
1
1410-
●
211
HOSE; RAD TO PIPE
(A) L=560 THA
8-98119-375-0
01
1
1410-
●
218
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
220
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
●
220
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
●
259
BRACKET; RAD STAY
THA
8-98179-846-0
01
1
1410-
●
259
BRACKET; RAD STAY
THA
8-98071-821-0
01
1
1410-
●
259
BRACKET; RAD STAY
THA
8-98071-822-0
01
1
1410-
●
260
BOLT; BRKT
M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
●
260
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
04
1
1410-
●
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1410-
●
425
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
02
1
1410-
●

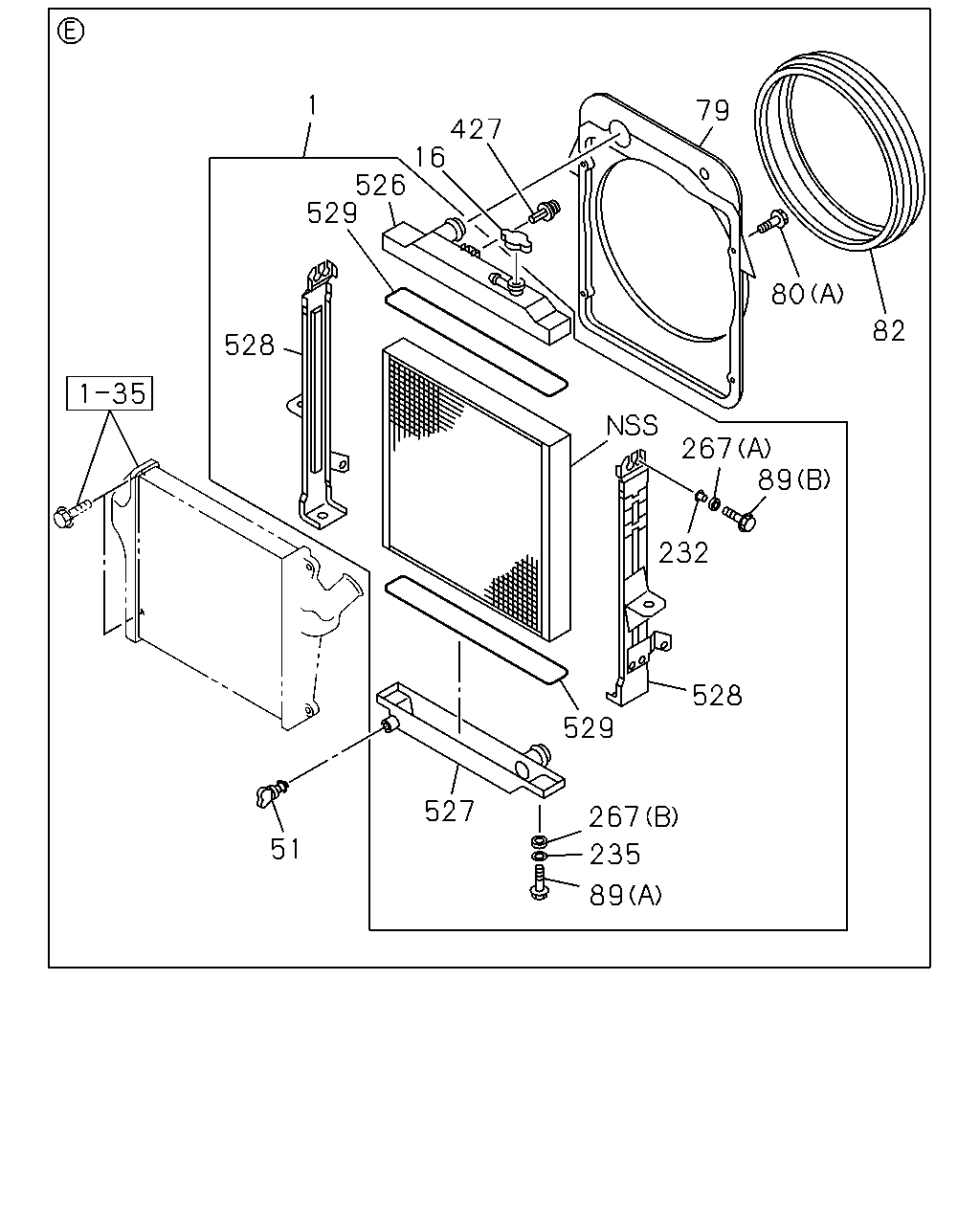

89
232
267
527
51
529
89
528
62
70
528
526
529
115
16
91
427
91
427
80
79
82
91
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
THA
8-98206-624-0
01
1
1410-
●
1
RADIATOR ASM
THA
8-98042-837-3
01
1
1410-
●
16
CAP; RAD
THA
8-98096-226-0
01
1
1410-
●
16
CAP; RAD
THA
8-97239-187-0
01
1
1410-
●
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1410-
●
●
62
BOLT; STAY
(C) M8X12 FLANGE THA
0-28050-812-0
02
1
1410-
●
62
BOLT; STAY
(A) M8X30 THA
1-09009-020-1
02
1
1410-
●
62
BOLT; STAY
(B) M8X26 THA
1-09009-175-0
02
1
1410-
●
70
STAY; RAD
(B) THA
8-98010-657-0
01
1
1410-
●
70
STAY; RAD
(C) THA
8-98018-941-0
01
1
1410-
●
70
STAY; RAD
(A) THA
8-98004-132-2
02
1
1410-
●
79
GUIDE; FAN,RAD
THA
8-98010-297-0
01
1
1410-
●
79
GUIDE; FAN,RAD
THA
8-98004-207-0
01
1
1410-
●
80
BOLT; FAN GUIDE
(C) M6X16 FLANGE THA
0-28050-616-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1410-
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1410-
●
●
82
COVER; FAN,RAD
THA
8-98006-478-0
01
1
1410-
●
82
COVER; FAN,RAD
THA
8-98004-211-0
01
1
1410-
●
89
BOLT
(C) M8X12 FLANGE THA
0-28050-812-0
02
1
1410-
●
89
BOLT
(B) M8X25 THA
1-21469-153-0
02
1
1410-
●
89
BOLT
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1410-
●
89
BOLT
(B) M8X25 THA
1-21469-153-0
04
1
1410-
●
91
WASHER; PL
(A) ID=8.4 OD=18 THA
0-91610-608-0
01
1
1410-
●
91
WASHER; PL
(B) ID=6.4 OD=18 THA
0-91610-706-0
04
1
1410-
●
91
WASHER; PL
(C) THA
1-21469-111-0
01
1
1410-
●
115
BRACKET; FAN GUIDE
THA
8-98204-117-0
01
1
1410-
●
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
02
1
1410-
●
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
04
1
1410-
●
267
RUBBER; CUSHION
(C) THA
1-21467-023-0
02
1
1410-
●
267
RUBBER; CUSHION
(A) THA
1-21469-130-0
04
1
1410-
●
267
RUBBER; CUSHION
(B) THA
1-21469-131-0
02
1
1410-
●
427
CLIP; FAN GUIDE
THA
1-09470-009-0
02
1
1410-
●
427
CLIP; FAN GUIDE
THA
1-09470-009-0
01
1
1410-
●
526
TANK; UPR,RADIATOR CORE
THA
8-98107-793-0
01
1
1410-
●
526
TANK; UPR,RADIATOR CORE
THA
8-98004-202-2
01
1
1410-
●
527
TANK; LWR,RADIATOR CORE
THA
8-98032-433-1
01
1
1410-
●
527
TANK; LWR,RADIATOR CORE
THA
8-98004-203-0
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98206-626-0
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98206-627-0
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98042-838-3
01
1
1410-
●
528
PLATE; SIDE,RADIATOR CORE
THA
8-98042-839-2
01
1
1410-
●
529
GASKET; CORE,RADIATOR
THA
8-98032-435-0
02
1
1410-
●
529
GASKET; CORE,RADIATOR
THA
8-98004-206-0
02
1
1410-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
