11647 - FTR THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#150228) — 28 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

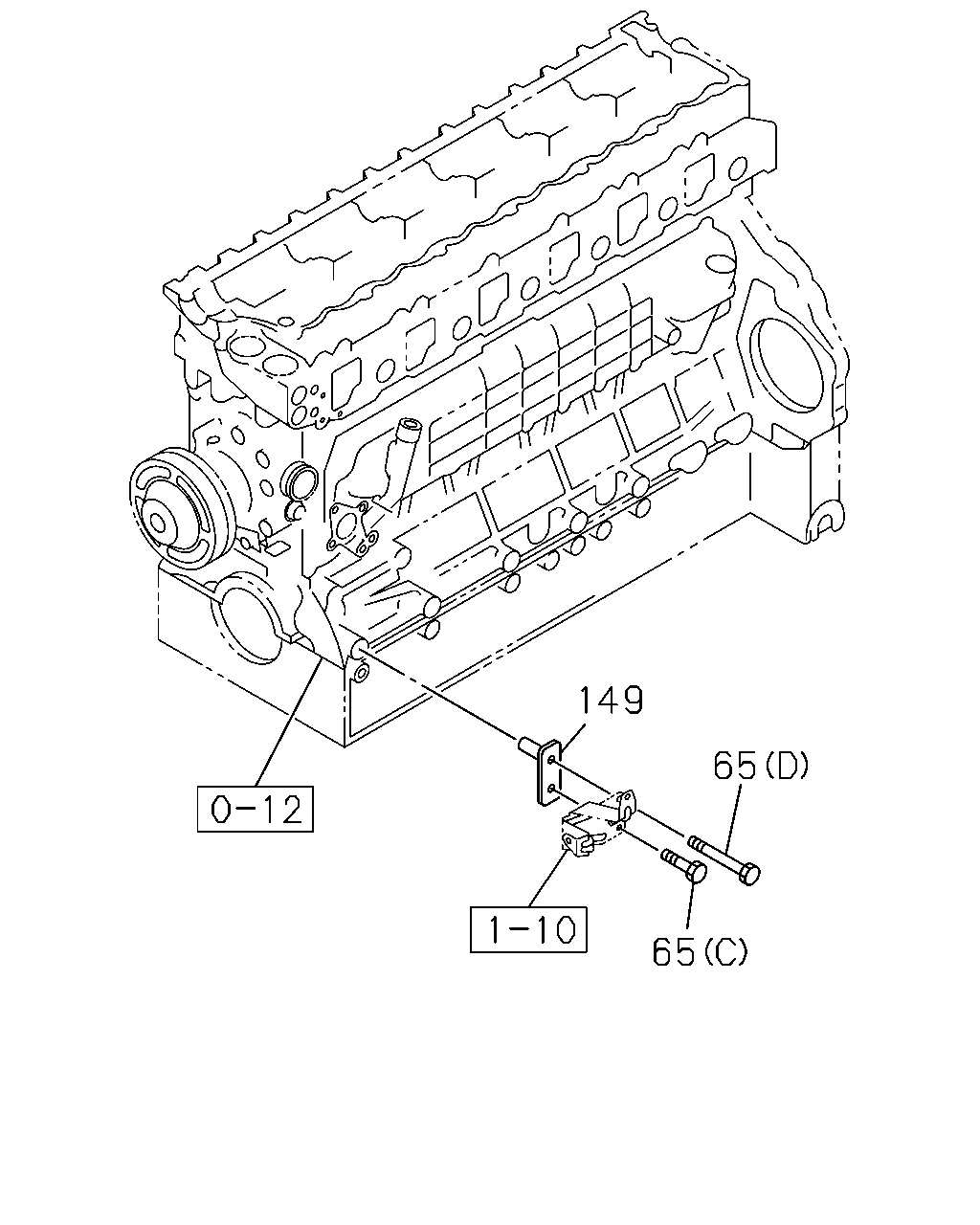

[101A] 6HK1;ENGINE CONTROL BRACKET (5 parça)

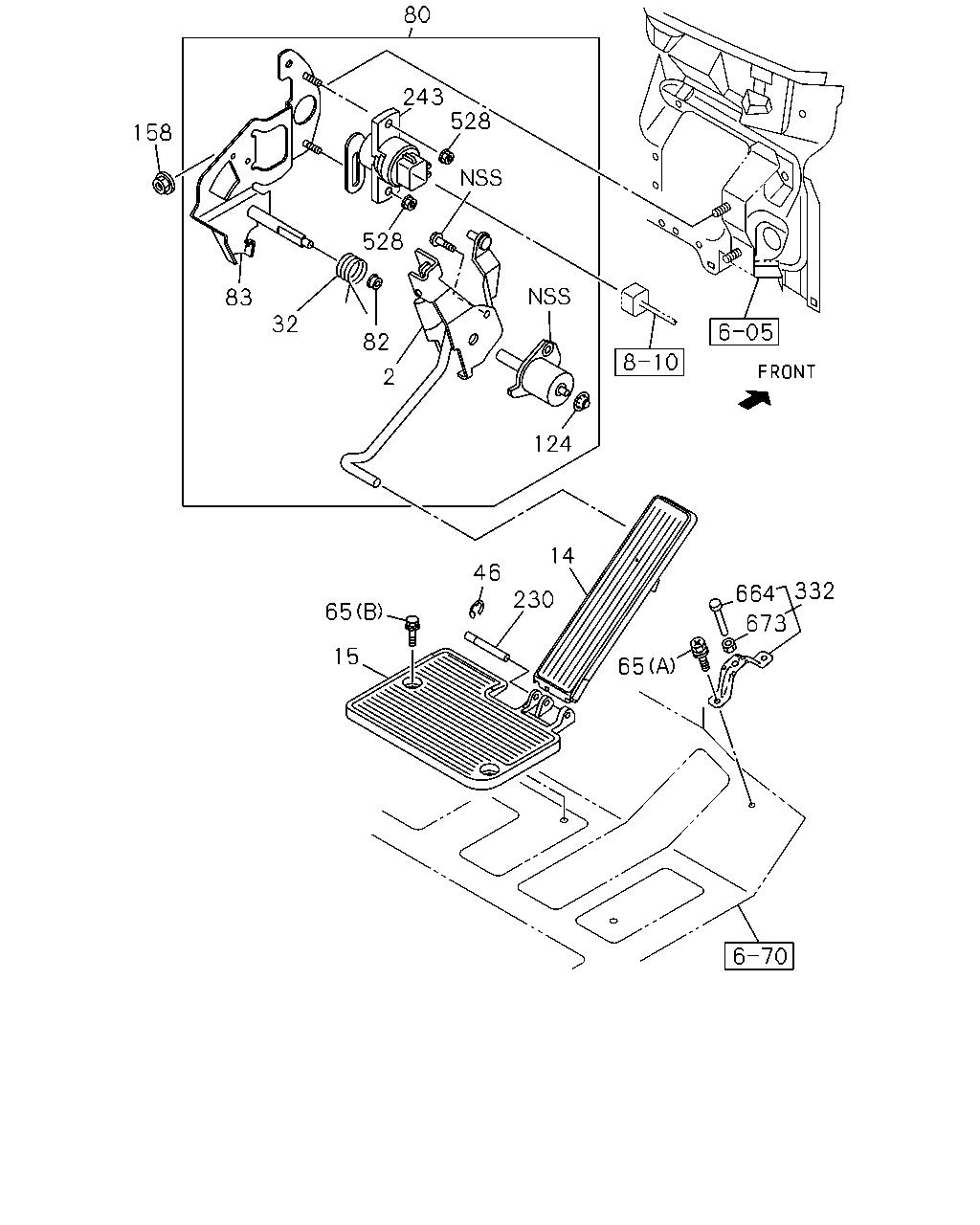

[101A] ACCEL PEDAL AND LINK ASM (20 parça)

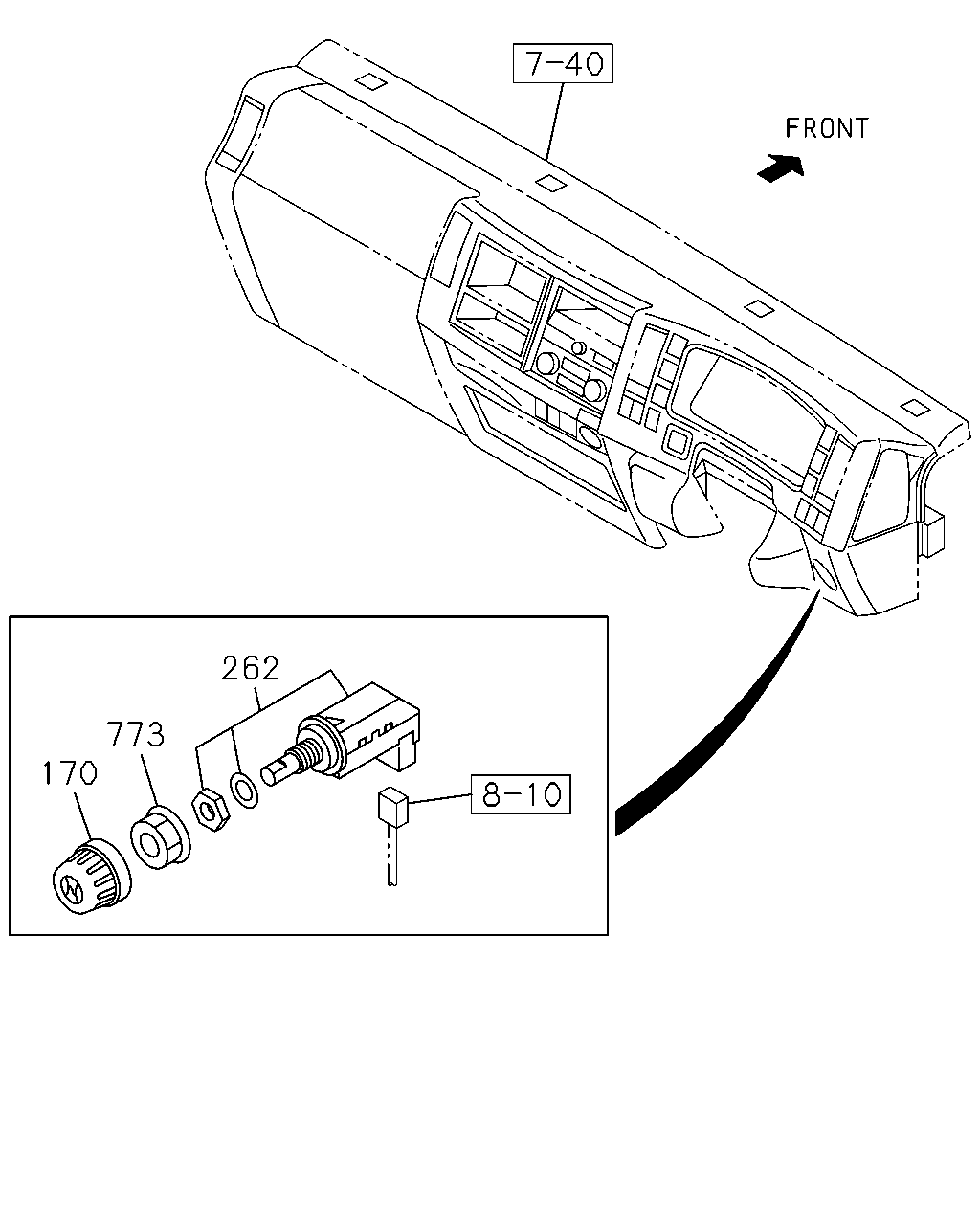

[101A] IDLE SWITCH (3 parça)
▶
149
65
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
65
BOLT
(B) M6X28 W/LK&PL WASHER THA
1-09980-543-0
02
1
1410-
●
●
65
BOLT
(A) M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
02
1
1410-
●
●
65
BOLT
(D) M10X60 THA
0-16861-060-0
01
1
1410-
●
65
BOLT
(C) M10X20 FLANGE THA
0-28151-020-0
01
1
1410-
●
149
BRACKET; ENG CONT
THA
8-98045-009-0
01
1
1410-
●
80
243
158
83
528
528
124
65
46
230
15
65
664
673
332
2
82
32
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
LEVER; ENG CONT
THA
8-98049-120-1
01
1
1410-
●
●
14
PAD; PEDAL,ACCEL
THA
8-97948-317-0
01
1
1410-
●
●
15
STAND; HEEL,ACCEL PEDAL
THA
8-97948-308-0
01
1
1410-
●
●
32
SPRING; RETURN,ACCEL PEDAL
THA
8-98031-665-0
01
1
1410-
●
●
46
RING; SNAP,ACCEL CONT PEDAL
ID=4 THA
0-91805-504-0
01
1
1410-
●
●
65
BOLT
(B) M6X28 W/LK&PL WASHER THA
1-09980-543-0
02
1
1410-
●
●
65
BOLT
(A) M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
02
1
1410-
●
●
65
BOLT
(D) M10X60 THA
0-16861-060-0
01
1
1410-
●
65
BOLT
(C) M10X20 FLANGE THA
0-28151-020-0
01
1
1410-
●
80
LINK ASM; ENG CONT
THA
8-98038-418-4
01
1
1410-
●
●
82
BUSHING; ENG CONT LVR
THA
8-97581-053-0
01
1
1410-
●
●
83
BRACKET; CONT LINK
THA
8-98020-217-0
01
1
1410-
●
●
124
NUT; LEVER
ID=7.9 PUSH NUT THA
8-94368-617-0
01
1
1410-
●
●
158
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1410-
●
●
230
PIN; JOINT,ACCEL PEDAL TO BRKT
THA
8-97948-309-0
01
1
1410-
●
●
243
SENSOR; ACCEL
THA
8-98131-263-0
01
1
1410-
●
●
332
BRACKET; ACCEL PEDAL STOPPER
THA
8-98011-468-2
01
1
1410-
●
●
528
NUT; ACCEL SENSOR
M5 THA
8-94169-022-0
02
1
1410-
●
●
664
BOLT; STOPPER
M8X40 THA
0-20850-840-0
01
1
1410-
●
●
673
NUT; STOPPER
M8 THA
0-91110-508-0
01
1
1410-
●
●
262
773
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
170
KNOB
THA
8-98013-420-0
01
1
1410-
●
●
262
SWITCH; ACCEL,IDLE
THA
8-98013-418-0
01
1
1410-
●
●
773
HOLDER; ACCEL PEDAL
THA
8-97352-127-0
01
1
1410-
●
●
