0-50 — OIL COOLER AND OIL FILTER (#150218) — 87 parça

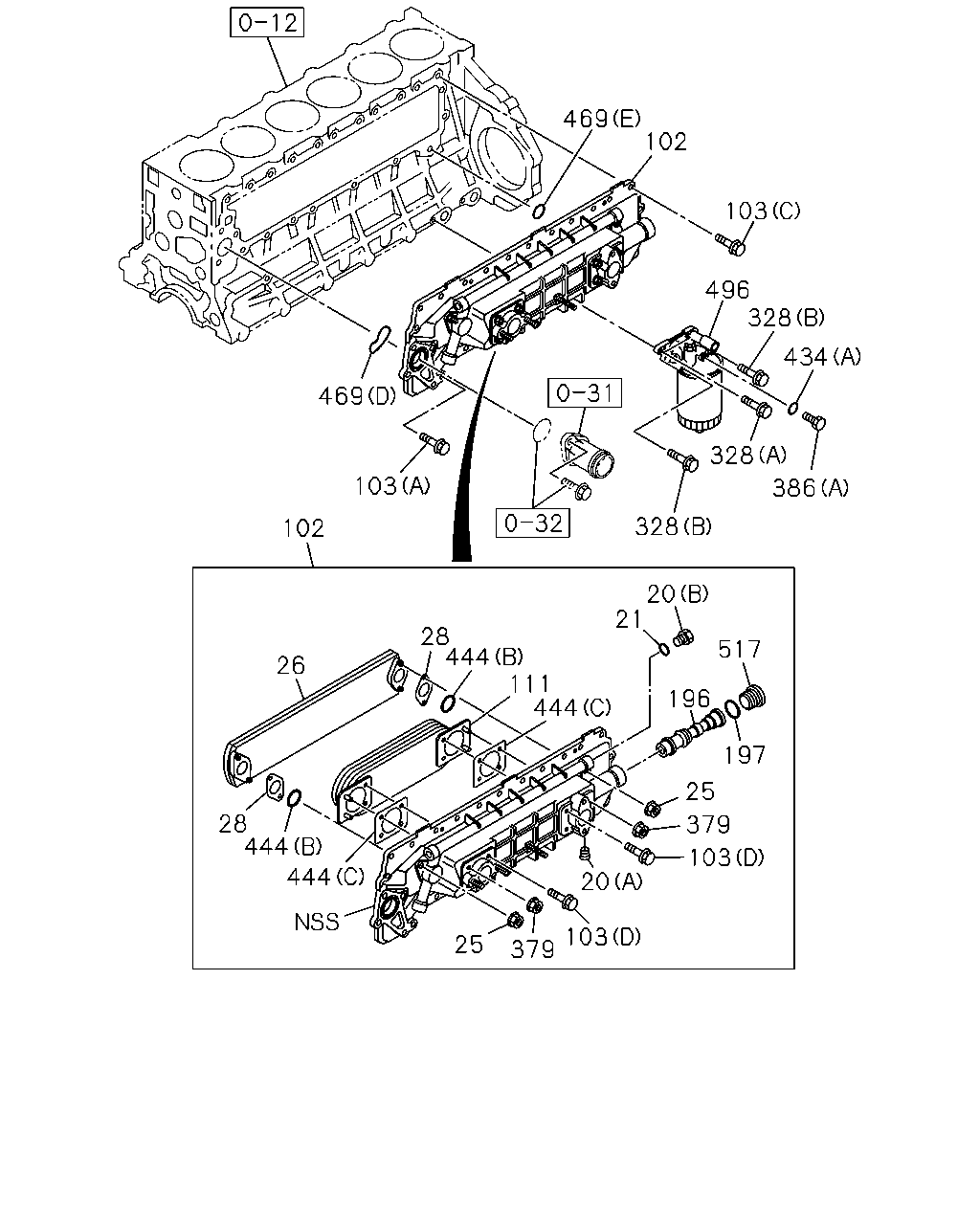

469 102 103 496 328 434 328 386 328 103 102 469 20 21 517 196 197 25 379 103 20 103 379 25 444 111 444 28 26 28 444 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A) THA	1-13219-240-0	02	1	1410-	●
20	PLUG; COOLER BODY (B) THA	8-97608-567-0	02	1	1410-	●
21	GASKET; PLUG THA	8-97608-568-0	02	1	1410-	●
25	NUT; CORE TO BODY M10 FLANGE THA	1-13219-324-0	04	1	1410-	●
26	CORE ASM; OIL COOLER THA	8-98062-207-0	01	1	1410-	●
28	GASKET; CORE TO BODY THA	8-94394-930-0	02	1	1410-	●
102	COOLER ASM; OIL THA	8-98085-312-5	01	1	1410-		●
102	COOLER ASM; OIL THA	8-98236-650-0	01	1	1410-	●
103	BOLT; OIL COOLER (B) M8X20 FLANGE THA	0-28050-820-0	08	1	1410-		●
103	BOLT; OIL COOLER (A) M8X35 FLANGE THA	0-28050-835-0	08	1	1410-		●
103	BOLT; OIL COOLER (A) M8X35 FLANGE THA	0-28050-835-0	03	1	1410-	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE THA	0-28650-830-0	24	1	1410-	●
103	BOLT; OIL COOLER (D) THA	8-98251-758-0	04	1	1410-	●
111	CORE; OIL COOLER THA	8-97334-100-2	01	1	1410-		●
111	CORE; OIL COOLER THA	8-98063-863-0	01	1	1410-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS THA	8-97600-936-0	01	1	1410-	●
197	GASKET; THERMOSTAT THA	8-94391-728-0	01	1	1410-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE THA	0-28151-030-0	02	1	1410-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE THA	0-28151-090-0	02	1	1410-	●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	03	1	1410-		●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	04	1	1410-	●
386	PLUG; OIL FILTER (A) M10X10 THA	1-09604-074-0	01	1	1410-	●
386	PLUG; OIL FILTER (B) THA	8-98238-941-0	01	1	1410-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2 THA	1-09630-083-0	01	1	1410-	●
434	GASKET; PLUG,OIL FILTER (B) THA	8-98238-942-0	01	1	1410-	●
444	GASKET; ELEMENT TO BODY (A) THA	8-97384-130-0	02	1	1410-		●
444	GASKET; ELEMENT TO BODY (B) ID=38.7 THA	1-09623-299-0	02	1	1410-	●
444	GASKET; ELEMENT TO BODY (C) THA	8-97601-801-0	02	1	1410-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA	8-94338-878-1	01	1	1410-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 THA	8-94399-339-0	01	1	1410-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE THA	8-98045-447-0	01	1	1410-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D) THA	8-94399-002-0	01	1	1410-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) THA	8-98045-449-0	01	1	1410-	●
496	FILTER ASM; OIL THA	8-97148-268-4	01	1	1410-		●
496	FILTER ASM; OIL THA	8-98236-649-0	01	1	1410-	●
517	PLUG; THERMOSTAT,OIL COOLER THA	8-94391-731-0	01	1	1410-	●

496 386 434 66 13 265 2 321 321 265 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER THA	8-97148-270-1	01	1	1410-		●
2	ELEMENT; OIL FILTER THA	8-94391-049-4	01	1	1410-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS THA	5-87610-031-0	01	1	1410-		●
13	VALVE; RELIEF THA	8-98238-944-0	01	1	1410-	●
66	SPRING; VLV THA	8-98238-943-0	01	1	1410-	●
265	BODY; OIL FILTER THA	8-97096-677-4	01	1	1410-		●
265	BODY; OIL FILTER THA	8-98238-939-0	01	1	1410-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 THA	8-94399-339-0	01	1	1410-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 THA	8-94399-399-0	02	1	1410-	●
386	PLUG; OIL FILTER (A) M10X10 THA	1-09604-074-0	01	1	1410-	●
386	PLUG; OIL FILTER (B) THA	8-98238-941-0	01	1	1410-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2 THA	1-09630-083-0	01	1	1410-	●
434	GASKET; PLUG,OIL FILTER (B) THA	8-98238-942-0	01	1	1410-	●
496	FILTER ASM; OIL THA	8-97148-268-4	01	1	1410-		●
496	FILTER ASM; OIL THA	8-98236-649-0	01	1	1410-	●

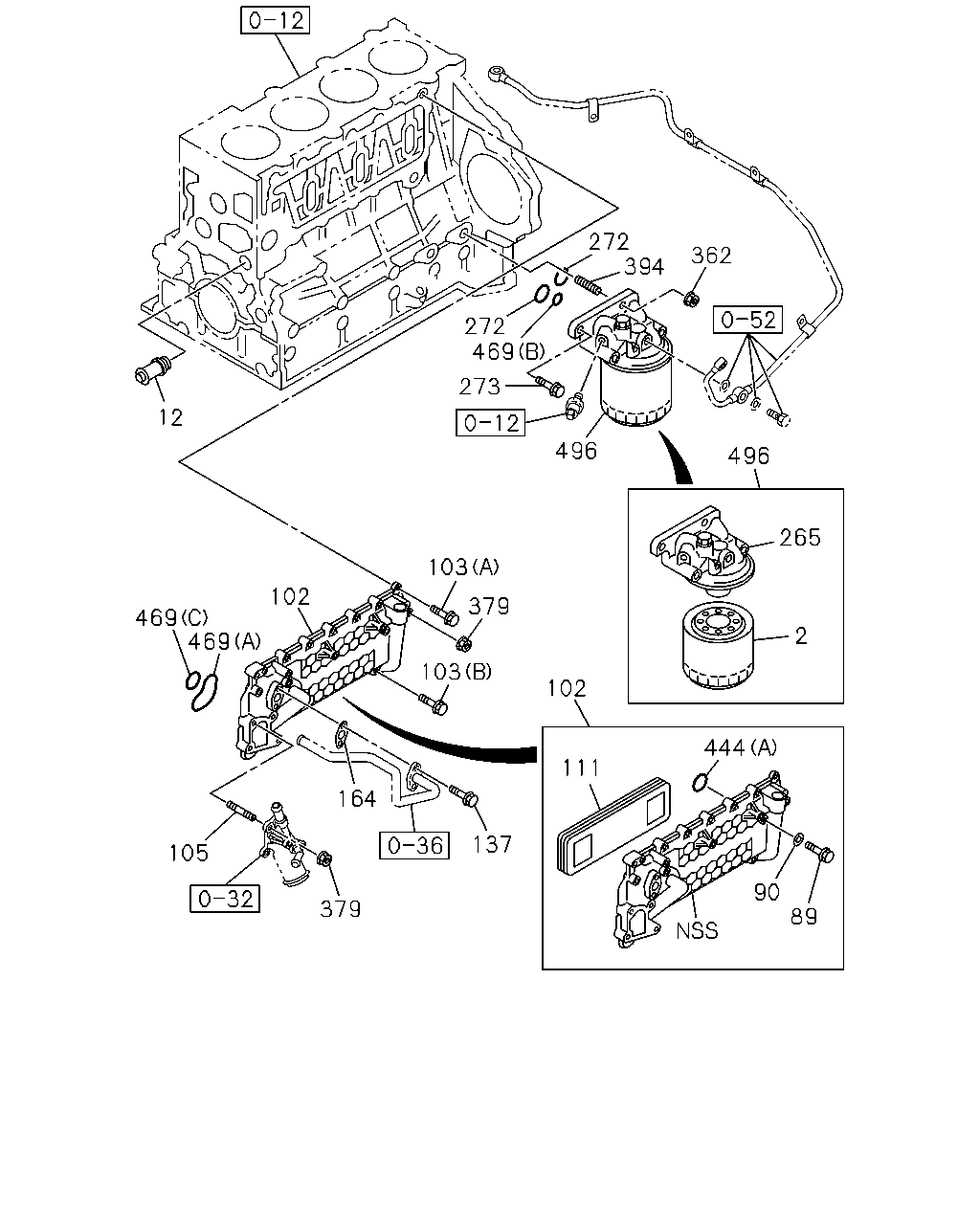

12 273 469 272 272 362 394 496 496 265 2 103 379 103 102 137 164 379 105 469 469 102 111 444 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER THA	8-97148-270-1	01	1	1410-		●
2	ELEMENT; OIL FILTER THA	8-94391-049-4	01	1	1410-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS THA	5-87610-031-0	01	1	1410-		●
12	VALVE ASM; BYPASS THA	8-97013-566-2	01	1	1410-		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE THA	0-28050-816-0	04	1	1410-		●
90	GASKET; BOLT,OIL COOLER THA	1-21729-043-0	04	1	1410-		●
102	COOLER ASM; OIL THA	8-98085-312-5	01	1	1410-		●
102	COOLER ASM; OIL THA	8-98236-650-0	01	1	1410-	●
103	BOLT; OIL COOLER (B) M8X20 FLANGE THA	0-28050-820-0	08	1	1410-		●
103	BOLT; OIL COOLER (A) M8X35 FLANGE THA	0-28050-835-0	08	1	1410-		●
103	BOLT; OIL COOLER (A) M8X35 FLANGE THA	0-28050-835-0	03	1	1410-	●
103	BOLT; OIL COOLER (C) M8X30 FLANGE THA	0-28650-830-0	24	1	1410-	●
103	BOLT; OIL COOLER (D) THA	8-98251-758-0	04	1	1410-	●
105	STUD; OIL COOLER M8X52 L=63 THA	8-97016-314-0	03	1	1410-		●
111	CORE; OIL COOLER THA	8-97334-100-2	01	1	1410-		●
111	CORE; OIL COOLER THA	8-98063-863-0	01	1	1410-	●
137	BOLT M8X20 FLANGE THA	0-28650-820-0	02	1	1410-		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97146-684-0	01	1	1410-		●
265	BODY; OIL FILTER THA	8-97096-677-4	01	1	1410-		●
265	BODY; OIL FILTER THA	8-98238-939-0	01	1	1410-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 THA	8-94399-399-0	02	1	1410-		●
273	BOLT; OIL FILTER M10X30 THA	0-59331-030-0	03	1	1410-		●
362	NUT; OIL FILTER M10 FLANGE THA	0-91180-110-0	01	1	1410-		●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	03	1	1410-		●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	04	1	1410-	●
394	STUD; OIL FILTER M10X25 L=48.5 THA	0-49241-025-0	01	1	1410-		●
444	GASKET; ELEMENT TO BODY (A) THA	8-97384-130-0	02	1	1410-		●
444	GASKET; ELEMENT TO BODY (B) ID=38.7 THA	1-09623-299-0	02	1	1410-	●
444	GASKET; ELEMENT TO BODY (C) THA	8-97601-801-0	02	1	1410-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA	8-94338-878-1	01	1	1410-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 THA	8-94399-339-0	01	1	1410-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE THA	8-98045-447-0	01	1	1410-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D) THA	8-94399-002-0	01	1	1410-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) THA	8-98045-449-0	01	1	1410-	●
496	FILTER ASM; OIL THA	8-97148-268-4	01	1	1410-		●
496	FILTER ASM; OIL THA	8-98236-649-0	01	1	1410-	●
