0-42 — FUEL PUMP AND PIPE (#150217) — 16 parça

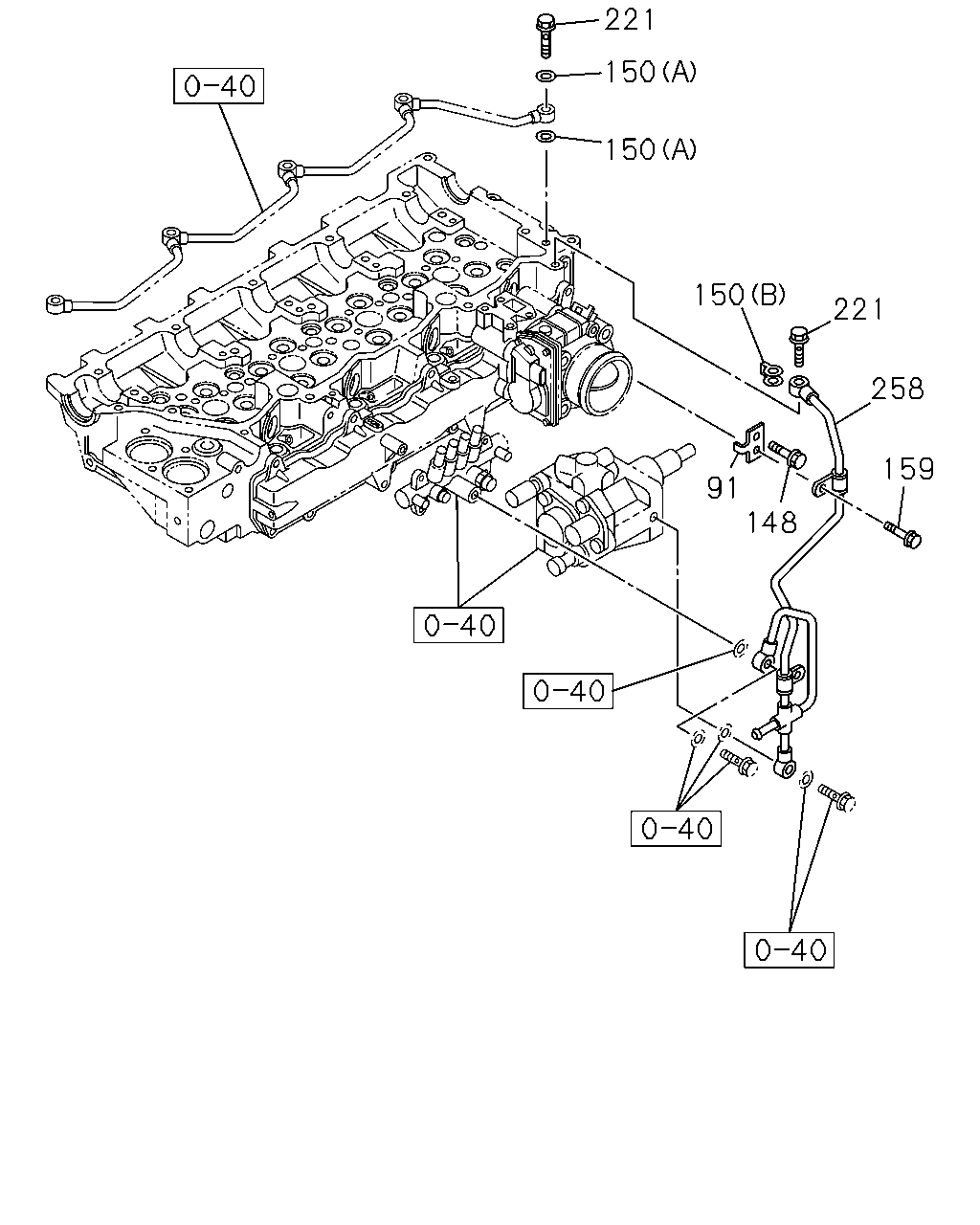

çizim 448313
221 150 150 150 221 258 159 148 91
BalonParca AdiParca NoAdetTipApplied Date A B
91 BRACKET; FUEL PIPE TO INL MANIF
THA 		8-98033-979-0 01 1 1410- ●
148 BOLT; BRKT
M6X12 FLANGE THA 		0-28050-612-0 01 1 1410- ●
148 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 02 1 1410- ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17 THA 		8-98079-755-0 01 1 1410- ●
159 BOLT; CLIP
M6X12 FLANGE THA 		0-28050-612-0 01 1 1410- ●
159 BOLT; CLIP
M6X16 FLANGE THA 		0-28050-616-0 01 1 1410- ●
221 BOLT; FUEL PIPE
M10X21 FLANGE THA 		8-94396-711-0 02 1 1410- ●
258 PIPE ASM; FUEL,LEAK OFF
THA 		8-98055-815-1 01 1 1410- ●

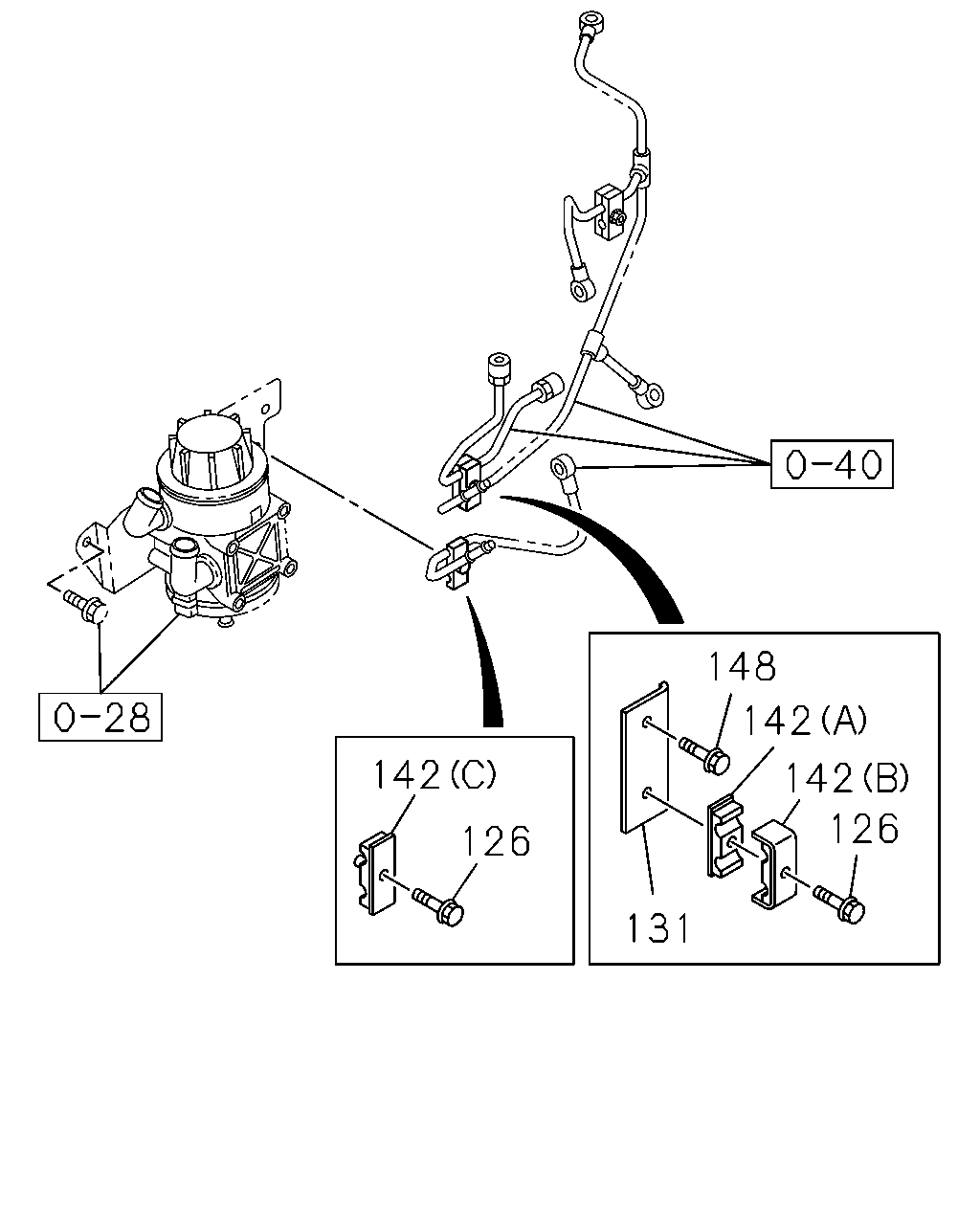

çizim 448343
142 126 131 148 142 142 126
BalonParca AdiParca NoAdetTipApplied Date A B
126 BOLT; CLIP,FUEL PIPE
M6X35 FLANGE THA 		0-28650-635-0 02 1 1410- ●
131 BRACKET; FUEL PIPE CLIP
THA 		1-15419-391-1 01 1 1410- ●
142 CLIP; FUEL PIPE
(C) L=48 THA 		5-09709-103-0 01 1 1410- ●
142 CLIP; FUEL PIPE
(B) THA 		8-98000-010-2 01 1 1410- ●
142 CLIP; FUEL PIPE
(A) THA 		8-98000-011-2 01 1 1410- ●
148 BOLT; BRKT
M6X12 FLANGE THA 		0-28050-612-0 01 1 1410- ●
148 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ●
