0-39 — AIR COMPRESSOR; BRAKE (#150215) — 63 parça

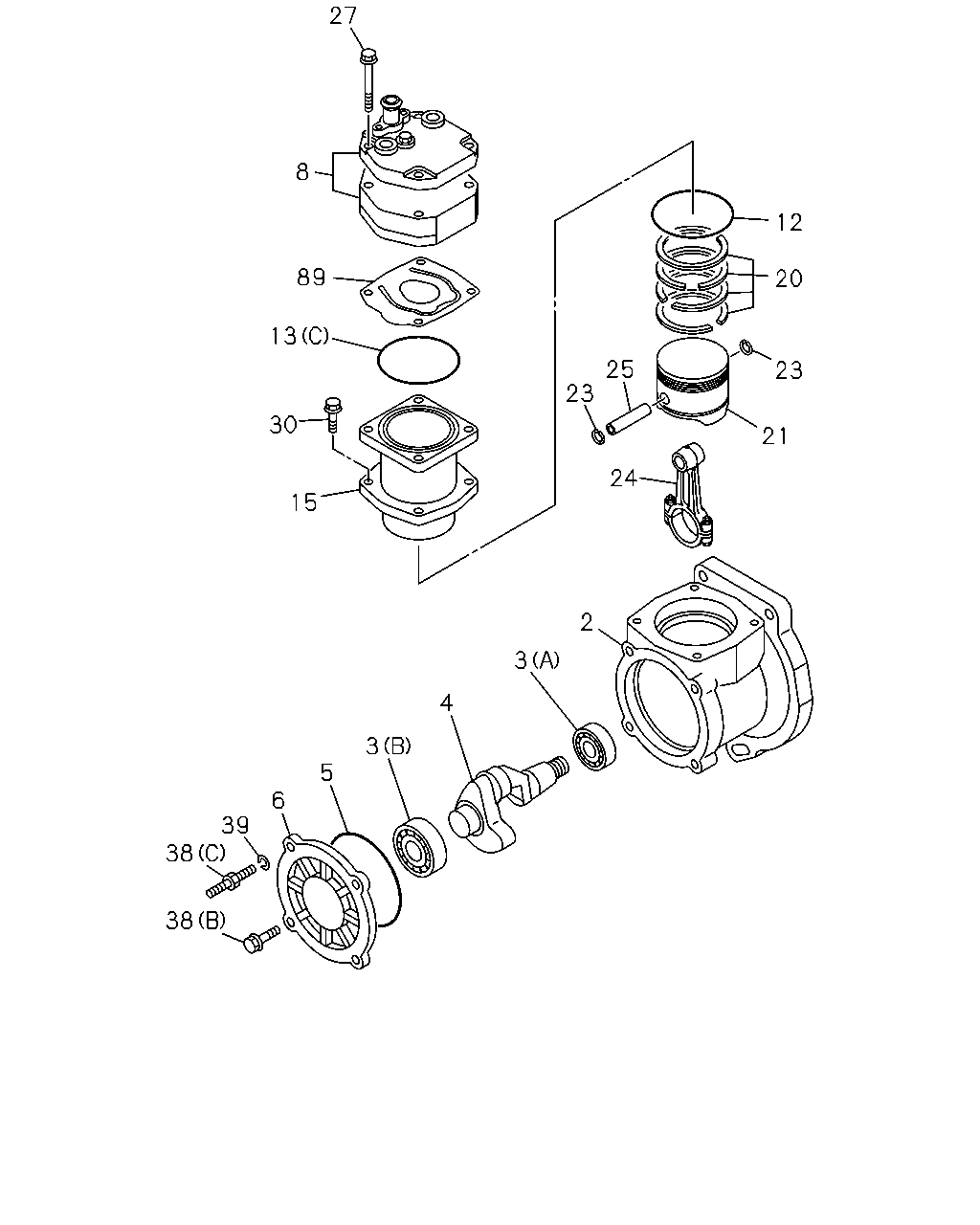

27 8 89 13 30 15 23 25 24 21 23 20 12 2 3 4 3 5 6 39 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR THA	1-19151-303-0	01	1	1410-	●
2	CRANKCASE; AIR CMPR THA	1-19151-274-0	01	1	1410-		●
3	BEARING; AIR CMPR (B) THA	9-00006-206-0	01	1	1410-		●
3	BEARING; AIR CMPR (A) THA	9-00090-152-0	01	1	1410-		●
4	CRANKSHAFT; AIR CMPR THA	1-19171-090-1	01	1	1410-	●
4	CRANKSHAFT; AIR CMPR THA	1-19171-096-0	01	1	1410-		●
5	GASKET; AIR CMPR THA	8-98192-460-0	01	1	1410-		●
6	COVER ASM; BRG,AIR CMPR THA	1-19156-086-1	01	1	1410-	●
6	COVER ASM; BRG,AIR CMPR THA	1-19156-039-0	01	1	1410-		●
8	HEAD ASM; CYL,AIR CMPR THA	1-19110-075-0	01	1	1410-	●
8	HEAD ASM; CYL,AIR CMPR THA	8-98167-014-0	01	1	1410-		●
12	GASKET; AIR CMPR THA	8-98185-684-0	01	1	1410-	●	●
13	GASKET; AIR CMPR (A) THA	1-19115-015-0	01	1	1410-	●
13	GASKET; AIR CMPR (B) THA	1-19115-016-0	01	1	1410-	●
13	GASKET; AIR CMPR (C) THA	8-98048-640-0	01	1	1410-		●
15	CYLINDER; AIR CMPR THA	1-19163-068-1	01	1	1410-	●
15	CYLINDER; AIR CMPR THA	8-98038-668-0	01	1	1410-		●
20	RING KIT; PISTON,AIR CMPR THA	1-19163-058-0	01	1	1410-	●	●
21	PISTON; AIR CMPR THA	1-19161-027-0	01	1	1410-	●	●
23	RING; SNAP,PISTON,AIR CMPR THA	1-19169-004-0	02	1	1410-	●	●
24	ROD ASM; CONN,AIR CMPR THA	1-19173-023-0	01	1	1410-	●
24	ROD ASM; CONN,AIR CMPR THA	1-19173-010-0	01	1	1410-		●
25	PIN; PISTON,AIR CMPR THA	1-19167-003-0	01	1	1410-	●	●
27	BOLT; HD THA	8-98188-172-0	04	1	1410-	●
27	BOLT; HD M10X75 THA	8-98167-018-0	04	1	1410-		●
30	BOLT; CYL TO CRANKCASE M10X25 THA	9-01911-025-0	04	1	1410-	●
30	BOLT; CYL TO CRANKCASE M10X25 THA	8-98038-763-0	04	1	1410-		●
38	BOLT; COVER FIX (A) THA	1-19159-023-0	03	1	1410-	●
38	BOLT; COVER FIX (C) THA	8-97617-894-0	02	1	1410-		●
38	BOLT; COVER FIX (B) M8X20 THA	8-97617-895-0	02	1	1410-		●
39	WASHER; LK,COVER FIX THA	8-97617-893-0	02	1	1410-		●
89	VALVE; SUCTION THA	1-19119-045-0	01	1	1410-		●

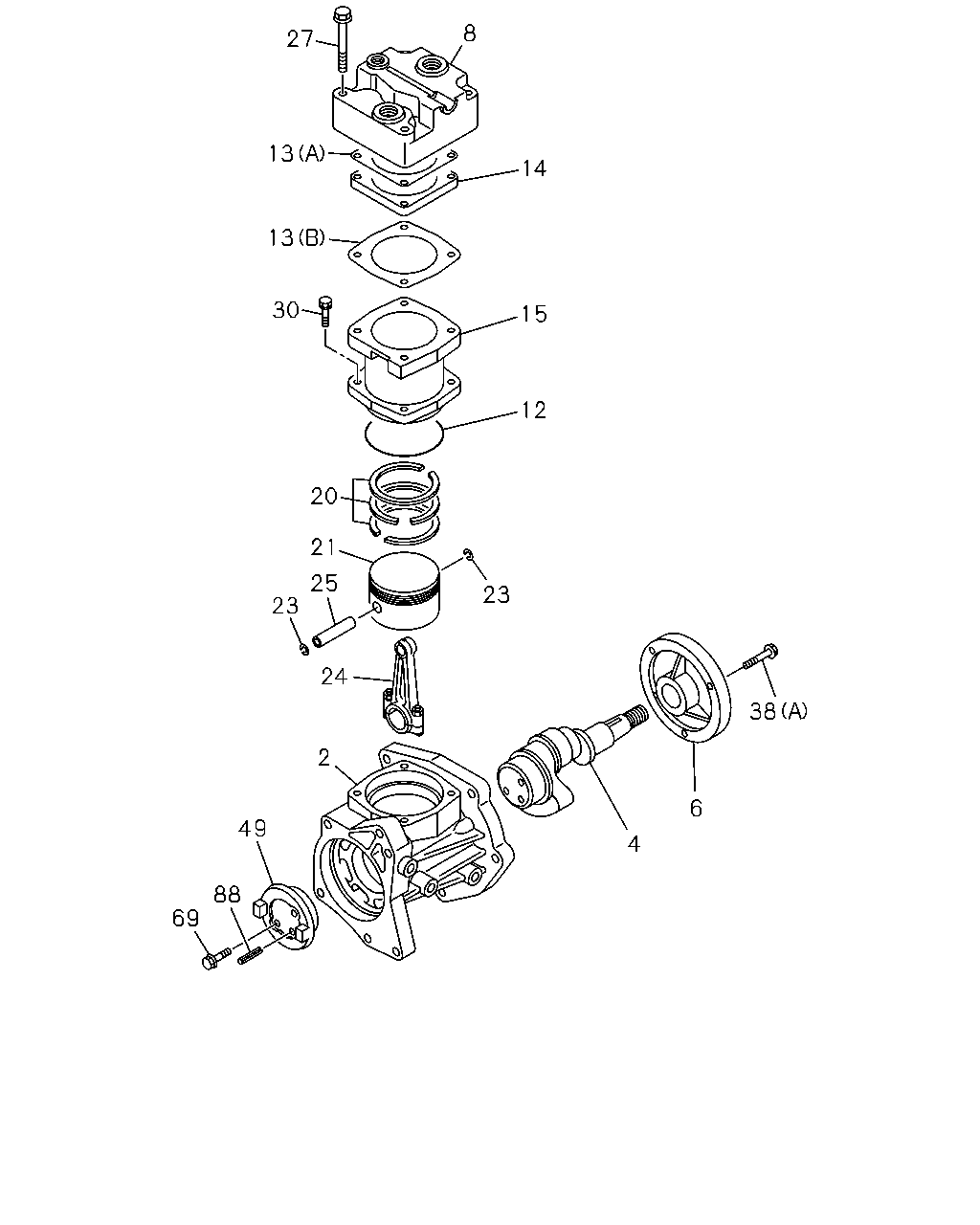

27 13 13 30 8 14 15 12 20 21 25 23 24 23 2 49 88 69 4 38 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR THA	1-19151-303-0	01	1	1410-	●
2	CRANKCASE; AIR CMPR THA	1-19151-274-0	01	1	1410-		●
4	CRANKSHAFT; AIR CMPR THA	1-19171-090-1	01	1	1410-	●
4	CRANKSHAFT; AIR CMPR THA	1-19171-096-0	01	1	1410-		●
6	COVER ASM; BRG,AIR CMPR THA	1-19156-086-1	01	1	1410-	●
6	COVER ASM; BRG,AIR CMPR THA	1-19156-039-0	01	1	1410-		●
8	HEAD ASM; CYL,AIR CMPR THA	1-19110-075-0	01	1	1410-	●
8	HEAD ASM; CYL,AIR CMPR THA	8-98167-014-0	01	1	1410-		●
12	GASKET; AIR CMPR THA	8-98185-684-0	01	1	1410-	●	●
13	GASKET; AIR CMPR (A) THA	1-19115-015-0	01	1	1410-	●
13	GASKET; AIR CMPR (B) THA	1-19115-016-0	01	1	1410-	●
13	GASKET; AIR CMPR (C) THA	8-98048-640-0	01	1	1410-		●
14	PLATE; AIR CMPR THA	8-98271-713-0	01	1	1410-	●
15	CYLINDER; AIR CMPR THA	1-19163-068-1	01	1	1410-	●
15	CYLINDER; AIR CMPR THA	8-98038-668-0	01	1	1410-		●
20	RING KIT; PISTON,AIR CMPR THA	1-19163-058-0	01	1	1410-	●	●
21	PISTON; AIR CMPR THA	1-19161-027-0	01	1	1410-	●	●
23	RING; SNAP,PISTON,AIR CMPR THA	1-19169-004-0	02	1	1410-	●	●
24	ROD ASM; CONN,AIR CMPR THA	1-19173-023-0	01	1	1410-	●
24	ROD ASM; CONN,AIR CMPR THA	1-19173-010-0	01	1	1410-		●
25	PIN; PISTON,AIR CMPR THA	1-19167-003-0	01	1	1410-	●	●
27	BOLT; HD THA	8-98188-172-0	04	1	1410-	●
27	BOLT; HD M10X75 THA	8-98167-018-0	04	1	1410-		●
30	BOLT; CYL TO CRANKCASE M10X25 THA	9-01911-025-0	04	1	1410-	●
30	BOLT; CYL TO CRANKCASE M10X25 THA	8-98038-763-0	04	1	1410-		●
38	BOLT; COVER FIX (A) THA	1-19159-023-0	03	1	1410-	●
38	BOLT; COVER FIX (C) THA	8-97617-894-0	02	1	1410-		●
38	BOLT; COVER FIX (B) M8X20 THA	8-97617-895-0	02	1	1410-		●
49	COUPLING ASM THA	1-19179-032-0	01	1	1410-	●
69	BOLT ASM; AIR COMP THA	1-19179-033-0	02	1	1410-	●
88	PIN; SPRING THA	1-19179-034-0	01	1	1410-	●
