0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#150214) — 59 parça

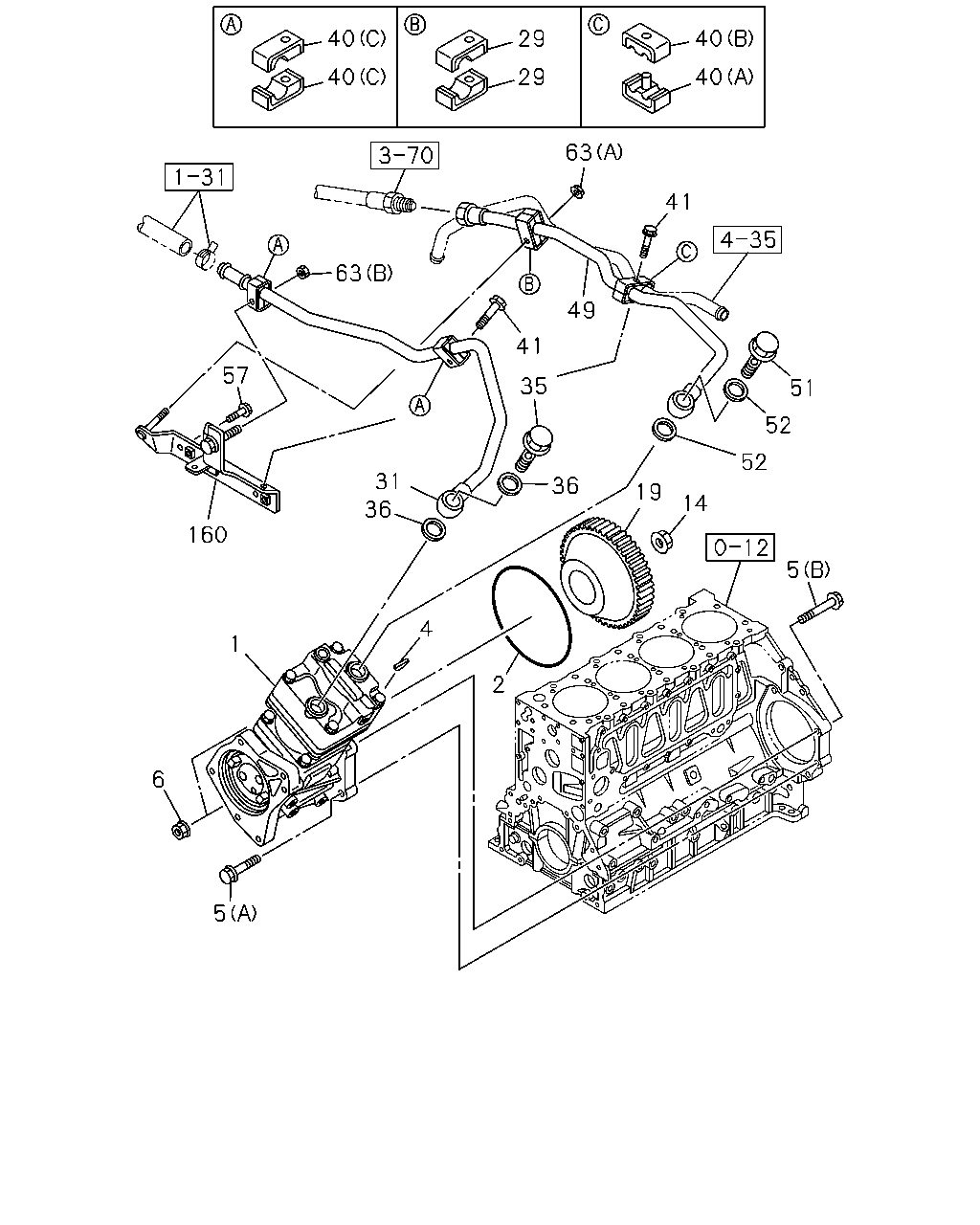

40 40 29 29 40 40 63 57 160 1 6 5 31 36 4 63 41 35 36 2 41 51 52 52 19 14 5 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. THA	8-98270-233-0	01	1	1410-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. THA	8-98187-299-0	01	1	1410-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 THA	1-09623-464-0	01	1	1410-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6 THA	1-09623-570-0	01	1	1410-		●
4	KEY; INJ PUMP GEAR THA	9-08055-519-0	01	1	1410-	●
4	KEY; INJ PUMP GEAR THA	9-08055-516-0	01	1	1410-		●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE THA	8-94396-485-1	01	1	1410-	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE THA	0-28151-270-0	02	1	1410-	●	●
6	NUT; AIR CMPR M10 FLANGE THA	0-91180-110-0	02	1	1410-	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-212-0	01	1	1410-		●
14	NUT; GEAR M18 THA	8-97141-154-0	01	1	1410-	●
14	NUT; GEAR M20 THA	0-91110-520-0	01	1	1410-		●
19	GEAR; INJ PUMP Z=35 THA	8-97600-987-2	01	1	1410-	●
29	CLIP; AIR PIPE THA	1-09701-282-0	02	1	1410-	●
31	PIPE; AIR,AIR CMPR SUCTION THA	8-98233-806-1	01	1	1410-	●
35	BOLT; EYE,AIR PIPE M24X39 THA	1-09675-175-2	01	1	1410-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA	9-09571-424-0	02	1	1410-	●
40	CLIP; AIR PIPE (C) THA	1-09701-284-0	04	1	1410-	●
40	CLIP; AIR PIPE (A) THA	8-97619-417-0	01	1	1410-	●
40	CLIP; AIR PIPE (B) THA	8-97619-418-0	01	1	1410-	●
41	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	02	1	1410-	●
49	PIPE; AIR,CHARGE THA	8-98069-425-0	01	1	1410-	●
49	PIPE; AIR,CHARGE THA	8-97618-722-0	01	1	1410-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39 THA	1-09675-175-2	01	1	1410-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA	9-09571-424-0	02	1	1410-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE THA	0-28050-816-0	02	1	1410-	●
63	NUT; CLIP (A) M6 FLANGE THA	0-91180-106-0	01	1	1410-	●
63	NUT; CLIP (B) M8 FLANGE THA	0-91180-108-0	01	1	1410-	●
160	BRACKET; AIR PIPE THA	8-98076-098-0	01	1	1410-	●
160	BRACKET; AIR PIPE THA	8-98074-255-0	01	1	1410-		●

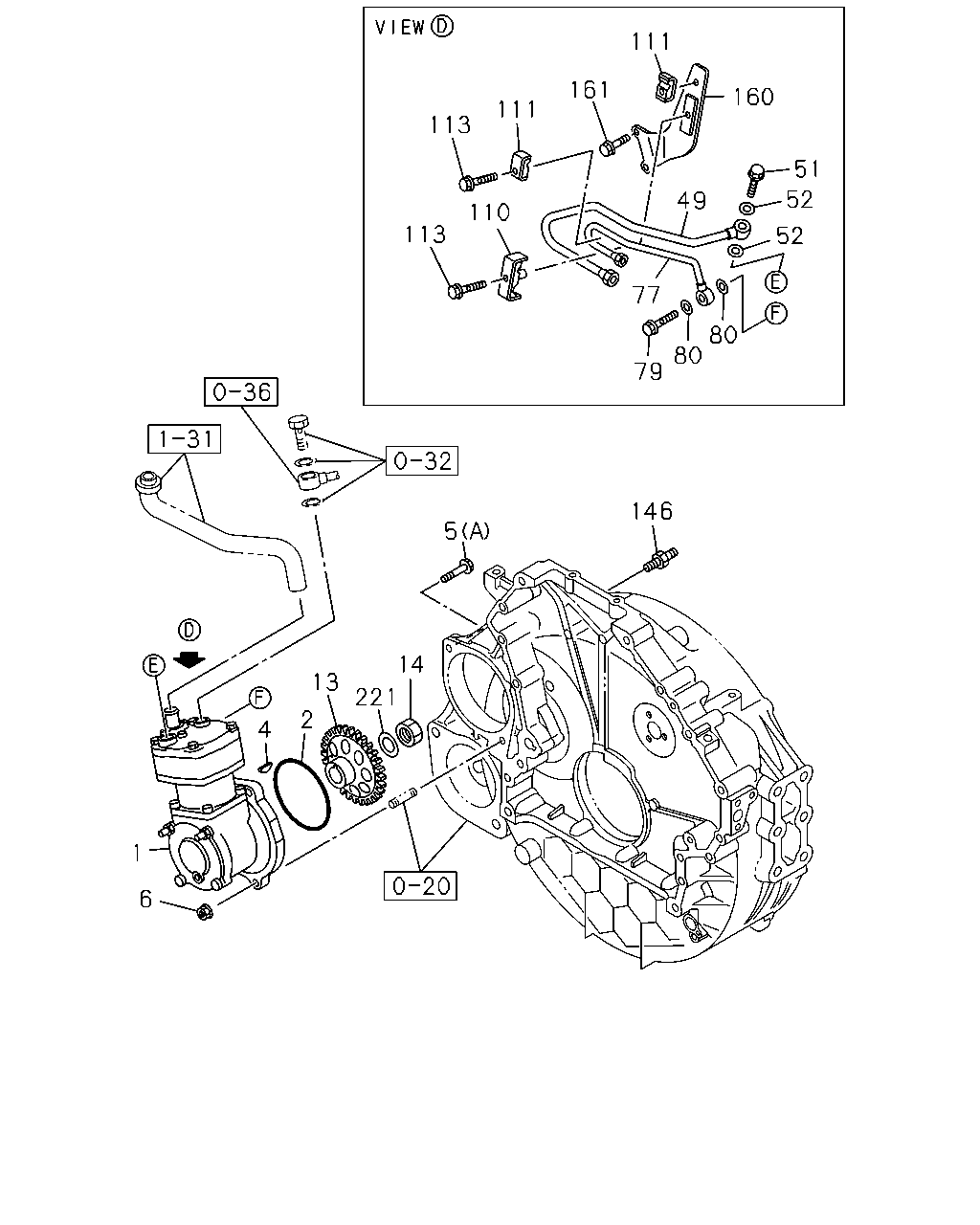

1 6 4 2 13 221 14 5 146 113 113 110 111 161 111 160 49 77 79 80 80 52 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. THA	8-98270-233-0	01	1	1410-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. THA	8-98187-299-0	01	1	1410-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 THA	1-09623-464-0	01	1	1410-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6 THA	1-09623-570-0	01	1	1410-		●
4	KEY; INJ PUMP GEAR THA	9-08055-519-0	01	1	1410-	●
4	KEY; INJ PUMP GEAR THA	9-08055-516-0	01	1	1410-		●
5	BOLT; AIR CMPR FIX (B) M12X95 FLANGE THA	8-94396-485-1	01	1	1410-	●
5	BOLT; AIR CMPR FIX (A) M12X70 FLANGE THA	0-28151-270-0	02	1	1410-	●	●
6	NUT; AIR CMPR M10 FLANGE THA	0-91180-110-0	02	1	1410-	●
6	NUT; AIR CMPR M12 FLANGE THA	0-91180-212-0	01	1	1410-		●
13	GEAR; AIR CMPR DRIVE Z=49 THA	8-94394-511-4	01	1	1410-		●
14	NUT; GEAR M18 THA	8-97141-154-0	01	1	1410-	●
14	NUT; GEAR M20 THA	0-91110-520-0	01	1	1410-		●
49	PIPE; AIR,CHARGE THA	8-98069-425-0	01	1	1410-	●
49	PIPE; AIR,CHARGE THA	8-97618-722-0	01	1	1410-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39 THA	1-09675-175-2	01	1	1410-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA	9-09571-424-0	02	1	1410-	●	●
77	PIPE; AIR,GOV THA	8-97618-724-0	01	1	1410-		●
79	BOLT; EYE,AIR PIPE TO CMPR M10X23 THA	8-98037-824-0	01	1	1410-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 THA	1-09630-083-0	02	1	1410-		●
110	CLIP; AIR PIPE THA	8-94393-037-0	01	1	1410-		●
111	CLIP; AIR PIPE THA	8-98029-953-1	02	1	1410-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE THA	0-28050-640-0	01	1	1410-		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE THA	0-28650-640-0	01	1	1410-		●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7 THA	1-09049-038-1	01	1	1410-		●
160	BRACKET; AIR PIPE THA	8-98076-098-0	01	1	1410-	●
160	BRACKET; AIR PIPE THA	8-98074-255-0	01	1	1410-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE THA	0-28050-816-0	02	1	1410-		●
221	WASHER; PL,GEAR ID=21 THA	0-91610-520-0	01	1	1410-		●
