0-36 — TURBOCHARGER SYSTEM (#150212) — 97 parça

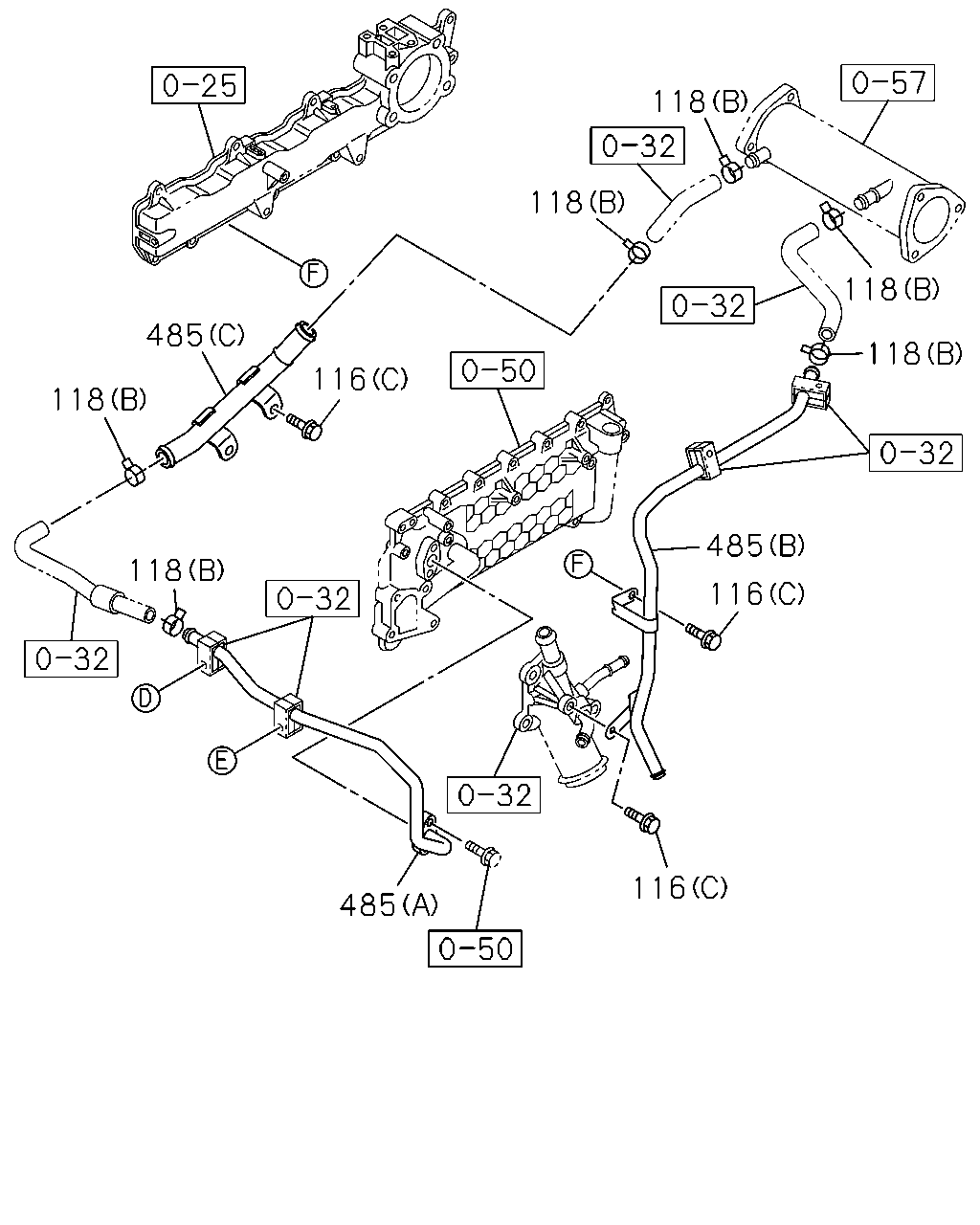

çizim 448306
118 118 118 118 116 485 116 485 118 118 485 116
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1410- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1410- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT THA 		8-94455-144-0 01 1 1410- ●
118 CLIP; WATER HOSE
(B) ID=20 THA 		1-09707-084-1 06 1 1410- ●
118 CLIP; WATER HOSE
(A) ID=15.5 THA 		8-94221-519-0 06 1 1410- ●
485 PIPE; WATER EGR
(A) THA 		8-97376-773-0 01 1 1410- ●
485 PIPE; WATER EGR
(B) THA 		8-97376-775-2 01 1 1410- ●
485 PIPE; WATER EGR
(C) THA 		8-98064-164-0 01 1 1410- ●
çizim 449189
11 10 212 12 2 11 212 388 16 17 162 217 275 265 217 275 162 17 17 122 94 13 12 1 20 20 79 79 398 398 398 398 488 398 398 92 28 143 98 143 92 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98217-251-2 01 1 1410- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97602-926-2 01 1 1410- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-94390-044-0 01 1 1410- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 THA 		1-09556-015-0 02 1 1410- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 THA 		9-09842-007-0 04 1 1410- ●
11 NUT; TURBOCHARGER
M10 THA 		1-09420-005-0 04 1 1410- ●
12 STUD; TURBOCHARGER
(A) M10X28 THA 		9-04731-028-0 02 1 1410- ●
12 STUD; TURBOCHARGER
(B) THA 		9-04130-825-0 01 1 1410- ●
12 STUD; TURBOCHARGER
(C) THA 		9-04731-080-0 02 1 1410- ●
13 STUD; EXH PIPE
M12X103 L=123 THA 		8-94394-656-0 01 1 1410- ●
16 ADAPTER; EXH PIPE
THA 		8-97039-749-2 01 1 1410- ●
16 ADAPTER; EXH PIPE
THA 		8-94395-767-0 01 1 1410- ●
17 WASHER; PL,ADAPTER
T=1.9 THA 		5-09500-012-0 06 1 1410- ●
20 PIPE; INL,TURBOCHARGER OUT
(B) THA 		8-97606-675-1 01 1 1410- ●
20 PIPE; INL,TURBOCHARGER OUT
(C) THA 		8-97618-734-0 01 1 1410- ●
20 PIPE; INL,TURBOCHARGER OUT
(A) THA 		8-98251-577-0 01 1 1410- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
THA 		8-94393-182-0 01 1 1410- ●
79 CLIP; RUBBER HOSE
ID=58-79 THA 		1-09707-136-0 02 1 1410- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1410- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
THA 		8-98245-240-0 01 1 1410- ●
122 NUT; ADAPTER
M8 THA 		1-09400-118-1 01 1 1410- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 THA 		8-94126-771-0 02 1 1410- ●
162 BOLT; ADAPTER
M8X57 THA 		5-09000-275-0 01 1 1410- ●
162 BOLT; ADAPTER
M8X57 THA 		5-09000-275-0 05 1 1410- ●
212 WASHER; PL,TURBOCHARGER
ID=10 THA 		1-09503-033-1 04 1 1410- ●
217 BOLT; BRKT
M12X30 THA 		8-94394-324-0 03 1 1410- ●
265 BRACKET; EXH PIPE
THA 		8-94395-764-2 01 1 1410- ●
275 WASHER; PL
ID=12.2 THA 		1-09503-008-0 03 1 1410- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-94394-248-2 01 1 1410- ●
398 MOUNTING
(F) THA 		8-94160-177-0 01 1 1410- ●
398 MOUNTING
(C) THA 		8-94390-551-1 01 1 1410- ●
398 MOUNTING
(D) THA 		8-94394-504-0 01 1 1410- ●
398 MOUNTING
(E) THA 		8-94394-529-0 01 1 1410- ●
398 MOUNTING
(A) THA 		8-94395-766-0 01 1 1410- ●
398 MOUNTING
(B) OD=23 THA 		8-97105-689-6 01 1 1410- ●
488 HOSE; RUBBER
THA 		8-98245-240-0 01 1 1410- ●

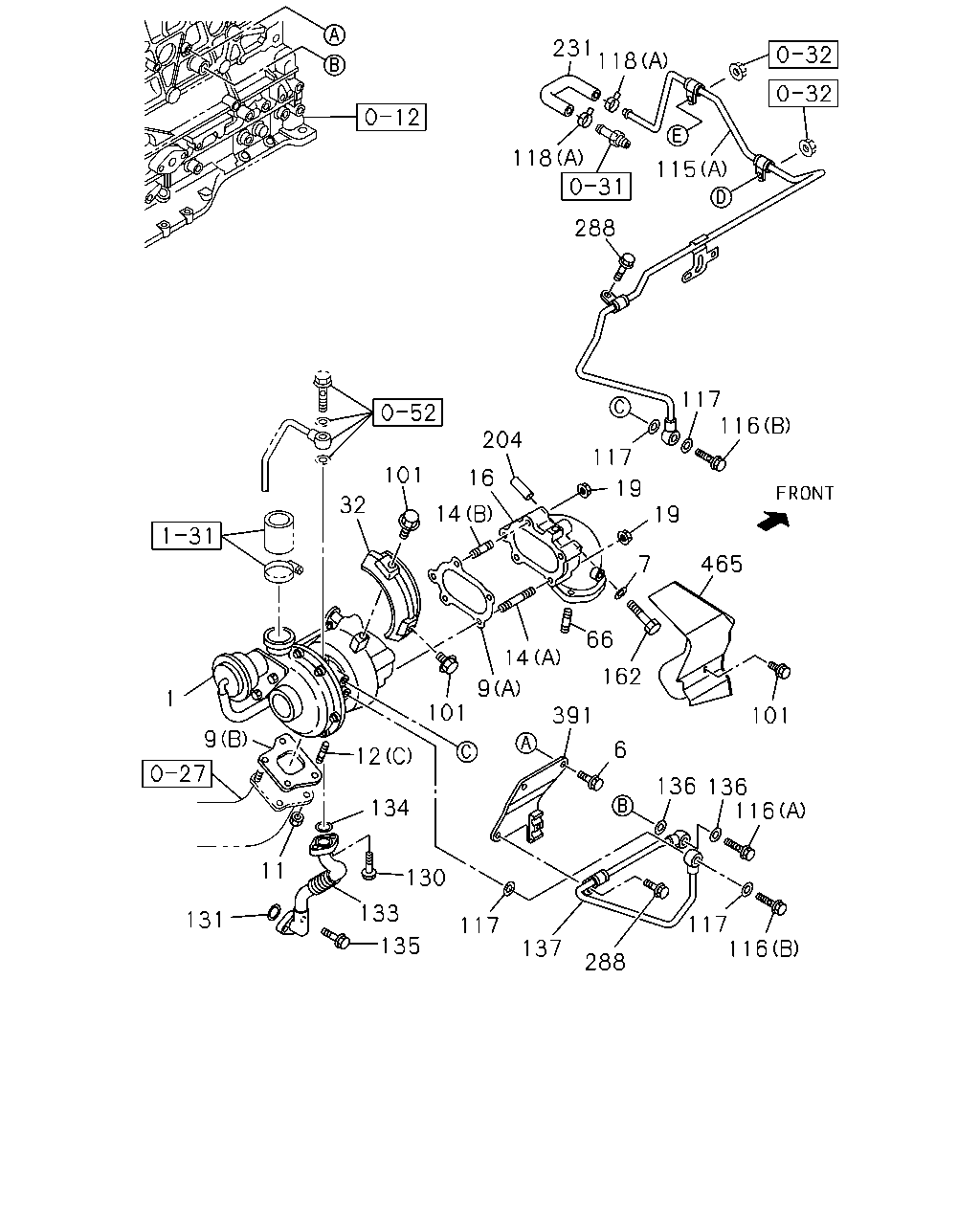

çizim 449268
231 118 115 118 288 117 116 117 19 19 465 101 116 136 116 117 136 162 7 204 16 14 101 32 1 9 131 11 12 134 130 133 135 117 137 288 6 391 14 9 101 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98217-251-2 01 1 1410- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97602-926-2 01 1 1410- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 THA 		8-94174-537-0 01 1 1410- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) THA 		8-97039-777-1 01 1 1410- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA 		8-97374-412-0 01 1 1410- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 THA 		9-09842-007-0 04 1 1410- ●
11 NUT; TURBOCHARGER
M10 THA 		1-09420-005-0 04 1 1410- ●
12 STUD; TURBOCHARGER
(A) M10X28 THA 		9-04731-028-0 02 1 1410- ●
12 STUD; TURBOCHARGER
(B) THA 		9-04130-825-0 01 1 1410- ●
12 STUD; TURBOCHARGER
(C) THA 		9-04731-080-0 02 1 1410- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 THA 		8-97019-477-0 02 1 1410- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 THA 		8-97019-478-0 03 1 1410- ●
16 ADAPTER; EXH PIPE
THA 		8-97039-749-2 01 1 1410- ●
16 ADAPTER; EXH PIPE
THA 		8-94395-767-0 01 1 1410- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE THA 		8-94170-486-0 05 1 1410- ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-97351-168-0 01 1 1410- ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 1410- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER THA 		8-98054-289-0 06 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) THA 		8-98063-841-0 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) THA 		8-94392-950-0 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) THA 		8-94395-454-4 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) THA 		8-97618-808-0 01 1 1410- ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1410- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1410- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT THA 		8-94455-144-0 01 1 1410- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 THA 		9-09571-412-0 04 1 1410- ●
118 CLIP; WATER HOSE
(B) ID=20 THA 		1-09707-084-1 06 1 1410- ●
118 CLIP; WATER HOSE
(A) ID=15.5 THA 		8-94221-519-0 06 1 1410- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER THA 		0-50540-620-0 02 1 1410- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 THA 		8-94394-671-0 01 1 1410- ●
133 PIPE; OIL DRAIN,TURBOCHARGER
THA 		8-98172-662-0 01 1 1410- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 THA 		1-09623-462-0 01 1 1410- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410- ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98063-007-0 01 1 1410- ●
162 BOLT; ADAPTER
M8X57 THA 		5-09000-275-0 01 1 1410- ●
162 BOLT; ADAPTER
M8X57 THA 		5-09000-275-0 05 1 1410- ●
204 COLLAR; PIPE ADAPTER
THA 		8-97214-384-1 01 1 1410- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-97209-950-0 01 1 1410- ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
391 BRACKET; WATER PIPE
THA 		8-98057-168-2 01 1 1410- ●
465 PROTECTOR; HEAT,EXH ADAPTER
THA 		8-98176-248-0 01 1 1410- ●

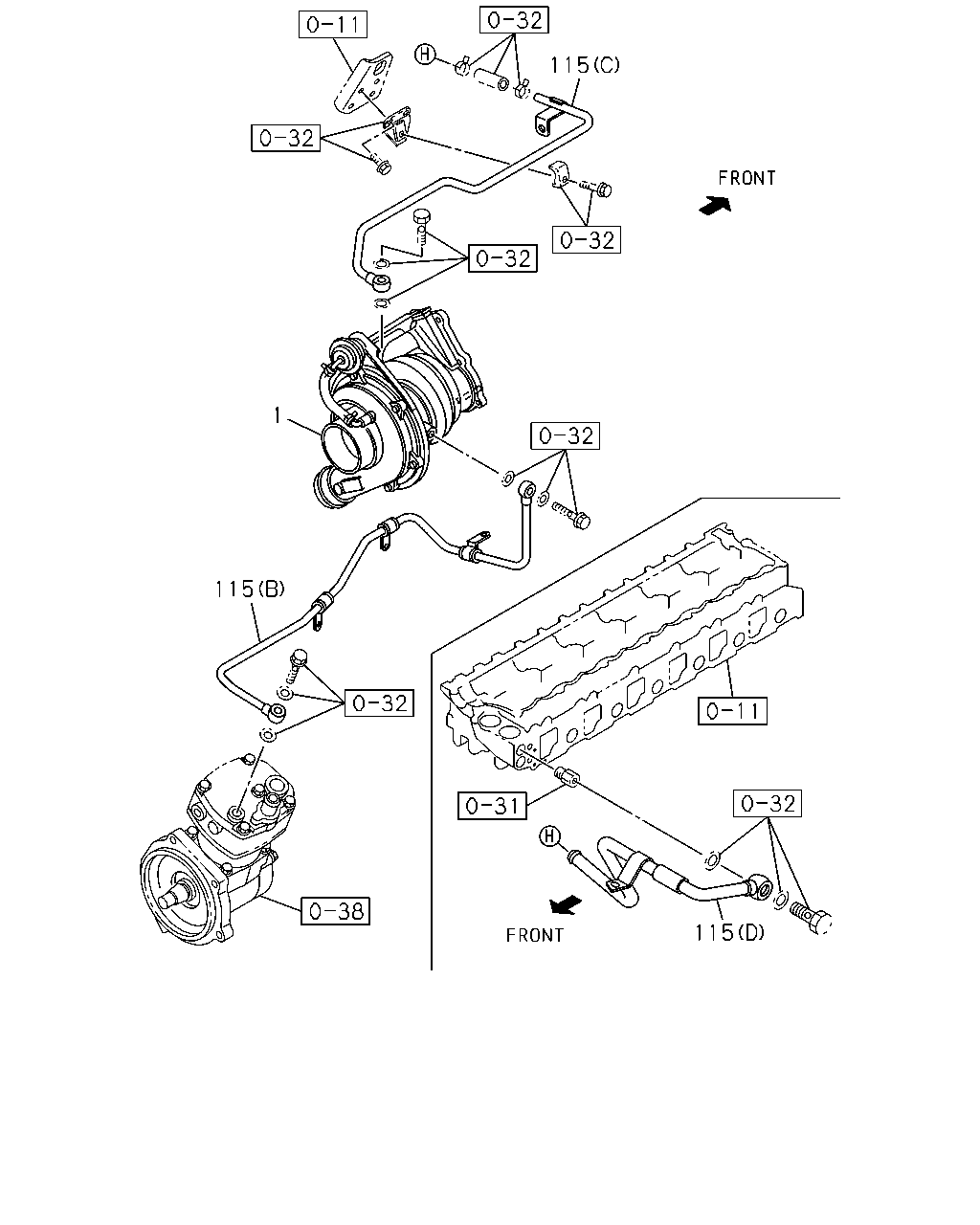

çizim 449500
115 115 1 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98217-251-2 01 1 1410- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97602-926-2 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) THA 		8-98063-841-0 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) THA 		8-94392-950-0 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) THA 		8-94395-454-4 01 1 1410- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) THA 		8-97618-808-0 01 1 1410- ●

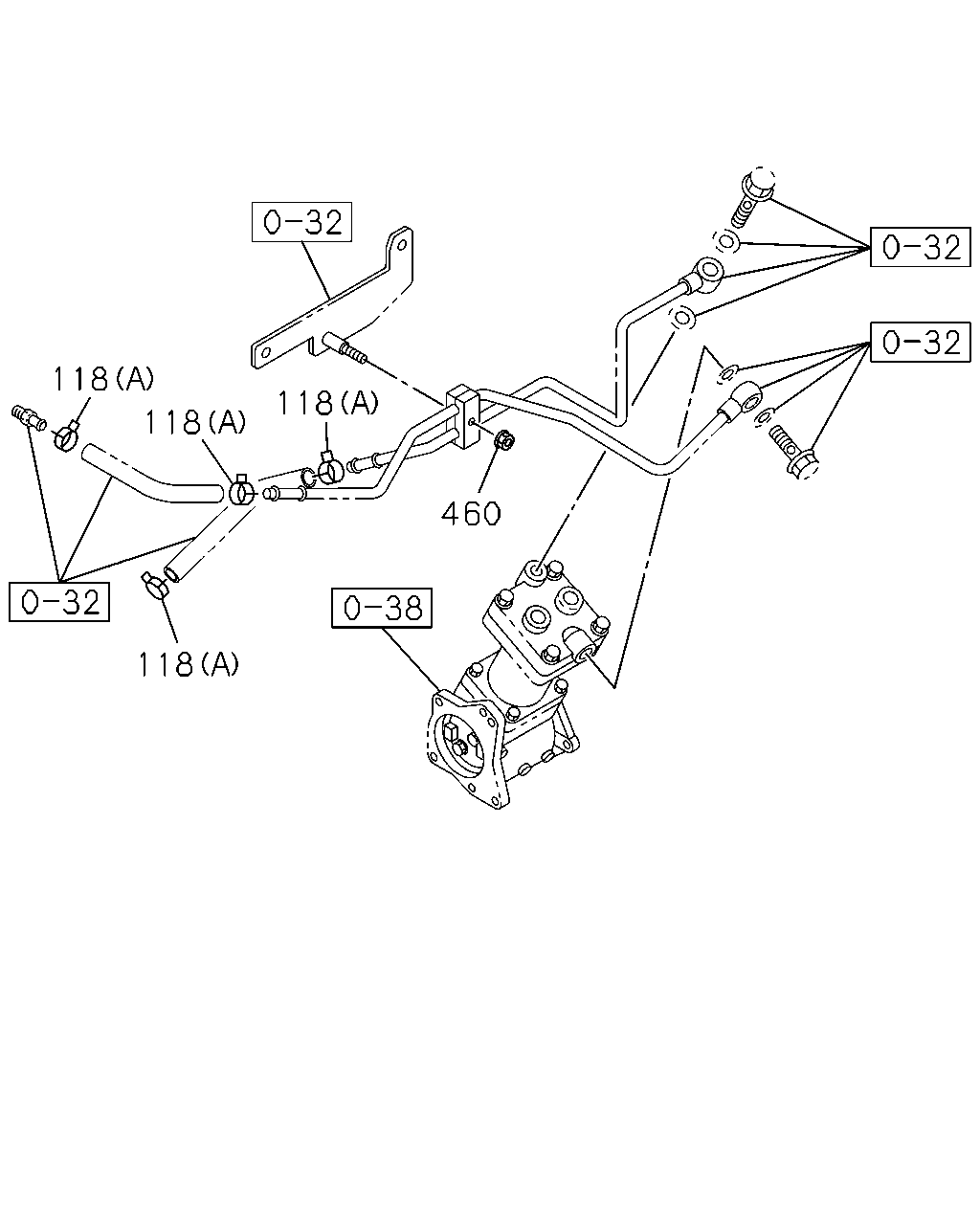

çizim 449505
118 118 118 460 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 CLIP; WATER HOSE
(B) ID=20 THA 		1-09707-084-1 06 1 1410- ●
118 CLIP; WATER HOSE
(A) ID=15.5 THA 		8-94221-519-0 06 1 1410- ●
460 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ●
