◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11647 - FTR THAILAND EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#150209) — 104 parça

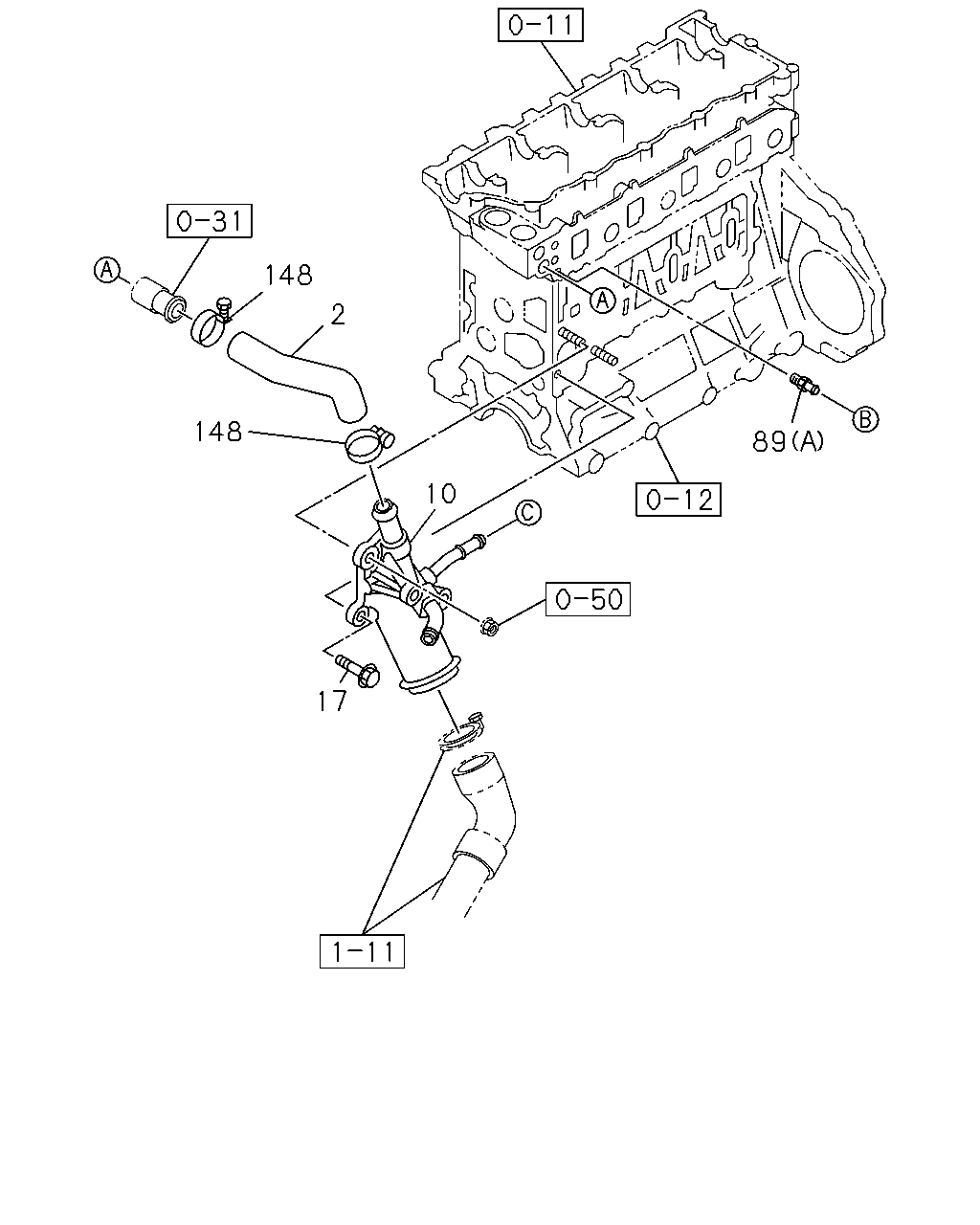

çizim 448237
148 148 2 10 17 89
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS
THA 		8-97379-228-1 01 1 1410- ●
10 PIPE; SUCTION
THA 		8-98166-995-0 01 1 1410- ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE THA 		8-94458-473-1 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(A) THA 		8-97358-699-0 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(B) THA 		8-97376-783-1 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(C) THA 		8-97611-095-0 01 1 1410- ●
148 CLIP; BYPASS HOSE
ID=30 THA 		9-09915-315-1 02 1 1410- ●

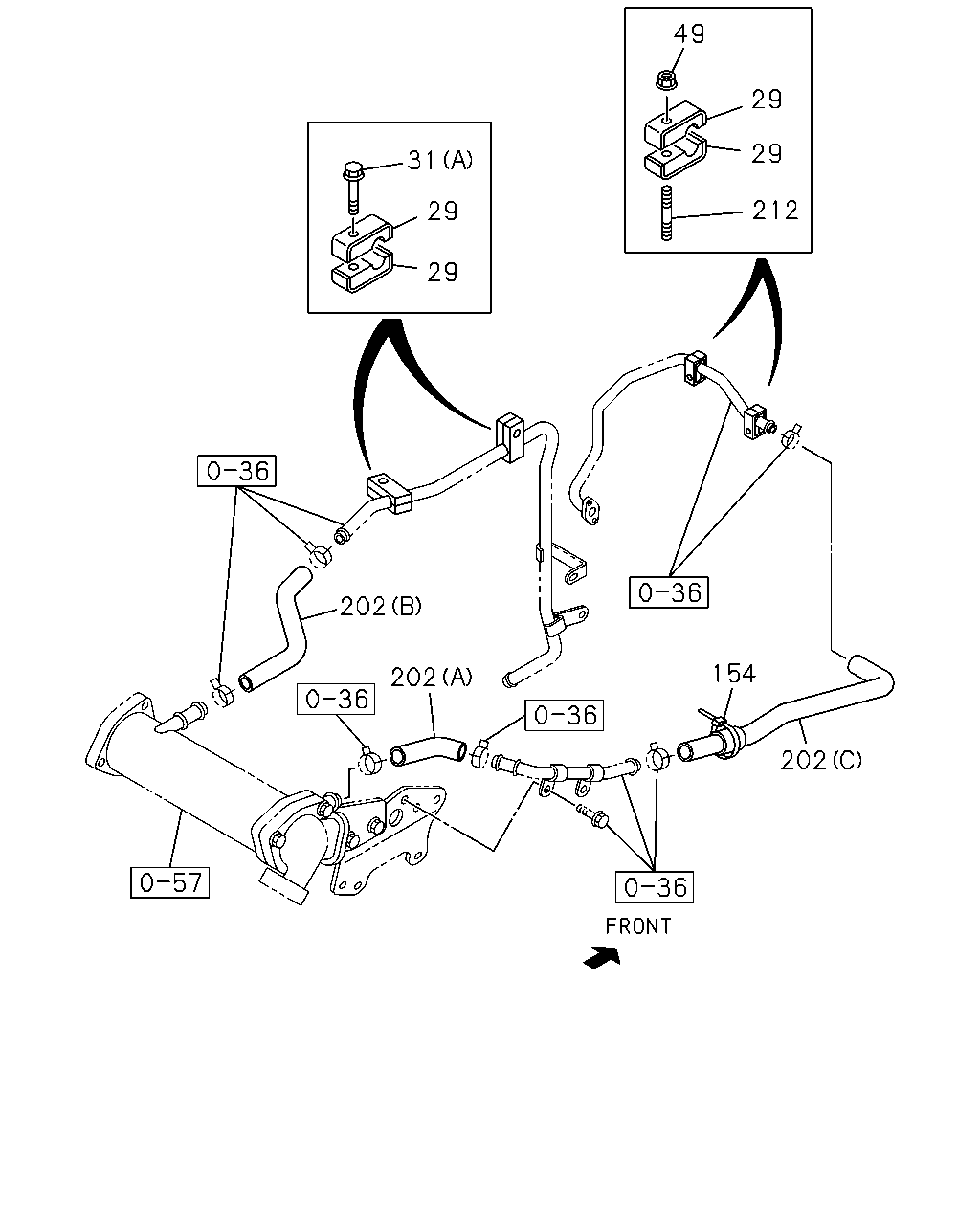

çizim 448250
49 29 29 212 31 29 29 202 202 154 202
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; PIPE
THA 		1-09701-284-0 08 1 1410- ●
31 BOLT; CLIP
(A) M8X40 FLANGE THA 		0-28050-840-0 02 1 1410- ●
31 BOLT; CLIP
(C) M6X45 FLANGE THA 		0-28050-645-0 01 1 1410- ●
31 BOLT; CLIP
(D) M6X35 FLANGE THA 		0-28650-635-0 01 1 1410- ●
31 BOLT; CLIP
(B) M6X40 FLANGE THA 		0-28650-640-0 01 1 1410- ●
49 NUT; WATER PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
154 CLIP; WATER HOSE
L=140 THA 		8-98216-431-0 01 1 1410- ●
202 HOSE; RUBBER,EGR COOLER
(B) THA 		8-97386-586-1 01 1 1410- ●
202 HOSE; RUBBER,EGR COOLER
(A) THA 		8-98092-382-0 01 1 1410- ●
202 HOSE; RUBBER,EGR COOLER
(C) THA 		8-98097-605-1 01 1 1410- ●
212 STUD; PIPE
M8X45 L=55 THA 		8-94217-227-0 02 1 1410- ●

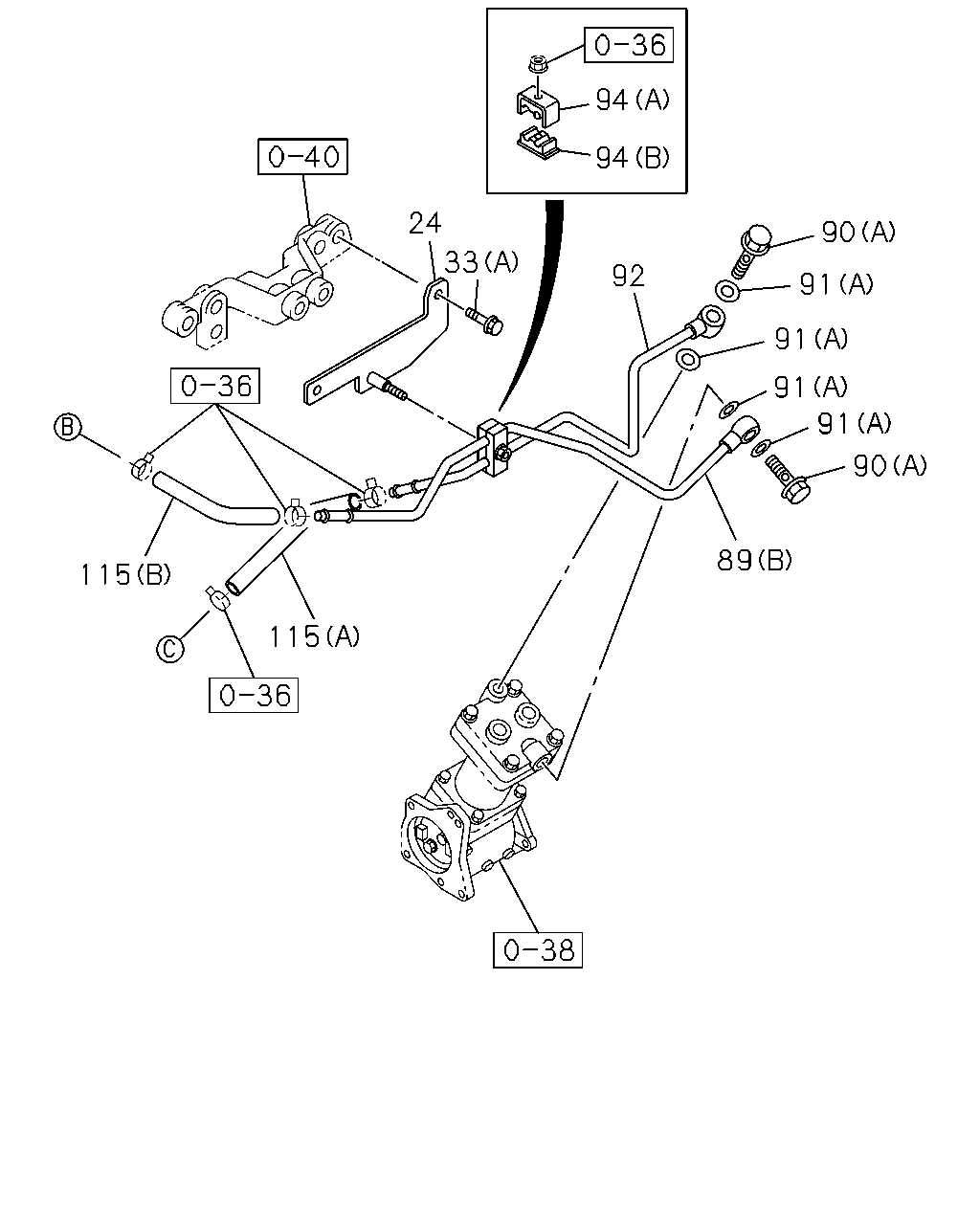

çizim 448256
94 94 24 33 92 90 91 91 91 91 90 89 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
THA 		8-97379-140-0 01 1 1410- ●
24 BRACKET; WATER PIPE
THA 		8-98051-626-1 01 1 1410- ●
33 BOLT; BRKT
(A) M6X10 FLANGE THA 		0-28050-610-0 02 1 1410- ●
33 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
33 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ●
33 BOLT; BRKT
(D) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(A) THA 		8-97358-699-0 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(B) THA 		8-97376-783-1 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(C) THA 		8-97611-095-0 01 1 1410- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 02 1 1410- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 01 1 1410- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 THA 		8-94383-489-0 01 1 1410- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 04 1 1410- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 THA 		1-09630-086-0 02 1 1410- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410- ●
92 PIPE; WATER,AIR CMPR,OUT
THA 		8-97376-784-0 01 1 1410- ●
94 CLIP; WATER PIPE
(B) THA 		1-09701-180-0 01 1 1410- ●
94 CLIP; WATER PIPE
(A) ID=10 & 10 L=25 THA 		8-94393-280-3 01 1 1410- ●
94 CLIP; WATER PIPE
(D) THA 		8-94396-860-0 01 1 1410- ●
94 CLIP; WATER PIPE
(C) THA 		8-97605-129-1 04 1 1410- ●
115 HOSE; RUBBER
(A) L=130 SERVICED BY L=3000 THA 		0-03559-300-0 01 1 1410- ●
115 HOSE; RUBBER
(B) THA 		8-98009-361-0 01 1 1410- ●
115 HOSE; RUBBER
(C) L=60 SERVICED BY L=3000 THA 		0-03561-300-0 01 1 1410- ●

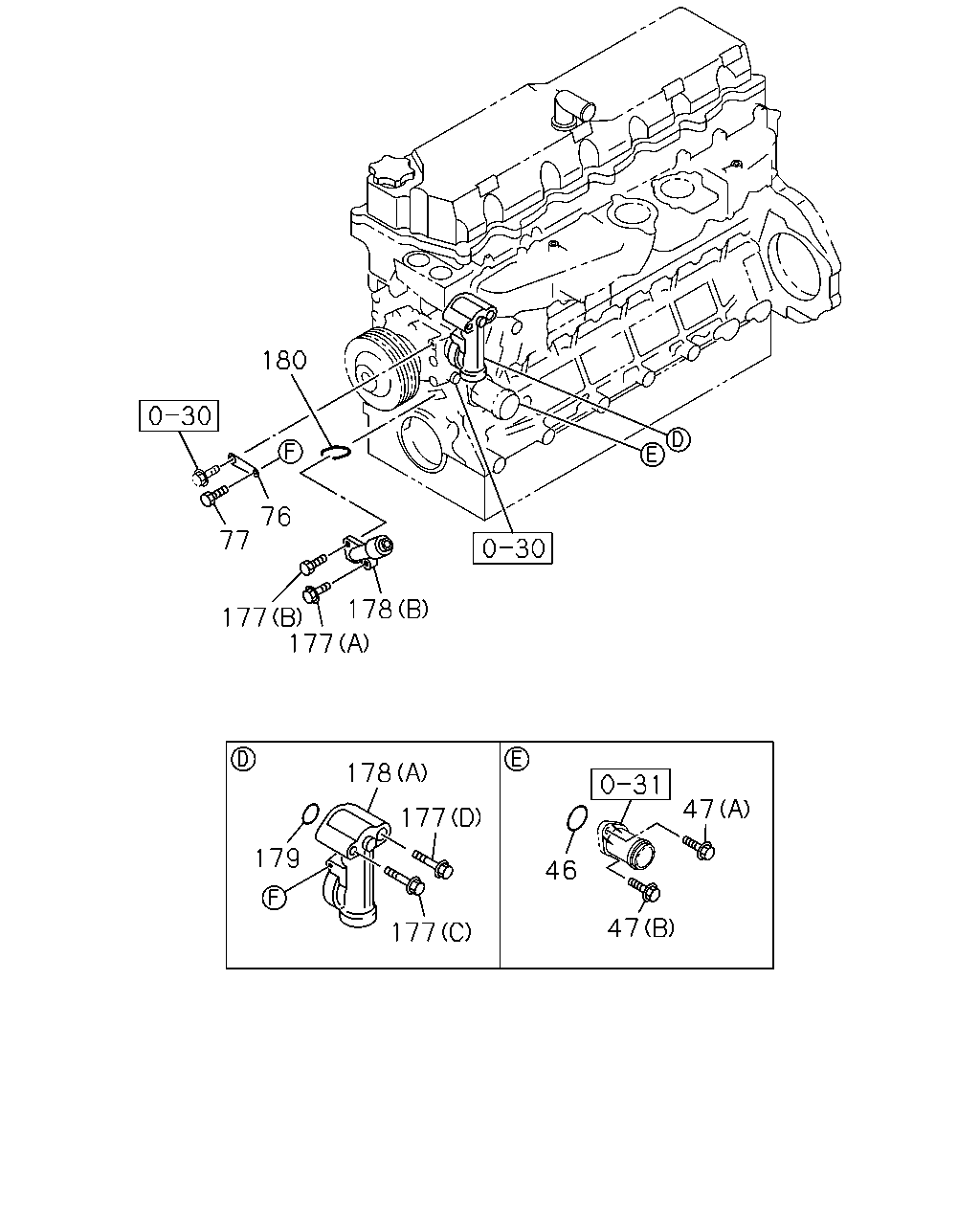

çizim 448264
180 76 77 177 177 178 178 177 179 177 46 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 THA 		8-94396-680-2 01 1 1410- ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 1410- ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
76 BRACKET; WATER DUCT,PUMP
THA 		8-94394-784-0 01 1 1410- ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA 		0-28050-850-0 01 1 1410- ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE THA 		0-28050-880-0 01 1 1410- ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410- ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE THA 		1-09044-072-1 01 1 1410- ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE THA 		8-94397-360-1 01 1 1410- ●
178 DUCT; WATER,BYPASS
(B) THA 		8-94390-644-0 01 1 1410- ●
178 DUCT; WATER,BYPASS
(A) THA 		8-94396-627-3 01 1 1410- ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 THA 		8-98276-756-0 01 1 1410- ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-94396-720-1 01 1 1410- ●
çizim 448293
31 94 206 94 31 25 94 94 33 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
THA 		8-97379-140-0 01 1 1410- ●
24 BRACKET; WATER PIPE
THA 		8-98051-626-1 01 1 1410- ●
25 BOLT; WATER PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ●
31 BOLT; CLIP
(A) M8X40 FLANGE THA 		0-28050-840-0 02 1 1410- ●
31 BOLT; CLIP
(C) M6X45 FLANGE THA 		0-28050-645-0 01 1 1410- ●
31 BOLT; CLIP
(D) M6X35 FLANGE THA 		0-28650-635-0 01 1 1410- ●
31 BOLT; CLIP
(B) M6X40 FLANGE THA 		0-28650-640-0 01 1 1410- ●
33 BOLT; BRKT
(A) M6X10 FLANGE THA 		0-28050-610-0 02 1 1410- ●
33 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
33 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ●
33 BOLT; BRKT
(D) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ●
94 CLIP; WATER PIPE
(B) THA 		1-09701-180-0 01 1 1410- ●
94 CLIP; WATER PIPE
(A) ID=10 & 10 L=25 THA 		8-94393-280-3 01 1 1410- ●
94 CLIP; WATER PIPE
(D) THA 		8-94396-860-0 01 1 1410- ●
94 CLIP; WATER PIPE
(C) THA 		8-97605-129-1 04 1 1410- ●
206 PIPE; WATER,EGR COOLER
THA 		8-98000-480-1 01 1 1410- ●

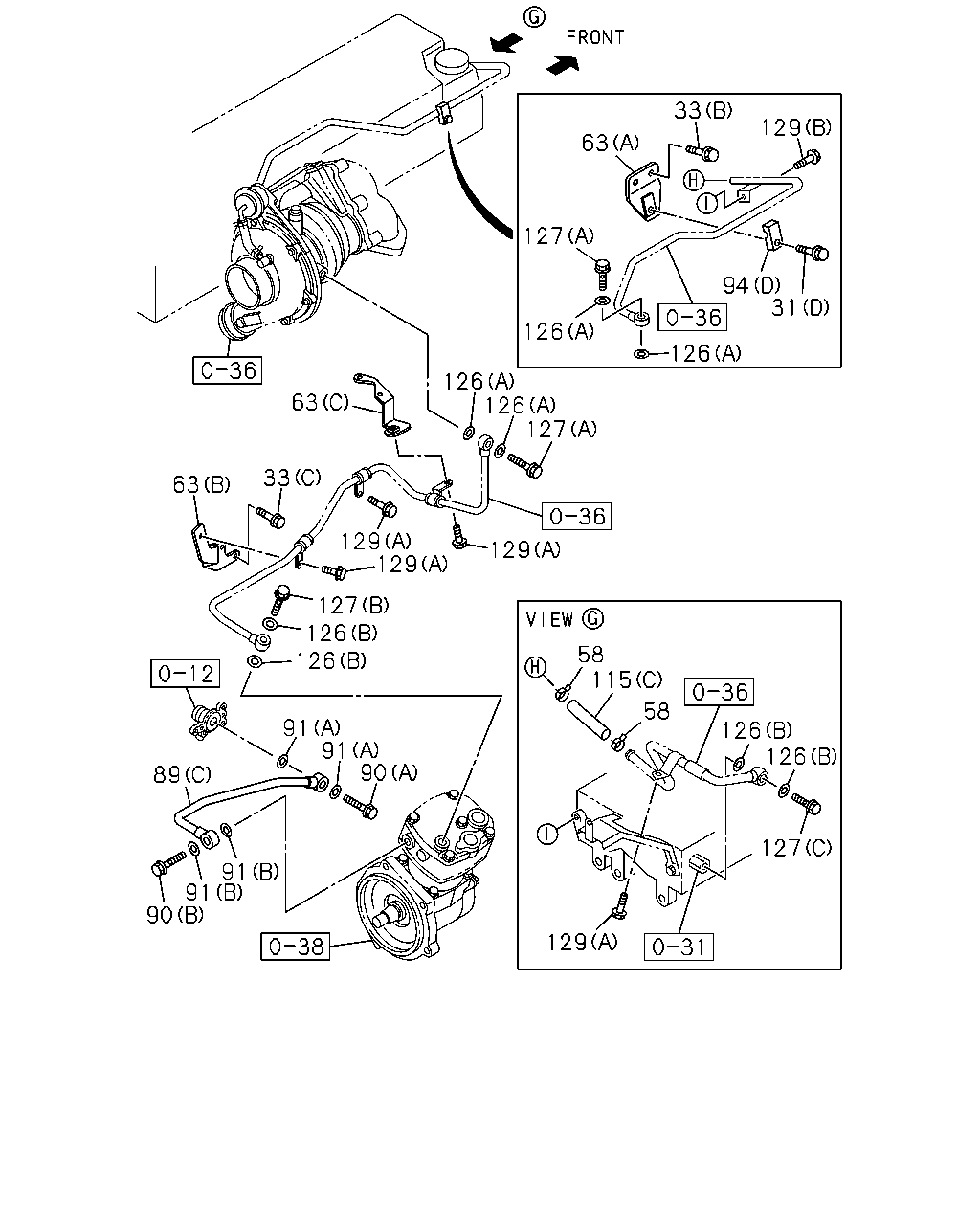

çizim 449379
33 63 129 94 31 126 126 127 126 126 127 63 33 63 129 129 127 126 126 129 58 115 58 126 126 127 129 90 91 91 89 91 91 90
BalonParca AdiParca NoAdetTipApplied Date A B
31 BOLT; CLIP
(A) M8X40 FLANGE THA 		0-28050-840-0 02 1 1410- ●
31 BOLT; CLIP
(C) M6X45 FLANGE THA 		0-28050-645-0 01 1 1410- ●
31 BOLT; CLIP
(D) M6X35 FLANGE THA 		0-28650-635-0 01 1 1410- ●
31 BOLT; CLIP
(B) M6X40 FLANGE THA 		0-28650-640-0 01 1 1410- ●
33 BOLT; BRKT
(A) M6X10 FLANGE THA 		0-28050-610-0 02 1 1410- ●
33 BOLT; BRKT
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
33 BOLT; BRKT
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410- ●
33 BOLT; BRKT
(D) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ●
58 CLIP; RUBBER HOSE
ID=16 THA 		8-94392-924-0 02 1 1410- ●
63 BRACKET; WATER PIPE
(A) THA 		8-94392-951-0 01 1 1410- ●
63 BRACKET; WATER PIPE
(C) THA 		8-98074-252-0 01 1 1410- ●
63 BRACKET; WATER PIPE
(B) THA 		8-98074-253-0 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(A) THA 		8-97358-699-0 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(B) THA 		8-97376-783-1 01 1 1410- ●
89 PIPE; WATER,AIR CMPR,IN
(C) THA 		8-97611-095-0 01 1 1410- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 02 1 1410- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 01 1 1410- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 THA 		8-94383-489-0 01 1 1410- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 04 1 1410- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 THA 		1-09630-086-0 02 1 1410- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 02 1 1410- ●
94 CLIP; WATER PIPE
(B) THA 		1-09701-180-0 01 1 1410- ●
94 CLIP; WATER PIPE
(A) ID=10 & 10 L=25 THA 		8-94393-280-3 01 1 1410- ●
94 CLIP; WATER PIPE
(D) THA 		8-94396-860-0 01 1 1410- ●
94 CLIP; WATER PIPE
(C) THA 		8-97605-129-1 04 1 1410- ●
115 HOSE; RUBBER
(A) L=130 SERVICED BY L=3000 THA 		0-03559-300-0 01 1 1410- ●
115 HOSE; RUBBER
(B) THA 		8-98009-361-0 01 1 1410- ●
115 HOSE; RUBBER
(C) L=60 SERVICED BY L=3000 THA 		0-03561-300-0 01 1 1410- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 THA 		1-09630-086-0 04 1 1410- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 THA 		8-98251-345-0 04 1 1410- ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT THA 		1-09675-193-0 02 1 1410- ●
127 BOLT; EYE
(C) M16X25 THA 		5-09675-028-2 01 1 1410- ●
127 BOLT; EYE
(B) M16X28 THA 		8-94383-489-0 01 1 1410- ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE THA 		0-28151-220-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
